Wear Resistance Vane Pump Bushing Bimetal Bearing Heat Dissipation Characteristic

Wear Resistance Vane Pump Bushing Bimetal Bearing Heat Dissipation Characteristic

Brand Name: VIIPLUS
Model Number: Wrapped sliding bearing
MOQ: 100 Piece/Pieces (Min. Order)
Price: self-lubricating bronze bushing china factory price
Payment Terms: TT IN ADVANCE
Supply Ability: Bushings Metric Sizes,Pump Bushings Suppliers
Detail Information
Place of Origin:
MADE IN CHINA
Certification:
DIN 1494/ISO 3547
Meterial:
Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10)
Plating:
Tin Plating, Cooper Plating
Type:
Bushes,Wrapped Bushes With Flange,Strips
Application:
Vane Pump
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
Self-lubricating Bearing Supplier:
Https://www.bronzeoilless.com/
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
Export standard packing
Supply Ability:
Bushings Metric Sizes,Pump Bushings Suppliers
Highlight:

oil filled bronze bearing

,

metric bronze flanged sleeve bearings

Product Description

The wear resistance vane pump bushing, specifically the bimetal bearing, exhibits unique heat dissipation characteristics that are crucial for its performance and durability. The bimetal design combines two different metals, each with its own set of properties that contribute to the overall heat dissipation characteristics.

One of the key factors in the heat dissipation of bimetal bearings is the choice of materials. The outer layer, often made of a harder and more wear-resistant material, acts as a protective barrier against wear and abrasion. The inner layer, typically a softer metal with better thermal conductivity, efficiently dissipates heat generated during operation.

The heat dissipation characteristic of the bimetal bearing is further enhanced by its structural design. The vane pump bushing is designed to allow for effective heat transfer from the bearing surface to the surrounding fluid or lubricant. This helps to maintain the bearing temperature within an optimal range, preventing excessive heat build-up that can lead to premature failure.

In addition, the geometry of the vane pump bushing and its interaction with the rotating vane also plays a role in heat dissipation. The precision fit between the bearing and the vane ensures minimal friction and heat generation during operation. This further enhances the heat dissipation characteristic of the bimetal bearing.

Overall, the wear resistance vane pump bushing with its bimetal bearing design exhibits excellent heat dissipation characteristics that contribute to its long-term performance and reliability in demanding applications.



Self-lubricating bearings Pump Bushings VIIPLUS MADE ORDER FROM CHINA materials can be machined to exact sizes, simplifying the pump bushings refurbishment process at minimum cost.



Plain Bearings vane pump hydraulic Bushings Bimetal Bearings Self lubricating beairng|VSB-80

PUMP BUSHINGS



Key Features:  High resistance to abrasive environments,High dimensional stability,High wear resistance ,Increases Pump Life,Corrosion-free ,Self-lubricating



Bimetal Bearings & Bushings Made in China



VIIPLUS is one of China supplier of Bushings, Bimetal Bearings ,Thrust Washers, Bronze Bushings and Bimetallic Strips.

Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors



Typical Applications



Throat Bushings  Lineshaft Bushings  Bowl Bushings  Thrust Discs

 Motor Bushes  Wear Rings  Neck Rings  Impeller Rings



hydraulic system application

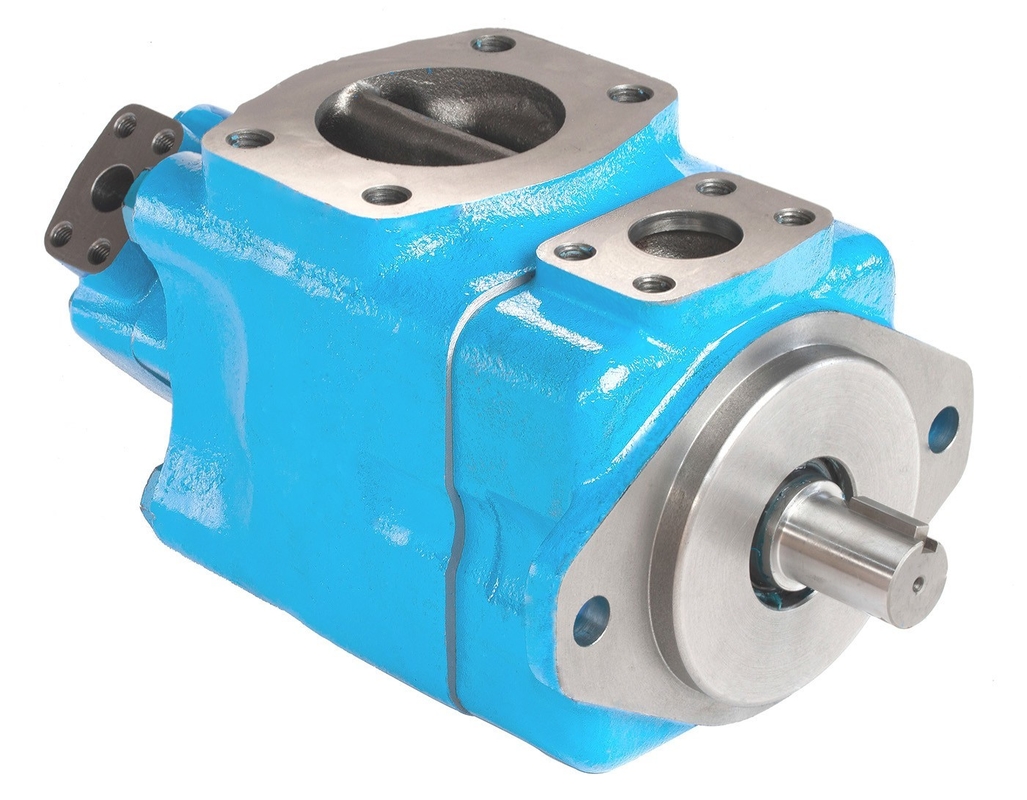

For vane pump hydraulic Bushings

viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.





Wear Resistance Vane Pump Bushing Bimetal Bearing Heat Dissipation Characteristic 0







Characteristics

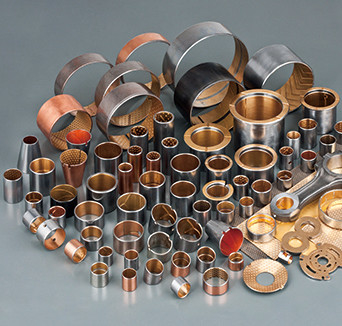

VSB-80 Bimetallic composite bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
· Bimetal bearing with steel backing and bronze overlay
· Particularly suitable for high specific loads with oscillating motion and low frequency
· Applicable in rough operation conditions
· High load capacity, very good resistance to fatigue strength at higher temperatures


Wear Resistance Vane Pump Bushing Bimetal Bearing Heat Dissipation Characteristic 1



Strusture




1.Sintered bronze lazer: God wear resistance and excellent load carrying capacity.

2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



Technical Data


Structure And Composition



Steel Backing and Leaded Bronze Overlay
Steel + CuPb10Sn10 with indents


Microsection



Wear Resistance Vane Pump Bushing Bimetal Bearing Heat Dissipation Characteristic 2

Sliding layer with
lubrication indents
CuPb10Sn10 with
composition approx.:
Cu 80 %
Pb 10 %
Sn 10 %
Steel backing




OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor



Tech. Data




Alloy Chemical Compositions



Content

Cu

Pb

Sn

Zn

P

Fe

Ni

Sb

Others

Remainder

9-11

9-11

0.5

0.1

0.7

0.5

0.2

0.5



Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
Bearing forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs


SIZE
