| Brand Name: | BRAND CHINA REPLACMENT BRONZE BUSHING 500 GUIDE BUSHINGS |
| Model Number: | Bronze Graphite plug Bushings met the tolerances |
| MOQ: | 300 Piece/Pieces (Min. Order) |
| Price: | $0.10 - $3.00 / Pieces |
| Payment Terms: | TT IN ADVANCE,L/C,Western Union |
| Supply Ability: | CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |
The CuZn25Al5Mn4Fe3 material JDB Oil-free Bushing, based on the standard, is a high-performance bushing designed for lubrication-free operations. This material composition offers excellent wear resistance, corrosion resistance, and mechanical strength, ensuring reliable and long-lasting performance.
The JDB bushing, with its oil-free design, eliminates the need for regular lubrication, reducing maintenance costs and operational downtime. This feature also makes it suitable for use in environments where lubricant contamination is a concern.
Adhering to the standard ensures that the bushing meets rigorous quality and performance requirements. The standard specifies precise manufacturing processes and material specifications, ensuring consistent and reliable quality across all products.
Wh used in motors, pumps, compressors, or other rotating machinery, the CuZn25Al5Mn4Fe3 material JDB Oil-free Bushing based on the standard offers a robust and dependable solution for lubrication-free applications. Its high performance and durability make it a trusted choice for maintaining smooth and efficient operations in various industrial settings.
Solid self-lubricating bearing bronze bushings is made of centrifugal casting high strength alloy brass substrate, have the effect of bearing load, with special formula with good self-lubricating properties of graphite lubricant, self lubricating effect, so it's a combination of their respective advantages, even in high load, low speed, can produce superior performance.
Non-standard bearings Metric units C86300 BRONZE BUSHINGS & PLATE
The VIIPLUS CHINA SLIDING BEARING can make Bronze Sleeve Bushing, Flanged Bearing,Washer, skateboard, half Bushing and other products according to customers' choice of China, Germany, Japan, the United States and other countries.According to customer requirements in its inner and outer wall processing of various oil groove & oil hole, can also figure processing.
Solid Lubricant Sliding Bearings & Plug Graphite Bushings Self-Lubricating Bushings & Gleitlager,Characteristic
VSB-50 Solid Bronze Metallic Self-lubricating Bearings

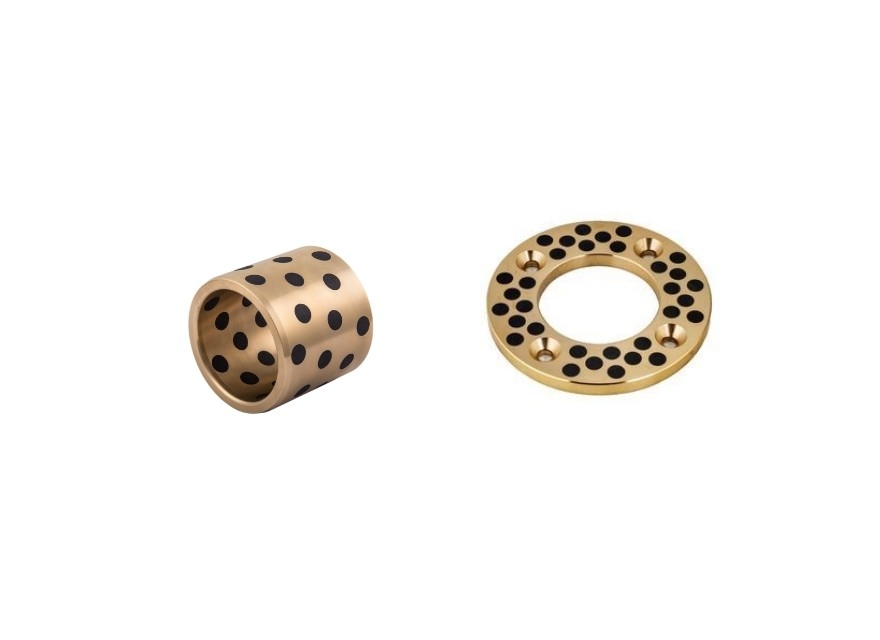

Cast Bronze Bearing with Graphite Plugs
CuZn25AI5Mn4Fe3
Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Solid Lubricant Casting Aluminum Bronze Bearings Bushings
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
|
d
|
D
|
IDF7
|
ODm6
|
L-0.10
-0.30 |
|||||||||||||||
|
8
|
10
|
12
|
15
|
16
|
20
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
||||||
|
8
|
12
|
8
|
+0.028
+0.013 |
12
|
+0.018
+0.007 |
081208
|
081210
|
081212
|
081215
|
|
|
|
|
|
|
|
|
|
|
|
10
|
14
|
10
|
14
|
101408
|
101410
|
101412
|
101415
|
|
101420
|
|
|
|
|
|
|
|
|
||
|
12
|
18
|
12
|
+0.034
+0.016 |
18
|
|
121810
|
121812
|
121815
|
121816
|
121820
|
121825
|
121830
|
|
|
|
|
|
|
|
|
13
|
19
|
13
|
19
|
+0.021
+0.008 |
|
131910
|
|
131915
|
131916
|
|
|
|
|
|
|
|
|
|
|
|
14
|
20
|
14
|
20
|
|
142010
|
142012
|
142015
|
|
142020
|
142025
|
142030
|
|
|
|
|
|
|
||
|
15
|
21
|
15
|
21
|
|
152110
|
152112
|
152115
|
152116
|
152120
|
152125
|
152130
|
|
|
|
|
|
|
||
|
16
|
22
|
16
|
22
|
|
162210
|
162212
|
162215
|
162216
|
162220
|
162225
|
162230
|
162235
|
162240
|
|
|
|
|
||
|
18
|
24
|
18
|
24
|
|
|
182412
|
182415
|
182416
|
182420
|
182425
|
182430
|
182435
|
182440
|
|
|
|
|
||
|
20
|
28
|
20
|
+0.041
+0.020 |
28
|
|
202810
|
202812
|
202815
|
202816
|
202820
|
202825
|
202830
|
202835
|
202840
|
202850
|
|
|
|
|
|
22
|
32
|
22
|
32
|
+0.025
+0.009 |
|
|
223212
|
223215
|
|
223220
|
223225
|
|
|
|
|
|
|
|
|
|
25
|
33
|
25
|
33
|
|
|
253312
|
253315
|
253316
|
253320
|
253325
|
253330
|
253335
|
253340
|
253350
|
253360
|
|
|
||
|
30
|
38
|
30
|
38
|
|
|
303812
|
303815
|
|
303820
|
303825
|
303830
|
303835
|
303840
|
303850
|
303860
|
|
|
||
|
35
|
45
|
35
|
+0.050
+0.025 |
45
|
|
|
|
|
|
354520
|
354525
|
354530
|
354535
|
354540
|
354550
|
354560
|
|
|
|
|
40
|
50
|
40
|
50
|
|
|
|
|
|
405020
|
405025
|
405030
|
405035
|
405040
|
405050
|
405060
|
405070
|
405080
|
||
|
45
|
55
|
45
|
55
|
+0.030
+0.011 |
|
|
|
|
|
|
|
455530
|
455535
|
455540
|
455550
|
455560
|
|
|
|
|
50
|
60
|
50
|
60
|
|
|
|
|
|
|
|
506030
|
506035
|
506040
|
506050
|
506060
|
506070
|
506080
|
||
|
d
|
D
|
IDF7
|
ODm6
|
L-0.10
-0.30 |
|||||||||||||
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
100
|
120
|
130
|
140
|
150
|
||||||
|
50
|
62
|
50
|
+0.050
+0.025 |
62
|
+0.030
+0.011 |
506230
|
506235
|
506240
|
506250
|
506260
|
506270
|
|
|
|
|
|
|
|
50
|
65
|
50
|
65
|
206530
|
|
506540
|
506550
|
506560
|
506570
|
506580
|
5065100
|
|
|
|
|
||
|
55
|
70
|
55
|
+0.060
+0.030 |
70
|
|
|
557040
|
557050
|
557060
|
557070
|
|
|
|
|
|
|
|
|
60
|
74
|
60
|
74
|
607430
|
607435
|
607440
|
607450
|
607460
|
607470
|
607480
|
|
|
|
|
|
||
|
60
|
75
|
60
|
75
|
607530
|
607535
|
607540
|
607550
|
607560
|
607570
|
607580
|
6075100
|
|
|
|
|
||
|
63
|
75
|
63
|
75
|
|
|
|
|
637560
|
637570
|
637580
|
|
|
|
|
|
||
|
65
|
80
|
65
|
80
|
|
|
|
658050
|
658060
|
658070
|
658080
|
|
|
|
|
|
||
|
70
|
85
|
70
|
85
|
+0.035
+0.013 |
|
708535
|
708540
|
708550
|
708560
|
708570
|
708580
|
7085100
|
|
|
|
|
|
|
70
|
90
|
70
|
90
|
|
|
|
709050
|
709060
|
709070
|
709080
|
|
|
|
|
|
||
|
75
|
90
|
75
|
90
|
|
|
|
|
759060
|
759070
|
759080
|
7590100
|
|
|
|
|
||
|
75
|
95
|
75
|
95
|
|
|
|
|
759560
|
759570
|
759580
|
7595100
|
|
|
|
|
||
|
80
|
96
|
80
|
96
|
|
|
809640
|
809650
|
809660
|
809670
|
809680
|
8096100
|
8096120
|
|
|
|
||
|
80
|
100
|
80
|
+0.071
+0.036 |
100
|
|
|
8010040
|
8010050
|
8010060
|
8010070
|
8010080
|
80100100
|
80100120
|
|
80100140
|
|
|
|
90
|
110
|
90
|
110
|
|
|
|
9011050
|
9011060
|
9011070
|
9011080
|
90110100
|
90110120
|
|
|
|
||
|
100
|
120
|
100
|
120
|
|
|
|
|
10012060
|
10012070
|
10012080
|
100120100
|
100120120
|
|
100120140
|
|
||
|
110
|
130
|
110
|
130
|
+0.040
+0.015 |
|
|
|
|
|
|
11013080
|
110130100
|
110130120
|
|
|
|
|
|
120
|
140
|
120
|
140
|
|
|
|
|
|
|
12014080
|
120140100
|
120140120
|
|
120140140
|
|
||
|
125
|
145
|
125
|
+0.083
+0.043 |
145
|
|
|
|
|
|
|
|
125145100
|
125145120
|
|
|
|
|
|
130
|
150
|
130
|
150
|
|
|
|
|
|
|
|
130150100
|
|
130150130
|
|
|
||
|
140
|
160
|
140
|
160
|
|
|
|
|
|
|
|
140160100
|
|
|
140160140
|
|
||
|
150
|
170
|
150
|
170
|
|
|
|
|
|
|
|
150170100
|
|
|
|
150160140
|
||
|
160
|
180
|
160
|
180
|
|
|
|
|
|
|
|
160180100
|
|
|
|
160180150
|
||
|
Product NO. |
Chemical Compositions |
||||||||
|
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Maintenance free bearing and guide bushes, bronze with solid lubricant
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB081208 | SOB 8-12-8 | 8 | 12 | 8 | ||
| JDB061012 | SOB 6-10-12 | 6 | 10 | 12 | ||
| JDB081210 | SOB 8-12-10 | 8 | 12 | 10 | ||
| JDB081212 | SOB 8-12-12 | 8 | 12 | 12 | ||
| JDB081215 | SOB 8-12-15 | 8 | 12 | 15 | ||
| JDB101408 | SOB 10-14-8 | 10 | 14 | 8 | ||
| JDB101410 | SOB 10-14-10 | 10 | 14 | 10 | ||
| JDB101412 | SOB 10-14-12 | 10 | 14 | 12 | ||
| JDB101415 | SOB 10-14-15 | 10 | 14 | 15 | ||
| JDB101420 | SOB 10-14-20 | 10 | 14 | 20 | ||
| JDB101510 | SOB 10-15-10 | 10 | 15 | 10 | ||
| JDB121808 | SOB 12-18-8 | 12 | 18 | 8 | ||
| JDB121810 | SOB 12-18-10 | 12 | 18 | 10 | ||
| JDB121812 | SOB 12-18-12 | 12 | 18 | 12 | ||
| JDB121815 | SOB 12-18-15 | 12 | 18 | 15 | ||
| JDB121816 | SOB 12-18-16 | 12 | 18 | 16 | ||
| JDB121819 | SOB 12-18-19 | 12 | 18 | 19 | ||
| JDB121820 | SOB 12-18-20 | 12 | 18 | 20 | ||
| JDB121825 | SOB 12-18-25 | 12 | 18 | 25 | ||
| JDB121830 | SOB 12-18-30 | 12 | 18 | 30 | ||
| JDB131910 | SOB 13-19-10 | 13 | 19 | 10 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB131912 | SOB 13-19-12 | 13 | 19 | 12 | ||
| JDB131915 | SOB 13-19-15 | 13 | 19 | 15 | ||
| JDB131916 | SOB 13-19-16 | 13 | 19 | 16 | ||
| JDB131920 | SOB 13-19-20 | 13 | 19 | 20 | ||
| JDB131925 | SOB 13-19-25 | 13 | 19 | 25 | ||
| JDB142010 | SOB 14-20-10 | 14 | 20 | 10 | ||
| JDB142012 | SOB 14-20-12 | 14 | 20 | 12 | ||
| JDB142015 | SOB 14-20-15 | 14 | 20 | 15 | ||
| JDB142020 | SOB 14-20-20 | 14 | 20 | 20 | ||
| JDB142025 | SOB 14-20-25 | 14 | 20 | 25 | ||
| JDB142030 | SOB 14-20-30 | 14 | 20 | 30 | ||
| JDB152110 | SOB 15-21-10 | 15 | 21 | 10 | ||
| JDB152112 | SOB 15-21-12 | 15 | 21 | 12 | ||
| JDB152115 | SOB 15-21-15 | 15 | 21 | 15 | ||
| JDB152116 | SOB 15-21-16 | 15 | 21 | 16 | ||
| JDB152120 | SOB 15-21-20 | 15 | 21 | 20 | ||
| JDB152125 | SOB 15-21-25 | 15 | 21 | 25 | ||
| JDB152130 | SOB 15-21-30 | 15 | 21 | 30 | ||
| JDB162210 | SOB 16-22-10 | 16 | 22 | 10 | ||
| JDB162212 | SOB 16-22-12 | 16 | 22 | 12 | ||
| JDB162215 | SOB 16-22-15 | 16 | 22 | 15 | ||
| JDB162216 | SOB 16-22-16 | 16 | 22 | 16 | ||
| JDB162219 | SOB 16-22-19 | 16 | 22 | 19 | ||
| JDB162220 | SOB 16-22-20 | 16 | 22 | 20 | ||
| JDB162225 | SOB 16-22-25 | 16 | 22 | 25 | ||
| JDB162230 | SOB 16-22-30 | 16 | 22 | 30 | ||
| JDB162235 | SOB 16-22-35 | 16 | 22 | 35 | ||
| JDB162240 | SOB 16-22-40 | 16 | 22 | 40 | ||
| JDB172315 | SOB 17-23-15 | 17 | 23 | 15 | ||
| JDB182410 | SOB 18-24-10 | 18 | 24 | 10 | ||
| JDB182412 | SOB 18-24-12 | 18 | 24 | 12 | ||
| JDB182415 | SOB 18-24-15 | 18 | 24 | 15 | ||
| JDB182416 | SOB 18-24-16 | 18 | 24 | 16 | ||
| JDB182420 | SOB 18-24-20 | 18 | 24 | 20 | ||
| JDB182425 | SOB 18-24-25 | 18 | 24 | 25 | ||
| JDB182430 | SOB 18-24-30 | 18 | 24 | 30 | ||
| JDB182435 | SOB 18-24-35 | 18 | 24 | 35 | ||
| JDB182440 | SOB 18-24-40 | 18 | 24 | 40 | ||
| JDB192615 | SOB 19-26-15 | 19 | 26 | 15 | ||
| JDB192620 | SOB 19-26-20 | 19 | 26 | 20 | ||
| JDB202810 | SOB 20-28-10 | 20 | 28 | 10 | ||
| JDB202812 | SOB 20-28-12 | 20 | 28 | 12 | ||
| JDB202815 | SOB 20-28-15 | 20 | 28 | 15 | ||
| JDB202816 | SOB 20-28-16 | 20 | 28 | 16 | ||
| JDB202819 | SOB 20-28-19 | 20 | 28 | 19 | ||
| JDB202820 | SOB 20-28-20 | 20 | 28 | 20 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB202825 | SOB 20-28-25 | 20 | 28 | 25 | ||
| JDB202830 | SOB 20-28-30 | 20 | 28 | 30 | ||
| JDB202835 | SOB 20-28-35 | 20 | 28 | 35 | ||
| JDB202840 | SOB 20-28-40 | 20 | 28 | 40 | ||
| JDB202850 | SOB 20-28-50 | 20 | 28 | 50 | ||
| JDB203010 | SOB 20-30-10 | 20 | 30 | 10 | ||
| JDB203012 | SOB 20-30-12 | 20 | 30 | 12 | ||
| JDB203015 | SOB 20-30-15 | 20 | 30 | 15 | ||
| JDB203016 | SOB 20-30-16 | 20 | 30 | 16 | ||
| JDB203020 | SOB 20-30-20 | 20 | 30 | 20 | ||
| JDB203025 | SOB 20-30-25 | 20 | 30 | 25 | ||
| JDB203030 | SOB 20-30-30 | 20 | 30 | 30 | ||
| JDB203035 | SOB 20-30-35 | 20 | 30 | 35 | ||
| JDB203040 | SOB 20-30-40 | 20 | 30 | 40 | ||
| JDB203070 | SOB 20-30-70 | 20 | 30 | 70 | ||
| JDB223212 | SOB 22-32-12 | 22 | 32 | 12 | ||
| JDB223215 | SOB 22-32-15 | 22 | 32 | 15 | ||
| JDB223220 | SOB 22-32-20 | 22 | 32 | 20 | ||
| JDB223225 | SOB 22-32-25 | 22 | 32 | 25 | ||
| JDB253312 | SOB 25-33-12 | 25 | 33 | 12 | ||
| JDB253315 | SOB 25-33-15 | 25 | 33 | 15 | ||
| JDB253316 | SOB 25-33-16 | 25 | 33 | 16 | ||
| JDB253320 | SOB 25-33-20 | 25 | 33 | 20 | ||
| JDB253325 | SOB 25-33-25 | 25 | 33 | 25 | ||
| JDB253330 | SOB 25-33-30 | 25 | 33 | 30 | ||
| JDB253335 | SOB 25-33-35 | 25 | 33 | 35 | ||
| JDB253340 | SOB 25-33-40 | 25 | 33 | 40 | ||
| JDB253350 | SOB 25-33-50 | 25 | 33 | 50 | ||
| JDB253360 | SOB 25-33-60 | 25 | 33 | 60 | ||
| JDB253512 | SOB 25-35-12 | 25 | 35 | 12 | ||
| JDB253515 | SOB 25-35-15 | 25 | 35 | 15 | ||
| JDB253516 | SOB 25-35-16 | 25 | 35 | 16 | ||
| JDB253520 | SOB 25-35-20 | 25 | 35 | 20 | ||
| JDB253525 | SOB 25-35-25 | 25 | 35 | 25 | ||
| JDB253530 | SOB 25-35-30 | 25 | 35 | 30 | ||
| JDB253535 | SOB 25-35-35 | 25 | 35 | 35 | ||
| JDB253540 | SOB 25-35-40 | 25 | 35 | 40 | ||
| JDB253550 | SOB 25-35-50 | 25 | 35 | 50 | ||
| JDB283820 | SOB 28-38-20 | 28 | 38 | 20 | ||
| JDB283825 | SOB 28-38-25 | 28 | 38 | 25 | ||
| JDB283830 | SOB 28-38-30 | 28 | 38 | 30 | ||
| JDB283840 | SOB 28-38-40 | 28 | 38 | 40 | ||
| JDB303812 | SOB 30-38-12 | 30 | 38 | 12 | ||
| JDB303815 | SOB 30-38-15 | 30 | 38 | 15 | ||
| JDB303820 | SOB 30-38-20 | 30 | 38 | 20 | ||
| JDB303825 | SOB 30-38-25 | 30 | 38 | 25 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB303830 | SOB 30-38-30 | 30 | 38 | 30 | ||
| JDB303835 | SOB 30-38-35 | 30 | 38 | 35 | ||
| JDB303840 | SOB 30-38-40 | 30 | 38 | 40 | ||
| JDB303850 | SOB 30-38-50 | 30 | 38 | 50 | ||
| JDB303860 | SOB 30-38-60 | 30 | 38 | 60 | ||
| JDB304012 | SOB 30-40-12 | 30 | 40 | 12 | ||
| JDB304015 | SOB 30-40-15 | 30 | 40 | 15 | ||
| JDB304020 | SOB 30-40-20 | 30 | 40 | 20 | ||
| JDB304025 | SOB 30-40-25 | 30 | 40 | 25 | ||
| JDB304030 | SOB 30-40-30 | 30 | 40 | 30 | ||
| JDB304035 | SOB 30-40-35 | 30 | 40 | 35 | ||
| JDB304040 | SOB 30-40-40 | 30 | 40 | 40 | ||
| JDB304050 | SOB 30-40-50 | 30 | 40 | 50 | ||
| JDB304060 | SOB 30-40-60 | 30 | 40 | 60 | ||
| JDB3,154030 | SOB 31,5-40-30 | 3,15 | 40 | 30 | ||
| JDB3,154040 | SOB 31,5-40-40 | 3,15 | 40 | 40 | ||
| JDB324215 | SOB 32-42-15 | 32 | 42 | 15 | ||
| JDB324220 | SOB 32-42-20 | 32 | 42 | 20 | ||
| JDB324230 | SOB 32-42-30 | 32 | 42 | 30 | ||
| JDB324240 | SOB 32-42-40 | 32 | 42 | 40 | ||
| JDB354420 | SOB 35-44-20 | 35 | 44 | 20 | ||
| JDB354425 | SOB 35-44-25 | 35 | 44 | 25 | ||
| JDB354430 | SOB 35-44-30 | 35 | 44 | 30 | ||
| JDB354435 | SOB 35-44-35 | 35 | 44 | 35 | ||
| JDB354440 | SOB 35-44-40 | 35 | 44 | 40 | ||
| JDB354450 | SOB 35-44-50 | 35 | 44 | 50 | ||
| JDB354460 | SOB 35-44-60 | 35 | 44 | 60 | ||
| JDB354515 | SOB 35-45-15 | 35 | 45 | 15 | ||
| JDB354520 | SOB 35-45-20 | 35 | 45 | 20 | ||
| JDB354525 | SOB 35-45-25 | 35 | 45 | 25 | ||
| JDB354530 | SOB 35-45-30 | 35 | 45 | 30 | ||
| JDB354535 | SOB 35-45-35 | 35 | 45 | 35 | ||
| JDB354540 | SOB 35-45-40 | 35 | 45 | 40 | ||
| JDB354550 | SOB 35-45-50 | 35 | 45 | 50 | ||
| JDB354560 | SOB 35-45-60 | 35 | 45 | 60 | ||
| JDB384830 | SOB 38-48-30 | 38 | 48 | 30 | ||
| JDB384840 | SOB 38-48-40 | 38 | 48 | 40 | ||
| JDB405015 | SOB 40-50-15 | 40 | 50 | 15 | ||
| JDB405020 | SOB 40-50-20 | 40 | 50 | 20 | ||
| JDB405025 | SOB 40-50-25 | 40 | 50 | 25 | ||
| JDB405030 | SOB 40-50-30 | 40 | 50 | 30 | ||
| JDB405035 | SOB 40-50-35 | 40 | 50 | 35 | ||
| JDB405040 | SOB 40-50-40 | 40 | 50 | 40 | ||
| JDB405050 | SOB 40-50-50 | 40 | 50 | 50 | ||
| JDB405060 | SOB 40-50-60 | 40 | 50 | 60 | ||
| JDB405070 | SOB 40-50-70 | 40 | 50 | 70 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB405080 | SOB 40-50-80 | 40 | 50 | 80 | ||
| JDB405515 | SOB 40-55-15 | 40 | 55 | 15 | ||
| JDB405525 | SOB 40-55-25 | 40 | 55 | 25 | ||
| JDB405530 | SOB 40-55-30 | 40 | 55 | 30 | ||
| JDB405535 | SOB 40-55-35 | 40 | 55 | 35 | ||
| JDB405540 | SOB 40-55-40 | 40 | 55 | 40 | ||
| JDB405550 | SOB 40-55-50 | 40 | 55 | 50 | ||
| JDB405560 | SOB 40-55-60 | 40 | 55 | 60 | ||
| JDB455530 | SOB 45-55-30 | 45 | 55 | 30 | ||
| JDB455535 | SOB 45-55-35 | 45 | 55 | 35 | ||
| JDB455540 | SOB 45-55-40 | 45 | 55 | 40 | ||
| JDB455550 | SOB 45-55-50 | 45 | 55 | 50 | ||
| JDB455560 | SOB 45-55-60 | 45 | 55 | 60 | ||
| JDB455630 | SOB 45-56-30 | 45 | 56 | 30 | ||
| JDB455635 | SOB 45-56-35 | 45 | 56 | 35 | ||
| JDB455640 | SOB 45-56-40 | 45 | 56 | 40 | ||
| JDB455650 | SOB 45-56-50 | 45 | 56 | 50 | ||
| JDB455660 | SOB 45-56-60 | 45 | 56 | 60 | ||
| JDB456030 | SOB 45-60-30 | 45 | 60 | 30 | ||
| JDB456035 | SOB 45-60-35 | 45 | 60 | 35 | ||
| JDB456040 | SOB 45-60-40 | 45 | 60 | 40 | ||
| JDB456050 | SOB 45-60-50 | 45 | 60 | 50 | ||
| JDB456060 | SOB 45-60-60 | 45 | 60 | 60 | ||
| JDB456070 | SOB 45-60-70 | 45 | 60 | 70 | ||
| JDB456080 | SOB 45-60-80 | 45 | 60 | 80 | ||
| JDB506020 | SOB 50-60-20 | 50 | 60 | 20 | ||
| JDB506025 | SOB 50-60-25 | 50 | 60 | 25 | ||
| JDB506030 | SOB 50-60-30 | 50 | 60 | 30 | ||
| JDB506035 | SOB 50-60-35 | 50 | 60 | 35 | ||
| JDB506040 | SOB 50-60-40 | 50 | 60 | 40 | ||
| JDB506050 | SOB 50-60-50 | 50 | 60 | 50 | ||
| JDB506060 | SOB 50-60-60 | 50 | 60 | 60 | ||
| JDB506070 | SOB 50-60-70 | 50 | 60 | 70 | ||
| JDB506080 | SOB 50-60-80 | 50 | 60 | 80 | ||
| JDB506230 | SOB 50-62-30 | 50 | 62 | 30 | ||
| JDB506235 | SOB 50-62-35 | 50 | 62 | 35 | ||
| JDB506240 | SOB 50-62-40 | 50 | 62 | 40 | ||
| JDB506250 | SOB 50-62-50 | 50 | 62 | 50 | ||
| JDB506260 | SOB 50-62-60 | 50 | 62 | 60 | ||
| JDB506270 | SOB 50-62-70 | 50 | 62 | 70 | ||
| JDB506280 | SOB 50-62-80 | 50 | 62 | 80 | ||
| JDB506530 | SOB 50-65-30 | 50 | 65 | 30 | ||
| JDB506540 | SOB 50-65-40 | 50 | 65 | 40 | ||
| JDB506550 | SOB 50-65-50 | 50 | 65 | 50 | ||
| JDB506560 | SOB 50-65-60 | 50 | 65 | 60 | ||
| JDB506570 | SOB 50-65-70 | 50 | 65 | 70 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB506580 | SOB 50-65-80 | 50 | 65 | 80 | ||
| JDB5065100 | SOB 50-65-100 | 50 | 65 | 100 | ||
| JDB557030 | SOB 55-70-30 | 55 | 70 | 30 | ||
| JDB557035 | SOB 55-70-35 | 55 | 70 | 35 | ||
| JDB557040 | SOB 55-70-40 | 55 | 70 | 40 | ||
| JDB557050 | SOB 55-70-50 | 55 | 70 | 50 | ||
| JDB557060 | SOB 55-70-60 | 55 | 70 | 60 | ||
| JDB557070 | SOB 55-70-70 | 55 | 70 | 70 | ||
| JDB607430 | SOB 60-74-30 | 60 | 74 | 30 | ||
| JDB607435 | SOB 60-74-35 | 60 | 74 | 35 | ||
| JDB607440 | SOB 60-74-40 | 60 | 74 | 40 | ||
| JDB607450 | SOB 60-74-50 | 60 | 74 | 50 | ||
| JDB607460 | SOB 60-74-60 | 60 | 74 | 60 | ||
| JDB607470 | SOB 60-74-70 | 60 | 74 | 70 | ||
| JDB607480 | SOB 60-74-80 | 60 | 74 | 80 | ||
| JDB6074100 | SOB 60-74-100 | 60 | 74 | 100 | ||
| JDB607530 | SOB 60-75-30 | 60 | 75 | 30 | ||
| JDB607535 | SOB 60-75-35 | 60 | 75 | 35 | ||
| JDB607540 | SOB 60-75-40 | 60 | 75 | 40 | ||
| JDB607550 | SOB 60-75-50 | 60 | 75 | 50 | ||
| JDB607560 | SOB 60-75-60 | 60 | 75 | 60 | ||
| JDB607570 | SOB 60-75-70 | 60 | 75 | 70 | ||
| JDB607580 | SOB 60-75-80 | 60 | 75 | 80 | ||
| JDB6075100 | SOB 60-75-100 | 60 | 75 | 100 | ||
| JDB637560 | SOB 63-75-60 | 63 | 75 | 60 | ||
| JDB637570 | SOB 63-75-70 | 63 | 75 | 70 | ||
| JDB637580 | SOB 63-75-80 | 63 | 75 | 80 | ||
| JDB658040 | SOB 65-80-40 | 65 | 80 | 40 | ||
| JDB658050 | SOB 65-80-50 | 65 | 80 | 50 | ||
| JDB658060 | SOB 65-80-60 | 65 | 80 | 60 | ||
| JDB658070 | SOB 65-80-70 | 65 | 80 | 70 | ||
| JDB658080 | SOB 65-80-80 | 65 | 80 | 80 | ||
| JDB708530 | SOB 70-85-30 | 70 | 85 | 30 | ||
| JDB708535 | SOB 70-85-35 | 70 | 85 | 35 | ||
| JDB708540 | SOB 70-85-40 | 70 | 85 | 40 | ||
| JDB708550 | SOB 70-85-50 | 70 | 85 | 50 | ||
| JDB708560 | SOB 70-85-60 | 70 | 85 | 60 | ||
| JDB708570 | SOB 70-85-70 | 70 | 85 | 70 | ||
| JDB708580 | SOB 70-85-80 | 70 | 85 | 80 | ||
| JDB7085100 | SOB 70-85-100 | 70 | 85 | 100 | ||
| JDB709050 | SOB 70-90-50 | 70 | 90 | 50 | ||
| JDB709060 | SOB 70-90-60 | 70 | 90 | 60 | ||
| JDB709070 | SOB 70-90-70 | 70 | 90 | 70 | ||
| JDB709080 | SOB 70-90-80 | 70 | 90 | 80 | ||
| JDB7090100 | SOB 70-90-100 | 70 | 90 | 100 | ||
| JDB759050 | SOB 75-90-50 | 75 | 90 | 50 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB759060 | SOB 75-90-60 | 75 | 90 | 60 | ||
| JDB759070 | SOB 75-90-70 | 75 | 90 | 70 | ||
| JDB759080 | SOB 75-90-80 | 75 | 90 | 80 | ||
| JDB7590100 | SOB 75-90-100 | 75 | 90 | 100 | ||
| JDB759560 | SOB 75-95-60 | 75 | 95 | 60 | ||
| JDB759570 | SOB 75-95-70 | 75 | 95 | 70 | ||
| JDB759580 | SOB 75-95-80 | 75 | 95 | 80 | ||
| JDB7595100 | SOB 75-95-100 | 75 | 95 | 100 | ||
| JDB809620 | SOB 80-96-20 | 80 | 96 | 20 | ||
| JDB809640 | SOB 80-96-40 | 80 | 96 | 40 | ||
| JDB809650 | SOB 80-96-50 | 80 | 96 | 50 | ||
| JDB809660 | SOB 80-96-60 | 80 | 96 | 60 | ||
| JDB809670 | SOB 80-96-70 | 80 | 96 | 70 | ||
| JDB809680 | SOB 80-96-80 | 80 | 96 | 80 | ||
| JDB8096100 | SOB 80-96-100 | 80 | 96 | 100 | ||
| JDB8096120 | SOB 80-96-120 | 80 | 96 | 120 | ||
| JDB8010040 | SOB 80-100-40 | 80 | 100 | 40 | ||
| JDB8010050 | SOB 80-100-50 | 80 | 100 | 50 | ||
| JDB8010060 | SOB 80-100-60 | 80 | 100 | 60 | ||
| JDB8010070 | SOB 80-100-70 | 80 | 100 | 70 | ||
| JDB8010080 | SOB 80-100-80 | 80 | 100 | 80 | ||
| JDB80100100 | SOB 80-100-100 | 80 | 100 | 100 | ||
| JDB80100120 | SOB 80-100-120 | 80 | 100 | 120 | ||
| JDB80100140 | SOB 80-100-140 | 80 | 100 | 140 | ||
| JDB8510025 | SOB 85-100-25 | 85 | 100 | 25 | ||
| JDB8510060 | SOB 85-100-60 | 85 | 100 | 60 | ||
| JDB8510080 | SOB 85-100-80 | 85 | 100 | 80 | ||
| JDB9011030 | SOB 90-110-30 | 90 | 110 | 30 | ||
| JDB9011050 | SOB 90-110-50 | 90 | 110 | 50 | ||
| JDB9011060 | SOB 90-110-60 | 90 | 110 | 60 | ||
| JDB9011070 | SOB 90-110-70 | 90 | 110 | 70 | ||
| JDB9011080 | SOB 90-110-80 | 90 | 110 | 80 | ||
| JDB9011090 | SOB 90-110-90 | 90 | 110 | 90 | ||
| JDB90110100 | SOB 90-110-100 | 90 | 110 | 100 | ||
| JDB90110120 | SOB 90-110-120 | 90 | 110 | 120 | ||
| JDB100115100 | SOB 100-115-100 | 100 | 115 | 100 | ||
| JDB10012040 | SOB 100-120-40 | 100 | 120 | 40 | ||
| JDB10012050 | SOB 100-120-50 | 100 | 120 | 50 | ||
| JDB10012060 | SOB 100-120-60 | 100 | 120 | 60 | ||
| JDB10012070 | SOB 100-120-70 | 100 | 120 | 70 | ||
| JDB10012080 | SOB 100-120-80 | 100 | 120 | 80 | ||
| JDB10012090 | SOB 100-120-90 | 100 | 120 | 90 | ||
| JDB100120100 | SOB 100-120-100 | 100 | 120 | 100 | ||
| JDB100120120 | SOB 100-120-120 | 100 | 120 | 120 | ||
| JDB100120140 | SOB 100-120-140 | 100 | 120 | 140 | ||
| JDB11013050 | SOB 110-130-50 | 110 | 130 | 50 | ||
| Metric Cylindrical Bushes | ||||||
| Maintenance free bearing and guide bushes, bronze with solid lubricant | ||||||
| ITEM NO | Equivalent Code | Inner Ø d |
Outer Ø D |
Length L |
||
| JDB11013070 | SOB 110-130-70 | 110 | 130 | 70 | ||
| JDB11013080 | SOB 110-130-80 | 110 | 130 | 80 | ||
| JDB110130100 | SOB 110-130-100 | 110 | 130 | 100 | ||
| JDB110130120 | SOB 110-130-120 | 110 | 130 | 120 | ||
| JDB12014070 | SOB 120-140-70 | 120 | 140 | 70 | ||
| JDB12014080 | SOB 120-140-80 | 120 | 140 | 80 | ||
| JDB12014090 | SOB 120-140-90 | 120 | 140 | 90 | ||
| JDB120140100 | SOB 120-140-100 | 120 | 140 | 100 | ||
| JDB120140120 | SOB 120-140-120 | 120 | 140 | 120 | ||
| JDB120140140 | SOB 120-140-140 | 120 | 140 | 140 | ||
| JDB125145100 | SOB 125-145-100 | 125 | 145 | 100 | ||
| JDB125145120 | SOB 125-145-120 | 125 | 145 | 120 | ||
| JDB13015080 | SOB 130-150-80 | 130 | 150 | 80 | ||
| JDB130150100 | SOB 130-150-100 | 130 | 150 | 100 | ||
| JDB130150130 | SOB 130-150-130 | 130 | 150 | 130 | ||
| JDB140160100 | SOB 140-160-100 | 140 | 160 | 100 | ||
| JDB140160140 | SOB 140-160-140 | 140 | 160 | 140 | ||
| JDB150170100 | SOB 150-170-100 | 150 | 170 | 100 | ||
| JDB150170150 | SOB 150-170-150 | 150 | 170 | 150 | ||
| JDB16018080 | SOB 160-180-80 | 160 | 180 | 80 | ||
| JDB160180100 | SOB 160-180-100 | 160 | 180 | 100 | ||
| JDB160180150 | SOB 160-180-150 | 160 | 180 | 150 | ||
| JDB170190100 | SOB 170-190-100 | 170 | 190 | 100 | ||
| JDB170190150 | SOB 170-190-150 | 170 | 190 | 150 | ||
| JDB180200100 | SOB 180-200-100 | 180 | 200 | 100 | ||
| JDB180200150 | SOB 180-200-150 | 180 | 200 | 150 | ||
| JDB190210100 | SOB 190-210-100 | 190 | 210 | 100 | ||
| JDB190210150 | SOB 190-210-150 | 190 | 210 | 150 | ||
| JDB200230150 | SOB 200-230-150 | 200 | 230 | 150 | ||
| JDB200230200 | SOB 200-230-200 | 200 | 230 | 200 | ||
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.
Hydraulic Cylinder Casting Bronze Flange Bearing With Solid Lubricant
• China Bearing Technologies
• Your recognised global partner for sliding bearing applications.
• Working tog to create solutions for the most demanding bearing applications.
START YOUR PROJECT WITH AN APPLICATION ENGINEER
