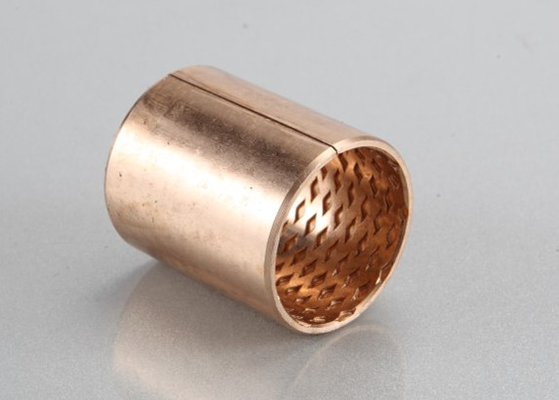

Wrapped Phosphor tin bronze CuSn8/CW453K & CuSn6/CW452K Self Lubricating Plain Bearing , Cylindrical Oilless Bushing

Place of Origin Bronze Bushing Manufacturer
Brand Name CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Certification Bushing Standard Met:MBZ, B09 or MBZ B09
Model Number Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Minimum Order Quantity phosphor bronze bush,tin bronze bearings,brass bushes
Price Precision Tolerance, Factory Price‎
Packaging Details EXPORT CARTONS
Delivery Time 2-3 Weeks
Payment Terms TT IN ADVANCE
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial CuSn8/CW453K & CuSn6/CW452K Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Feature High Load Lubrication Oil Lubrication
Quality OEM Quality Application Agricultural, Building And Engineering Machines, Etc
Bushing Dimensions Standard Bearing Size Bushing Sale FB090 &FB092
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

metric bronze bushings


wrapped bronze bushings

Leave a Message
Product Description

Self Lubricating Plain Bearing, Bronze Bushing | Metric Size

Wrapped bronze bushing is made of tin-bronze CuSn8P


Wide range of wrapped bronze bushing ready in stock. Able to satisfy any request and design need. Download the full Catalog to discover the technical features of wrapped bronze bushings. Products always in stock.

Wrapped bronze bushings


Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.


Wrapped bronze bushings,similar PRM BuSHING &PRMF Flanged Bearings. Excellent in dirty environments due to lubrication pockets, which initially need to be filled with grease;available in metric sizes as straight or flanged bushings.


Bushings Metric (mm)Imperial (inch) Size

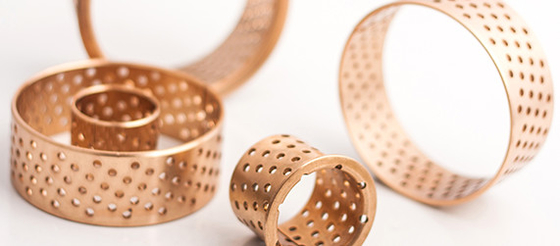

Phosphor tin bronze sliding bearing sleeve bronze with oil holes bushing.Phosphor bronze is characterized as a very pure alloy with extremely low content of impurities. Phosphor blends well with copper making the material hardly reacting on oxygen (oxidation).Phosphor tin bronze bushing is an alloy bearing and bushings with high wear resistance and good mechanical properties. There are Flange drawing of standard size inside diameter and outside diameter height different size and wall thicknesses available in phosphor tin bronze sliding bearings.


Chemical composition (standard Bronze Bushings for CuSn8/CW453K)

Cu Rest
– Sn 7.5-8.5%
– P 0.01-0.04%

Chemical composition (standard Bronze Bearings for CuSn6/CW452K)

– Cu Rest
– Sn 5.5-7.0%
– P 0.01-0.04%


Shapes & forms Bushings ,Flange Bushes.Washer,sliding plates,strips,material.


Mechanical properties (Cu Sn8/CW453K)
Yield strength (Rp N/mm²): >300 N/mm²
Tensile strength (Rm N/mm²): 450-540 N/mm²
Elongation in % A 5: 20-30%
Hardness/Brinell:120-170 HB
(All values = Nominal values)
Density ∼ 8.9
Mating material: Min. surface hardness 300 HB. Rec. surface roughness < 1 Ra

Mechanical properties (Cu Sn6/CW452K)
Yield strength (Rp N/mm²):
Tensile strength (Rm N/mm²):
Elongation in % A 5: 20-30%
Hardness/Brinell (H160): 160-190 HB
(All values = Nominal values)
Density ∼ 8.9
Mating material: Min. surface hardness 300 HB. Rec. surface roughness < 1 Ra

The material is suitable for welding, soldering and brazing.
The material is also suitable for bonding.


wrapped bronze bushings

Wrapped bronze bushings are made entirely from phosphor bronze CuSn8. Wrapped Bronze Bearing 090 bronze wrapped bearings Cylindrical Oilless Bushing Sleeve Bushes manufacturer



Bronze bushing is a kind of wrapped self lubricating bearing.VIIPLUS Series bronze bearing is a kind of bushing wrapped by bronze strip. This type of bronze bearing is made of particular formulation with high specific gravity and its surface can be incorporated with spherical or diamond shaped indentations or oil grooves based on customers’ requirements. It is high load capacity and long life. Compared with traditional cast bronze bushing, it is more cheap and more compact. Series wrapped bronze bushing is widely used in hoisting machines, construction machines, automobiles, trucks, machine tools, mineral equipment and etc.

CuSn8P or CuSn6P tin bronze bearing is an economical bearing with high bearing capacity and good wear resistance.The working surface of the product is covered with regular rhomboid oil holes, which play the role of oil storage and can easily form oil film during initial movement so as to reduce initial friction factors.Mainly used in agricultural machinery, construction machinery and other high-load low-speed occasions



Bronze Bearings made of CuSn8 with Lubrication Indents

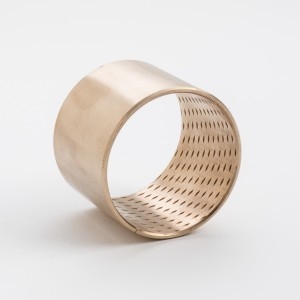

Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)

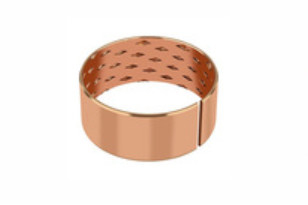

CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

VSB-22 CuSn8P Wrapped Bearings

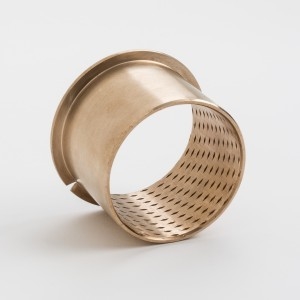

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip
· Bearing material made of solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds
· 1.Easy for fitting and lubricating
· 2.High load capacity
· 3.Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...




The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Structure And Composition

wrapped bronze bushings

Surface can be incorporated with spherical of diamond shaped indentations or oil grooves linear. Particularly suitable for oscillating bearing.

High load capacity and long life.

Cheap than traditional bronze bush, cost saving.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



wrapped bronze bushings

CuSn8 with
Sn 8 %
P < 0.05 %
Cu Rest





Oil lubricated


Grease lubricated


Water lubricated


Process fluid lubricated



Bearing Properties










Coefficient of friction





Thermal conductivity





Coef. of thermal expansion


Tensile strength

Tensile strength






HB 100-150


Product NO.

Chemical Compositions










wrapped bronze bushings



Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Bronze bushing is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.
 Recommended fits

Tolerance shaft     h8
Tolerance housing     H7


Size 090 Bronze wrapped bushing

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance
Specific load capacity static < 120 [N/mm2] Temperature strain - 40 [°C] to + 250 [°C]
Specific load capacity dynamic < 40 [N/mm2]
Sliding speed ≤ 2.5 [m/s] Max. PV-value 2.8 [N/mm² x m/s]
Friction value 0.05 [µ] to 0.12 [µ] depending on lubrication The percentage of contact area on the ID > 75 [%]
Support material CuSn8P (DIN 17662) alternative CuSn6P available
Housing Ø H7 Shaft tolerance f7 to h8
Bushing inner-Ø after mounting H9
Steel, hardened or untempered
Surface roughness ≤ Ra 0.8
Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.
Agriculture machinery, truck cranes & construction machinery, suitable for impact loads
It is a low maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory. The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.
Housing Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment
Shaft Chamfer 5 mm x 15°, for easy insertion of the shaft
We advises to use a force fitting mandrel for the installation of the bushing. It might be necessary to apply some grease on the outer surface of the bushing when press fitting it into the housing.
Gluing Adhesive should not contact the sliding surface!





Bearing Select

The performance of bronze sleeve plain bearings, which also includes bushings, thrust washers as well as strips, depends mainly on the interaction of load, lubrication, surface roughness, sliding velocity, and operating temperature in specific applications.
