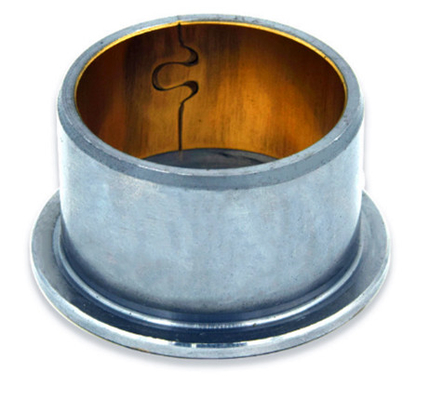

Bimetal Composite Bearings & Spilt Oilless Bushes For Engineering Machinery
|Place of Origin||OILLESS BUSHES|
|Model Number||glacier standard split gap Bushes MET bimetal bearings|
|Minimum Order Quantity||1000 Piece/Pieces (Min. Order)|
|Price||Oilless Bushes Factory Price|
|Packaging Details||STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE|
|Delivery Time||2~4 Weeks|
|Payment Terms||T/T, Western Union|
|Supply Ability||casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing|
|Features||Normal Cylindrical Bushes, Grooves, Oil Holes, Slots, Etc.||Meterial||METALLIC BEARINGS,STEEL,BRONZE|
|Characteristic||Low-maintenance And Maintenance-free Plain Bearings||Size Stock||Standard Size Available,inch Size|

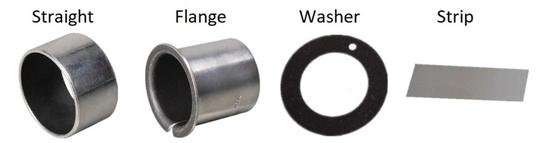

|Type||Sleeve, Sliding, Flanged, Plate, Sleeve And Flanged||Bushing Application||Engineering Machinery,agricultural Machinery|
|Standard||DIN1494, ISO3547, JIS, EN, ISO||Samples||Free Of Standard Size, Free Sampls, Avaliable, Charged Of Non-standar|
|Bearing Bushing Factory Price||Tiffany@viiplus.com||Self-lubricating Bearing Bushing Manufacturer||Https://www.viiplus.com/|
|High Light||Steel Backed Bronze Bushing, Bimetallic Bushes||Bimetallic Bearing Bushing||Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792|
|Bush Bearings Manufacturers Suppliers Exporters||Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/|
oil impregnated bronze bearings,
oil impregnated bearing
Air Seeders Tractors & Harvesters Self-Lubricated Bearings Bimetal Bushes In The Field For Agricultural Use
Exporter of Bushings Farming Industry Self-lubricate Bimetal Bearings Use the Field for Agricultural Use
Agricultural Machinery Sliding Bimetal Bearings In farm tractor kingpin, rocker shaft and hitch assemblies
Bimetal Bushings and Plain Bearings - Click here BIMETAL PLAIN BEARINGSSTANDARD SAE 792 INDENTS CYL...
Overview Download PDF of this information
- Self-lubricate Bushing for substantial savings on maintenance costs
- Endure a harsh and dirty environment without breakdown
- Resist corrosion for longer wear
Bimetal Bushings and Plain Bearings - tolerance control can be achieved by re-machining the assembled bearing.It combines a bi-metallic shell backed with a sintered bronze alloy which is uniformly dispersed with solid lubricants. This bearing layer offers low friction and good performance under limited lubrication. The bimetal series has a steel shell backed with a lead bronze lining material for oil/grease lubricated applications. These bearing structures provide high load capacity with good fatigue properties.
Bi-metallic Composite Bushings Structures
1. Sinter bronze powder: good wear resistance and excellent load carrying capacity.
2. Steel backing: provides exceptionally high load carrying capacity, excellent heat dissipation.
3. Copper plating thickness 0.002mm provides good corrosion resistance.

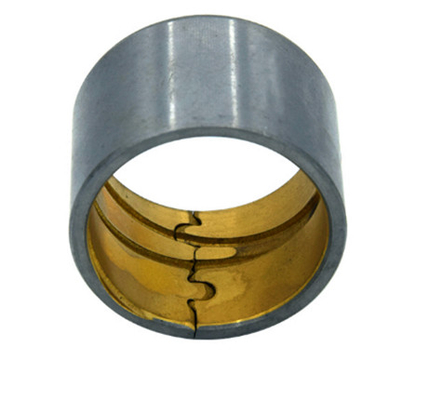

Lock Types for Bi-Metallic Bushings
Agricultural machinery dry bearings | Specialized Bi-Metal Bushings oil holes, grooves
We know in agriculture, timing is everything. Your planting and harvesting schedules must be maintained, and that bushings breakdowns can cost you thousands of dollars in delays. That’s why VIIPLUS CHINA SLIDING BUSHES are built to last and are prized for their ability to:
Bi-METALLIC BEARINGS high-performance metallic bearing materials solve a host of problems that plague sliding parts.
VIIPLUS the plain bearings Industrial Solutions segment includes some of its first.Agri Produce industry sliding bearings, Crop self-lubricating bearings Solutions, and Livestock bushing Solutions – are dedicated to this major industry.These Bi-METALLIC BEARINGS applies to request priority equipments and parts of the simple situations.These bearings are mainly used in agricultural machinery, conveying installations and construction machinery.
This is a bimetal bearing material in which aluminum alloy and copper alloy comprise a two- or three-layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.
Metal Bushing (Lubricated Metal) Self-lubricating Bearing
We are constantly exploring the technical aspects of sliding bearings such as friction, wear, and lubrication in depth, to develop products that anticipate and meet the needs of the times.
Flanged Bushings Wholesale, Flanged Bushings
Self‐lubricated Sliding bearings are exhibiting the ability to transfer a microscopic amount of lubrication film to the mating surface to enhance the machine performance & to reduce friction throughout its operating life, without any added grease or oils and ensuring clean, maintenance free operation in the most challenging environments.
Agricultural Machinery bushings.The most popular components that the self-lubricating bearings could be used are the cylinders, suspension system and the connection joints where the oil or grease is hard to access.The specific maintanance free characteristics of the self-lubricating bearings and the wear resistance feature when used outdoor allow the bearings to be widely applicated in the combine harvestor, planters, Strapping machines, pulverizers and tractors.

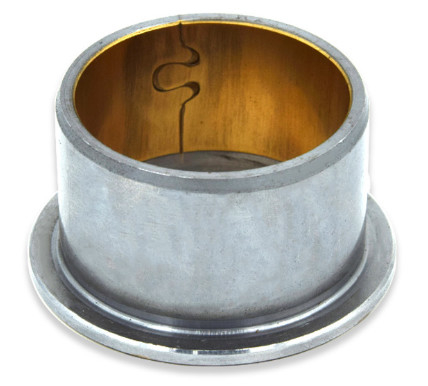

Bimetal Bushing | VSB-80 Friction welding Bimetal Bearing
This bearing is the kind of Flange bush with the steel backing sintered with bronze powder through the friction welding. The surface may be incorporated with various kinds of oil grooves, pockets to meet different necessities of various lubricating conditions.
This product is widely applied in various automobile engines, vehicle hassis, motorcycle clutches, rubbing plate of gear pumps and other hoist machines．
Special designs, special materials
Agricultural machinery dry bearings Specialized BiMetal Bushings
Bronze Sleeve Bearings
Products Sleeve Bearings Plain & Flanged bushings,
Sleeve Bearings & Bar Stock – Graphite Bronze Bushes, Split-Type Bushings, Plain Bearing
VIIPLUS has a great selection of bronze sleeve bearings. Choose from small series, standard series, PTFE lined types. Check out our new split-type sleeve bearings which have a composite liner that consists of a carbon steel backing. Solid or graphite plug bronze bar stock is also available. Place your order today.
Viiplus bearings are mainly used in agricultural machinery, conveying installations andconstruction machinery.
Usually applied to the conditions of lower loading and lower rotation speed, such as bearingsof conveyor, wheels of bicycle, agricultural machinery, packing machine and furniture.
Specialized Bi Metal Sintered Bushings:(Steel backed bronze bushings)
-Sintered / Powder Metal
To visit our Specialized Bushings pages
Hydraulic Pump Bushings Parts
Hydraulic bushing bearing blocks used in high pressure gear pump and motor applications.
Bi Metal Bushing Catalogue
Full details on all our Steel backed Sintered Bronze Bushing
Along with many other types of solid bronze bushing and graphite plug bushings are available here.
If you need more information about our Bi Metal Bushings or would like to discuss how our Steel backed Bronze Bushings can be manufactured to your requirements please contact us.
Self-lubricating Bearings Materials
Steel backed Bronze, PTFE ,Bi-Metal , PTEE, POM, Aluminum, Bronze, Graphite plugged, Stainless Steel 316 and Stainless Steel 304 Bushings.
Self-lubricating Bearings Manufacturing processes
Stamping, Fine Blank, progressive Die, Sintering, Heat Treat, Specialized Grinding and lapping processes, CNC Machining, Friction welding
BRONZE PLAIN SLEEVE BEARINGS (Design Tools)
• Self-Lubricating bearings
• Bushing Technical Data
• Technical Tolerances Resources
Request VIIPLUS Bushing Catalog(s),Request A Quote
Graphite Bronze Bushes, Inch size
BRONZE FLANGED SLEEVE BEARINGS
BRONZE PLUG GRAPHITE BUSHINGS STOCK
SPLIT-TYPE SLEEVE BEARINGS
Plain Bearings, Inch standard size
Plain Bushings, Metric customer size
SPLIT-TYPE SLEEVE BEARINGS
Flange Bushings, Inch customized size
Flange Bearings, Metric stock size
LINED SLEEVE BEARINGS
PlainSelf-Lubricating, Inch,Self-Lubricating, Metric
LINED SLEEVE BEARINGS
Flange,Self-Lubricating, Inch Flange dimensions size
Self-Lubricating, Metric Flange size
Combine harvester. Transplanter Seeder. Cultivator. Dryer. Tea machine and so on
Installation BRONZE GLEITLAGER SLIDING BEARING
Sliding bearings are installed by being pressed into a machined housing
“H7“.Please note the following:
• Create an insertion bevel at an angle, and clean and deburr the parts to
• Lubricate the outer surface of the sliding bearing prior to installation
• Check the axiality between the installation space and the centring axis
of the sliding bearing
• If two sliding bearings are required, these must be aligned
• Use a counter mandrel with suitable dimensions

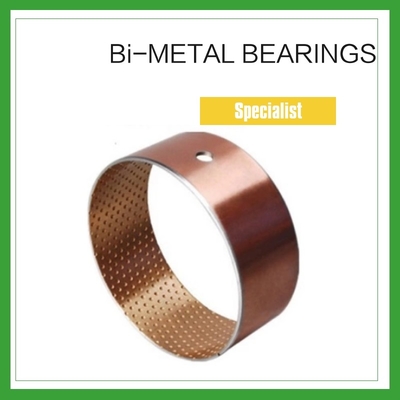

On its surface. To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil sockets for easier oil storage. When necessary, it could be plated copper or tin on the steel back. It can be applied to conditions of mediate load with mediate or high running belocity and conditions with enormous impact load. In mechanical applications,VIIPLUS BIMETAL BRONZE GLEITLAGER is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine.
RANGE OF APPLICATION
As the self-lubricating bearing has the characteristics of maintenance-free and good abrasion resistance under dust and outdoor conditions, it is widely used in the cylinder, suspension system of combine harvester, planter, baler, crusher, tractor, Joints and other parts can not be difficult to form oil or oil film parts.
Wrapped composite sliding bearing
Copper-plated or tin-plated steel / bronze
With lubrication pockets
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Support materialSteel copper-plated / tin-plated
Specific load capacity static≤ 250 [N/mm2]
Specific load capacity dynamic≤ 140 [N/mm2]
Sliding speed≤ 2,5. [m/s] ≤ 5 [m/s] oil lubricated
Reibungswert **0.04 [µ] to 0.12 [µ] depending on lubrication
Temperature strain– 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
Percentage contact area > 75 [%]
Bushing inner-Ø after mountingH9
Shaft tolerancef7 to h8
is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!
Special dimensions are available on request.Get in touch ...
