Contact Person : Tiffany

Mixers Polytetrafluoroethylene Bushes Composite Bearings For Food Safety & Packaging Speed

Place of Origin Stainless Steel Backed Bushings
Brand Name CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Minimum Order Quantity >=500 Pieces
Price Negotiable
Packaging Details CARTONS,wOODEN CASES
Delivery Time 3-4 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316 (anti Corrosive),or Steel Bushing Quality Low Coefficient Of Friction
Type Maintenance-free Self Lubricating Bearings STRUCTURE Plain Cylindrical Bearings, Flanged Bearings, Thrust Washers, Sliding Plates
Areas Of Use Mixers And Proof Carts Of Commercial Bakeries; On The Drills And Ovens In Poultry Plants; And The Fillers And Conveyors Of Beverage Bottlers. Characteristics Approved According To RoHS Directive
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Stainless Steel Bushing Manufacturers Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

steel backed bronze bushing

,

stainless steel sleeve bearing

Leave a Message
Product Description

Mixers equipped with Polytetrafluoroethylene () bushes and composite bearings are specifically designed to enhance food safety and packaging speed in the food processing industry. These advanced components offer several key benefits that make them ideal for applications requiring strict hygiene standards and efficient production rates.
The bushes in these mixers are made from a non-stick, inert material that is resistant to chemicals and temperatures commonly encountered in food processing. This ensures that no harmful residues or contaminants are left behind on the mixer surfaces, thereby enhancing food safety. Additionally, the smooth surface of bushes reduces friction and wear, resulting in longer bearing life and lower maintenance costs.
The composite bearings used in these mixers are also designed for food safety and durability. They are typically made from a combination of metal and polymer materials that provide both strength and corrosion resistance. This ensures that the bearings can withstand the rigorous conditions of food processing while maintaining their integrity and performance.
The use of bushes and composite bearings in mixers not only enhances food safety but also improves packaging speed. The smooth operation and reduced friction of these components allow for faster rotation speeds and more efficient mixing, resulting in shorter cycle times and higher production rates. This is crucial in the food processing industry, where maintaining a fast and reliable packaging line is essential for meeting demand and reducing costs.
In summary, mixers equipped with Polytetrafluoroethylene () bushes and composite bearings are an ideal solution for enhancing food safety and packaging speed in the food processing industry. Their non-stick, inert properties, smooth operation, and durability make them a reliable choice for ensuring clean, efficient, and cost-effective production.


Stainless Steel Bushings


Mixers Polytetrafluoroethylene Bushes Composite Bearings made to order from china for Food Safety & Packaging Speed
Stainless self lubricating plain bearings Areas of use Foodstuff- and pharmaceutical industries Approved according to RoHS Directive.
It is a self-lubricating triple-layer bearing specifically suited for corrosive environments, and the food industry. Outer mantle is of stainless steel and the self-lubricating slide layer consists of a special polymeric material similar to the but without lead content.Plain sleeve bearing
Slide Bearings Polytetrafluoroethylene () Self-lubricating Bearings Rolling Steel sleeve
Food machinery
Since self-lubricated bearings have the characteristics of no or little refueling and do not contain harmful substances, they have obvious advantages in textile machinery, pharmaceutical machinery, food machinery, beverage canning machinery and other industries with strict cleanliness and environmental protection requirements.
Stainless Steel 316 TEX bushings Wrapped bearings APPLICATION
The sliding bearing bush with and stainless backing bearings products are widely used in food machinery such as industrial milk, mixers and proof carts of commercial bakeries; on the drills and ovens in poultry plants; and the fillers and conveyors of beverage bottlers.
Self-lubricating composite and polymer bearings deliver for the food industry.
Stainless Steel 316 Bearings + Overview:
How can equipment manufacturers reduce the risk of food contamination while also improving production output?Safe handling and contamination control are driving forces in the food equipment bushings industry, as consumers demand better accountability and mandates become more stringent. Yet sliding bearing manufacturers also need to optimize operations and move perishables quickly from processing to packaging to purchase.Slide Bearing Assemblies can be designed to any specification required.Polytetrafluoroethylene or , better known as VIIPLUS, can be used for Slide Bearings in its pure form.Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with Dry bearing 316+ Product


Characteristics


Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with

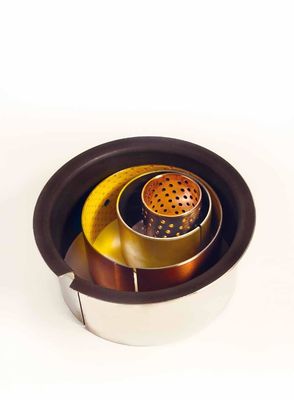

It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers tog, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion.
Stainless Steel Bronze Powder + Self Lubricating Bearings Multilayer Composite
This new material use the fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.
Stainless Steel 316 Sleeve Bushing Specification & Tolerance
Engineered Plain Bearings and Sleeve Bearings excel in demanding food applications where sanitation and speed matter;
Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...





Technical Data



Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s



AVAILABILITY

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers


Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.

Plain bearings are available as bushes, collar bushes, washers, strips or special designs.


Composite and polymer bearings outperform:



  • Self-lubricating design eliminates manual greasing for improved sanitation
  • Durable construction withstands abrasive food ingredients
  • Temperature tolerance from boiling oil to flash freeze
  • Dimensional stability even in wet beverage and sanitation baths
  • Food-contact compliance with appropriate industry mandates


Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.



BUSHING CUSTOMER SIZE
