Self Lubricating Stainless Steel Bushings | TEX Bushings Wrapped Lined
| Place of Origin | Stainless Steel Backed Bushings |
|---|---|
| Brand Name | CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS |
| Certification | WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
| Model Number | CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS |
| Minimum Order Quantity | >=500 Pieces |
| Price | Negotiable |
| Packaging Details | CARTONS,wOODEN CASES |
| Delivery Time | 3-4 WEEKS |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Stainless Steel 316 | Port | Shanghai |
|---|---|---|---|
| Quality | OEM | Type | Self Lubricating Bearings |
| STRUCTURE | Bushes | Bearing Bushing Factory Price | Tiffany@viiplus.com |
| Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | Stainless Steel Bushing Manufacturers |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | stainless steel sleeve bearing,stainless steel bushing sleeve |
||
Product Description

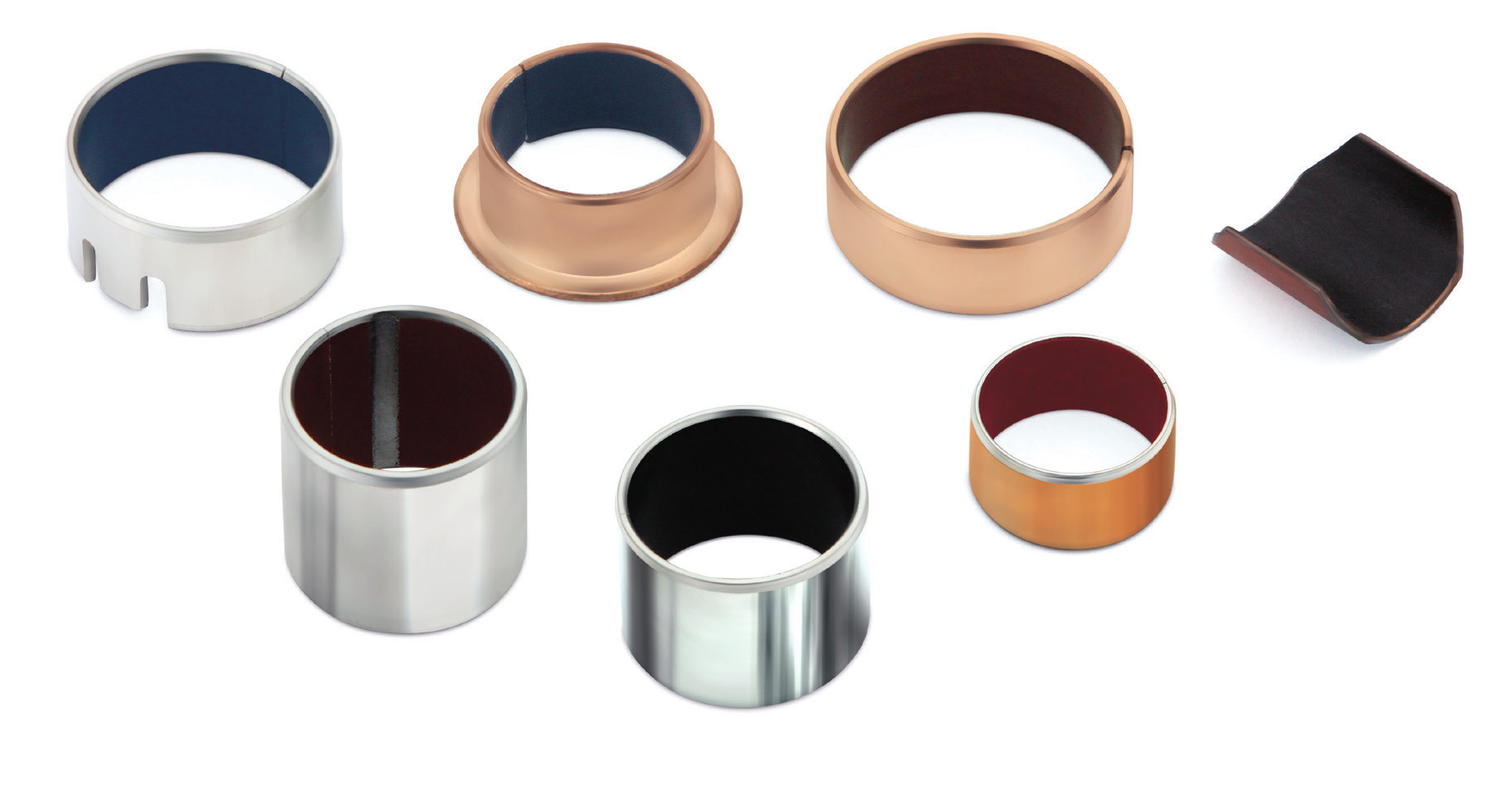

When it comes to bushings that require superior wear resistance and self-lubricating properties, stainless steel bushings with a wrapped lining are an excellent choice. These bushings, often referred to as TEX bushings, offer a unique combination of durability, corrosion resistance, and low-friction performance.
The stainless steel material provides the bushings with excellent strength and durability, ensuring they can withstand heavy loads and frequent use. The wrapped lining, on the other hand, provides a smooth, low-friction surface that significantly reduces wear and tear. This allows for smoother and more efficient operation, especially in applications where lubrication may not be readily available or feasible.
The combination of stainless steel and also makes these bushings resistant to corrosion, chemicals, and other harsh environmental factors. This ensures they can perform reliably in a wide range of conditions and environments.
TEX bushings are designed to meet the specific requirements of high-performance applications. They are often used in precision machinery, industrial equipment, and other critical systems where reliability and long-lasting performance are essential.
In summary, self-lubricating stainless steel bushings with a wrapped lining offer an optimal solution for applications that require superior wear resistance, low-friction performance, and corrosion resistance. TEX bushings are a trusted choice for demanding applications where reliability and durability are paramount.
Customized Manufacturing Rolling Element Stainless steel (anti corrosive) Bearings
unique design solutions to complex Areas of use problems
Self-lubricating Bearings Rolling Steel sleeve Stainless Steel 316 TEX bushings Wrapped
VIIPLUS bearing use the fibres fabric and aramid fiber overlay on metal backings,the fabric have very high load capacity and high accuracygood run with low speed and heavy friction superior performance,widely used in heavy equipment like construction machinery,agriculture machinery
Technical Data
Load capacity |
140N/mm² |
Friction Coef |
0.04~0.20 |
Temperature |
-195℃~280℃ |
PV limit(dry) |
3.6N/mm²·m/s |
Speed limit |
5m/s |
PV limit(oil) |
22N/mm²·m/s |
Stainless Steel 316 Bearings +
Stainless Steel 316 +MOS2
mos2 bush
Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with VSB-33 Dry bearing 316+ Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of...
Characteristics
Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with
It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers tog, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.
Stainless Steel Bronze Powder + Self Lubricating Bearings Multilayer Composite
This new material use the fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.
Stainless Steel 316 Sleeve Bushing Specification & Tolerance
Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
VSB-33 Plain Bearings and Sleeve Bearings
Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.
Typical Applications
VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings + in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings + made in China with us.
Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.
Packaging Details: Standard export packing, or as customers' requirement.
