Contact Person : Tiffany

Self-Lubricating Multilayer Composite Bushing | Carbon Steel Copper Powder Filler

Place of Origin Composite plain cylindrical bushings manufacturer
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Lead Free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing


plain bearing

Leave a Message
Product Description

The self-lubricating multilayer composite bushing is a high-performance wear-resistant component that combines the advantages of various materials. Constructed primarily from carbon steel, it incorporates copper powder and (Polytetrafluoroethylene) filler to enhance its lubricating properties and overall durability.

The carbon steel base provides the bushing with exceptional strength and rigidity, ensuring it can withstand heavy loads and demanding operating conditions. The copper powder, on the other hand, acts as a natural lubricant, reducing friction and wear between moving parts. This not only prolongs the lifespan of the bushing but also contributes to smooth and efficient operation.

The filler further enhances the lubricating capabilities of the bushing. is known for its excellent chemical resistance, non-stick properties, and low friction coefficient. By incorporating into the composite material, the bushing achieves even smoother operation and reduced wear over time.

The multilayer design of the composite bushing allows for optimal distribution of materials, ensuring even wear and consistent performance throughout its lifespan. This design also provides flexibility in terms of material selection, allowing for customization to meet specific application requirements.

In summary, the self-lubricating multilayer composite bushing, with its carbon steel base, copper powder, and filler, offers a robust and reliable solution for applications requiring high wear resistance and smooth operation. Its superior lubricating properties and durability make it an ideal choice for a wide range of industrial applications.

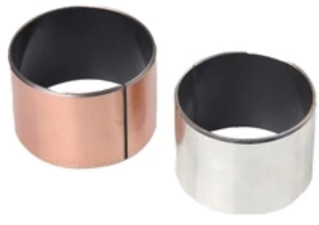

Self-Lubricating Multilayer Composite Bushing


Carbon Steel + Copper Powder + ( + Pb + Filler)


Carbon-based lead-free lubricating bearings Cylindrical Sleeve Bushes | VSB-10


VIIPLUS VSB-10 is backed with copper-plated steel with porous bronze sintered on the steel and polymes (+Pb) imbedded into the bores of the bronze. By combining the metals and the polymers tog, its products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the steel back is plated with a erosion-prevention layer. Products of VSB-10 series are widely applied in printing, weaving and tobacco producing machines, gymnastic equipments, etc.



Carbon-based lead-free lubricating bearings Cylindrical Sleeve Bushes have same features as the VSB-10, but without lead.


Typical application


Typicai applicaton
Application: the printing, woven, tobacco and gymnastic machinery, etc.
same application as the normal VSB-10, but much more for automotive industry, food industry, medicines, drink machines and so on which not allowed to use the lead and difficulty forming the oil film or need lubrication parts.



Performance Index Data
Max Load Static Load 250N/mm²
Max Load Dynamic Load 140N/mm²
Max Load Oscoillation Load 60N/mm²
Linear Velocity V Dry Lubrication 2.5m/s
Linear Velocity V Oil Lubrication >5m/s
PV value limit Dry Lubrication 1.8N/mm²· m/s
PV value limit Oil Lubrication 3.6N/mm²· m/s
Friction coef μ Dry Lubrication 0.08~0.20
Performance Data
Friction coef μ Oil Lubrication 0.02~0.12
Mating Axis Hardness >220 HB
Mating Axis Roughness Ra=0.4~1.25
Working temperature -200~+280℃
Thermal conductivity 40W/(m·k)
Coefficient of linear expansion 11×10-6K-1
Outside surface Plating copper/tin


We can also develop according to customers special request while out of this table.




Carbon Steel + Copper Powder + (lead-free)


Structure And Composition


· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· +


Technical Data


Dynamic load limit 140N/mm²
Static Load max 250N/mm²
PV limit 1.8~3.6N/mm²*m/s
Speed limit >2m/s
Temp.limit -195°C~280°C
Friction coefficient 0.04~0.20




Self-Lubricating Multilayer Composite Bushing | Carbon Steel Copper Powder  Filler 0

Sliding layer

Porous Bronze Sinter
Steel Backing


Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Polymer Plain BearingsPolymer Plain BearingsPolymer Plain Bearings


viiplus products are widely used in all industrial fields


Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
