Bi-Metal Copper Flanged Sleeve Bearings & Washer Standard Inch Size Plain Bearings Oil Groove

Place of Origin Composite plain cylindrical bushings manufacturer
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Bimetal ,bronze,steel,oilless Bearing Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Bushing Sample Available Application Agricultural Machine,bulldozer Bushing,excavator Arm Bushes
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

flanged plain bearing


plain bearing

Leave a Message
Product Description

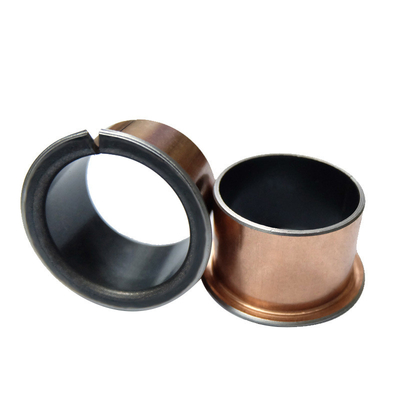

Bi-Metal Copper Flanged Sleeve Bearings & Washer with Standard Inch Size Plain Bearings Oil Groove are a type of bearing components designed for various industrial applications. These bearings feature a copper alloy base material combined with a second metal to provide superior strength and wear resistance. The flanged sleeve design allows for easy installation and positioning within a mechanical system.

The standard inch size ensures compatibility with a wide range of existing equipment and machinery. The plain bearings, without any internal lubrication system, rely on an external oil groove to supply lubricant and maintain a lubricating film between the moving surfaces, thus reducing friction and wear.

The oil groove, typically located on the inner diameter of the bearing, serves as a channel for lubricant to be evenly distributed over the bearing surface. This helps in dissipating heat and ensures a more efficient operation.

The bi-metal construction, with copper as the primary material, provides good thermal conductivity and self-lubricating properties, making these bearings suitable for high-speed and heavy-load applications. The washers, often used in conjunction with the sleeve bearings, provide additional support and stability.

Overall, Bi-Metal Copper Flanged Sleeve Bearings & Washer with Standard Inch Size Plain Bearings Oil Groove are robust, reliable components that offer improved performance and longer service life compared to traditional bearing solutions.


Copper Sleeve oil groove bearings Bi-metal Bulldozers Driven wheel & supporting Bush Standard Size plain bearings


Bimetal Sleeve Stell Bronze Bushing Inch Size Online For Trunion Shaft,King Pin,Poston Pin,Connecting Rod,Rocker Arm,Leaf Spring,Cam Shaft,Crank Shaft,Track Roller,Carrier Roller,Idler Etc


Engineering machinery bushing & bronze bearings

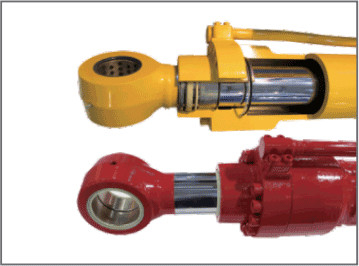

Especially equipment operating in harsh mines and fields;Such as excavator arm bearing sleeve, bulldozer copper sleeve, chassis walking mechanism, hydraulic cylinder oil pump.VIIPLUS developed shock-resistant, dust-resistant, high-strength self-lubricating bearing, which not only solves the problem of lubrication but also reduces the noise and extends the service life.


Bimetal bearing sliding bearing Multi-layer Bearings Plain bearings with resin sliding surface on thin back steel.
Demonstrate superior sliding peformance, wear resistance and thermal conductivity.


Bimetal bearing, is a low carbon steel plate as the matrix material, the surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 material of steel and copper alloy products.The product is the most powerful bearing capacity in the double-alloy bearing, the balance bridge bushing and gasket of the heavy truck;Driven wheel and supporting wheel of bulldozer;Automobile steel plate bushing, all USES this product.It is a kind of high load and low speed sliding bearing which is widely used.


A bimetal bearing & bushings is positioned on the driven shaft and in an internal hole of the driven wheel.


Drive wheel shaft sleeve bushing,The longer bimetal bronze rod bushing provides a maximum load bearing support.Exposed to elevated temperatures with some finishes intact or bushings installed.


Sliding bearings Steel with bronze powder bimetal bearing | VSB-80


Bi-metal Self-lube bearing Standard Size plain bearings DEVA-BM oiling bearing


China Bimetal self-lubricating bearing is a kind of bimetal sliding bearing which is made by special technology with steel plate as the matrix and copper alloy material containing solid lubricant as the wear-resisting layer on the surface.




CuPb10Sn10, CuSn6Zn6Pb3, CuPb24Sn4, CuPn30, AlSn20Cu




JF800 bimetallic bearing is steel back as the matrix, surface sintered copper, tin alloy, rolled rolling bearings, standard alloy materials are: CuPb10Sn10, CuSn6Zn6Pb3, CuPb24Sn4, CuPn30, AlSn20Cu.Since the base plate is made of low carbon steel, the machining accuracy of the outer diameter of the shaft sleeve is guaranteed. Moreover, there is no need for screw fixation after the product is loaded into the seat hole. Interference fit can be relied on to prevent the appearance of external circle.The change of the chemical composition of the alloy on the inner surface can meet the requirements of different bearing pressure, different service temperature and different sliding speed. The oil groove with different structure is designed for the friction surface in the production, and the oil cavity can meet the requirements of different ways of oiling and prevent the phenomenon of axle biting.




Steel backing gives exceptional high load carrying capacity, excellent heat dissipation. Sintered bronze powder gives good wear resistance and excellent load carrying capacity . Copper plating has good corrosion resistance.


Typical application


VSB-80 JF800 bimetallic applications, must be designed with oil lubrication conditions, suitable for high load and low speed rotation, swing motion.At present, it has been widely used in automobile balance bridge, spring plate seat hole, brake shoes, steering knuckles, motion connecting rod, punch sliding parts, bulldozer support, heavy driving wheel, gear box, oil pump, cylinder, engine, clutch and so on.Also widely used in mining machinery, turbo - car, construction machinery, agricultural machinery, steel rolling machinery and so on.



Technical Data


Dynamic load limit


Static Load


frictional coefficient


PV limit


Max Speed




Bi-Metal Copper Flanged Sleeve Bearings


  • Fork lifts
  • Pallet Trucks
  • Cranes
  • Excavators


Technische Daten


  • Wrapped composite sliding bearing
  • Copper-plated or tin-plated steel / bronze
  • Low-maintenance
  • With lubrication pockets




  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.




  • erialSteel copper-plated / tin-plated
  • Sliding layerCuPb10Sn10


Tolerance Details


  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8




  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!





Special dimensions are available on request
