Bronze Oilless Bush SPF Sankyo Oilless Bushings Equivalent

Place of Origin oilless bushing
Brand Name viiplus.com
Certification OILLESS BEARINGS
Model Number Bronze Bearings
Minimum Order Quantity 500 Piece/Pieces (Min. Order)
Price Oilless Bushes Factory Price
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 2~4 Weeks
Payment Terms T/T PREPARD, T/T, L/C, D/A, D/P
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Product Details
Meterial Oilless Bush Type Bushes, Bushes With Flange,
Application Engineering Machinery,mould Bronze Bushing Metric Size High Tensile With Graphite
Equivalent Sankyo Oilless Bushings Available Shoulder Bronze Bushing
High Light

oil impregnated bronze bearings

,

oil lite bronze bushing

Leave a Message
Product Description

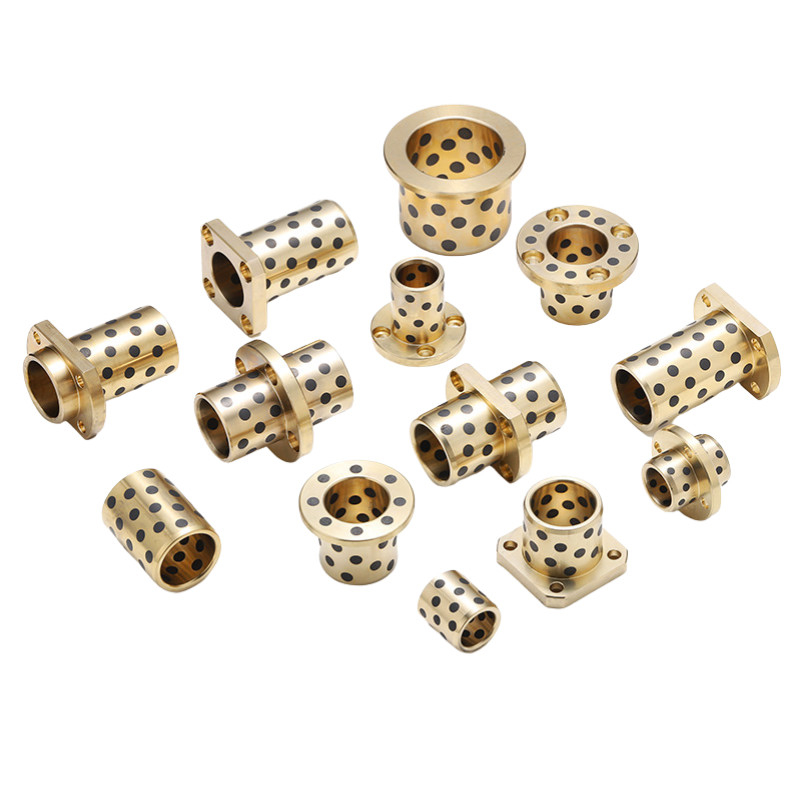

Solid Lubricant Inlaid Bearing, Oilless Bronze bushing with graphite

Sankyo Oilless Bushings Equivalent SOB bronze bearings, SPF  Flange Bushings



OILES 500SP1-SL1 Frange Bushings I.D.: Φd O.D.: ΦD Frange: ΦF Frange Thickness: t Length: L
SPF-0610 6 10 16 2 10
SPF-0612 6 10 16 2 12
SPF-0810 8 12 20 2 10
SPF-0812 8 12 20 2 12
SPF-0815 8 12 20 2 15
SPF-1010 10 14 22 2 10
SPF-1012 10 14 22 2 12
SPF-1015 10 14 22 2 15
SPF-1017 10 14 22 2 17
SPF-1020 10 14 22 2 20
SPF-1210 12 18 25 3 10
SPF-1212 12 18 25 3 12
SPF-1215 12 18 25 3 15
SPF-1220 12 18 25 3 20
SPF-1225 12 18 25 3 25
SPF-1230 12 18 25 3 30
SPF-1310 13 19 26 3 10
SPF-1312 13 19 26 3 12
SPF-1315 13 19 26 3 15
SPF-1320 13 19 26 3 20
SPF-1325 13 19 26 3 25
SPF-1330 13 19 26 3 30
SPF-1415 14 20 27 3 15
SPF-1420 14 20 27 3 20
SPF-1425 14 20 27 3 25
SPF-1510 15 21 28 3 10
SPF-1512 15 21 28 3 12
SPF-1515 15 21 28 3 15
SPF-1520 15 21 28 3 20
SPF-1525 15 21 28 3 25
SPF-1530 15 21 28 3 30
SPF-1612 16 22 29 3 12
SPF-1615 16 22 29 3 15
SPF-1618 16 22 29 3 18
SPF-1620 16 22 29 3 20
SPF-1623 16 22 29 3 23
SPF-1625 16 22 29 3 25
SPF-1630 16 22 29 3 30
SPF-1635 16 22 29 3 35
SPF-1640 16 22 29 3 40
SPF-1815 18 24 32 3 15
SPF-1820 18 24 32 3 20
SPF-1825 18 24 32 3 25
SPF-1830 18 24 32 3 30
SPF-1835 18 24 32 3 35
SPF-1840 18 24 32 3 40
SPF-2015 20 30 40 5 15
SPF-2020 20 30 40 5 20
SPF-2025 20 30 40 5 25
SPF-2030 20 30 40 5 30
SPF-2035 20 30 40 5 35
SPF-2040 20 30 40 5 40
SPF-2515 25 35 45 5 15
SPF-2520 25 35 45 5 20
SPF-2525 25 35 45 5 25
SPF-2530 25 35 45 5 30
SPF-2535 25 35 45 5 35
SPF-2540 25 35 45 5 40
SPF-2550 25 35 45 5 50
SPF-3020 30 40 50 5 20
SPF-3025 30 40 50 5 25
SPF-3030 30 40 50 5 30
SPF-3035 30 40 50 5 35
SPF-3040 30 40 50 5 40
SPF-3050 30 40 50 5 50
SPF-3120 31.5 40 50 5 20
SPF-3130 31.5 40 50 5 30
SPF-3135 31.5 40 50 5 35
SPF-3140 31.5 40 50 5 40
SPF-3520 35 45 60 5 20
SPF-3525 35 45 60 5 25
SPF-3530 35 45 60 5 30
SPF-3535 35 45 60 5 35
SPF-3540 35 45 60 5 40
SPF-3550 35 45 60 5 50
SPF-4020 40 50 65 5 20
SPF-4025 40 50 65 5 25
SPF-4030 40 50 65 5 30
SPF-4035 40 50 65 5 35
SPF-4040 40 50 65 5 40
SPF-4050 40 50 65 5 50
SPF-4530 45 55 70 5 30
SPF-4535 45 55 70 5 35
SPF-4540 45 55 70 5 40
SPF-4550 45 55 70 5 50
SPF-4560 45 55 70 5 60
SPF-5030 50 60 75 5 30
SPF-5035 50 60 75 5 35
SPF-5040 50 60 75 5 40
SPF-5050 50 60 75 5 50
SPF-5060 50 60 75 5 60
SPF-5540 55 65 80 5 40
SPF-5560 55 65 80 5 60
SPF-6040 60 75 90 7.5 40
SPF-6050 60 75 90 7.5 50
SPF-6060 60 75 90 7.5 60
SPF-6080 60 75 90 7.5 80
SPF-6367 63 75 85 7.5 67.5
SPF-6560 65 80 95 7.5 60
SPF-7050 70 85 105 7.5 50
SPF-7080 70 85 105 7.5 80
SPF-7560 75 90 110 7.5 60
SPF-8060 80 100 120 10 60
SPF-8080 80 100 120 10 80
SPF-80100 80 100 120 10 100
SPF-9060 90 110 130 10 60
SPF-9080 90 110 130 10 80
SPF-10080 100 120 150 10 80
SPF-100100 100 120 150 10 100
SPF-12080 120 140 170 10 80
SPF-120100 120 140 170 10 100
SPF-13080 130 150 180 10 80
SPF-130100 130 150 180 10 100
SPF-14080 140 160 190 10 80
SPF-140100 140 160 190 10 100
SPF-150100 150 170 200 10 100
SPF-150120 150 170 200 10 120
SPF-160100 160 180 210 10 100
SPF-160120 160 180 210 10 120

Introduction of material


1.The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2.The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.
3.Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.

Bronze Oilless Bush SPB Sankyo Oilless Bushings Equivalent. Oilless Bush Catalog.

Manufacturer of Oilless Bush - Oilless Bronze Bushes, Oilless Guide Bushing, Oilless Bushing, and Brass Bushes offered by bronzegleitlager.com Graphite Bronze Bushes online.



oilless bushes material is made of strong cast bronze based metal with special solid lubricants graphite embedded. The base metal with stands high load and the solid lubricants provide for self-lubrication ...



oilless bushes (bronze bushings with graphite)





Company Type VIIPLUS CHINESE INTERNATIONAL SUPPLIER
Material Brass, Tin bronze, Lead bronze,Aluminum bronze,ect
Standard ISO 2008,SGS,CE
Fearture 1. High load capacity Cood anti-wearing
2. Low coefficients of friction
3.Good heat conductivity
4. High corrosion resistance
5.Long life and maintenance-free
6.No contaminant by oil or grease
Process Centrifugal casting,sand casting,Machining,Injection
Quality assurance 2D Projector, Height Gague,Micrometer,Roughness Tester,
CCD Autimatic Testing Machine CCD,Callipers
Tolerance Roundness::+/- 0.01mm.
Flatness:+/- 0.005mm.
Height and length:+/- 0.01mm.
Payment L/c ,T/T,Paypal,Western Union,Ali Credit insurance
Port CHINESE
Drawing Yes
Sample Available
MOQ 50KG
Lead time According to required time





Bronze with lubricating pins - maintenance-free.Get Best Deals For Sleeve Bronze Bushings graphite bronze bearings Recommendations For You

Looking for Sleeve Bushings? Find the Best Price Quote! | MADE TO ORDER
The solid lubricants are embedded in a macroscopic distribution, which guarantees a permanent selflubricating effect without any additional lubricants.


Specifications Dimensions

Characteristics


– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range



Areas of use


Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.

Shapes & forms
Cylindrical bearings, flange bearing



Bronze Bushing Technology
Type JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
Base material CuZn24Al6 CuSn6Zn6Pb3 CuSn6Zn6Pb3 HT-250 CuCr15
Base Hardness Hb230 HB 90 HB 80 HB 210 HB 60
(Hb270)
Friction coef(u) <0.16 <0.15s <0.14 <0.17 <0.17
Temperature limit 300℃ 350℃ 300℃ 400℃ 350℃
Dynamic Load Limit 100 N/mm2 60 N/mm2 70 N/mm2 60 N/mm2 250 N/mm2
Load LImit Under 1m/min 25 N/mm2 15 N/mm2 20 N/mm2 15 N/mm2 70 N/mm2
Speed limit 0.40 m/s 5 m/s 2 m/s 2 m/s 0.5 m/s 0.1 m/s
PV Limt 3.8 N/mm2·m/s 0.5 N/mm2·m/s 0.6 N/mm2·m/s 0.8 N/mm2·m/s 2.5 N/mm2·m/s
Bronze Oilless Bush SPF Sankyo Oilless Bushings Equivalent 1bronze bushingWear Performance
Load Applied 62N/mm2 24.5N/mm2 14.7N/mm2
Item Wear Depth Time Wear Depth Time Wear Depth Time
Type Lubrication (mm) (hrs) (mm) (hrs) (mm) (hrs)
CuSn6Zn6Sn3 Oil 0.098 10 0.125 100 0.1 100
JDB-1 dry friction 0.075 100 0.015 100 0.012 100
JDB-2 dry friction 0.025 30 0.065 100 0.025 100
JDB-3 dry friction 0.03 30 0.12 100 0.015 100
JDB-4 dry friction 0.03 10 0.25 20 0.011 100
JDB-5 dry friction 0.022 100 .0.13 100 0.01 100
