Metal-Plastic Composite Bushing Application Van Carrier Stacking Machine Lifting Platform & Port Machine

Metal-Plastic Composite Bushing Application Van Carrier Stacking Machine Lifting Platform & Port Machine

Brand Name: bronzelube.com
Model Number: Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
MOQ: Bronze Precision Wear Plates & Lubricating Parts made to order
Price: US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Detail Information
Place of Origin:
Self Lube Bearings
Certification:
Plain Sleeve Bearings Standards met: RoHS
Material:
Aluminum-Bronze With Solid Lubricant
Types:
Silde Block
Description:
Solid Lubricating Bearings
Application:
Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size:
Standard,Drawings
Shape:
Plate
Production Feature:
Casting
Gleitlager:
Tin Bronze
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Bronze Wear Plates , Self Lubricating - Special Brass Alloy
Self Lubricating Graphite Plugged Bronze Plate:
Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
Cartons with good information lable
Supply Ability:
Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Highlight:

graphite lube plate

,

brass wear plate

Product Description

In the context of van carrier stacking machines, lifting platforms, and port machines, metal-plastic composite bushings are often used due to their unique combination of properties. These bushings are designed to provide a high level of durability, wear resistance, and stability while also offering reduced friction and improved lubrication.
The metal-plastic composite material used in these bushings combines the strength and rigidity of metal with the self-lubricating and vibration-damping properties of plastic. This combination makes them ideal for applications that require frequent movement, heavy loads, and exposure to harsh environments.
In van carrier stacking machines, the bushings are used to support and guide the lifting and stacking mechanisms. They help ensure smooth and reliable operation while reducing wear and tear on the machine components. Similarly, in lifting platforms and port machines, the bushings play a crucial role in supporting the lifting mechanisms and ensuring precise movement and positioning.
Overall, metal-plastic composite bushings are an essential component in these types of machines, helping to enhance their performance, durability, and reliability.


BRONZE, BRASS, AND COPPER ALLOYS TIN BRONZEN

HIGH STRENGTH BRASS MATERIAL BRONZE BUSHING GLEITLAGER | VSB-50

Your complete source for Bronze, Brass, and Copper Alloys


Metal-plastic composite bearing gives full play to characteristics of long service life, maintenance free, long maintenance cycle and low cost in occasions of poor environment and difficult refueling. Sealing element is suggested to be installed with the bush assembly to prevent the invasion of containments. Typical applications: Van Carrier, Stacking Machine, Lifting Platform, Port machine and so on.

Tin bronze material bronze bushing gleitlager

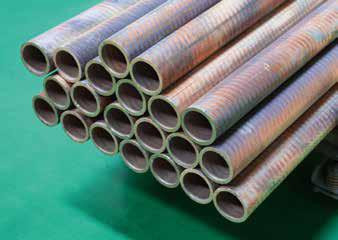

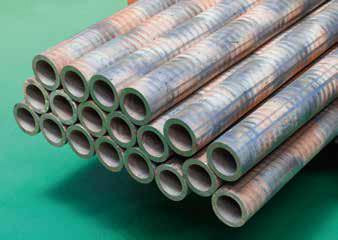

These alloys are stocked in various shapes including bar, tube, plate, and sheet.We maintain one of the largest inventories of nonferrous copper alloys in the country. We specialize in Bronze, Brass and Copper.


Characteristics


VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity


Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine


Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block
Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃


Metal-Plastic Composite Bushing Application Van Carrier Stacking Machine Lifting Platform & Port Machine 0



Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

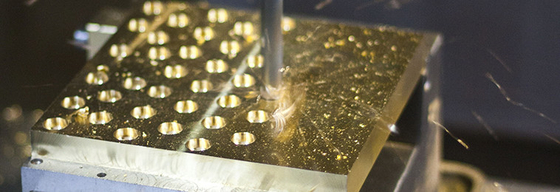

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.
The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Strusture



VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data





Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Chemical Compositions



Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2




Availability

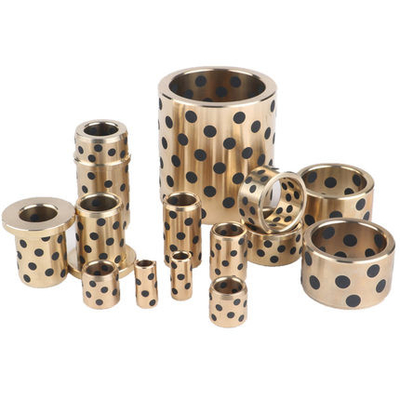

Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs



Typical Applications



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
