Plug Graphite Cast Bronze Self Lube Wear Plates For Industrial Machinery Oil/Gas Aerospace Marine/Defense Tool/Die Plast
Place of Origin | Self Lube Bearings |
---|---|
Brand Name | bronzelube.com |
Certification | Plain Sleeve Bearings Standards met: RoHS |
Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
Packaging Details | Cartons with good information lable |
Delivery Time | Shipped in 3-20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum-Bronze With Solid Lubricant | Types | Silde Block,Plate |
---|---|---|---|
Description | Solid Lubricating Bearings | Application | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. |
Size | Standard,Drawings | Production Feature | Characteristics High Load Capacity Self-lubricating Under Dry Operation Possibility To Use In Presence Of Fluids Good Chemical Inertia To Corrosive Agents Wide Range Of Operating Temperature Flameproof Easy To Mount Standard Items Widely Available Special |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy | Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | graphite lube plate,bronze wear plate |
Plug Graphite Cast Bronze Self-Lubricating Wear Plates are designed for use in various industrial applications such as machinery, oil & gas, aerospace, marine, defense, and tool & die plastic industries. These wear plates offer excellent wear resistance and self-lubricating properties, reducing the need for frequent lubrication and maintenance. They are made from graphite cast bronze, a material that is known for its high strength, corrosion resistance, and durability.
In industrial machinery applications, these wear plates are often used in sliding or rotating contact surfaces where friction and wear are a concern. The graphite cast bronze material provides a smooth surface that reduces friction and wear, extending the life of the machinery components.
In oil & gas applications, the wear plates are exposed to harsh environments and conditions such as high temperatures, pressures, and corrosive chemicals. The graphite cast bronze material is able to withstand these extreme conditions, ensuring reliable operation of equipment in these industries.
Aerospace applications also demand high performance and reliability, which is why graphite cast bronze wear plates are a popular choice. They are able to maintain their integrity and function under extreme temperatures and pressures, ensuring the safety and efficiency of aircraft and spacecraft components.
Marine and defense applications also benefit from the use of graphite cast bronze wear plates. In marine environments, the wear plates are exposed to saltwater and other corrosive elements, but the graphite cast bronze material is able to resist corrosion and maintain its performance. In defense applications, the wear plates provide durability and reliability for equipment used in demanding environments.
Lastly, tool & die plastic industries also utilize graphite cast bronze wear plates for their durability and wear resistance. These wear plates are often used in molding and extrusion equipment where precise tolerances and smooth surfaces are critical for the quality of the final product.
Overall, graphite cast bronze self-lubricating wear plates are a versatile and reliable solution for reducing friction and wear in a wide range of industrial applications.

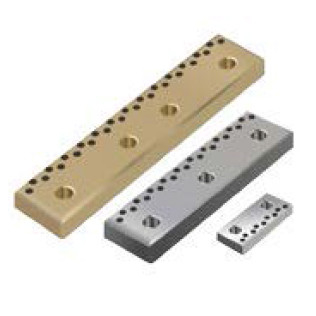

Plug Graphite Cast Bronze Self Lube Wear Plates
For INDUSTRIAL MACHINERY OIL/GAS AEROSPACE MARINE/DEFENSE TOOL/DIE PLAST
Plug Graphite Cast Bronze bushing & plate is a material suitable for heavy loads at low sliding speed, solid lubricant is provided by Graphite with additive, which is inserted into the bronze structure of the bearings.
The base material are CuZn25Al5. The available items in this material are the cylindrical and flanged bush, washers, strips, and special part on customer requests.
NO. | DIN | Material No. | Designation | ASTM Standard | Proportional | Density (g/cm³) | 0.2% Strain (MPa) | Tensile Strength (MPa) | Strain (%) | E-modulus (MPa) | Hardness (HB) | Applications |
1 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 | 8.8 | 120 | 240 | 15 | 106,000 | 65 | Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance. |
2.1090.03 | CuSn7ZnPb | B 271 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 130 | 270 | 13 | 106,000 | 75 | |||
2.1090.04 | CuSn7ZnPb | B 505 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 120 | 270 | 16 | 106,000 | 70 | |||
2 | 1705 | 2.1061.01 | CuSn12Pb | Not yet standardized | Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 | 8.7 | 140 | 260 | 10 | 112,000 | 80 | Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications. |
2.1061.03 | CuSn12Pb | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 150 | 280 | 5 | 112,000 | 90 | |||
2.1061.04 | CuSn12Pb | B 505 | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 7 | 112,000 | 85 | |||
3 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 270 | 600 | 12 | 122,000 | 140 | Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments. |
2.0975.02 | CuAl10Ni | B 30 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 600 | 14 | 122,000 | 150 | |||
2.0975.03 | CuAl10Ni | B 271 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
2.0975.04 | CuAl10Ni | B 505 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
4 | 1709 | 2.0598.01 | CuZn25Al5 | B 584 | Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest | 8.2 | 450 | 750 | 8 | 115,000 | 180 | Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack. |
2.0598.02 | CuZn25Al5 | B 30 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 8 | 115,000 | 180 | |||
2.0598.03 | CuZn25Al5 | B 271 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 5 | 115,000 | 190 | |||
5 | 1705 | 2.1052.01 | CuSn12 | Not yet standardized | Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 | 8.6 | 140 | 260 | 12 | 110,000 | 80 | Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/ |
2.1052.03 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.6 | 150 | 280 | 8 | 110,000 | 90 | |||
2.1052.04 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 8 | 110,000 | 95 | |||
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting. |
Characteristics
1.High load capacity
2.Self-lubricating under dry operation
3.Possibility to use in presence of fluids
4.Good chemical inertia to corrosive agents
5.Wide range of operating temperature
6.Flameproof
7.Easy to mount
8.Standard items widely available
9.Special items on demand

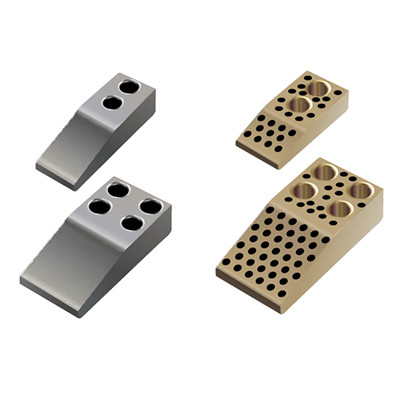

Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 | VSB-50P
CHARACTERISTICS
Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

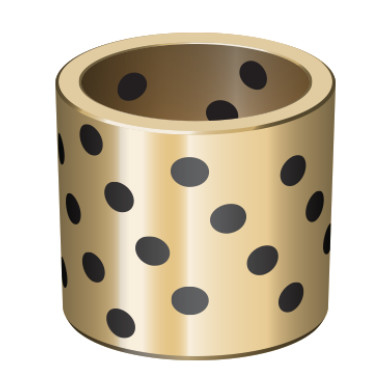

Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

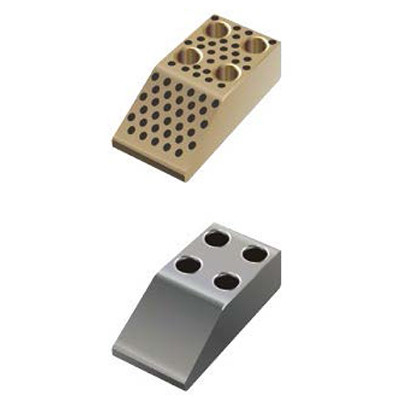

VSB-50P Sliding Block
Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can be used in wide range of temperature from -40℃-+300℃
Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block
Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.
The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.
STRUSTURE
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
TECHNICAL DATA
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
Product NO. |
Chemical Compositions |
||||||||
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
AVAILABILITY
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
TYPICAL APPLICATIONS
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
