Brand Name: | bimetal SAE-797 SAE 48 SAE-799 bushings |
Model Number: | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
MOQ: | 800 Piece/Pieces (Min. Order) |
Price: | $0.20 - $2.00 / Pieces ,Negotiable |
Payment Terms: | TT IN ADVANCE Western Union |
Supply Ability: | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
The Steel Split Bushes made of CuPb24Sn4 alloy are designed specifically for rough operation conditions where traditional oil-lubricated bearings may fail. These bimetal oilless bearings and vane pump bushings are engineered to excel in harsh environments, providing long-lasting performance and reliability.
The CuPb24Sn4 alloy combines the strength and durability of steel with the wear resistance and self-lubricating properties of copper-based alloys. This combination makes the Steel Split Bushes ideal for applications where heavy loads, high speeds, and rough operating conditions are present.
The bimetal construction allows the Steel Split Bushes to maintain their shape and integrity under extreme conditions, while the self-lubricating properties of the CuPb24Sn4 alloy minimize friction and wear. This results in improved efficiency, longer service life, and reduced maintenance requirements.
In vane pumps and other rotating equipment, the Steel Split Bushes CuPb24Sn4 provide a smooth and reliable surface for the rotating components to operate on. The bimetal oilless bearings are also suitable for applications where oil lubrication is not possible or desired, such as in food processing and pharmaceutical equipment.
Wh you need bearings for industrial machinery, automotive components, or other demanding applications, the Steel Split Bushes CuPb24Sn4 are an excellent choice for rough operation conditions. Their unique combination of strength, wear resistance, and self-lubricating properties ensures reliable and efficient performance in the toughest environments.
Bimetal 800 to high-quality low-carbon steel substrate, the surface of the sintered copper-lead alloy as the face, according to conditions and can be processed using all types of sump hole or oil hole in the surface of the alloy layer.Bimetal bushes are composed of two metal strips, in two different materials; the first is normally in steel, the second is normally constituted by an alloy containing copper, which when coupled with the steel strip acts as an internal covering. Furthermore, some sizes also have an external relubrication hole.
bi-metal bushing is backing on low carbon steel, sintered with CuPb24Sn4 bronze powder, which has fairly good performance in anti-fatigue and load capacity, fit for middle speed and middle load working situation.
When soft alloy is plated on the bushing surface and with oil lubrication, it can be applied in high speed internal-combustion engine and connect-rod.
Liner material: CuPb24Sn4
Load capacity: 38N/mm2
Temperature Max: 170℃
Liner hardness: HB45~70

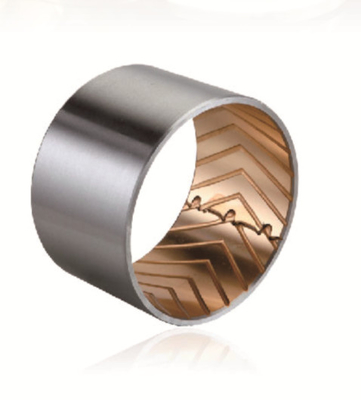

JF800 Bimetallic Bearings Bushing Made in China is applicable in rough operation conditions.JF800 Bimetallic Bushes's steel-bronze-compound material with indents as reservoir for the grease. JF800 Bimetallic Bearings has high load capacity, very good resistance to fatigue strength at higher temperatures.
Export JF800 Oilless Bimetal Bearing Steel CuPb24Sn4 Bimetal Backed Oilless Vane Pump Bushing For Rough Operation Conditions

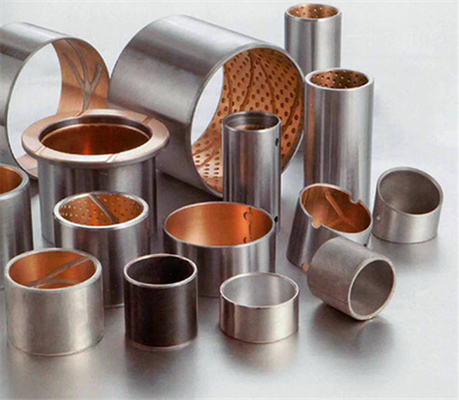

Bimetal self-lubricating bearing is a copper alloy layer with excellent wear resistance, which is based on high quality low carbon steel and sintered on the surface.The surface of the copper alloy layer can be processed into various types of oil groove, oil storage pit, oil hole and so on according to the working conditions, so as to be suitable for the occasions where it is impossible to oil continuously or difficult to oil.The copper alloy layer can provide two kinds of alloy materials including lead and lead-free.Bi-metal composite boundary lubrication products are widely used in connecting rod bearing bushes, thrust washers, piece by the side of plunger pump, gear pump side piece, engineering machinery with supporting wheel shaft, wheel shaft sleeve, tensioning wheel sets, cars with balance shaft lining and steel pin bushing, steering knuckle king pin bushings, valve rocker arm shaft sleeve, CAM shaft collar, differential shaft sleeve, etc.
Metal Backed Pump Bearings Plain Bearings vane pump hydraulic Bushings
Bimetal Bearings Self lubricating beairng
Oilless steel split Self lubricating hydraulic cylinder bushing | VSB-80
Steel+CuPb24Sn4 Base material properties
The sintered lead-free copper alloy layer of the steel substrate has high loading capacity and good anti-fatigue characteristics, which is suitable for working conditions of dynamic load and impact load, especially for reciprocating motion.According to the needs of the design of the oil groove or oil hole can be stored in the initial assembly of lubricating oil so as to extend the lubrication cycle of the bearing.The friction layer material of the lead-free formula meets the EU specification 2011/65/EU.
Performance |
Data |
|
Max dynamic Load P |
|
120N/mm² |
Max line speed V |
Greaes lubrication |
2.5m/s |
Max PV value |
Greaes lubrication |
2.8N/mm²·m/s |
Friction coef μ |
Greaes lubrication |
0.05~0.15 |
Max line speed V |
Oil lub. |
10m/s |
Max PV value |
Oil lub. |
10N/mm²· m/s |
Friction coef μ |
Oil lub. |
0.04~0.12 |
Max Working temperature |
Greaes lubrication |
150℃ |
Performance |
Data |
|
Max Working temperature |
Oil lub. |
250℃ |
Mating Axis |
Hardness |
≥48HB |
Mating Axis |
Roughness |
Ra=0.16~0.63 |
Alloy layer hardness |
45~70 |
|
Thermal conductivity |
60W/(m·k) |
|
Coefficient of linear expansion |
19×10-6K-1 |
VIIPLUS Bearing is a professional manufacturer and exporter of self-lubicating bushing in China. Our company specializes in research, development and production of all kinds of high-quality sliding bearing. All our products are exported to foreign countries.
Our mainly products:
1. coated bushing
2. POM coated bushing
3. Bronze bushing
4. Bimetal bushing
5. Solid bronze bushing
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors
Application: High speed, heavy load engine main shaft and ransmission gearbox, etc.
Hydraulic system application For vane pump hydraulic Bushings
viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.
VSB-80 Bimetallic composite bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
· Bimetal bearing with steel backing and bronze overlay
· Particularly suitable for high specific loads with oscillating motion and low frequency
· Applicable in rough operation conditions
· High load capacity, very good resistance to fatigue strength at higher
temperatures
1.Sintered bronze lazer: Good wear resistance and excellent load carrying capacity.
2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
· Cylindrical bushes
· Thrust washers
Bearing forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs
