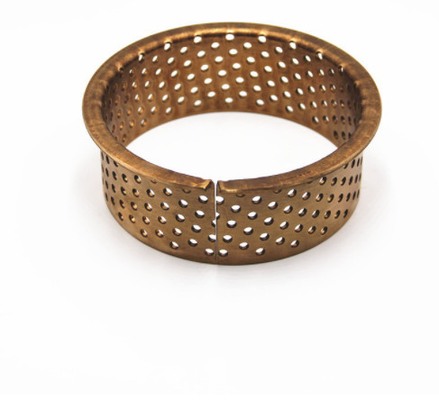

Cylindrical Bushes Grease Reservoirs Plain Type Bearing Cusn8 Oil Holes Rohs Standard
Place of Origin | Bronze Bushing Manufacturer |
---|---|
Brand Name | CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance |
Certification | Bushing Standard Met:MBZ, B09 or MBZ B09 |
Model Number | Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 |
Minimum Order Quantity | phosphor bronze bush,tin bronze bearings,brass bushes |
Price | Precision Tolerance, Factory Price |
Packaging Details | EXPORT CARTONS |
Delivery Time | 2-3 Weeks |
Payment Terms | TT IN ADVANCE |
Supply Ability | Perforated Bronze Bearing,Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBushing Material | Bronze CuSn8,Wear Resistant, Perforated Bronze Bearing Material | Bushings Type | CuSn8 Wrapped Bronze Bush With Through Holes, ISO3547 Standard, Metric Size |
---|---|---|---|
Bushings Optimum Performance Under Relatively | High Loads And Low Speeds | Lubrication | Oil Hole Type Self Lubrication |
Quality | OEM Quality,FB090 FB092 FB092H WF WB700 WB702 WB800 WB802 | Application | Industrial – Mechanical Handling And Lifting Equipment, Hydraulic Cylinders, Pneumatic Equipment, Medical Equipment, Textile Machinery, Agricultural Equipment, Etc |
Bushing Area Of Use | Suitable For Use With All Standard Greases | Bearing Forms Made To Order | Cylindrical Bushes With Non-standard Dimensions, Customized Bearing Designs |
Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . | Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | metric bronze bushings,flanged bronze bushings |
Cylindrical bushes equipped with grease reservoirs are designed to provide a smooth and reliable operation in various industrial applications. The plain type bearing, specifically made of CusN8 material, offers excellent wear resistance and corrosion resistance, ensuring a long service life.
The grease reservoirs integrated into the bushes allow for the controlled release of lubrication, maintaining a constant and even lubrication layer between the moving surfaces. This not only reduces friction and wear but also extends the overall lifespan of the bearing.
Furthermore, the CusN8 bearing features oil holes that facilitate the distribution of lubrication throughout the bush, ensuring a uniform and effective lubrication. This enhances the performance of the bearing and further reduces the risk of wear and tear.
Complying with the ROHS standard, these cylindrical bushes are environmentally friendly and safe for use in a wide range of applications. Wh it's in machinery, automotive components, or any other industrial equipment, these bushes provide a dependable and efficient solution for bearing needs.
Cylindrical Casting Bronze Bushing Supply - Wrapped Bronze Bearing 090&092- Metric & Inch Size
One of China suppliers of slide bearings, plain bearings, and roller bearings. World-class logistics! Cylindrical Bushes Grease Reservoirs Plain Type Bearing Cusn8 Oil Holes Rohs Standard
Bronze bushing flange F092 ID100 OD105 F120 L50.pd...
BRONZE WRAPPED BEARING WITH OIL POCKETS (090 CYLINDRICAL BUSHES STANDARD SIZE TABLE)alternative SKF Wrapped bronze flanged bushing requiring low-maintenance series PRM bronze bushing size, cheap price
Buy the best quality Tuleja - one of the china bronze bushings supplier and manufacturers CuSn6 CuSn8 BRM10 MBZ-B09 FB090 Wrapped Split Bushing.FB-090 series bronze bushing.pdf
TULEJ FB092 BUSHING MADE TO ORDER FROM CHINA. For example FB092 35x39x40mm CuSn8 bronze material
Material | Part Number | Inner Diameter | Outer Diameter | Length | Surface Style |
Wrapped Bronze Bearings | 092 | 35 | 39 | 40 | Holes |
Structure: CuSn8 bronze with either grease pockets or holes
Dimensions
Attribute |
Value |
---|---|
d (mm) | 200 |
D (mm) | 205 |
h (mm) | 100 |

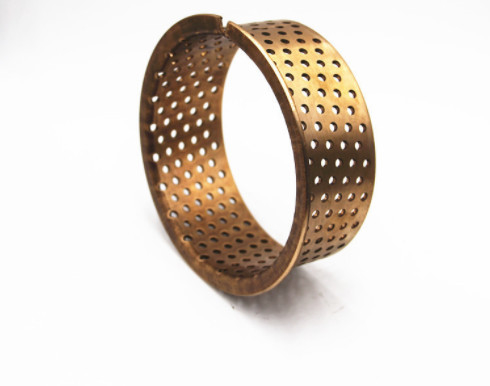

CuSn8 wrapped bronze bush with through holes, ISO3547 standard, metric size,bronze bushing supplier,FB090 FB092 FB092H WF WB700 WB702 WB800 WB802
Bearing material made of solid bronze strip.solid bronze bearings with lubrication indents offer high load capacity, good wear resistance under rough conditions & low speeds.
Wrapped Bronze Straight Bushing FB090 & FB092 Tin Bronze Bronze Slding Bearings Cylindrical Bushes
PLAIN BEARINGS BRONZE SLEEVE BUSHES GLEITLAGER STANDARD SIZE CYLINDRICAL BUSHINGS MADE OF CUSN8 WITH LUBRICATION 090 SLEEVE BUSH FOR Cranes, grabs, pumps, manifolds, hydraulic rotators met the ROHS Standard.
BRONZE WRAPPED BEARING WITH OIL POCKETS (090 CYLINDRICAL BUSHES STANDARD SIZE TABLE)
Tolerances:Shaft dia: e7/f7,Housing:H7
Drawing model is available
Chamfer: Inner and outer ends
Wrapped flanged bushing Type
Chemical Composition
Part NO | Material | Cu | Sn | P | Pb | Zn |
090 | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
Bronze Bushes and Oil Pockets 090 & 092 BRONZE BUSHES
CuSn8 Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets Series Features
·Easy fitting and lubrication
·High load capacity
·Excellent wear resistance with lower friction
·High level of thermal conductivity
·Minimum overall dimensions
·Chemical resistance
·Extended service life and lubrication intervals compared to the VSB090 Series Bushings
·Free choice of lubricant
·Collection of dust and rub off particles in the holes
VSB-22 CuSn8 Wrapped Bearings
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip.
•Bearing material made of solid bronze strip with indents for lubrication
•Good wear resistance, suitable for rough conditions
•Optimum performance under relatively high loads and low speeds
•Easy for fitting and lubricating
•High load capacity
•Inner Diameter machineable parts are available against order
•High level thermal conductivity
•Minimum overall dimensions
•Chemical resistance.
•Initial pre-lubrication at assembly required...
TYPICAL APPLICATIONS
• Forest machines.
• Agricultural machines.
• Forklift trucks.
• Dumpers.
• Hydraulic cranes.
• Truck platform constructions.
(090 CYLINDRICAL BUSHES standard size table)
[mm] | d | D | L |
BRONZE BUSHING-FB090-1010 | 10 | 12 | 10 |
BRONZE BUSHING-FB090-1012 | 10 | 12 | 12 |
BRONZE BUSHING-FB090-1015 | 10 | 12 | 15 |
BRONZE BUSHING-FB090-1020 | 10 | 12 | 20 |
BRONZE BUSHING-FB090-1108 | 11 | 13 | 8 |
BRONZE BUSHING-FB090-1109 | 11 | 13 | 9 |
BRONZE BUSHING-FB090-1110 | 11 | 13 | 10 |
BRONZE BUSHING-FB090-1112 | 11 | 13 | 12 |
BRONZE BUSHING-FB090-1206 | 12 | 14 | 6 |
BRONZE BUSHING-FB090-1208 | 12 | 14 | 8 |
BRONZE BUSHING-FB090-1210 | 12 | 14 | 10 |
BRONZE BUSHING-FB090-1212 | 12 | 14 | 12 |
BRONZE BUSHING-FB090-1214 | 12 | 14 | 14 |
BRONZE BUSHING-FB090-1215 | 12 | 14 | 15 |
BRONZE BUSHING-FB090-1216 | 12 | 14 | 16 |
BRONZE BUSHING-FB090-1220 | 12 | 14 | 20 |
BRONZE BUSHING-FB090-1225 | 12 | 14 | 25 |
BRONZE BUSHING-FB090-1308 | 13 | 15 | 8 |
BRONZE BUSHING-FB090-1309 | 13 | 15 | 9 |
BRONZE BUSHING-FB090-1310 | 13 | 15 | 10 |
BRONZE BUSHING-FB090-1312 | 13 | 15 | 12 |
BRONZE BUSHING-FB090-1315 | 13 | 15 | 15 |
BRONZE BUSHING-FB090-1410 | 14 | 16 | 10 |
BRONZE BUSHING-FB090-1412 | 14 | 16 | 12 |
BRONZE BUSHING-FB090-1415 | 14 | 16 | 15 |
BRONZE BUSHING-FB090-1420 | 14 | 16 | 20 |
BRONZE BUSHING-FB090-1422 | 14 | 16 | 22 |
BRONZE BUSHING-FB090-1425 | 14 | 16 | 25 |
BRONZE BUSHING-FB090-1508 | 15 | 17 | 8 |
BRONZE BUSHING-FB090-1510 | 15 | 17 | 10 |
BRONZE BUSHING-FB090-1512 | 15 | 17 | 12 |
BRONZE BUSHING-FB090-1515 | 15 | 17 | 15 |
BRONZE BUSHING-FB090-1518 | 15 | 17 | 18 |
BRONZE BUSHING-FB090-1520 | 15 | 17 | 20 |
BRONZE BUSHING-FB090-1525 | 15 | 17 | 25 |
BRONZE BUSHING-FB090-1608 | 16 | 18 | 8 |
BRONZE BUSHING-FB090-1610 | 16 | 18 | 10 |
BRONZE BUSHING-FB090-1612 | 16 | 18 | 12 |
BRONZE BUSHING-FB090-1615 | 16 | 18 | 15 |
BRONZE BUSHING-FB090-1618 | 16 | 18 | 18 |
BRONZE BUSHING-FB090-1620 | 16 | 18 | 20 |
BRONZE BUSHING-FB090-1625 | 16 | 18 | 25 |
BRONZE BUSHING-FB090-1708 | 17 | 19 | 8 |
BRONZE BUSHING-FB090-1710 | 17 | 19 | 10 |
BRONZE BUSHING-FB090-1712 | 17 | 19 | 12 |
BRONZE BUSHING-FB090-1715 | 17 | 19 | 15 |
BRONZE BUSHING-FB090-1718 | 17 | 19 | 18 |
BRONZE BUSHING-FB090-1720 | 17 | 19 | 20 |
BRONZE BUSHING-FB090-1725 | 17 | 19 | 25 |
BRONZE BUSHING-FB090-1808 | 18 | 20 | 8 |
BRONZE BUSHING-FB090-1810 | 18 | 20 | 10 |
BRONZE BUSHING-FB090-1812 | 18 | 20 | 12 |
BRONZE BUSHING-FB090-1815 | 18 | 20 | 15 |
BRONZE BUSHING-FB090-1820 | 18 | 20 | 20 |
BRONZE BUSHING-FB090-1825 | 18 | 20 | 25 |
BRONZE BUSHING-FB090-1830 | 18 | 20 | 30 |
BRONZE BUSHING-FB090-2008 | 20 | 23 | 8 |
BRONZE BUSHING-FB090-2010 | 20 | 23 | 10 |
BRONZE BUSHING-FB090-2012 | 20 | 23 | 12 |
BRONZE BUSHING-FB090-2015 | 20 | 23 | 15 |
BRONZE BUSHING-FB090-2020 | 20 | 23 | 20 |
BRONZE BUSHING-FB090-2025 | 20 | 23 | 25 |
BRONZE BUSHING-FB090-2030 | 20 | 23 | 30 |
BRONZE BUSHING-FB090-2035 | 20 | 23 | 35 |
BRONZE BUSHING-FB090-2040 | 20 | 23 | 40 |
BRONZE BUSHING-FB090-2210 | 22 | 25 | 10 |
BRONZE BUSHING-FB090-2212 | 22 | 25 | 12 |
BRONZE BUSHING-FB090-2215 | 22 | 25 | 15 |
BRONZE BUSHING-FB090-2220 | 22 | 25 | 20 |
BRONZE BUSHING-FB090-2225 | 22 | 25 | 25 |
BRONZE BUSHING-FB090-2230 | 22 | 25 | 30 |
BRONZE BUSHING-FB090-2235 | 22 | 25 | 35 |
BRONZE BUSHING-FB090-2238 | 22 | 25 | 38 |
BRONZE BUSHING-FB090-2240 | 22 | 25 | 40 |
BRONZE BUSHING-FB090-2245 | 22 | 25 | 45 |
BRONZE BUSHING-FB090-2250 | 22 | 25 | 50 |
BRONZE BUSHING-FB090-2410 | 24 | 27 | 10 |
BRONZE BUSHING-FB090-2412 | 24 | 27 | 12 |
BRONZE BUSHING-FB090-2415 | 24 | 27 | 15 |
BRONZE BUSHING-FB090-2420 | 24 | 27 | 20 |
BRONZE BUSHING-FB090-2425 | 24 | 27 | 25 |
BRONZE BUSHING-FB090-2428 | 24 | 27 | 28 |
BRONZE BUSHING-FB090-2430 | 24 | 27 | 30 |
BRONZE BUSHING-FB090-2432 | 24 | 27 | 32 |
BRONZE BUSHING-FB090-2435 | 24 | 27 | 35 |
BRONZE BUSHING-FB090-2438 | 24 | 27 | 38 |
BRONZE BUSHING-FB090-2440 | 24 | 27 | 40 |
BRONZE BUSHING-FB090-2450 | 24 | 27 | 50 |
BRONZE BUSHING-FB090-2510 | 25 | 28 | 10 |
BRONZE BUSHING-FB090-2512 | 25 | 28 | 12 |
BRONZE BUSHING-FB090-2515 | 25 | 28 | 15 |
BRONZE BUSHING-FB090-2520 | 25 | 28 | 20 |
BRONZE BUSHING-FB090-2525 | 25 | 28 | 25 |
BRONZE BUSHING-FB090-2528 | 25 | 28 | 28 |
BRONZE BUSHING-FB090-2530 | 25 | 28 | 30 |
BRONZE BUSHING-FB090-2532 | 25 | 28 | 32 |
BRONZE BUSHING-FB090-2535 | 25 | 28 | 35 |
BRONZE BUSHING-FB090-2540 | 25 | 28 | 40 |
BRONZE BUSHING-FB090-2550 | 25 | 28 | 50 |
BRONZE BUSHING-FB090-2560 | 25 | 28 | 60 |
BRONZE BUSHING-FB090-2610 | 26 | 30 | 10 |
BRONZE BUSHING-FB090-2612 | 26 | 30 | 12 |
BRONZE BUSHING-FB090-2615 | 26 | 30 | 15 |
BRONZE BUSHING-FB090-2620 | 26 | 30 | 20 |
BRONZE BUSHING-FB090-2625 | 26 | 30 | 25 |
BRONZE BUSHING-FB090-2630 | 26 | 30 | 30 |
BRONZE BUSHING-FB090-2635 | 26 | 30 | 35 |
BRONZE BUSHING-FB090-2640 | 26 | 30 | 40 |
BRONZE BUSHING-FB090-2650 | 26 | 30 | 50 |
BRONZE BUSHING-FB090-2810 | 28 | 32 | 10 |
BRONZE BUSHING-FB090-2812 | 28 | 32 | 12 |
BRONZE BUSHING-FB090-2815 | 28 | 32 | 15 |
BRONZE BUSHING-FB090-2820 | 28 | 32 | 20 |
BRONZE BUSHING-FB090-2825 | 28 | 32 | 25 |
BRONZE BUSHING-FB090-2830 | 28 | 32 | 30 |
BRONZE BUSHING-FB090-2832 | 28 | 32 | 32 |
BRONZE BUSHING-FB090-2835 | 28 | 32 | 35 |
BRONZE BUSHING-FB090-2840 | 28 | 32 | 40 |
BRONZE BUSHING-FB090-3010 | 30 | 34 | 10 |
BRONZE BUSHING-FB090-3012 | 30 | 34 | 12 |
BRONZE BUSHING-FB090-3015 | 30 | 34 | 15 |
BRONZE BUSHING-FB090-3020 | 30 | 34 | 20 |
BRONZE BUSHING-FB090-3025 | 30 | 34 | 25 |
BRONZE BUSHING-FB090-3028 | 30 | 34 | 28 |
BRONZE BUSHING-FB090-3030 | 30 | 34 | 30 |
BRONZE BUSHING-FB090-3032 | 30 | 34 | 32 |
BRONZE BUSHING-FB090-3035 | 30 | 34 | 35 |
BRONZE BUSHING-FB090-3038 | 30 | 34 | 38 |
BRONZE BUSHING-FB090-3040 | 30 | 34 | 40 |
BRONZE BUSHING-FB090-3045 | 30 | 34 | 45 |
BRONZE BUSHING-FB090-3050 | 30 | 34 | 50 |
BRONZE BUSHING-FB090-3210 | 32 | 36 | 10 |
BRONZE BUSHING-FB090-3212 | 32 | 36 | 12 |
BRONZE BUSHING-FB090-3215 | 32 | 36 | 15 |
BRONZE BUSHING-FB090-3218 | 32 | 36 | 18 |
BRONZE BUSHING-FB090-3220 | 32 | 36 | 20 |
BRONZE BUSHING-FB090-3225 | 32 | 36 | 25 |
BRONZE BUSHING-FB090-3230 | 32 | 36 | 30 |
BRONZE BUSHING-FB090-3235 | 32 | 36 | 35 |
BRONZE BUSHING-FB090-3240 | 32 | 36 | 40 |
BRONZE BUSHING-FB090-3245 | 32 | 36 | 45 |
BRONZE BUSHING-FB090-3250 | 32 | 36 | 50 |
BRONZE BUSHING-FB090-3410 | 34 | 38 | 10 |
BRONZE BUSHING-FB090-3412 | 34 | 38 | 12 |
BRONZE BUSHING-FB090-3415 | 34 | 38 | 15 |
BRONZE BUSHING-FB090-3420 | 34 | 38 | 20 |
BRONZE BUSHING-FB090-3425 | 34 | 38 | 25 |
BRONZE BUSHING-FB090-3430 | 34 | 38 | 30 |
BRONZE BUSHING-FB090-3435 | 34 | 38 | 35 |
BRONZE BUSHING-FB090-3440 | 34 | 38 | 40 |
BRONZE BUSHING-FB090-3445 | 34 | 38 | 45 |
BRONZE BUSHING-FB090-3510 | 35 | 39 | 10 |
BRONZE BUSHING-FB090-3512 | 35 | 39 | 12 |
BRONZE BUSHING-FB090-3515 | 35 | 39 | 15 |
BRONZE BUSHING-FB090-3520 | 35 | 39 | 20 |
BRONZE BUSHING-FB090-3525 | 35 | 39 | 25 |
BRONZE BUSHING-FB090-3530 | 35 | 39 | 30 |
BRONZE BUSHING-FB090-3535 | 35 | 39 | 35 |
BRONZE BUSHING-FB090-3540 | 35 | 39 | 40 |
BRONZE BUSHING-FB090-3545 | 35 | 39 | 45 |
BRONZE BUSHING-FB090-3550 | 35 | 39 | 50 |
BRONZE BUSHING-FB090-3610 | 36 | 40 | 10 |
BRONZE BUSHING-FB090-3612 | 36 | 40 | 12 |
BRONZE BUSHING-FB090-3615 | 36 | 40 | 15 |
BRONZE BUSHING-FB090-3620 | 36 | 40 | 20 |
BRONZE BUSHING-FB090-3625 | 36 | 40 | 25 |
BRONZE BUSHING-FB090-3630 | 36 | 40 | 30 |
BRONZE BUSHING-FB090-3635 | 36 | 40 | 35 |
BRONZE BUSHING-FB090-3640 | 36 | 40 | 40 |
BRONZE BUSHING-FB090-3645 | 36 | 40 | 45 |
BRONZE BUSHING-FB090-3650 | 36 | 40 | 50 |
BRONZE BUSHING-FB090-3812 | 38 | 42 | 12 |
BRONZE BUSHING-FB090-3815 | 38 | 42 | 15 |
BRONZE BUSHING-FB090-3820 | 38 | 42 | 20 |
BRONZE BUSHING-FB090-3825 | 38 | 42 | 25 |
BRONZE BUSHING-FB090-3830 | 38 | 42 | 30 |
BRONZE BUSHING-FB090-3835 | 38 | 42 | 35 |
BRONZE BUSHING-FB090-3840 | 38 | 42 | 40 |
BRONZE BUSHING-FB090-3845 | 38 | 42 | 45 |
BRONZE BUSHING-FB090-3850 | 38 | 42 | 50 |
BRONZE BUSHING-FB090-3855 | 38 | 42 | 55 |
BRONZE BUSHING-FB090-3860 | 38 | 42 | 60 |
BRONZE BUSHING-FB090-4012 | 40 | 44 | 12 |
BRONZE BUSHING-FB090-4015 | 40 | 44 | 15 |
BRONZE BUSHING-FB090-4020 | 40 | 44 | 20 |
BRONZE BUSHING-FB090-4025 | 40 | 44 | 25 |
BRONZE BUSHING-FB090-4030 | 40 | 44 | 30 |
BRONZE BUSHING-FB090-4035 | 40 | 44 | 35 |
BRONZE BUSHING-FB090-4040 | 40 | 44 | 40 |
BRONZE BUSHING-FB090-4045 | 40 | 44 | 45 |
BRONZE BUSHING-FB090-4050 | 40 | 44 | 50 |
BRONZE BUSHING-FB090-4055 | 40 | 44 | 55 |
BRONZE BUSHING-FB090-4060 | 40 | 44 | 60 |
BRONZE BUSHING-FB090-4212 | 42 | 46 | 12 |
BRONZE BUSHING-FB090-4215 | 42 | 46 | 15 |
BRONZE BUSHING-FB090-4220 | 42 | 46 | 20 |
BRONZE BUSHING-FB090-4225 | 42 | 46 | 25 |
BRONZE BUSHING-FB090-4230 | 42 | 46 | 30 |
BRONZE BUSHING-FB090-4235 | 42 | 46 | 35 |
BRONZE BUSHING-FB090-4240 | 42 | 46 | 40 |
BRONZE BUSHING-FB090-4245 | 42 | 46 | 45 |
BRONZE BUSHING-FB090-4250 | 42 | 46 | 50 |
BRONZE BUSHING-FB090-4255 | 42 | 46 | 55 |
BRONZE BUSHING-FB090-4260 | 42 | 46 | 60 |
BRONZE BUSHING-FB090-4412 | 44 | 48 | 12 |
BRONZE BUSHING-FB090-4415 | 44 | 48 | 15 |
BRONZE BUSHING-FB090-4420 | 44 | 48 | 20 |
BRONZE BUSHING-FB090-4425 | 44 | 48 | 25 |
BRONZE BUSHING-FB090-4430 | 44 | 48 | 30 |
BRONZE BUSHING-FB090-4435 | 44 | 48 | 35 |
BRONZE BUSHING-FB090-4440 | 44 | 48 | 40 |
BRONZE BUSHING-FB090-4445 | 44 | 48 | 45 |
BRONZE BUSHING-FB090-4450 | 44 | 48 | 50 |
BRONZE BUSHING-FB090-4455 | 44 | 48 | 55 |
BRONZE BUSHING-FB090-4460 | 44 | 48 | 60 |
BRONZE BUSHING-FB090-4518 | 45 | 50 | 18 |
BRONZE BUSHING-FB090-4520 | 45 | 50 | 20 |
BRONZE BUSHING-FB090-4525 | 45 | 50 | 25 |
BRONZE BUSHING-FB090-4530 | 45 | 50 | 30 |
BRONZE BUSHING-FB090-4535 | 45 | 50 | 35 |
BRONZE BUSHING-FB090-4540 | 45 | 50 | 40 |
BRONZE BUSHING-FB090-4545 | 45 | 50 | 45 |
BRONZE BUSHING-FB090-4550 | 45 | 50 | 50 |
BRONZE BUSHING-FB090-4555 | 45 | 50 | 55 |
BRONZE BUSHING-FB090-4560 | 45 | 50 | 60 |
BRONZE BUSHING-FB090-5015 | 50 | 55 | 15 |
BRONZE BUSHING-FB090-5020 | 50 | 55 | 20 |
BRONZE BUSHING-FB090-5025 | 50 | 55 | 25 |
BRONZE BUSHING-FB090-5030 | 50 | 55 | 30 |
BRONZE BUSHING-FB090-5035 | 50 | 55 | 35 |
BRONZE BUSHING-FB090-5040 | 50 | 55 | 40 |
BRONZE BUSHING-FB090-5045 | 50 | 55 | 45 |
BRONZE BUSHING-FB090-5050 | 50 | 55 | 50 |
BRONZE BUSHING-FB090-5055 | 50 | 55 | 55 |
BRONZE BUSHING-FB090-5060 | 50 | 55 | 60 |
BRONZE BUSHING-FB090-5065 | 50 | 55 | 65 |
BRONZE BUSHING-FB090-5070 | 50 | 55 | 70 |
BRONZE BUSHING-FB090-5515 | 55 | 60 | 15 |
BRONZE BUSHING-FB090-5520 | 55 | 60 | 20 |
BRONZE BUSHING-FB090-5525 | 55 | 60 | 25 |
BRONZE BUSHING-FB090-5530 | 55 | 60 | 30 |
BRONZE BUSHING-FB090-5535 | 55 | 60 | 35 |
BRONZE BUSHING-FB090-5540 | 55 | 60 | 40 |
BRONZE BUSHING-FB090-5545 | 55 | 60 | 45 |
BRONZE BUSHING-FB090-5550 | 55 | 60 | 50 |
BRONZE BUSHING-FB090-5555 | 55 | 60 | 55 |
BRONZE BUSHING-FB090-5560 | 55 | 60 | 60 |
BRONZE BUSHING-FB090-5565 | 55 | 60 | 65 |
BRONZE BUSHING-FB090-5570 | 55 | 60 | 70 |
BRONZE BUSHING-FB090-6015 | 60 | 65 | 15 |
BRONZE BUSHING-FB090-6020 | 60 | 65 | 20 |
BRONZE BUSHING-FB090-6025 | 60 | 65 | 25 |
BRONZE BUSHING-FB090-6030 | 60 | 65 | 30 |
BRONZE BUSHING-FB090-6035 | 60 | 65 | 35 |
BRONZE BUSHING-FB090-6040 | 60 | 65 | 40 |
BRONZE BUSHING-FB090-6045 | 60 | 65 | 45 |
BRONZE BUSHING-FB090-6050 | 60 | 65 | 50 |
BRONZE BUSHING-FB090-6055 | 60 | 65 | 55 |
BRONZE BUSHING-FB090-6060 | 60 | 65 | 60 |
BRONZE BUSHING-FB090-6065 | 60 | 65 | 65 |
BRONZE BUSHING-FB090-6070 | 60 | 65 | 70 |
BRONZE BUSHING-FB090-6075 | 60 | 65 | 75 |
BRONZE BUSHING-FB090-6080 | 60 | 65 | 80 |
BRONZE BUSHING-FB090-6085 | 60 | 65 | 85 |
BRONZE BUSHING-FB090-6090 | 60 | 65 | 90 |
BRONZE BUSHING-FB090-6515 | 65 | 70 | 15 |
BRONZE BUSHING-FB090-6520 | 65 | 70 | 20 |
BRONZE BUSHING-FB090-6530 | 65 | 70 | 30 |
BRONZE BUSHING-FB090-6540 | 65 | 70 | 40 |
BRONZE BUSHING-FB090-6550 | 65 | 70 | 50 |
BRONZE BUSHING-FB090-6560 | 65 | 70 | 60 |
BRONZE BUSHING-FB090-6570 | 65 | 70 | 70 |
BRONZE BUSHING-FB090-6580 | 65 | 70 | 80 |
BRONZE BUSHING-FB090-6590 | 65 | 70 | 90 |
BRONZE BUSHING-FB090-7020 | 70 | 75 | 20 |
BRONZE BUSHING-FB090-7030 | 70 | 75 | 30 |
BRONZE BUSHING-FB090-7040 | 70 | 75 | 40 |
BRONZE BUSHING-FB090-7045 | 70 | 75 | 45 |
BRONZE BUSHING-FB090-7050 | 70 | 75 | 50 |
BRONZE BUSHING-FB090-7060 | 70 | 75 | 60 |
BRONZE BUSHING-FB090-7070 | 70 | 75 | 70 |
BRONZE BUSHING-FB090-7080 | 70 | 75 | 80 |
BRONZE BUSHING-FB090-7090 | 70 | 75 | 90 |
BRONZE BUSHING-FB090-7530 | 75 | 80 | 30 |
BRONZE BUSHING-FB090-7540 | 75 | 80 | 40 |
BRONZE BUSHING-FB090-7550 | 75 | 80 | 50 |
BRONZE BUSHING-FB090-7560 | 75 | 80 | 60 |
BRONZE BUSHING-FB090-7570 | 75 | 80 | 70 |
BRONZE BUSHING-FB090-7580 | 75 | 80 | 80 |
BRONZE BUSHING-FB090-7590 | 75 | 80 | 90 |
BRONZE BUSHING-FB090-8030 | 80 | 85 | 30 |
BRONZE BUSHING-FB090-8040 | 80 | 85 | 40 |
BRONZE BUSHING-FB090-8050 | 80 | 85 | 50 |
BRONZE BUSHING-FB090-8060 | 80 | 85 | 60 |
BRONZE BUSHING-FB090-8070 | 80 | 85 | 70 |
BRONZE BUSHING-FB090-8080 | 80 | 85 | 80 |
BRONZE BUSHING-FB090-8090 | 80 | 85 | 90 |
BRONZE BUSHING-FB090-80100 | 80 | 85 | 100 |
BRONZE BUSHING-FB090-8530 | 85 | 90 | 30 |
BRONZE BUSHING-FB090-8540 | 85 | 90 | 40 |
BRONZE BUSHING-FB090-8550 | 85 | 90 | 50 |
BRONZE BUSHING-FB090-8560 | 85 | 90 | 60 |
BRONZE BUSHING-FB090-8570 | 85 | 90 | 70 |
BRONZE BUSHING-FB090-8580 | 85 | 90 | 80 |
BRONZE BUSHING-FB090-8590 | 85 | 90 | 90 |
BRONZE BUSHING-FB090-85100 | 85 | 90 | 100 |
BRONZE BUSHING-FB090-9030 | 90 | 95 | 30 |
BRONZE BUSHING-FB090-9040 | 90 | 95 | 40 |
BRONZE BUSHING-FB090-9050 | 90 | 95 | 50 |
BRONZE BUSHING-FB090-9060 | 90 | 95 | 60 |
BRONZE BUSHING-FB090-9070 | 90 | 95 | 70 |
BRONZE BUSHING-FB090-9080 | 90 | 95 | 80 |
BRONZE BUSHING-FB090-9090 | 90 | 95 | 90 |
BRONZE BUSHING-FB090-90100 | 90 | 95 | 100 |
BRONZE BUSHING-FB090-9530 | 95 | 100 | 30 |
BRONZE BUSHING-FB090-9540 | 95 | 100 | 40 |
BRONZE BUSHING-FB090-9550 | 95 | 100 | 50 |
BRONZE BUSHING-FB090-9560 | 95 | 100 | 60 |
BRONZE BUSHING-FB090-9570 | 95 | 100 | 70 |
BRONZE BUSHING-FB090-9580 | 95 | 100 | 80 |
BRONZE BUSHING-FB090-9590 | 95 | 100 | 90 |
BRONZE BUSHING-FB090-95100 | 95 | 100 | 100 |
BRONZE BUSHING-FB090-10030 | 100 | 105 | 30 |
BRONZE BUSHING-FB090-10040 | 100 | 105 | 40 |
BRONZE BUSHING-FB090-10050 | 100 | 105 | 50 |
BRONZE BUSHING-FB090-10060 | 100 | 105 | 60 |
BRONZE BUSHING-FB090-10070 | 100 | 105 | 70 |
BRONZE BUSHING-FB090-10080 | 100 | 105 | 80 |
BRONZE BUSHING-FB090-10090 | 100 | 105 | 90 |
BRONZE BUSHING-FB090-10095 | 100 | 105 | 95 |
BRONZE BUSHING-FB090-100100 | 100 | 105 | 100 |
BRONZE BUSHING-FB090-100115 | 100 | 105 | 115 |
BRONZE BUSHING-FB090-10550 | 105 | 110 | 50 |
BRONZE BUSHING-FB090-10560 | 105 | 110 | 60 |
BRONZE BUSHING-FB090-10570 | 105 | 110 | 70 |
BRONZE BUSHING-FB090-10580 | 105 | 110 | 80 |
BRONZE BUSHING-FB090-10590 | 105 | 110 | 90 |
BRONZE BUSHING-FB090-105100 | 105 | 110 | 100 |
BRONZE BUSHING-FB090-105115 | 105 | 110 | 115 |
BRONZE BUSHING-FB090-11050 | 110 | 115 | 50 |
BRONZE BUSHING-FB090-11060 | 110 | 115 | 60 |
BRONZE BUSHING-FB090-11070 | 110 | 115 | 70 |
BRONZE BUSHING-FB090-11080 | 110 | 115 | 80 |
BRONZE BUSHING-FB090-11090 | 110 | 115 | 90 |
BRONZE BUSHING-FB090-110100 | 110 | 115 | 100 |
BRONZE BUSHING-FB090-110115 | 110 | 115 | 115 |
BRONZE BUSHING-FB090-11550 | 115 | 120 | 50 |
BRONZE BUSHING-FB090-11560 | 115 | 120 | 60 |
BRONZE BUSHING-FB090-11570 | 115 | 120 | 70 |
BRONZE BUSHING-FB090-11580 | 115 | 120 | 80 |
BRONZE BUSHING-FB090-11590 | 115 | 120 | 90 |
BRONZE BUSHING-FB090-115100 | 115 | 120 | 100 |
BRONZE BUSHING-FB090-115115 | 115 | 120 | 115 |
BRONZE BUSHING-FB090-12050 | 120 | 125 | 50 |
BRONZE BUSHING-FB090-12060 | 120 | 125 | 60 |
BRONZE BUSHING-FB090-12070 | 120 | 125 | 70 |
BRONZE BUSHING-FB090-12080 | 120 | 125 | 80 |
BRONZE BUSHING-FB090-12090 | 120 | 125 | 90 |
BRONZE BUSHING-FB090-120100 | 120 | 125 | 100 |
BRONZE BUSHING-FB090-120120 | 120 | 125 | 120 |
BRONZE BUSHING-FB090-12550 | 125 | 130 | 50 |
BRONZE BUSHING-FB090-12560 | 125 | 130 | 60 |
BRONZE BUSHING-FB090-12570 | 125 | 130 | 70 |
BRONZE BUSHING-FB090-12580 | 125 | 130 | 80 |
BRONZE BUSHING-FB090-12590 | 125 | 130 | 90 |
BRONZE BUSHING-FB090-125100 | 125 | 130 | 100 |
BRONZE BUSHING-FB090-125115 | 125 | 130 | 115 |
BRONZE BUSHING-FB090-13060 | 130 | 135 | 60 |
BRONZE BUSHING-FB090-13070 | 130 | 135 | 70 |
BRONZE BUSHING-FB090-13080 | 130 | 135 | 80 |
BRONZE BUSHING-FB090-13090 | 130 | 135 | 90 |
BRONZE BUSHING-FB090-130100 | 130 | 135 | 100 |
BRONZE BUSHING-FB090-130120 | 130 | 135 | 120 |
BRONZE BUSHING-FB090-13560 | 135 | 140 | 60 |
BRONZE BUSHING-FB090-13570 | 135 | 140 | 70 |
BRONZE BUSHING-FB090-13580 | 135 | 140 | 80 |
BRONZE BUSHING-FB090-13590 | 135 | 140 | 90 |
BRONZE BUSHING-FB090-135100 | 135 | 140 | 100 |
BRONZE BUSHING-FB090-135120 | 135 | 140 | 120 |
BRONZE BUSHING-FB090-14060 | 140 | 145 | 60 |
BRONZE BUSHING-FB090-14070 | 140 | 145 | 70 |
BRONZE BUSHING-FB090-14080 | 140 | 145 | 80 |
BRONZE BUSHING-FB090-14090 | 140 | 145 | 90 |
BRONZE BUSHING-FB090-140100 | 140 | 145 | 100 |
BRONZE BUSHING-FB090-14560 | 145 | 150 | 60 |
BRONZE BUSHING-FB090-14570 | 145 | 150 | 70 |
BRONZE BUSHING-FB090-14580 | 145 | 150 | 80 |
BRONZE BUSHING-FB090-14590 | 145 | 150 | 90 |
BRONZE BUSHING-FB090-145110 | 145 | 150 | 100 |
BRONZE BUSHING-FB090-145120 | 145 | 150 | 120 |
BRONZE BUSHING-FB090-15060 | 150 | 155 | 60 |
BRONZE BUSHING-FB090-15070 | 150 | 155 | 70 |
BRONZE BUSHING-FB090-15080 | 150 | 155 | 80 |
BRONZE BUSHING-FB090-15090 | 150 | 155 | 90 |
BRONZE BUSHING-FB090-150100 | 150 | 155 | 100 |
BRONZE BUSHING-FB090-15550 | 155 | 160 | 50 |
BRONZE BUSHING-FB090-15560 | 155 | 160 | 60 |
BRONZE BUSHING-FB090-15570 | 155 | 160 | 70 |
BRONZE BUSHING-FB090-15580 | 155 | 160 | 80 |
BRONZE BUSHING-FB090-15590 | 155 | 160 | 90 |
BRONZE BUSHING-FB090-155100 | 155 | 160 | 100 |
BRONZE BUSHING-FB090-16060 | 160 | 165 | 60 |
BRONZE BUSHING-FB090-16070 | 160 | 165 | 70 |
BRONZE BUSHING-FB090-16080 | 160 | 165 | 80 |
BRONZE BUSHING-FB090-16090 | 160 | 165 | 90 |
BRONZE BUSHING-FB090-160100 | 160 | 165 | 100 |
BRONZE BUSHING-FB090-160110 | 160 | 165 | 110 |
BRONZE BUSHING-FB090-160120 | 160 | 165 | 120 |
BRONZE BUSHING-FB090-160130 | 160 | 165 | 130 |
BRONZE BUSHING-FB090-160140 | 160 | 165 | 140 |
BRONZE BUSHING-FB090-160150 | 160 | 165 | 150 |
BRONZE BUSHING-FB090-16560 | 165 | 170 | 60 |
BRONZE BUSHING-FB090-16570 | 165 | 170 | 70 |
BRONZE BUSHING-FB090-16580 | 165 | 170 | 80 |
BRONZE BUSHING-FB090-16590 | 165 | 170 | 90 |
BRONZE BUSHING-FB090-165100 | 165 | 170 | 100 |
BRONZE BUSHING-FB090-165110 | 165 | 170 | 110 |
BRONZE BUSHING-FB090-165120 | 165 | 170 | 120 |
BRONZE BUSHING-FB090-165130 | 165 | 170 | 130 |
BRONZE BUSHING-FB090-165140 | 165 | 170 | 140 |
BRONZE BUSHING-FB090-165150 | 165 | 170 | 150 |
BRONZE BUSHING-FB090-17060 | 170 | 175 | 60 |
BRONZE BUSHING-FB090-17070 | 170 | 175 | 70 |
BRONZE BUSHING-FB090-17080 | 170 | 175 | 80 |
BRONZE BUSHING-FB090-17090 | 170 | 175 | 90 |
BRONZE BUSHING-FB090-170100 | 170 | 175 | 100 |
BRONZE BUSHING-FB090-170110 | 170 | 175 | 110 |
BRONZE BUSHING-FB090-170120 | 170 | 175 | 120 |
BRONZE BUSHING-FB090-170430 | 170 | 175 | 130 |
BRONZE BUSHING-FB090-170140 | 170 | 175 | 140 |
BRONZE BUSHING-FB090-170150 | 170 | 175 | 150 |
BRONZE BUSHING-FB090-17560 | 175 | 180 | 60 |
BRONZE BUSHING-FB090-17570 | 175 | 180 | 70 |
BRONZE BUSHING-FB090-17580 | 175 | 180 | 80 |
BRONZE BUSHING-FB090-17590 | 175 | 180 | 90 |
BRONZE BUSHING-FB090-175100 | 175 | 180 | 100 |
BRONZE BUSHING-FB090-175110 | 175 | 180 | 110 |
BRONZE BUSHING-FB090-175120 | 175 | 180 | 120 |
BRONZE BUSHING-FB090-175130 | 175 | 180 | 130 |
BRONZE BUSHING-FB090-175140 | 175 | 180 | 140 |
BRONZE BUSHING-FB090-175150 | 175 | 180 | 150 |
BRONZE BUSHING-FB090-18060 | 180 | 185 | 60 |
BRONZE BUSHING-FB090-18070 | 180 | 185 | 70 |
BRONZE BUSHING-FB090-18080 | 180 | 185 | 80 |
BRONZE BUSHING-FB090-18090 | 180 | 185 | 90 |
BRONZE BUSHING-FB090-180100 | 180 | 185 | 100 |
BRONZE BUSHING-FB090-180110 | 180 | 185 | 110 |
BRONZE BUSHING-FB090-180120 | 180 | 185 | 120 |
BRONZE BUSHING-FB090-180130 | 180 | 185 | 130 |
BRONZE BUSHING-FB090-180140 | 180 | 185 | 140 |
BRONZE BUSHING-FB090-180150 | 180 | 185 | 150 |
BRONZE BUSHING-FB090-18560 | 185 | 190 | 60 |
BRONZE BUSHING-FB090-18570 | 185 | 190 | 70 |
BRONZE BUSHING-FB090-18580 | 185 | 190 | 80 |
BRONZE BUSHING-FB090-18590 | 185 | 190 | 90 |
BRONZE BUSHING-FB090-185100 | 185 | 190 | 100 |
BRONZE BUSHING-FB090-185110 | 185 | 190 | 110 |
BRONZE BUSHING-FB090-185120 | 185 | 190 | 120 |
BRONZE BUSHING-FB090-185130 | 185 | 190 | 130 |
BRONZE BUSHING-FB090-185140 | 185 | 190 | 140 |
BRONZE BUSHING-FB090-185150 | 185 | 190 | 150 |
BRONZE BUSHING-FB090-19060 | 190 | 195 | 60 |
BRONZE BUSHING-FB090-19070 | 190 | 195 | 70 |
BRONZE BUSHING-FB090-19080 | 190 | 195 | 80 |
BRONZE BUSHING-FB090-19090 | 190 | 195 | 90 |
BRONZE BUSHING-FB090-190100 | 190 | 195 | 100 |
BRONZE BUSHING-FB090-190110 | 190 | 195 | 110 |
BRONZE BUSHING-FB090-190120 | 190 | 195 | 120 |
BRONZE BUSHING-FB090-190130 | 190 | 195 | 130 |
BRONZE BUSHING-FB090-190140 | 190 | 195 | 140 |
BRONZE BUSHING-FB090-190150 | 190 | 195 | 150 |
BRONZE BUSHING-FB090-19560 | 195 | 200 | 60 |
BRONZE BUSHING-FB090-19570 | 195 | 200 | 70 |
BRONZE BUSHING-FB090-19580 | 195 | 200 | 80 |
BRONZE BUSHING-FB090-19590 | 195 | 200 | 90 |
BRONZE BUSHING-FB090-195100 | 195 | 200 | 100 |
BRONZE BUSHING-FB090-195110 | 195 | 200 | 110 |
BRONZE BUSHING-FB090-195120 | 195 | 200 | 120 |
BRONZE BUSHING-FB090-195130 | 195 | 200 | 130 |
BRONZE BUSHING-FB090-195140 | 195 | 200 | 140 |
BRONZE BUSHING-FB090-195150 | 195 | 200 | 150 |
BRONZE BUSHING-FB090-20060 | 200 | 205 | 60 |
BRONZE BUSHING-FB090-20070 | 200 | 205 | 70 |
BRONZE BUSHING-FB090-20080 | 200 | 205 | 80 |
BRONZE BUSHING-FB090-20090 | 200 | 205 | 90 |
BRONZE BUSHING-FB090-200100 | 200 | 205 | 100 |
BRONZE BUSHING-FB090-200110 | 200 | 205 | 110 |
BRONZE BUSHING-FB090-200120 | 200 | 205 | 120 |
BRONZE BUSHING-FB090-200130 | 200 | 205 | 130 |
BRONZE BUSHING-FB090-200140 | 200 | 205 | 140 |
BRONZE BUSHING-FB090-200150 | 200 | 205 | 150 |
BRONZE BUSHING-FB090-20560 | 205 | 210 | 60 |
BRONZE BUSHING-FB090-20570 | 205 | 210 | 70 |
BRONZE BUSHING-FB090-20580 | 205 | 210 | 80 |
BRONZE BUSHING-FB090-20590 | 205 | 210 | 90 |
BRONZE BUSHING-FB090-205100 | 205 | 210 | 100 |
BRONZE BUSHING-FB090-205110 | 205 | 210 | 110 |
BRONZE BUSHING-FB090-205120 | 205 | 210 | 120 |
BRONZE BUSHING-FB090-205130 | 205 | 210 | 130 |
BRONZE BUSHING-FB090-205140 | 205 | 210 | 140 |
BRONZE BUSHING-FB090-205150 | 205 | 210 | 150 |
BRONZE BUSHING-FB090-21060 | 210 | 215 | 60 |
BRONZE BUSHING-FB090-21070 | 210 | 215 | 70 |
BRONZE BUSHING-FB090-21080 | 210 | 215 | 80 |
BRONZE BUSHING-FB090-21090 | 210 | 215 | 90 |
BRONZE BUSHING-FB090-210100 | 210 | 215 | 100 |
BRONZE BUSHING-FB090-210110 | 210 | 215 | 110 |
BRONZE BUSHING-FB090-210120 | 210 | 215 | 120 |
BRONZE BUSHING-FB090-210130 | 210 | 215 | 130 |
BRONZE BUSHING-FB090-210140 | 210 | 215 | 140 |
BRONZE BUSHING-FB090-210150 | 210 | 215 | 150 |
BRONZE BUSHING-FB090-21560 | 215 | 220 | 60 |
BRONZE BUSHING-FB090-21570 | 215 | 220 | 70 |
BRONZE BUSHING-FB090-21580 | 215 | 220 | 80 |
BRONZE BUSHING-FB090-21590 | 215 | 220 | 90 |
BRONZE BUSHING-FB090-215100 | 215 | 220 | 100 |
BRONZE BUSHING-FB090-215110 | 215 | 220 | 110 |
BRONZE BUSHING-FB090-215120 | 215 | 220 | 120 |
BRONZE BUSHING-FB090-215130 | 215 | 220 | 130 |
BRONZE BUSHING-FB090-215140 | 215 | 220 | 140 |
BRONZE BUSHING-FB090-215150 | 215 | 220 | 150 |
BRONZE BUSHING-FB090-22060 | 220 | 225 | 60 |
BRONZE BUSHING-FB090-22070 | 220 | 225 | 70 |
BRONZE BUSHING-FB090-22080 | 220 | 225 | 80 |
BRONZE BUSHING-FB090-22090 | 220 | 225 | 90 |
BRONZE BUSHING-FB090-220100 | 220 | 225 | 100 |
BRONZE BUSHING-FB090-220110 | 220 | 225 | 110 |
BRONZE BUSHING-FB090-220120 | 220 | 225 | 120 |
BRONZE BUSHING-FB090-220130 | 220 | 225 | 130 |
BRONZE BUSHING-FB090-220140 | 220 | 225 | 140 |
BRONZE BUSHING-FB090-220150 | 220 | 225 | 150 |
BRONZE BUSHING-FB090-22560 | 225 | 230 | 60 |
BRONZE BUSHING-FB090-22570 | 225 | 230 | 70 |
BRONZE BUSHING-FB090-22580 | 225 | 230 | 80 |
BRONZE BUSHING-FB090-22590 | 225 | 230 | 90 |
BRONZE BUSHING-FB090-225100 | 225 | 230 | 100 |
BRONZE BUSHING-FB090-225110 | 225 | 230 | 110 |
BRONZE BUSHING-FB090-225120 | 225 | 230 | 120 |
BRONZE BUSHING-FB090-225130 | 225 | 230 | 130 |
BRONZE BUSHING-FB090-225140 | 225 | 230 | 140 |
BRONZE BUSHING-FB090-225150 | 225 | 230 | 150 |
BRONZE BUSHING-FB090-23060 | 230 | 235 | 60 |
BRONZE BUSHING-FB090-23070 | 230 | 235 | 70 |
BRONZE BUSHING-FB090-23080 | 230 | 235 | 80 |
BRONZE BUSHING-FB090-23090 | 230 | 235 | 90 |
BRONZE BUSHING-FB090-230100 | 230 | 235 | 100 |
BRONZE BUSHING-FB090-230110 | 230 | 235 | 110 |
BRONZE BUSHING-FB090-230120 | 230 | 235 | 120 |
BRONZE BUSHING-FB090-230130 | 230 | 235 | 130 |
BRONZE BUSHING-FB090-230140 | 230 | 235 | 140 |
BRONZE BUSHING-FB090-230150 | 230 | 235 | 150 |
BRONZE BUSHING-FB090-24060 | 240 | 245 | 60 |
BRONZE BUSHING-FB090-24070 | 240 | 245 | 70 |
BRONZE BUSHING-FB090-24080 | 240 | 245 | 80 |
BRONZE BUSHING-FB090-24090 | 240 | 245 | 90 |
BRONZE BUSHING-FB090-240100 | 240 | 245 | 100 |
BRONZE BUSHING-FB090-240110 | 240 | 245 | 110 |
BRONZE BUSHING-FB090-240120 | 240 | 245 | 120 |
BRONZE BUSHING-FB090-240130 | 240 | 245 | 130 |
BRONZE BUSHING-FB090-240140 | 240 | 245 | 140 |
BRONZE BUSHING-FB090-240150 | 240 | 245 | 150 |
BRONZE BUSHING-FB090-25060 | 250 | 255 | 60 |
BRONZE BUSHING-FB090-25070 | 250 | 255 | 70 |
BRONZE BUSHING-FB090-25080 | 250 | 255 | 80 |
BRONZE BUSHING-FB090-25090 | 250 | 255 | 90 |
BRONZE BUSHING-FB090-250110 | 250 | 255 | 100 |
BRONZE BUSHING-FB090-250110 | 250 | 255 | 110 |
BRONZE BUSHING-FB090-250120 | 250 | 255 | 120 |
BRONZE BUSHING-FB090-250130 | 250 | 255 | 130 |
BRONZE BUSHING-FB090-250140 | 250 | 255 | 140 |
BRONZE BUSHING-FB090-250150 | 250 | 255 | 150 |
BRONZE BUSHING-FB090-26060 | 260 | 265 | 60 |
BRONZE BUSHING-FB090-26070 | 260 | 265 | 70 |
BRONZE BUSHING-FB090-26080 | 260 | 265 | 80 |
BRONZE BUSHING-FB090-26090 | 260 | 265 | 90 |
BRONZE BUSHING-FB090-260100 | 260 | 265 | 100 |
BRONZE BUSHING-FB090-260110 | 260 | 265 | 110 |
BRONZE BUSHING-FB090-260120 | 260 | 265 | 120 |
BRONZE BUSHING-FB090-260130 | 260 | 265 | 130 |
BRONZE BUSHING-FB090-260140 | 260 | 265 | 140 |
BRONZE BUSHING-FB090-260150 | 260 | 265 | 150 |
BRONZE BUSHING-FB090-27060 | 270 | 275 | 60 |
BRONZE BUSHING-FB090-27070 | 270 | 275 | 70 |
BRONZE BUSHING-FB090-27080 | 270 | 275 | 80 |
BRONZE BUSHING-FB090-27090 | 270 | 275 | 90 |
BRONZE BUSHING-FB090-270100 | 270 | 275 | 100 |
BRONZE BUSHING-FB090-270110 | 270 | 275 | 110 |
BRONZE BUSHING-FB090-270120 | 270 | 275 | 120 |
BRONZE BUSHING-FB090-270130 | 270 | 275 | 130 |
BRONZE BUSHING-FB090-270140 | 270 | 275 | 140 |
BRONZE BUSHING-FB090-270150 | 270 | 275 | 150 |
BRONZE BUSHING-FB090-28060 | 280 | 285 | 60 |
BRONZE BUSHING-FB090-28070 | 280 | 285 | 70 |
BRONZE BUSHING-FB090-28080 | 280 | 285 | 80 |
BRONZE BUSHING-FB090-280100 | 280 | 285 | 90 |
BRONZE BUSHING-FB090-280110 | 280 | 285 | 100 |
BRONZE BUSHING-FB090-280120 | 280 | 285 | 110 |
BRONZE BUSHING-FB090-280130 | 280 | 285 | 120 |
BRONZE BUSHING-FB090-280140 | 280 | 285 | 130 |
BRONZE BUSHING-FB090-280150 | 280 | 285 | 140 |
BRONZE BUSHING-FB090-280150 | 280 | 285 | 150 |
BRONZE BUSHING-FB090-29060 | 290 | 295 | 60 |
BRONZE BUSHING-FB090-29070 | 290 | 295 | 70 |
BRONZE BUSHING-FB090-29080 | 290 | 295 | 80 |
BRONZE BUSHING-FB090-29090 | 290 | 295 | 90 |
BRONZE BUSHING-FB090-290100 | 290 | 295 | 100 |
BRONZE BUSHING-FB090-290110 | 290 | 295 | 110 |
BRONZE BUSHING-FB090-290120 | 290 | 295 | 120 |
BRONZE BUSHING-FB090-290130 | 290 | 295 | 130 |
BRONZE BUSHING-FB090-290140 | 290 | 295 | 140 |
BRONZE BUSHING-FB090-290150 | 290 | 295 | 150 |
BRONZE BUSHING-FB090-30060 | 300 | 305 | 60 |
BRONZE BUSHING-FB090-30070 | 300 | 305 | 70 |
BRONZE BUSHING-FB090-30080 | 300 | 305 | 80 |
BRONZE BUSHING-FB090-30090 | 300 | 305 | 90 |
BRONZE BUSHING-FB090-300100 | 300 | 305 | 100 |
BRONZE BUSHING-FB090-300110 | 300 | 305 | 110 |
BRONZE BUSHING-FB090-300120 | 300 | 305 | 120 |
FEATURE

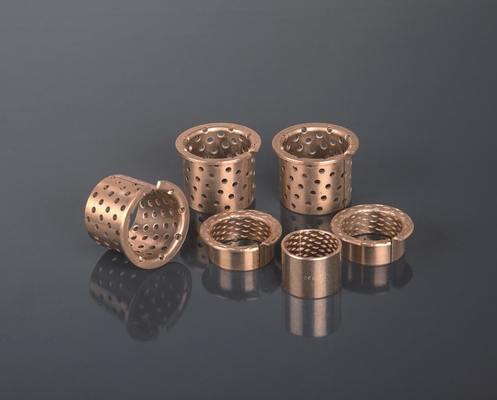

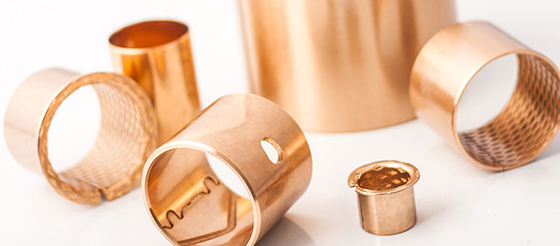

The bearings are wrapped from a cold-formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond-shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of the movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.
TECHNICAL DATA
STRUCTURE AND COMPOSITION
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents
MICROSECTION
|
CuSn8 with
|
OPERATING PERFORMANCE |
|
Dry |
Poor |
Oil lubricated |
Good |
Grease lubricated |
Good |
Water lubricated |
Poor |
Process fluid lubricated |
Poor |
BEARING PROPERTIES
Product NO. |
Chemical Compositions |
||
VSB-22 |
Cu |
Sn |
P |
91.3 |
8.3 |
0.2 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
START YOUR
PROJECT SIZE 090 Bronze wrapped bushing WITH AN APPLICATION ENGINEER
