Wind Solar & Hydroelectric Power Steel Lubricating Plain Bearing New Energy Bushings Parts
| Place of Origin | Self Lubricating Bearings Manufacturers |
|---|---|
| Brand Name | REPLACE BRAND Metal-Polymer Bearings BEARINGS () |
| Certification | DIN 1494, ISO 3547 STANDARD BUSHING |
| Model Number | BUSHING TYPE FLANGED PLAIN SLEEVE |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Competitively Priced vs, Provides Lubricating Bush |
| Packaging Details | WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS |
| Delivery Time | 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY |
| Payment Terms | TT IN ADVANCE WESTERN UNION |
| Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Carton Steel , Bronze , | Plating | Tin Or Copper |
|---|---|---|---|
| Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
| Size | Standard Size Available | Application | Energy Bushings,Wind Power Bearings |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | sintered self lubricating bushes,self lubricating bronze bushings |
||
Product Description
Wind, solar, and hydroelectric power are all forms of renewable energy that are increasingly being utilized to power our world. Steel lubricating plain bearings play a crucial role in the efficient operation of these new energy systems. These bearings are specifically designed to withstand the unique challenges presented by renewable energy applications, such as variable loads, high speeds, and harsh environments.
The lubrication properties of , combined with the strength and durability of steel, create bearings that are ideal for use in wind turbines, solar trackers, and hydroelectric turbines. These bearings provide smooth and reliable operation, ensuring that energy is efficiently converted from natural sources into usable electricity.
As the demand for renewable energy continues to grow, so does the need for high-performance bearings that can keep these systems running smoothly. Steel lubricating plain bearings are a vital component of this effort, helping to power our future with clean and sustainable energy.
Energy Bushings Parts-WWS—wind,water,sunlight self-lubricating bearing solutions
The VIIPLUS CHINA produced self-lubricating sleeves are manufactured with new energy sources to support swing areas, so that they can be manufactured easily without the maintenance requirements of environmentally friendly new energy sources (wind, solar, hydro, etc.).
Energy plants
Factory production of self-lubricating bushes applies to the new area of oscillation of the energy support to satisfy long-term use without maintenance requirements for a new ecological energy such as wind, solar, hydroelectric power, etc. To provide convenient use.Wind Power Metal-Polymer Wind Power plain bearings self-lubricating Bearings Cylindrical | VSB-10
In strong ultraviolet ray, harsh outdoor work environment, such as the running cost of wind power industry is very high, even if is very short downtime, it may take hundreds of thousands of yuan energy costs, how to design to make products to maintain high stability and prolong service life, this is a global challenge facing engineers.
VIIPLUS's new self-lubricating bearing solution is designed for use in demanding outdoor environments and wind energy applications.
VIIPLUS's new self-lubricating bearing solution is designed for use in demanding outdoor environments and wind energy applications.
- Uv radiation
- Abrasive wear
- lightweight
- Low friction coefficient
- Excellent bearing performance under dry friction conditions
- Good bearing performance under lubricated or marginal lubricated conditions
- Corrosion resistance in damp/salt spray environment
- Very cost-effective
- Very high weight to performance ratio
- Injection molding process makes bearing size and shape design more flexible
- Comply with RoHS specification
Wind Power Bushing & Wind Power Bushing Design Suppliers
Performance and quality bushing in products and technologies from viiplus bearings
Replacing Roller Bearings with VIIPLUS Plain Bearings
Self-lubricating bearing bush produced by VIIPLUS is suitable for support and swing parts of new energy, providing convenient use for environmental new energies, such as wind generator, Solar Generator, hydroelectric generator and so on.
Today’s advanced plain bearings from Self-lubricating Bearing Technology offer a number of significant advantages compared with rolling-element bearings. ... including wind turbines, agricultural equipment, steering systems, air ...
Products Application
- Energy
- Construction Machinery
- Plastic Injection Machinery
- Port Machineries
- Agricultural Machinery
- Automobile Industry
- Hydraulic Component
- Forging Machineries
Metal-Polymer Anti-Friction Plain Bearings
- ROLLED DRY SLIDING BEARINGS ()
- Steel + Bronze Powder + /Fibre
- Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with
Typical Applications
Energy facilities:The company's self-lubricating sleeve for the support of the new energy swing parts, to meet the long-term use without maintenance requirements for environmentally friendly new energy such as wind power, solar power, water power and other convenient applications.
Wind Power plain bearings
The self-lubricating and pre-lubricated bearings of VIIPLUS BRONZE GLEITLAGER are suitable for wind power generation and photovoltaic power generation devices, and are free of maintenance for life.
The self-lubricating and pre-lubricated bearings of VIIPLUS BRONZE GLEITLAGER are suitable for wind power generation and photovoltaic power generation devices, and are free of maintenance for life.
CHARACTERISTICS

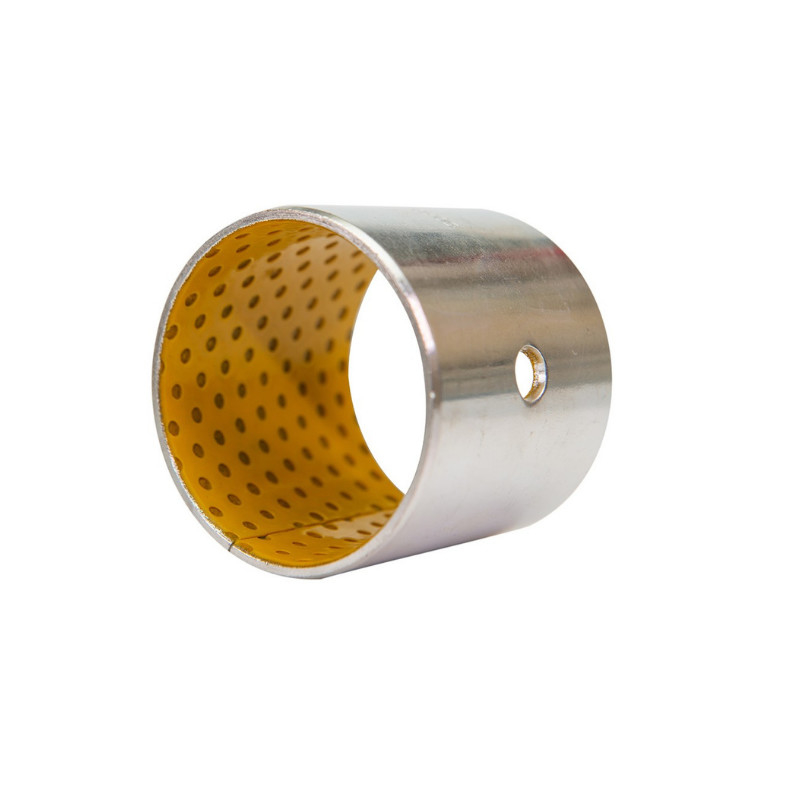

VSB-10 Self-Lubricating Multilayer Composite Bushing
- Bushing material suitable for lubricated applications
- self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
- Anti-friction bearing suitable for linear, oscillating and rotating movements
- Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.
Strusture
1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Technical Data
Carbon Steel + Copper Powder + ( + Pb + Filler)
Structure And Composition
- Metal-Polymer Composite Self-lubricating Bushing Material
- Steel Back + Porous Bronze Sinter +
- + Lead
MICROSECTION
|
|
Sliding layer |
|
OPERATING PERFORMANCE |
|
|
Dry |
Very Good |
|
Oil lubricated |
Good |
|
Grease lubricated |
Fair |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Fair |
Technical data
|
Max. load |
Static |
250N/mm2 |
|
Dynamic |
140N/mm2 |
|
|
Max. speed |
Dry |
2m/s |
|
Lubrication |
>2m/s |
|
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
|
Continuous |
1.8N/mm2*·m/s |
|
|
Temp. |
-195℃~+280℃ |
|
|
Friction coefficient |
0.03~0.20 |
|
|
Thermal conductivity |
42W (m·k)-1 |
|
|
Coefficient of thermal expansion |
11*10-6k-1 |
|
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
START YOUR PROJECT With an Application Engineer
VIIPLUS Provide all types of electronic samples for customers,Metal-Polymer Composite Bearings Catalog!
Energies Sliding Bearings & Bushings
By its knowledge in the industry of energy, VIIPLUS offer sliding bearings replying at the specific requests of its customers in the field of Oil & Gaz, hydroelectric, wind power, nuclear,…
