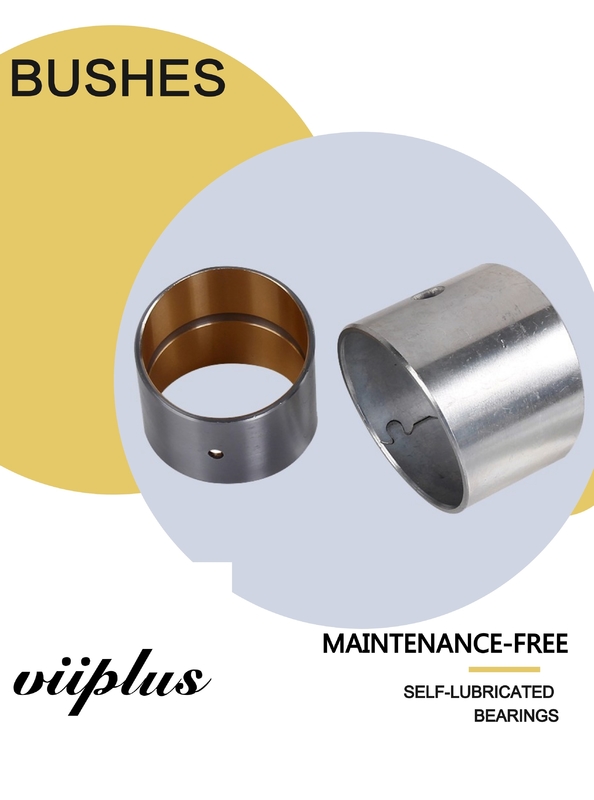

Bimetal bearing bushes is a bimetal bearing with steel back and sintered CuPb10Sn10 as lining.This type has fairly good performance in anti-fatigue and heavy load capacity.It is suitable for middle speed and middle load.When soft alloy is plated on the bushing surface and with oil lubrication,it can be applied in high-speed internal combustion engine and connect-rod.
| Lead bronze alloy | CuPb10Sn10 | Temperature Max | 170℃ |
| Load capacity | 38N/mm² | Harderness alloy | HB45~70 |
Bimetal Bushing Material CuPb10Sn10, SAE-797 Bronze Alloy Bearings,Sintered SAE797 Layer + Steel Backing + Copper Plating / Tin-Plating made to order from china manufacturer.Bimetal Bushing with Oil Grooves. The bimetal sliding bearings are produced on a steel base, with sintered CuPb10Sn10 or CuSn6Zn6Pb3 as the surface sliding layer.
Wrapped composite sliding bearing, steel / bronze - Bimetal Bushings
This type of sliding bearing has the best characteristics of all bimetal sliding bearings. They can be used with balancing suspension devices for heavy commercial vehicles, bulldozer wheels and car chassis, among other equipment. They are ideally suited to medium speed ranges and applications with high shock and impact forces.
SURFACE MATERIAL | LOAD CAPACITY | RESISTANCE ALLOY RANGE | TEMPERATURE LIMIT | |
|---|---|---|---|---|
CuSn10Pb10 / CuSn6Zn6Pb3 | 65 N/mm2 | HB70 | HB100 | +260°C |
1, A mid-load capacity & middle anti-fatigue
2. Applied in middle speed, high impact conditions.
3. Good anti-corrosion, and sliding capability.
4. the products can be used in undercarriage parts and engines of auto industry, constrution machine etc.
Steel＋CuPb10Sn10
VSB-80 bimetal bushing is backed with high quality low carbon steel with tin-lead-bronze alloy(CuSn10Pb10)sintered on its surface. To effectively decrease abrasion, its alloy surface can be machined with ball shaped oil sockets for easier oil storage. When necessary, it could be plated copper or tin on the steel back. It can be applied to conditions of mediate load with mediate or high running belocity and conditions with enormous impact load. In mechanical applications, VSB-80 is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine.
Performance | Data | |
Max dynamic Load P |
| 140N/mm² |
Max line speed V | Greaes lubrication | 2.5m/s |
Max PV value | Greaes lubrication | 2.8N/mm²·m/s |
Friction coef μ | Greaes lubrication | 0.05~0.15 |
Max line speed V | Oil lubrication | 5m/s |
Max PV value | Oil lubrication | 10N/mm²· m/s |
Friction coef μ | Oil lubrication | 0.04~0.12 |
Max Working temperature | Greaes lubrication | 150℃ |
Performance | Data | |
Max Working temperature | Oil lubrication | 250℃ |
Mating Axis | Hardness | ≥53HB |
Mating Axis | Roughness | Ra=0.32~0.63 |
Alloy Hardness | 80~120 | |
Heat-conducting Coefficient | 47W/(m·k) | |
Coefficient of linear xpansion | 18×10-6K-1 | |
according to customers special request while out of this table. | ||
Application: con-rod of automobile engines, engineering and agriculture machinery, heavy duty construction machinery etc.
Fork lifts
Pallet Trucks
Cranes
Excavators

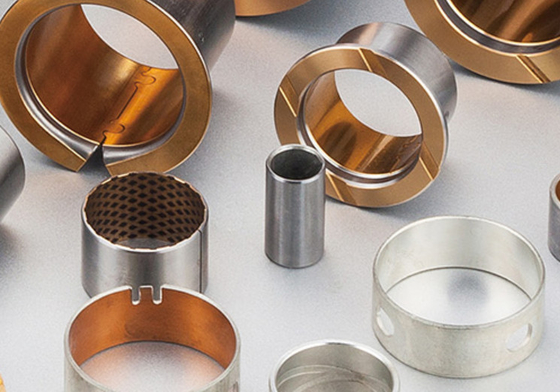

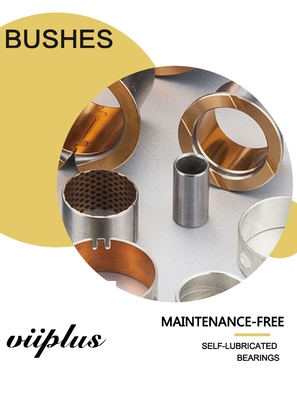

Wrapped composite sliding bearing
Copper-plated or tin-plated steel / bronze
Low-maintenance
With lubrication pockets
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Support materialSteel copper-plated / tin-plated
Sliding layerCuPb10Sn10
Specific load capacity static≤ 250 [N/mm2]
Specific load capacity dynamic≤ 140 [N/mm2]
Sliding speed≤ 2,5. [m/s] ≤ 5 [m/s] oil lubricated
Reibungswert **0.04 [µ] to 0.12 [µ] depending on lubrication
Temperature strain– 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
Percentage contact area > 75 [%]
Housing ØH7
Bushing inner-Ø after mountingH9
Shaft tolerancef7 to h8
is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!
