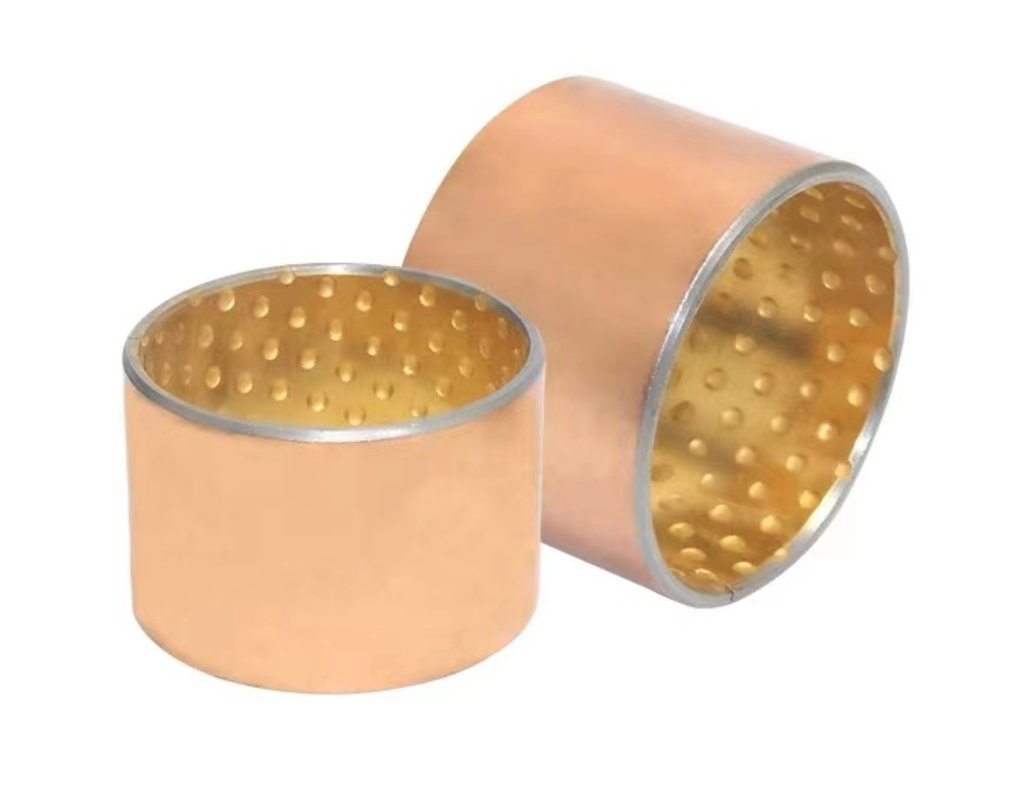

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

Agricultural Machinery Bronze Bearing For Combine Harvestor Planters Strapping Machines

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

plain bearing

Leave a Message
Product Description

Agricultural machinery demands bearings that are able to withstand harsh environments, heavy loads, and continuous operation. Bronze bearings are a popular choice for agricultural equipment, including combine harvesters, planters, and strapping machines, due to their exceptional durability, wear resistance, and self-lubricating properties.

In combine harvesters, bronze bearings are often used in the threshing and separating systems. These areas of the machine are subject to heavy loads and frequent friction, making them ideal applications for bronze bearings. The durability of bronze bearings ensures that they can handle the rigorous demands of harvesting operations, while their self-lubricating properties reduce the need for frequent maintenance and replacement.

Planters, on the other hand, require precision and consistency in their operation to ensure optimal seed placement. Bronze bearings are commonly used in planter mechanisms to provide smooth and reliable rotation of the planting units. Their wear resistance ensures that the bearings maintain their accuracy over time, while their self-lubricating properties minimize friction and wear on the surrounding components.

Strapping machines, which are used in agricultural packaging operations, also rely on bronze bearings for smooth and efficient operation. The high-speed rotation and frequent stopping of strapping machines can place significant demands on bearings, but bronze bearings are able to handle these conditions with ease. Their durability and wear resistance ensure that strapping machines can operate reliably and efficiently for extended periods of time.

Overall, bronze bearings are an excellent choice for agricultural machinery due to their exceptional durability, wear resistance, and self-lubricating properties. They are able to handle the rigorous demands of combine harvesters, planters, and strapping machines, ensuring smooth and efficient operation over the long term.



Metal-Polymer Anti-Friction Self-lubricating Bearings Cylindrical  Cranes Plain Bearings



Agricultural machinery self-lubricating bearings Wholesale from China, China bushings Suppliers | Sleeve Bushes
Since self-lubricating bearings are maintenance-free and wear resistant under dust and outdoor conditions, they are widely used in oil cylinders, suspension systems, joints and other parts that cannot be refueling or are difficult to form oil film.
Assembly of Rolling Sliding Sleeve bearings

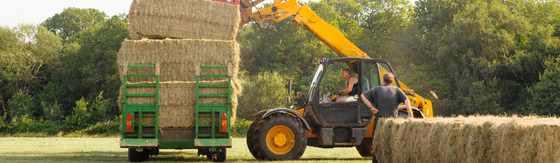

Agricultural machine
Since self-lubricating bearings do not require maintenance, have dust characteristics and good environmental conditions, good abrasion resistance and other characteristics, they are widely used in combines, seeders, belts, tractors and other fuel tanks, suspension systems, joints, etc. not replenish or more difficult to form a movie website.


Application characteristics


Bearings should be cleaned with kerosene or diesel oil before assembly, and then soaked in oil and pressed dry.Bearing with hole assembly, both to keep the bearing hole here does not occur in the rotation and axial movement, to make the external surface of the bearing contact with a hole full, should guarantee the contact area is more than 70% of above commonly, for the copper surface is back under, friction coefficient of steel on steel to plastic than copper friction coefficient is big, so the more lightsome, guarantees a set not present when using relative movement occurs in the hole, and won't make too much cause bushing bushing diameter hole deformation is bigger.
AGRICULTURAL MACHINERY BUSHINGS FOR THE COMBINE HARVESTOR PLANTERS STRAPPING MACHINES PULVERIZERS & TRACTORS

Metal-Polymer Anti-Friction Self-lubricating Bearings Cylindrical  Cranes Plain Bearings



Reliable solution without lubrication


In agricultural equipment, bearings are subject to friction and wear during edge and boundary lubrication.Our bearings provide more reliable performance than copper bearings, with up to 620Mpa load capacity, protection shaft or pin will not wear, with good corrosion resistance, shock resistance and edge load capacity.
Avoiding the use of grease to reduce maintenance of self-lubricated bearings is the ideal choice for applications requiring a longer service life. Maintenance is free in the case of insufficient or non-lubricated operation.



  •  improve performance and extend service life
  •  excellent low friction performance
  •  cost reduction
  •  environmental protection
  •  low system cost



Provides solutions to meet the specific needs of each application, providing a wide range of standard or specific bearings.
Agricultural Machinery Bushings Anti Friction Polymer Plain Bearings For Reciprocating And Sliding Movement

Metal-Polymer Anti-Friction Plain Bearings
The specific maintanance free characteristics of the self-lubricating bearings and the wear resistance feature when used outdoor allow the bearings to be widely applicated in the combine harvestor, planters, Strapping machines, pulverizers and tractors. The most popular components that the self-lubricating bearings could be used are the cylinders, suspension system and the connection joints where the oil or grease is hard to access.

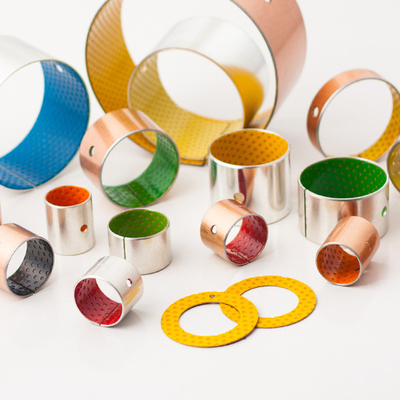

  • ROLLED DRY SLIDING BEARINGS ()
  • Steel + Bronze Powder + /Fibre
  • Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with



Metal-Polymer Anti-Friction Self-lubricating Bearings Cylindrical  Cranes Plain Bearings



Typical Applications



Agricultural Machinery Self-lubricating Bearings
Cranes Plain Bearings
VIIPLUS BEARINGS All kinds of products are widely used in tractors, combine harvesters, baling machines, cotton picker and other Bridges, fuselage, hydraulic, steering and steering mechanism.
The boundary lubrication bearing and grease lubrication bearing of the VIIPLUS BEARINGS have the characteristics of their own structure, which can be used in the case of dust and maintenance.


Characteristics


VSB-10 Self-Lubricating Multilayer Composite Bushing

  • Bushing material suitable for lubricated applications
  • self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Anti-friction bearing suitable for linear, oscillating and rotating movements
  • Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.



Strusture


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.


Technical Data



Carbon Steel + Copper Powder + ( + Pb + Filler)
· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +

· + Lead


Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




Microsection



Agricultural Machinery Bronze Bearing For Combine Harvestor Planters Strapping Machines 2

Sliding layer
+ Lead

Porous Bronze Sinter
Steel Backing




Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
