Wrapped Cylindric Metric Standard Spilt Bushing Tin Bronze CuSn8P Plain Bearing Diamond Shaped Through Hole
| Place of Origin | Composite plain cylindrical bushings manufacturer |
|---|---|
| Brand Name | VIIPLUS BUSHINGS SUPPLIER |
| Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
| Model Number | BUSHINGS |
| Minimum Order Quantity | 1000 Piece/Pieces |
| Price | $0.05 - $1.00 / Pieces |
| Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
| Delivery Time | 7~15 work days |
| Payment Terms | TT in advance,Western Union |
| Supply Ability | Special Customized Lubricating Bushings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Bronze CuSn8,CuSn6.5 | Characteristic | Low-maintenance And Maintenance-free Plain Bearings |
|---|---|---|---|
| Bushing Size | Standard Size Available | Bushing Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
| Bushingb Lubricating | Through Hole | Bushing Feature | Easy For Fitting And Lubricating,Chemical Resistance |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | oil impregnated brass sleeve bearing,plain bearing |
||
Product Description

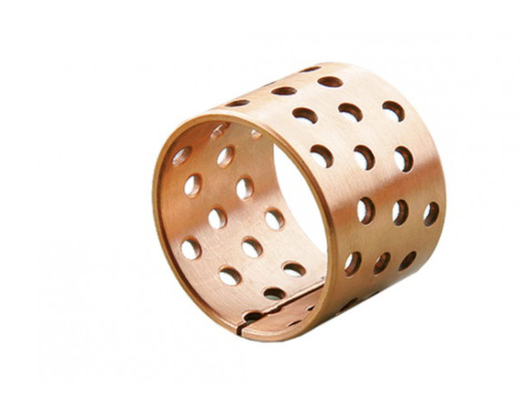

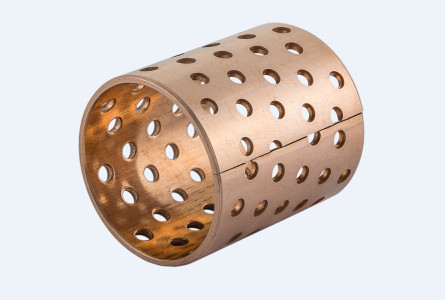

This type of wrapped cylindric metric standard split bushing is constructed using tin bronze CuSn8P material, which offers excellent wear resistance, corrosion resistance, and mechanical properties. The plain bearing design ensures smooth and reliable operation, while the diamond-shaped through hole allows for easier installation and disassembly.
The CuSn8P tin bronze is a widely used alloy in the manufacturing of bearings and bushings due to its superior performance characteristics. It combines good strength and ductility with high corrosion resistance, making it suitable for a wide range of applications.
The split bushing design allows the bushing to be installed around a shaft or rod without the need for disassembly of the surrounding components. This makes installation and removal quick and easy, reducing downtime and maintenance costs.
The diamond-shaped through hole further enhances the usability of this type of bushing. It provides a secure and reliable fastening point for bolts or other fixtures, ensuring that the bushing remains securely in place during operation.
Overall, this wrapped cylindric metric standard split bushing made of tin bronze CuSn8P with plain bearing and diamond-shaped through hole is an excellent choice for applications requiring reliable and durable bushings with easy installation and removal.
Polymer Plain Bearings

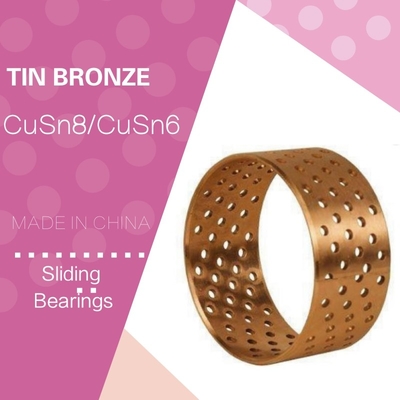

StructureTin Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance Bronze Wrapped cylindric split Bearing with Through Holes.The bushings are wrapped from a cold formed homogeneous bronze (CuSn8) with exceptional material properties. The standard sizes incorporateholes, which are dispersed in a special way over the whole bushing surface.These holes serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery etc.where high load and slow movement occur.
The bearings are wrapped from a cold formed homogenous bronze (CuSn8 & CuSn6) with exceptional material properties. The standard sizes incorporate holes, which are dispersed in a special way over the whole bearing surface. These holes serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural
machinery etc. where high load and slow movement occur.
Features
1.Easy of fitting and lubricate
2.High load capacity
3.Excellent wear resistance with lower friction
4.High level thermal conductivity
5.Minimum overall dimensions
6.Chemical resistance
7.Extended service life and lubrication intervals than normal CSB-090 type bearings
8.Free selection of lubricants
9.Collection of dust and rub off particles in the holes
Initial pre-lubrication at assembly is required...
Material Properties
- Wrapped bronze sliding bearing
- CuSn8P
- Low-maintenance
- With perforations
Properties
- High load capacity and stability at low abrasion. Because of perforations lubrication clearances are reduced to a minimum!
Materials
- CuSn8P
|
Nax.Load |
Static |
120N/mm² |
Elongation |
40% |
|
|
Dynamic |
40N/mm² |
||||
|
Temp |
-100℃~+200℃ |
||||
|
Coefficient of friction |
0.08~0.25 |
||||
|
Max.Speed(Lubrication) |
Max.Speed |
2.5m/s |
Thermal conduvtivity |
58W(m*k)-1 |
|
|
Max.PV |
Max.PV |
2.8N/mm²*m/s |
Coef. of thermal expansion |
18.5*10-6K-1 |
|
|
Tensile strength |
Tensile strength |
450N/mm² |
|
|
|
|
Hardness |
Hardness |
HB 100-150 |
|||
Bushings Tolerance Details
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Maintenance
- is a low-maintenance bronze sliding bearing, primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets lubrication clearances are reduced to a minimum
Range Of Application

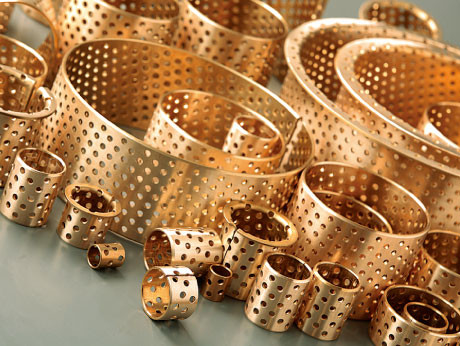

This type of wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance sliding bearings is widely applied in hoisting machines and other construction machines,automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricatedinto bushes, half bushings, flanged bushes, trust washers, spherical bushing and so on.
CAPTION:Special dimensions are available on request
