The rolled bronze bushing, featuring diamond indents and constructed from CuSn8 and CuSn6.5P materials, is a precision-engineered component designed for optimal performance in metric sleeve applications. The unique combination of these high-quality bronze alloys offers exceptional wear resistance, corrosion resistance, and mechanical strength.

The diamond indents provide enhanced lubrication and wear reduction, ensuring smooth and efficient operation. These indents also improve the bushing's ability to retain lubrication, reducing the need for frequent re-lubrication and extending the bushing's lifespan.

The rolled bronze bushing's metric sleeve design ensures a precise fit within the application, minimizing clearance and maximizing performance. The CuSn8 and CuSn6.5P materials, known for their durability and reliability, are chosen specifically for their ability to withstand high loads and frequent motion.

Wh used in heavy machinery, motor vehicles, or other industrial applications, this rolled bronze bushing with diamond indents offers a robust and long-lasting solution for reducing friction and wear. Its precision manufacturing, high-quality materials, and lubrication-enhancing features ensure reliable and efficient performance in various metric sleeve applications.

Self-lubricating Bronze Bearing Diamond Indentations, Sliding Bearing, Plain Bearing, Bronze bushings-Chinese Manufacturer - Export Wrapped Bronze Bush Sleeve Bushing to the world.

BRONZE WRAPPED BEARINGS DIAMOND OIL HOES CUSN8 & C...

Bushing Company for Sale

Rolled Bronze bushings with Diamond Indents

Factory customized Copper wrapped bushings

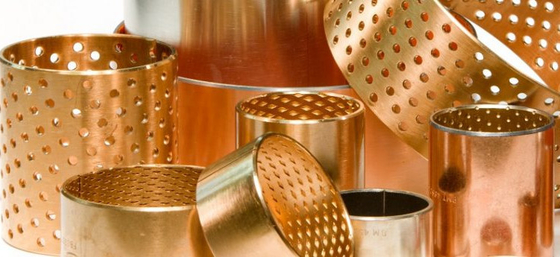

VIIPLUS rolled (wrapped) bushings is produced with diamond-shaped lubrication indents on the bearing surface(s). These bushings are ideally suited for thin-wall applications. The indents provide lubricant reservoirs that allow for excellent and prolonged service.

For applications that are sealed or difficult to maintain, we also manufacture this product with self-lubricating graphite filled diamond or circular indents.

They are light-weight and compact and are available as sleeve bushings, flange bearings, washers and plates. They are produced in both inch and metric sizes.

• Metric Sleeves
• Metric Flanges

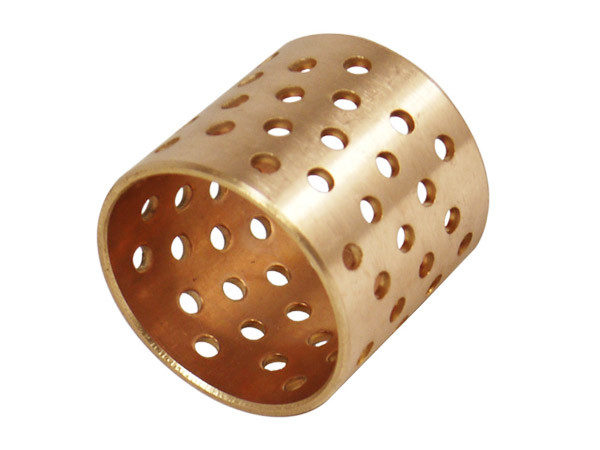

Bronze rolling bearing, with tin bronze alloy CuSn8/ cusn6.5p as the material, the surface of the rolling diamond oil hole, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.
Widely used in agricultural machinery, construction machinery, construction machinery, and other high-load low-speed occasions.
(also called FB090)

bronze wrapped bushing flange size self-lubricatin...

Application Characteristics

1. Save a lot of copper material and time of copper sleeve manufacturing:
2. Lightweight and low cost compared with axle sleeve and rolling bearing made by vehicle;
3. Various oil grooves can be processed on the friction surface, and oil holes can store certain grease so that the time of oil filling is 5 times longer than that of a copper sleeve;
4. Extremely high bearing capacity, especially suitable for rough friction surface;
5. High heat dissipation, small expansion coefficient, stable service condition and long service life.

Technische Daten

• Wrapped bronze sliding bearing
• Low-maintenance
• With lubrication pockets

Properties

• High load capacity and stability at low abrasion, suited for rough operation, corrosion-resistant.

Materials

• CuSn8P

Lubrication Free with Excellent Wear Resistance

Material Properties

• Specific load capacity static≤ 120 [N/mm2]
• Specific load capacity dynamic≤ 40 [N/mm2] at max. 2.0 m/s
• Sliding speed≤ 2.0 [m/s]
• Friction value ***0.08 [µ] to 0.25 [µ] depending on lubrication
• Temperature strain– 100 [°C] to + 200 [°C]
• Max. PV-value2,8 [N/mm² x m/s]

Mechanical Behavior
Type	Tensile Strength	Elongation	Yield Strength
BRONZE BUSHING CUSN8 090	450	55	250
BRONZE BUSHING CUSN8 092	300	55	250
BRONZE BUSHING CUSN8 08G	420	5	230
BRONZE BUSHING CUSN8 09G	450	10	250
Physical Properties
Type	Specific Gravity	Linear Expansion	Heat Conductivity	Electric rate	Elastic Modulus
		0C10-6/0C	CW0/m.k	Cm/onm.mm2	KN/mm2
BRONZE BUSHING CUSN8 090	8.9	18.2	60	6.5	115
BRONZE BUSHING CUSN8 092	8.9	18.2	60	6.5	115
BRONZE BUSHING CUSN8 08G	7.8	22	70	7.8	108
BRONZE BUSHING CUSN8 09G	8	18.2	60	6.5	115
Friction Performance
Type	Max.Dynamic Load	Max.Speed (no, oil)	Max.Speed (oil)	Temp.
	(N/mm2)	(no oil)(m/s)	(oil )(m/s)
BRONZE BUSHING CUSN8 090	75	/	2.5	-80～+200
BRONZE BUSHING CUSN8 092	60	/	2.5	-100～+200
BRONZE BUSHING CUSN8 08G	65	0.4	4	-100～+260
BRONZE BUSHING CUSN8 09G	65	0.2	4	-100～+260
Bearing Hardness
Type	Item	Hardness
BRONZE BUSHING CUSN8 090	(Standard)	90～120
BRONZE BUSHING CUSN8 092	(Special)	125～155
BRONZE BUSHING CUSN8 08G	(Standard)	60～90
BRONZE BUSHING CUSN8 09G	(Standard)	90～120
BRONZE BUSHING CUSN8 B090	(Standard)	70～100
Bearing Material
Type	Item	Material	Composition %
			CU	SN	Pb	Zn	P	(Other)
BRONZE BUSHING CUSN8 090	(Standard)	CuSn6.5P		6～7	—	—	0.1～0.25	≤0.1
BRONZE BUSHING CUSN8 092			(Remainder)
	Ⅰ(SpecialⅠ)	CuSn8P		7～9	—	—	0.01～0.35	≤0.2
			(Remainder)
	Ⅱ(SpecialⅡ)	H68(CuZn31Si)	66～70	—	≤0.8		—	≤0.5
						(Remainder)
BRONZE BUSHING CUSN8 08G	(Standard)	CuSn10Pb10+Gr		9～11	9～11	—	—	≤0.5
			(Remainder)
BRONZE BUSHING CUSN8 09G	(Standard)	CuSn6.5P+Gr		6～7	—	—	0.1～0.25	≤0.1
			(Remainder)
	(Special)	CuSn8P+Gr		7～9	—	—	0.01～0.35	≤0.2
			(Remainder)
BRONZE BUSHING CUSN8 090 oil lubricating holes
Type	Thickness	Oil Depth
BRONZE BUSHING CUSN8 090	1mm	0.3～0.4mm
	1.5mm	0.4～0.5mm
	2mm	0.5～0.6mm
	2.5mm	0.6～0.7mm
BRONZE BUSHING CUSN8 09G	0.65mm	0.15～0.3mm
BRONZE BUSHING CUSN8 08G	1mm	0.3～0.4mm
	1.5mm	0.4～0.5mm
	2mm	0.4～0.5mm
	2.5mm	0.4～0.5mm

Tolerance Details

• Housing ØH7
• Bushing inner-Ø after mountingH9
• Shaft tolerancef7 to h8

Maintenance

it is a low-maintenance bronze sliding bearing. Primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets, clearances are reduced to a minimum.

Range Of Application

• Hydraulic Systems: Bushing for Valves and Rotary Actuator, Bushing for Gear Pumps, Bushing for Cylinders, Bushings for Shock absorber, Bushing for Lucas Hydraulic Pump,
• Food Processing: Bottling Machine, Bottle Washer, Automatic Bag Maker, Dairy Processors, Meat Choppers, Mixers
• Automobiles: Suspension Bushings, Steering, Brake Bushings, Clutch, Transmission Bushings
• Railroad Cars: Side Thrust absorber, Automatic Doors Bushings
• Ships: Steering Linkages, Hatch Covers, Pulley Blocks Bushings
• Aircraft: Control Linkage, Shock absorber bushings, Actuator Valves bushings, winches
• Printing: Offset Printer, Gravure Printer, Mail Printer, Automatic Ticket Bender, AutomaticBook Binder
• Textile Industry: Spinning frame, Yarn Twister, Sheet Roller, Winders

Caption

Special dimensions are available on request
