Skidway Plates Or Skidway Plates VSB-11 Dry Sliding Bearing Strips For Oscillating And Rotating Movements

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Bronze Backed, Bronze , Plating Tin Or Copper
Quality OEM Quality Size Std.&Non-std. Customized Sizes
Standard Designs Cylindrical Bushes,Strips Material Information Maintenance-free And Robust
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

plain sleeve bearing strips


self lubricating bearing strip

Leave a Message
Product Description

skidway plates or skidway plates VSB-11 Dry Sliding Bearing Strips are specifically designed for oscillating and rotating movements. These bearing strips are made of polytetrafluoroethylene (), also known as ptfe, which possesses excellent properties such as low friction, high chemical resistance, and high temperature tolerance.

The VSB-11 Dry Sliding Bearing Strips are commonly used in various industrial applications where oscillating or rotating motions are involved. Their dry sliding properties eliminate the need for lubrication, thus simplifying maintenance and reducing the risk of contamination.

The skidway plates feature a smooth surface that ensures consistent and reliable sliding, even under high loads and varying temperatures. They are also lightweight and easy to install, making them a convenient choice for a wide range of applications.

Overall, skidway plates or skidway plates VSB-11 Dry Sliding Bearing Strips are an effective solution for supporting oscillating and rotating movements in various industrial settings.


We offer high quality Oilless Bearings, Bushings...Plain bearing Strips Material Sliding Bearings SF-1B bronze base material | VSB-11 Strips


Bronze base bearing self-lubricating bearing tin bronze is of high safety factory,and is particularly appropriate for high temperature environment where no oil is effcient and where the machine must be under successive long period working condition.
This is widely used in steel metallurgy industry such as bushes for roller grooves of successive casting machines.cement grouting pumps and screw convery ers for cement.It can also be composed in steel housing or fabricated into Flanged bushes which can move both in radial and in axial directions.

Bronze base bearing self-lubricating bearing tin bronze, bearing sleeve for metallurgical iron and steel industry, bearing sleeve for continuous caster billet raceway, bearing for equipment in front of high temperature furnace, bearing sleeve for cement grouting pump and screw conveyor.


Bronze base bearing is made of tin bronze as matrix, sintered bronze spherical powder in the middle, rolled PTEE on the surface and high temperature resistant filler material.
It has a high safety factor, in the continuous work can not stop repair places and high temperature can not be refueled in places.At present, it has been widely used in metallurgical iron and steel industry, continuous casting machine billet runner, high-temperature furnace equipment, cement grouting pump and screw conveyor.It can be combined with steel sleeve, also can be made into flanging, to achieve the end face, inner hole friction effect at the same time.


The grouting pump is designed to overcome the shortcomings of the above existing technologies, provide a kind of ground source heat pump ground pipe backfilling equipment that is convenient to transport, install, operate and use, easy to maintain and repair, and can meet all grouting filling requirements in the environmental protection geothermal application construction.


The pump head of the grouting pump is mainly composed of the pump head, bearing, shaft sleeve, self-lubricating bearing, ball valve seat, inlet valve cover, exhaust valve cover, steel ball and so on. In order to ensure the smooth next grouting, please be sure to clean the pump and pipe after grouting.

The rolling part of the bridge support is to replace the pure plate with the thickened vsb-11 wear-resistant layer.Up to 130N/mm carrying requirements.



skidway plates or skidway plates



SF-1B bronze-based material is made of tin bronze plate as the base, sintered bronze spherical powder in the middle, surface rolled and high temperature resistant filler. It has a high safety factor and is particularly suitable for use in places where continuous work cannot be stopped and where it cannot be refueled at high temperatures. At present, the material has been widely used in the metallurgical steel industry, continuous casting machine billet rolling, high temperature furnace front equipment, cement grouting pump and screw conveyor. It can be combined with steel sleeves on the outside or flanged to achieve the effect of friction between the end faces and the inner holes. The sliding part of the bridge support is to replace the pure board with the SF-1B wear layer thickening product. Meet the requirements of 130N/mm2 load bearing.


Maximum load pressure: 140N/mm2

Friction coefficient μ: 0.03~0.18

Applicable temperature range: -195 ° C ~ 300 ° C

Maximum sliding speed: 5m/s

Allow the highest PV value (dry): 4.3N/mm2.m/s

Allowable maximum PV value (oil): 50N/mm2.m/s


self lubricating bronze bushing


Plain bearing production


Standard designs for plain bearings are



Cylindrical bushes                                              Collar bushes






Thrust washers                                                           Strips

self lubricating bronze bushing






Table of Contents
Material information
Plain bearing production
Characteristics:Material information
Material composition
Models and tables of dimensions
More information



Bushes PAP..  P11

 Bronze Bushing MaterialBronze Bushing MaterialFlange liners PAF..  P11

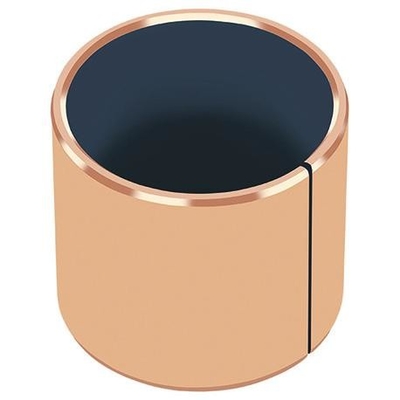

VSB-11 Metal-Polymer Bronze Backed Plain Bearing
Bronze + Bronze Powder + /Fibre



· VSB-11
· Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Suitable for lubricated applications
· Suitable for linear, oscillating and rotating movements
· Bronze back offers improved corrosion resistance in humid/saline environments
· Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary and oscillating movement. Very high chemical resistance, low absorption of water and swelling, also performs very good lubrication feature, the bronze backing provides the improved corrosion resistance comparing with VSB-10.



1. /fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the /Fibre mixture.
3. Bronze backing, provides exceptionally high load carrying capacity, excellent heat dissipation and very good corrosion resistance.



Technical Data


structure and composition


· Metal-Polymer Composite Material
· Bronze Back + Porous Bronze Sinter +
· + Lead






 Skidway Plates Or  Skidway Plates VSB-11 Dry Sliding Bearing Strips For Oscillating And Rotating Movements 4

Sliding layer
+ Lead
Porous Bronze Sinter
Bronze Backing



Technical data


Max. load Static 250N/mm2
Dynamic 140N/mm2
Max. speed Dry 2m/s
Lubrication >2m/s
Max. PV (Dry) Short-time 3.6N/mm2*·m/s
Continuous 1.8N/mm2*·m/s
Temp. -195℃~+2800℃
Friction coefficient 0.03~0.20
Thermal conductivity 70W (m·k)-1
Coefficient of thermal expansion






Very Good

Oil lubricated


Grease lubricated


Water lubricated


Process fluid lubricated



Bearing Properties

 graphite plugged bronze bushings

* Depending on operating conditions





Bearing forms available in standard dimensions
· Cylindrical bushes

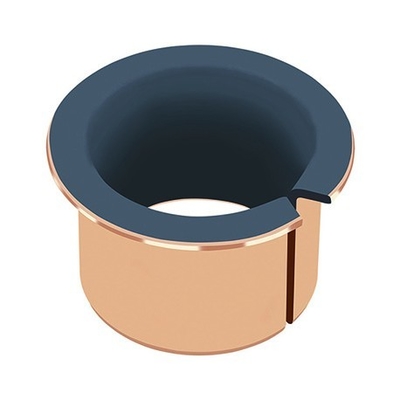

· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


Typical Applications

The typical applications covered Steel metallurgy industry such as bushes for roller grooves of successive casting machines, cement grouting pumps and screw conveyers for cement and so on.conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.

Customer Size
