Self-lubricating steel backed du bushing bearings combine the advantages of many conventional lubricated metal plain bearings - especially high load capacities and dimensional stiffness - with the design freedom of self-lubricating materials, including the ability to perform well beyond conventional lubricants.

Custom Solutions for Demanding Technical Requirements

We work closely with our customers to develop new self-lubricating bronze bushings solutions that are then added to our list of catalog bronze bushing products.

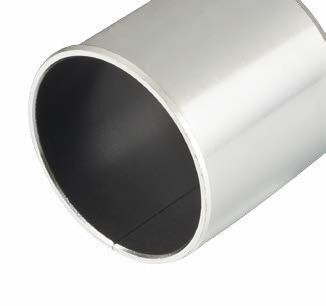

Self-Lubricating Bronze Bushing, Steel Backed DU Plain Bearing

Garlock Bearings Replacement sleeve

Discovery DU bushing bearing, relating to plain bearings and self-lubricating bushings material and bushing price ...

Plain-Bearing - Bore size, OD size,  Length size, PTFE Material

80160/ DU Plain Bearing - ID=242, OD=247, Length=100mm
80161/ DU Plain Bearing - ID=300, OD=305, Length=100mm

VIIPLUS SLIDING BEARING Our range offered SME includes Metal Bushing, Steel Sleeve BushingThrust Washer, Bronze Graphite Plate, Valve Gearbox Bushings, and more. Besides these, we are also rendering Metal Coating Self-lubricating bearing Strips, Material Export Service and more.

Plain bearing materials Plain bearing Strips, Slide paths PAS Strips Material in detail DU Strip Metric Streifen, Gleitbahnen | VSB-10

Impregnated with our own proprietary lubricant, these bushings are composed of PTFE and special material uniformly dispersed within polyacetal plastic resin, a plastic material offering excellent bearing characteristics.


VSB-10 Strips, Slide paths PAS

Table of Contents
Material information
Plain bearing production
Characteristics: maintenance-free and robust
Material composition
Models and tables of dimensions
More information

Plain bearing Bearing Material  DU production

Standard designs are:



Bushes PAP...

• Cylindrical bushes

​Flange liners PAF..

• Collar bushes

Thrust washers PAW..

• Thrust washers







• Strips



Characteristics of VSB-10 strips material



• Very low stick-slip tendency

• Low wear

• Good chemical resistance

• Low friction value

• No tendency to weld to metal

• Extremely swell-resistant

• Does not absorb water



Preferred areas of application



• Maintenance-free operation under dry-running conditions

• Rotating or oscillating movements

• Up to a velocity of 2 m/s

• Linear movements

• Temperature range -200 °C to 280 °C



Material composition

Strips Material composition



• Layer system 10 srtips

  1. Running-in layer

  PTFE matrix with bulking agent¹
  Layer thickness [mm]:	max. 0.03

  2. Sliding layer

  Tin-lead-bronze
  Layer thickness [mm]:	0.20–0.35
  Pore volume [%]:	approx. 30

  3. Bearing back

  Steel
  Steel thickness [mm]:	Variable
  Steel hardness [HB]:	100–180



  1 The pores of the sliding layer are also filled with this lubricant mass.

  Models and tables of dimensions

  with steel back, maintenance-free







If these material sections are used to create slide paths, they have the following main functions:



• Absorbing and transferring forces acting vertically to the running surface

• Fixing moving components to each other

• Ensuring guidance accuracy for axial movements over the entire service life



Strips are available in two material groups:

VSB-10 Steel + Bronze Powder + PTFE/Fibre(DU) Bushings


1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.

3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead

* Depending on operating conditions

Bearing forms available in standard dimensions

• Cylindrical bushes
• Flanged bushes
• Thrust washers
• Flanged washers
• Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs


This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.

Self-lubricating Composite Bushing - Metric Size
