Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushings Meterial Bronze CuSn8P (DIN 17662),alternative CuSn6P Available Bushings Feature Low-maintenance
Bushings Type Sleeve, Flange, Washer Lubrication Oil Lubrication
BUSHINGS TOLERANCE Housing ØH7 Bushing Inner-Ø After MountingH9Shaft Tolerancef7 To H8 BUSHING APPLICATION Agriculture Machinery, Truck Cranes & Construction Machinery, Suitable For Impact Loads
BUSHING MOUNTING Housing: Chamfer Min. 1.5 Mm X 15-45°, For Easy Bushing Alignment Shaft: Chamfer 5 Mm X 15°, For Easy Insertion Of The Shaft BUSHING Temperature Strain - 40 [°C] To + 250 [°C]
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

self lubricating bearing

,

self lubricating bronze bushings

Leave a Message
Product Description

Our flanged bronze bushings made of Cusn8 material strictly adhere to DIN1494 and ISO 3547 standards, ensuring their reliability and performance in various industrial applications. These bushings feature lubrication pockets in a diamond pattern (Lubrication 090) and oil grooves, which allow for efficient lubrication and reduced friction, thus enhancing the bushings' durability and lifespan.

The Cusn8 bronze material used in the manufacture of these bushings offers excellent corrosion resistance and wear resistance, making them suitable for use in harsh environments. The flanged design provides added stability and support, ensuring a secure fit and smooth operation.

We pride ourselves on producing high-quality bushings that meet or exceed industry standards. Wh you need bushings for new equipment or replacements for existing machinery, we can provide you with the perfect solution.

For more information or to place an order, please contact us. We are committed to providing you with exceptional products and services.

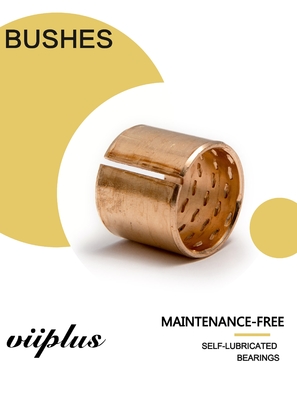

Made to order from china wrapped bushing diamond pockets, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance



The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.Bronze Sleeve Bushings 090 Series’ indentations on the sliding surface are replaced by through-holes.Wrapped bushing is a low maintenance bushing material,Economic solution for bronze bearing application due to a thin wall thickness. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.This allows the 090 Series to have a greater capacity to collect the lubricant compared with the indentations.Plain Bearings and Sleeve Bearings

Metric Bronze Cylindrical Flange Bushes CuSn8 with Lubrication 090



Cylindrical Bushes Flange & Sleeve Bushes Propertiese



Conomic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.





Self Lubricating Plain Bearing



Bushings Structure



Support material:CuSn8P (DIN 17662) alternative CuSn6P available



Bushings Features


1.Easy for fitting and lubricating
2.High load capacity
3.Inner Diameter machineable parts are available against order
4.High level thermal conductivity
5.Minimum overall dimensions
6.Chemical resistance.
Initial pre-lubrication at assembly required...

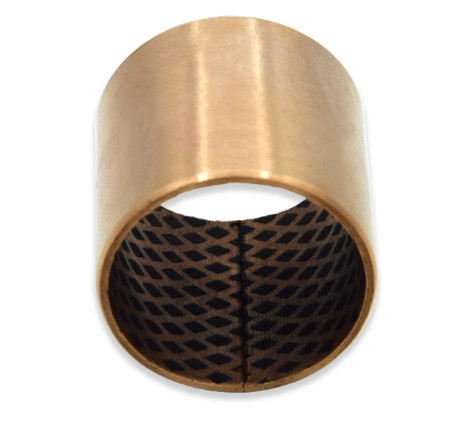

FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip.The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



Microsection



OPERATING PERFORMANCE
Dry Poor
Oil lubricated Good
Grease lubricated Good
Water lubricated Poor
Process fluid lubricated Poor



Flanged Bronze Bushings Cusn8 DIN1494 / ISO 3547 Lubrication 090 Diamond Pockets & Oil Grooves 1

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest





Bearing Properties



Max.Load

Static

120N/mm²

Elongation

40%

Dynamic

40N/mm²

Temp

-100℃~+200℃

Coefficient of friction

0.08~0.25

Max.speed(Lubrication)

Max.Speed

2m/s

Thermal conductivity

58W(m*k)-1

Max.PV

Max.PV

2.8N/mm²*m/s

Coef. of thermal expansion

18.5*10-6K-1

Tensile strength

Tensile strength

450N/mm²





Hardness

Hardness

HB 100-150

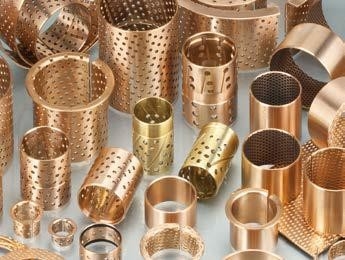

AVAILABILITY:Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Range Of Application



Agriculture machinery, truck cranes & construction machinery, suitable for impact loads.
