C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component

C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component
C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component

Large Image :  C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component

Description
Features: Low Resistance Marerial: Bronze Graphite Bushing
Size: Inch Size Bushings Standard Size: C86300 Manganese Bronze Bearing
Type: PLUGGED CAST BRONZE Lubricating: Oilless
High Light:

graphite impregnated bronze bushings

,

graphite filled bronze bushes

Graphite plugged bushings are a complete line of self-lubricating bushings that excel whenever standard lubrication is impractical, including heavy-duty, high load applications. They are made from a variety of bronze alloys including C95400 aluminum bronze, C93200 bearing bronze, and C86300 manganese bronze.

We are a reliable firm counted among the prominent manufacturers and traders of SEMI-AUTOMATIC, AUTOMATIC HIGH-SPEED BOTTLING LINES & PACKAGING MACHINES BRONZE BUSHING (Plug Graphite Bronze Bushing, Bronze Bushing for RINSING, FILLING, SEALING, MONOBLOCKS, COMBIBLOCKS, LABELLING, CASE PACKERS, CONVEYING SYSTEMS, etc.). Made to order from China, we cater to customers all over China and overseas.





C86300 Manganese Bronze Bearings





BRONZE BUSHING WITH GRAPHITE(BODY & FLANGE ) 102/70*46*25/9 mm
BRONZE BUSHING WITH GRAPHITE(BODY & FLANGE ) 104.5/70*48*62/11mm


The robust and corrosion-resistant manganese bronze C86300 (SAE 430B) is ideal for high load, low speed applications that require a combination of excellent abrasion properties and high storage stability.This type of bushing can be used in dry conditions, at high temperatures, high pressures, in corrosive environments, in water or other chemicals where it is not possible to add oil. The graphite bronze bushings are widely used in automotive products, hydraulic engineering, dam gates, plastics manufacturing, later casting machines, steel rollers in metallurgy, mining equipment, ships, turbine generators, water turbines, and injection molding machines.





C86300 Chemical Composition

  Cu(1) Al Fe Pb Mn Ni(2) Sn Zn
Min./Max. 60.0-66.0 5.0-7.5 2.0-4.0 0.2 2.5-5.0 1 0.2 22.0-28.0
Nominal 63 6.2 3 - 3.7 - - 25





Oilless Bushes and Self-Lubricating Bronze Bearings / Graphite Bearings

Self - lubricating cylindrical bearing with graphite pin embedded oilless Japanese Standard


Self-lubricated bronze bushings that are manufactured with some form of pre lubrication feature Graphite

Standard Bronze Bushing Components for Press Die &  Plastic Moulds

Sleeve lube guide | MOLD AND DIE COMPONENTS



Engaged in manufacturing, marketing, and exporting bronze bushing for SEMI-AUTOMATIC, AUTOMATIC HIGH-SPEED BOTTLING LINES & PACKAGING MACHINES

GRAPHITE PLUGGED BUSHINGS engaged in manufacturing, marketing and exporting bronze bushing for SEMI AUTOMATIC, AUTOMATIC HIGH SPEED BOTTLING LINES & PACKAGING MACHINES



Graphite Plugged Bronze Bushing Flanged - Metric Size

Product Bearing Type Shaft Dia., Nominal (d) (mm) Bearing Outside Diameter, Nominal(Do) (mm) Bearing Length, Nominal (B) (mm)
graphite plugged bushing F101415 flanged 10 14 15
graphite plugged bushing F101420 flanged 10 14 20
graphite plugged bushing F121815 flanged 12 18 15
graphite plugged bushing F121820 flanged 12 18 20
graphite plugged bushing F131915 flanged 13 19 15
graphite plugged bushing F1319120 flanged 13 19 20
graphite plugged bushing F142015 flanged 14 20 15
graphite plugged bushing F142020 flanged 14 20 20
graphite plugged bushing F152115 flanged 16 21 15
graphite plugged bushing F152120 flanged 16 21 20
graphite plugged bushing F152125 flanged 16 21 25
graphite plugged bushing F152130 flanged 16 21 30
graphite plugged bushing F162215 flanged 16 22 15
graphite plugged bushing F162220 flanged 16 22 20
graphite plugged bushing F162225 flanged 16 22 25
graphite plugged bushing F162230 flanged 16 22 30
graphite plugged bushing F203015 flanged 20 28 15
graphite plugged bushing F203020 flanged 20 30 20
graphite plugged bushing F203025 flanged 20 30 25
graphite plugged bushing F203030 flanged 20 30 30
graphite plugged bushing F203040 flanged 20 30 40
graphite plugged bushing F253515 flanged 25 35 15
graphite plugged bushing F253520 flanged 25 35 20
graphite plugged bushing F253525 flanged 25 35 25
graphite plugged bushing F253530 flanged 25 35 30
graphite plugged bushing F253540 flanged 25 35 40
graphite plugged bushing F304020 flanged 30 40 20
graphite plugged bushing F304025 flanged 30 40 25
graphite plugged bushing F304030 flanged 30 40 30
graphite plugged bushing F304035 flanged 30 40 35
graphite plugged bushing F304040 flanged 30 40 40
graphite plugged bushing F304050 flanged 30 40 50
graphite plugged bushing F314020 flanged 31.5 40 20
graphite plugged bushing F314035 flanged 31.5 40 35
graphite plugged bushing F354520 flanged 35 45 20
graphite plugged bushing F354530 flanged 35 45 30
graphite plugged bushing F354540 flanged 35 45 40
graphite plugged bushing F354550 flanged 35 45 50
graphite plugged bushing F405020 flanged 40 50 20
graphite plugged bushing F405030 flanged 40 50 30
graphite plugged bushing F405040 flanged 40 50 40
graphite plugged bushing F405050 flanged 40 50 50
graphite plugged bushing F455530 flanged 45 55 30
graphite plugged bushing F455540 flanged 45 55 40
graphite plugged bushing F455550 flanged 45 55 50
graphite plugged bushing F455560 flanged 45 55 60
graphite plugged bushing F506030 flanged 50 60 30
graphite plugged bushing F506040 flanged 50 60 40
graphite plugged bushing F506050 flanged 50 60 50
graphite plugged bushing F506060 flanged 50 60 60
graphite plugged bushing F556540 flanged 55 75 40
graphite plugged bushing F556560 flanged 55 75 40
graphite plugged bushing F607540 flanged 60 75 50
graphite plugged bushing F607550 flanged 60 75 80
graphite plugged bushing F607580 flanged 60 75 30
graphite plugged bushing F637580 flanged 63 75 80
graphite plugged bushing F708550 flanged 70 85 50
graphite plugged bushing F708580 flanged 70 85 80
graphite plugged bushing F759060 flanged 75 90 60
graphite plugged bushing F8010060 flanged 80 100 60
graphite plugged bushing F8010080 flanged 80 100 80
graphite plugged bushing F80100100 flanged 80 100 100
graphite plugged bushing F9011060 flanged 90 110 60
graphite plugged bushing F9011080 flanged 90 110 80
graphite plugged bushing F10012080 flanged 100 120 80
graphite plugged bushing F100120100 flanged 100 120 100
graphite plugged bushing F12014080 flanged 120 140 80
graphite plugged bushing F120140100 flanged 120 140 100

Overview
The product description


The vsb-50 C86300 & C83200 CuZn25Al5 BRONZE is made of exceptionally hard and durable BRONZE, embedded with self-lubricating graphite column pins, maintant-free.This type of bearing is a good choice when it comes to high loads and small movements that are difficult to lubricate.The graphite pin covers about 25-30% of the bearing surface and is positioned so that the entire bearing surface is always lubricated.VIIPLUS sliding elements are available in many designs and can also be manufactured in other alloys to meet specific requirements.


Self Lube Plugged Bearing Bush


Sleeve Lube Guide Bronze Bushings | Mold And Die Components

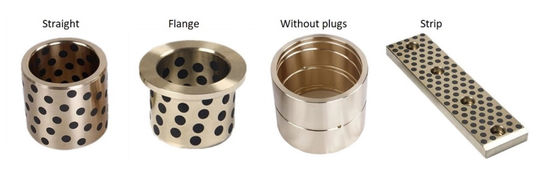

Shape and Type
Guide bushing, fixture, half bearing bush,Wear plate, washer, guide plate, etc.


Features


--Long service life
-- for heavy duty applications

-- maintenance-free (self-lubricating)
--Extreme temperature tolerance



Self-lubricating bearings


The VIIPLUS vsb-50 itself is maintenance-free.However, as an initial step, it is recommended to lubricate the sliding surface during assembly.Common lubricants such as grease or oil can be used.For optimal performance and service life, it is important to thoroughly clean mating surfaces during assembly.
custom-made
According to the request, may provide or produce each kind of sliding element.
Please contact us for more information.


Application Field


Hardware, steel manufacturing, stamping die, automotive industry tools,
Stamping etc.
Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.


  • Wear Plates

  • Wear Strips

  • Bushings

  • Slide Assemblies

  • Guide Components

graphite plugged bronze bushings

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing


Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings

  • Inch Sized Bushings

  • Metric Sized Bushings



Material


C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.





graphite plugged bronze bushings

Bronze sleeve bearings flanged bronze bushings for sale



C86300 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance


Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self-lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2




WHAT CLIENTS SAYS

It was a great experience with “bronzegleitlager.com” as I have purchased - Bronze bearings with excellent after-sales services. I would like to give my best warm wishes for their near future.

Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

 graphite plugged bronze bushings
