|Meterial:||Bimetal ,Bronze/Steel Bushing,is Available With Stainless Steel, Carbon Steel Or Bronze Backing.||Characteristic:||Thin Walled Bearing,Low-maintenance And Maintenance-free Plain Bearings|
|Size:||IMPERIAL & METRIC SIZES,Standard Size Available||Type:||Cylindrical Bushes Thrust Washers, Strips Or Special Designs|
|Bearing:||Bimetal Bronze Steel Bearing||Bushing Sample:||Available Imetal Bushing Bearing Manufacturer | Cylindrical Steel Bronze Bushing Series|
|Bimetal Bearings Application:||Is Used In Track Rollers, Truck Brakes And Agriculture Machinery, Agricultural, Mechanical Handling And Lifting Applications||Bimetal Bushings:||With Non-standard Dimensions, RoHS Customized Bearing Designs|
We believe that by being creative and constantly striving to challenge ourselves we provide the highest-quality bimetal bearing from china.
The bimetal bushing is steel backed with high-quality with tin-
Bimetal bearing bushes have high-performance environmentally friendly dual metal bearings that are customer-specified products. bimetal bearing bushes use low-carbon steel plate as supporting base and powder metallurgy sintering and rolling processes to form a leadless CuSn8Ni steel-copper alloy product. The materials in this product meet RoHS directory/regulation/rule, under certain circumstances can substitute for JF800 products. bimetal bearing bushes have a high load-bearing capacity and good wear-resistance. Its shortcoming is that it cannot be used without oil lubrication. In places where oil lubrication is sufficient, bimetal bearing bushes have superior performance.
Our sales assistant team will provide bronze bushings service for each of your needs.
Once we receive your request, we will contact you, and the sliding bushings qualified type will be recommended to you within 24 hours.
-Sintered / Powder Metal
The bimetal bushing will most notably benefit transmissions and truck brakes as well as agricultural, mechanical handling and lifting applications. They boast a high load capacity and very good resistance to fatigue strength at high temperatures.
Bimetal bearings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements.VIIPLUS is available with stainless steel, carbon steel, or bronze backing.
Bushings are made of Steel backed lead bronze lined bushings and have the following layers:
Sinter bronze powder: good wear resistance and excellent load-carrying capacity.
Steel backing gives exceptionally high load carrying capacity, excellent heat dissipation.
Copper plating 0.002mm, good corrosion resistance.
Bimetal bearings thin-walled bushings are available with stainless steel, carbon steel, or bronze backing. Bimetal Bushings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements.
This is a bimetal bearing material in which aluminum alloy and copper alloy comprise a two- or three-layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation.
It can be made from a variety of different materials, depending on the application, use conditions, and lubrication.
Load capability can be improved by oil holes, grooves, etc., depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.
Carrier Roller Bushings
Viiplus offers a broad range of sizes, forms, and materials in monometallic and bimetallic bearings. Bimetal and metal bearings offer excellent corrosion resistance in industrial outdoor applications and in water, marine, and offshore environments.
Bimetallic bearing is one of the bearing lubrication systems, the product is high-quality low carbon steel back as substrate, the bronze alloy on the surface, through several high-temperature sintering and density and rolled copper and steel bimetallic strip coiling, suitable for medium and high impact load under bush and thrust washer and so on many kinds of USES.
Bimetal Bearing Bushings are composed of two metal strips, in two different materials; The first is normally in steel/bronze / stainless steel backed with low friction and excellent wear resistance.
JF800 Oilless Bimetal Sliding Self Lubricating Bearing Bushing
JF800 Steel + Lead Bronze Powder Conventional lubricating
Oilless Bimetal Bronze Steel Bearing Bushes, Split Bush Bearing VSB-80 Standard Size Custom composite CuPb10Sn10 bimetal bush high-quality oilless JF800 Bimetal Metal Bushing
Wrapped composite sliding bearing
Copper-plated or tin-plated steel/bronze
With lubrication pockets
Steel backing gives exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder gives good wear resistance and excellent load-carrying capacity. Copper plating has good corrosion resistance.

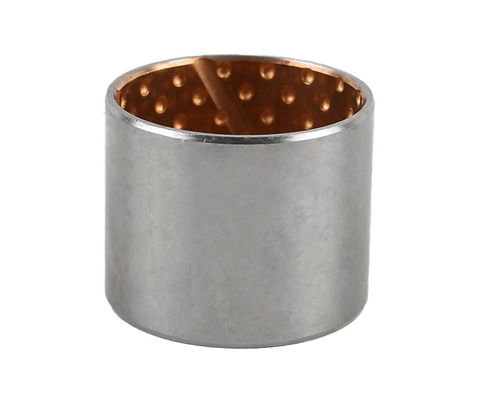

Bimetal bearing with steel backing and bronze overlay
Lead-free bearing composition with indents as reservoir for the grease, also available without indents
High load capacity, very good resistance to fatigue strength at high temperatures
Suited to harsh operating conditions
Particularly suitable for high specific loads with oscillating motion and low frequency
Fine turned shafts suitable
This material is recommended to be used under the medium speed and medium load condition with oil or grease lubricating. It is widely used for motor rod ends, Kingpin bushing, undercarriage rollers, hydraulic cylinder rod eyes of construction machines, and spherical joint bearings of agricultural machines. Because this material is with lead, the specific parts are not allowed to be used according to certain laws or regulations. Widely used in the automotive, common industrial-like steering gear, power steering, pedal bushes, king-pin bushes, tailgate pivots, mechanical handling, lifting equipment, hydraulic motors, agricultural machines, etc.
Pallet Trucks bushing
Cranes bronze bushes
Excavators bearing bronze
Dynamic load limit
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Support material Steel copper-plated / tin-plated
Bushing inner-Ø after mountingH9
Shaft tolerancef7 to h8
is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!
Special dimensions are available on request
