| Brand Name: | VIIPLUS Sleeve & Bearing |
| Model Number: | C86300 BRONZE BUSHINGS |
| MOQ: | Standard Size Bushing No Minimum Order Quantity |
| Price: | Bushings High Quality Price Ratio B2B |
| Payment Terms: | T/T, L/C, Western Union, |
| Supply Ability: | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Our range of sleeve plain bearings and bronze bushings are specifically designed for rotating applications, offering superior performance and durability. These bearings feature a plain sleeve design that ensures smooth and efficient operation, even under high loads and in harsh environments.
Made from high-quality bronze material, our bushings exhibit excellent wear resistance and corrosion resistance, making them suitable for a wide range of rotating applications. Wh you need bearings for a loader, pump, or any other heavy-duty machinery, we have the right solution for you.
Our hydro-cylinder plain sleeve bearings are also designed with self-lubricating properties, reducing the need for regular maintenance and lubrication. This not only saves time and effort but also ensures continuous and reliable operation of your machinery.
With our commitment to quality and customer satisfaction, you can trust us to provide you with the best sleeve plain bearings and bronze bushings for your rotating applications. Contact us today to learn more about our products and how they can enhance the performance and lifespan of your machinery.
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.

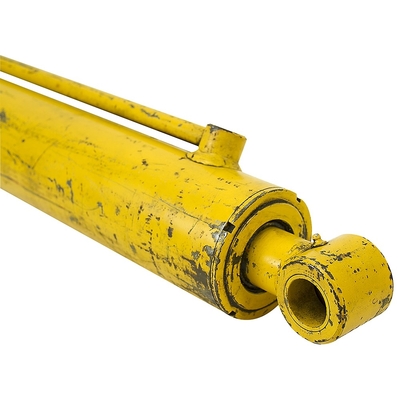

Sleeve Plain Bearings and Sleeve Bearings Hydro - Cylinder Plain Sleeve Bearing , Bronze Graphite Bushings For Rotating Movement

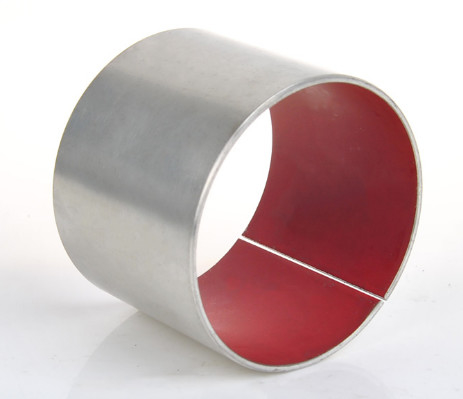

Sleeve bearings steel bronze bushings, journal bearings or plain bearings facilitate linear movement between two parts. Metal-Polymer Low Friction Plain Bearings CYLINDRICAL RED | VSB-40
Bushes Manufacturers, Suppliers & We are a well-established firm that has made its presence in the industry, by supplying Bush . is a self-lubricating material, provides low friction coefficient. It is ideally suited for the Hydraulic Cylinder
· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· + Fillers
VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common VSB-10 range under lubricated operation.
1. /Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.
|
|
Sliding layer |
|
Max. load |
Static |
250N/mm2 |
Max.speed |
Dry running |
0.08~0.20 |
|
Very low speed |
140N/mm2 |
Hydrodynamicoperation |
0.02~0.08 |
||
|
Rotatingoscillating |
60N/mm2 |
Frictioncoefficient |
Dry |
2m/s |
|
|
Hydrodynamic |
>2m/s |
||||
|
Max. PVdryrunning) |
Short-termoperation |
3.6N/mm2*m/3 |
Thermal conductivity |
42W(m*K)-1 |
|
|
Continuousoperation |
1.8N/mm2*m/3 |
||||
|
PV max. hydrodynamic |
-195℃~+280℃ |
Coefficient of thermalexpansion |
11*10-6*K-1 |
||
|
OPERATING PERFORMANCE |
|
|
Dry |
Good |
|
Oil lubricated |
Very Good |
|
Grease lubricated |
Good |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Good |
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs

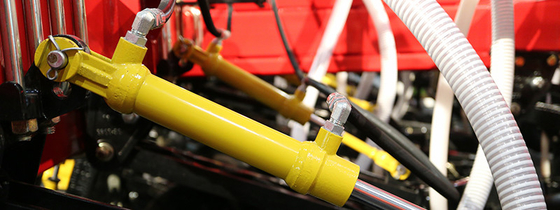

VSB-40 is developed for high duty, oil lubricated, hydraulic applications...Automotivesuspensionstruts,absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.VSB-40 is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic shockfriction coefficient.
BUSHINGS SIZE
