Product Details:
Place of Origin: Plain Bearing Material
Brand Name: China Plain-Bearing
Certification: DIN 1494/ISO 3547
Model Number: Wrapped composite sliding bearing
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: flat strip material inch sizes Manufacturers,Factory Price
Packaging Details: Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time: 15~20 Days
Payment Terms: TT IN ADVANCE
Supply Ability: 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Slide Paths PAS Bronze Bushing Material Metric Sleeve Bearings Strips Plate

Description
Features: Low-maintenance, Lubricated Applications Meterial: Steel + Porous Bronze + PTFE Strips
Plating: Tin Or Copper Type: Wrapped Bushes, Flanged Bearing, Thrust Washer
Finishing: Tin Plated, Brass Plated Special Use:: High-strength Steel Plate
Application: Printing And Dyeing Machines, And Machines Used In The Ocean Industry, Etc. Lubricating: Oilless
High Light:

du strip

,

self lubricating bearing strip

Self-lubricating steel backed du bushing bearings combine the advantages of many conventional lubricated metal plain bearings - especially high load capacities and dimensional stiffness - with the design freedom of self-lubricating materials, including the ability to perform well beyond conventional lubricants.



Custom Solutions for Demanding Technical Requirements

We work closely with our customers to develop new self-lubricating bronze bushings solutions that are then added to our list of catalog bronze bushing products.



Self-Lubricating Bronze Bushing, Steel Backed DU Plain Bearing

Garlock Bearings Replacement sleeve

Discovery DU bushing bearing, relating to plain bearings and self-lubricating bushings material and bushing price ...



Plain-Bearing - Bore size, OD size,  Length size, PTFE Material

80160/ DU Plain Bearing - ID=242, OD=247, Length=100mm
80161/ DU Plain Bearing - ID=300, OD=305, Length=100mm



STEEL BACKED BRONZE BUSHING STRIPS PTFE MATERIAL



VIIPLUS SLIDING BEARING Our range offered SME includes Metal Bushing, Steel Sleeve BushingThrust Washer, Bronze Graphite Plate, Valve Gearbox Bushings, and more. Besides these, we are also rendering Metal Coating Self-lubricating bearing Strips, Material Export Service and more.



Plain bearing materials Plain bearing Strips, Slide paths PAS Strips Material in detail DU Strip Metric Streifen, Gleitbahnen | VSB-10





Impregnated with our own proprietary lubricant, these bushings are composed of PTFE and special material uniformly dispersed within polyacetal plastic resin, a plastic material offering excellent bearing characteristics.




VSB-10 Strips, Slide paths PAS


Steel + Bronze Powder + PTFE/Fibre(DU) Strips


For all the global industry



Provide high-quality self-lubricating products



Wrapped Steel Self Lubricating Bearings Oilless Sliding Series


Characteristics


VSB-10 Streifen, Gleitbahnen PAS

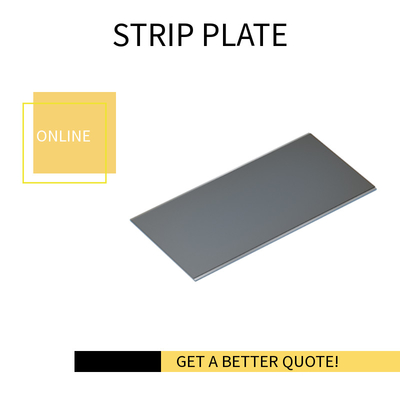

Strips PAS are available as an even material section. This material section can be used to make sliding elements in a variety
of shapes.


Self-Lubricating Bronze Bushing

Table of Contents
Material information
Plain bearing production
Characteristics: maintenance-free and robust
Material composition
Models and tables of dimensions
More information

Plain bearing Bearing Material  DU production

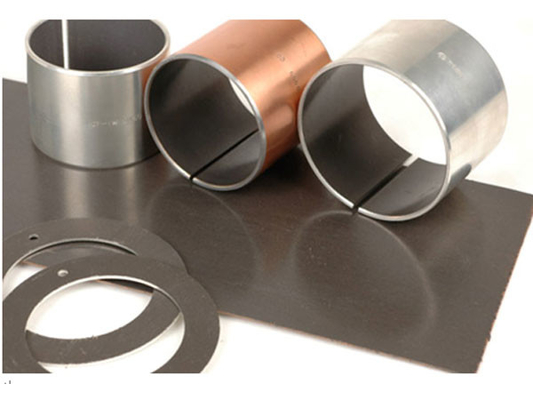

Standard designs are:



Bushes PAP...

  • Cylindrical bushes

Flange liners PAF..

  • Collar bushes

Thrust washers PAW..

  • Thrust washers





Strips



  • Strips



Characteristics of VSB-10 strips material



  • Very low stick-slip tendency

  • Low wear

  • Good chemical resistance

  • Low friction value

  • No tendency to weld to metal

  • Extremely swell-resistant

  • Does not absorb water



Preferred areas of application



  • Maintenance-free operation under dry-running conditions

  • Rotating or oscillating movements

  • Up to a velocity of 2 m/s

  • Linear movements

  • Temperature range -200 °C to 280 °C



Material composition

Strips Material composition



  • Layer system 10 srtips

    1. Running-in layer

    PTFE matrix with bulking agent¹



    Layer thickness [mm]:

    max. 0.03

    2. Sliding layer

    Tin-lead-bronze



    Layer thickness [mm]:

    0.20–0.35

    Pore volume [%]:

    approx. 30

    3. Bearing back

    Steel



    Steel thickness [mm]:

    Variable

    Steel hardness [HB]:

    100–180



    1 The pores of the sliding layer are also filled with this lubricant mass.

    Models and tables of dimensions

    with steel back, maintenance-free



    Slide Paths PAS Bronze Bushing Material Metric Sleeve Bearings Strips Plate 3



If these material sections are used to create slide paths, they have the following main functions:



  • Absorbing and transferring forces acting vertically to the running surface

  • Fixing moving components to each other

  • Ensuring guidance accuracy for axial movements over the entire service life



Strips are available in two material groups:



  • Material group P1 for maintenance-free, dry-running applications

  • Material group P2 for low-maintenance, lubricated applications

For the advantages of each group and help deciding which material group is best for the relevant use, please refer to the information provided in the section cylindrical bushes, flange liners and thrust washers.

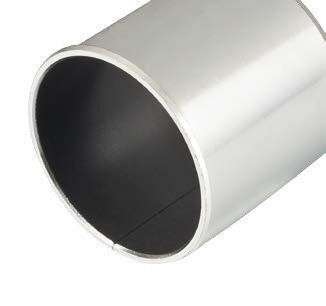

VSB-10 Steel + Bronze Powder + PTFE/Fibre(DU) Bushings


· Bushing material suitable for lubricated applications
· self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Anti-friction bearing suitable for linear, oscillating and rotating movements

Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.


Strusture


1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.



3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



Technical Data

Structure And Composition



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead



Microsection



Slide Paths PAS Bronze Bushing Material Metric Sleeve Bearings Strips Plate 4

Sliding layer
PTFE + Lead

Porous Bronze Sinter
Steel Backing




OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fai



Bearing Properties



GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

250
140

Operating temperature

Min
Max

°C
°C

- 195
280

Coefficient of linear thermal expansion

Parallel to the surface

10-6/K

11

Normal to the surface

10-6/K

30



DRY







Maximum sliding speed, U



m/s


2.0

Coefficient of friction





0.03 - 0.20 *



OIL LUBRICATED







Maximum sliding speed, U



m/s


>2.0

* Depending on operating conditions



Technical data



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




Availability

Bearing forms available in standard dimensions



  • Cylindrical bushes
  • Flanged bushes
  • Thrust washers
  • Flanged washers
  • Sliding plates


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs


Typical Applications


This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.



Self-lubricating Composite Bushing - Metric Size



Product Bearing Type Shaft Dia., Nominal (d) (mm) Bearing Outside Diameter, Nominal(Do) (mm) Bearing Length, Nominal (B) (mm) Wall Thickness (S3) (mm)
du bushing 0606 straight 6 8 6 1.01
du bushing 0608 straight 6 8 8 1.01
du bushing 0610 straight 6 8 10 1.01
du bushing 0806 straight 8 10 6 1.01
du bushing 0808 straight 8 10 8 1.01
du bushing 0810 straight 8 10 10 1.01
du bushing 0812 straight 8 10 12 1.01
du bushing 0815 straight 8 10 15 1.01
du bushing 1006 straight 10 12 6 1.01
du bushing 1008 straight 10 12 8 1.01
du bushing 1010 straight 10 12 10 1.01
du bushing 1012 straight 10 12 12 1.01
du bushing 1015 straight 10 12 15 1.01
du bushing 1020 straight 10 12 20 1.01
du bushing 1206 straight 12 14 6 1.01
du bushing 1208 straight 12 14 8 1.01
du bushing 1210 straight 12 14 10 1.01
du bushing 1212 straight 12 14 12 1.01
du bushing 1215 straight 12 14 15 1.01
du bushing 1220 straight 12 14 20 1.01
du bushing 1225 straight 12 14 25 1.01
du bushing 1310 straight 13 15 10 1.01
du bushing 1320 straight 13 15 20 1.01
du bushing 1410 straight 14 16 10 1.01
du bushing 1412 straight 14 16 12 1.01
du bushing 1415 straight 14 16 15 1.01
du bushing 1420 straight 14 16 20 1.01
du bushing 1425 straight 14 16 25 1.01
du bushing 1510 straight 15 17 10 1.01
du bushing 1512 straight 15 17 12 1.01
du bushing 1515 straight 15 17 15 1.01
du bushing 1520 straight 15 17 20 1.01
du bushing 1525 straight 15 17 25 1.01
du bushing 1610 straight 16 18 10 1.01
du bushing 1612 straight 16 18 12 1.01
du bushing 1615 straight 16 18 15 1.01
du bushing 1620 straight 16 18 20 1.01
du bushing 1625 straight 16 18 25 1.01
du bushing 1710 straight 17 19 10 1.01
du bushing 1712 straight 17 19 12 1.01
du bushing 1720 straight 17 19 20 1.01
du bushing 1810 straight 18 20 10 1.01
du bushing 1812 straight 18 20 12 1.01
du bushing 1815 straight 18 20 15 1.01
du bushing 1820 straight 18 20 20 1.01
du bushing 1825 straight 18 20 25 1.01
du bushing 2010 straight 20 23 10 1.51
du bushing 2012 straight 20 23 12 1.51
du bushing 2015 straight 20 23 15 1.51
du bushing 2020 straight 20 23 20 1.51
du bushing 2025 straight 20 23 25 1.51
du bushing 2030 straight 20 23 30 1.51
du bushing 2210 straight 22 25 10 1.51
du bushing 2212 straight 22 25 12 1.51
du bushing 2215 straight 22 25 15 1.51
du bushing 2220 straight 22 25 20 1.51
du bushing 2225 straight 22 25 25 1.51
du bushing 2230 straight 22 25 30 1.51
du bushing 2415 straight 24 27 15 1.51
du bushing 2420 straight 24 27 20 1.51
du bushing 2425 straight 24 27 25 1.51
du bushing 2430 straight 24 27 30 1.51
du bushing 2510 straight 25 28 10 1.51
du bushing 2512 straight 25 28 12 1.51
du bushing 2515 straight 25 28 15 1.51
du bushing 2520 straight 25 28 20 1.51
du bushing 2525 straight 25 28 25 1.51
du bushing 2530 straight 25 28 30 1.51
du bushing 2540 straight 25 28 40 1.51
du bushing 2550 straight 25 28 50 1.51
du bushing 2815 straight 28 32 15 2.01
du bushing 2820 straight 28 32 20 2.01
du bushing 2825 straight 28 32 25 2.01
du bushing 2830 straight 28 32 30 2.01
du bushing 2840 straight 28 32 40 2.01
du bushing 3012 straight 30 34 12 2.01
du bushing 3015 straight 30 34 15 2.01
du bushing 3020 straight 30 34 20 2.01
du bushing 3025 straight 30 34 25 2.01
du bushing 3030 straight 30 34 30 2.01
du bushing 3040 straight 30 34 40 2.01
du bushing 3220 straight 32 36 20 2.01
du bushing 3230 straight 32 36 30 2.01
du bushing 3240 straight 32 36 40 2.01
du bushing 3512 straight 35 39 12 2.01
du bushing 3515 straight 35 39 15 2.01
du bushing 3520 straight 35 39 20 2.01
du bushing 3525 straight 35 39 25 2.01
du bushing 3530 straight 35 39 30 2.01
du bushing 3540 straight 35 39 40 2.01
du bushing 3550 straight 35 39 50 2.01
du bushing 3815 straight 38 42 15 2.01
du bushing 3830 straight 38 42 30 2.01
du bushing 3840 straight 38 42 40 2.01
du bushing 4012 straight 40 44 12 2.01
du bushing 4020 straight 40 44 20 2.01
du bushing 4025 straight 40 44 25 2.01
du bushing 4030 straight 40 44 30 2.01
du bushing 4040 straight 40 44 40 2.01
du bushing 4050 straight 40 44 50 2.01
du bushing 4520 straight 45 50 20 2.51
du bushing 4525 straight 45 50 25 2.51
du bushing 4530 straight 45 50 30 2.51
du bushing 4540 straight 45 50 40 2.51
du bushing 4550 straight 45 50 50 2.51
du bushing 5020 straight 50 55 20 2.51
du bushing 5030 straight 50 55 30 2.51
du bushing 5040 straight 50 55 40 2.51
du bushing 5050 straight 50 55 50 2.51
du bushing 5060 straight 50 55 60 2.51
du bushing 5530 straight 55 60 30 2.51
du bushing 5540 straight 55 60 40 2.51
du bushing 5550 straight 55 60 50 2.51
du bushing 5560 straight 55 60 60 2.51
du bushing 6030 straight 60 65 30 2.51
du bushing 6040 straight 60 65 40 2.51
du bushing 6050 straight 60 65 50 2.51
du bushing 6060 straight 60 65 60 2.51
du bushing 6070 straight 60 65 70 2.51
du bushing 6530 straight 65 70 30 2.51
du bushing 6540 straight 65 70 40 2.51
du bushing 6550 straight 65 70 50 2.51
du bushing 6560 straight 65 70 60 2.51
du bushing 6570 straight 65 70 70 2.51
du bushing 7040 straight 70 75 40 2.51
du bushing 7050 straight 70 75 50 2.51
du bushing 7060 straight 70 75 60 2.51
du bushing 7070 straight 70 75 70 2.51
du bushing 7080 straight 70 75 80 2.51
du bushing 7530 straight 75 80 30 2.51
du bushing 7540 straight 75 80 40 2.51
du bushing 7550 straight 75 80 50 2.51
du bushing 7560 straight 75 80 60 2.51
du bushing 7570 straight 75 80 70 2.51
du bushing 7580 straight 75 80 80 2.51
du bushing 8040 straight 80 85 40 2.49
du bushing 8050 straight 80 85 50 2.49
du bushing 8060 straight 80 85 60 2.49
du bushing 8070 straight 80 85 70 2.49
du bushing 8080 straight 80 85 80 2.49
du bushing 80100 straight 80 85 100 2.49
du bushing 8540 straight 85 90 40 2.49
du bushing 8560 straight 85 90 60 2.49
du bushing 8580 straight 85 90 80 2.49
du bushing 85100 straight 85 90 100 2.49
du bushing 9040 straight 90 95 40 2.49
du bushing 9050 straight 90 95 50 2.49
du bushing 9060 straight 90 95 60 2.49
du bushing 9080 straight 90 95 80 2.49
du bushing 90100 straight 90 95 100 2.49
du bushing 9550 straight 95 100 50 2.49
du bushing 9560 straight 95 100 60 2.49
du bushing 9580 straight 95 100 80 2.49
du bushing 95100 straight 95 100 100 2.49
du bushing 10050 straight 100 105 50 2.49
du bushing 10060 straight 100 105 60 2.49
du bushing 10080 straight 100 105 80 2.49
du bushing 100115 straight 100 105 115 2.49
du bushing 10560 straight 105 110 60 2.49
du bushing 10580 straight 105 110 80 2.49
du bushing 105115 straight 105 110 115 2.49
du bushing 11060 straight 110 115 60 2.49
du bushing 11080 straight 110 115 80 2.49
du bushing 110115 straight 110 115 115 2.49
du bushing 12060 straight 120 125 60 2.47
du bushing 12080 straight 120 125 80 2.47
du bushing 120100 straight 120 125 100 2.47
du bushing 12560 straight 125 130 60 2.47
du bushing 125100 straight 125 130   2.47
du bushing 125115 straight 125 130 115 2.47
du bushing 13060 straight 130 135 60 2.47
du bushing 13080 straight 130 135 80 2.47
du bushing 130100 straight 130 135 100 2.47
du bushing 14060 straight 140 145 60 2.47
du bushing 14080 straight 140 145 80 2.47
du bushing 140100 straight 140 145 100 2.47
du bushing 15060 straight 150 155 60 2.47
du bushing 15080 straight 150 155 80 2.47
du bushing 150100 straight 150 155 100 2.47
du bushing 16060 straight 160 165 60 2.47
du bushing 16080 straight 160 165 80 2.47
du bushing 160100 straight 160 165 100 2.47
du bushing 160115 straight 160 165 115 2.47
du bushing 18080 straight 180 185 80 2.47
du bushing 180100 straight 180 185 100 2.47
du bushing 19080 straight 190 195 80 2.47
du bushing 190100 straight 190 195 100 2.47
du bushing 20060 straight 200 205 60 2.47
du bushing 20080 straight 200 205 80 2.47
du bushing 200100 straight 200 205 100 2.47
du bushing 22080 straight 220 225 80 2.47
du bushing 220100 straight 220 225 100 2.47
du bushing 25080 straight 250 255 80 2.47
du bushing 250100 straight 250 255 100 2.47
du bushing 26080 straight 260 265 80 2.47
du bushing 260100 straight 260 265 100 2.47
du bushing 28080 straight 280 285 80 2.47
du bushing 280100 straight 280 285 100 2.47



START YOUR
a project with an Application Engineer

Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings

Self-Lubricating Bronze Bushing DU Plain Bearing

Contact Details
JIAXING VIIPLUS INTERNATIONAL TRADING CO.,LTD

Contact Person: iris

Send your inquiry directly to us (0 / 3000)
