Glacier Bushes Material Equivalent Stainless Steel Backed Bushings

Product Details:
Place of Origin: Stainless Steel Backed Bushings
Brand Name: CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification: WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number: CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Payment & Shipping Terms:
Minimum Order Quantity: >=500 Pieces
Price: Negotiable
Packaging Details: CARTONS,wOODEN CASES
Delivery Time: 3-4 WEEKS
Payment Terms: TT IN ADVANCE
Supply Ability: Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers
Contact Now

Detail Information

Meterial: Low-Carbon Steel + Porous Bronze + PTFE Plating: Tin Or Copper
Types: FLANGE/SLEEVE/WASHER Application:: Various Shock Sbsorber Bushings
Production Feature: Wrapped Port: China Port ( Shanghai , Ningbo)
High Light:

stainless steel sleeve bearing

,

stainless steel bushing sleeve

Product Description

Stainless self-lubricating plain bearings  (anti-corrosive)  Customized Sleeve Bushings manufacturing.

DP4 material equivalent glacier bearings replacement sleeve parts, garlock bearings, Wrapped Composite Sliding Bearing .pdf

Our sleeve bushings are suited for many types of applications: ATVs, Mini-cars, Utility Vehicles, Snowmobiles, Scooters, and Electric Vehicles. Each of our Pulley bushing types can be modified by our engineers to be adapted to your specific applications. If your vehicle requires a uniquely designed bushing or flange bearings, the bronze gleitlager R&D Team will design these customized size bushing parts for you.



Upon request, we can offer inch-sizes, special lengths, bearingsApproved according to RoHS Directive Areas of use Foodstuff- and pharmaceutical industries. Offshore and other marine applications.

Automotive shock absorber DU  and Sleeve Bearings Metal-Polymer Low Friction Boccole DP4 CYLINDRICAL RED PTFE | VSB-40


Description

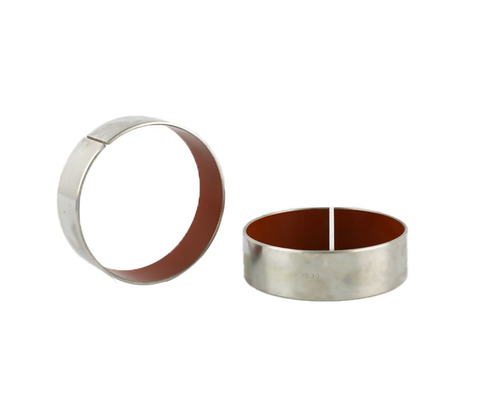

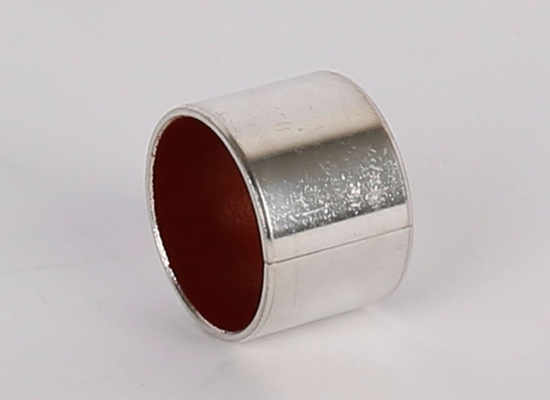

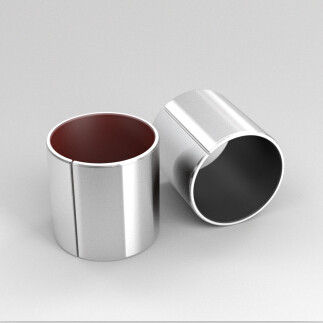

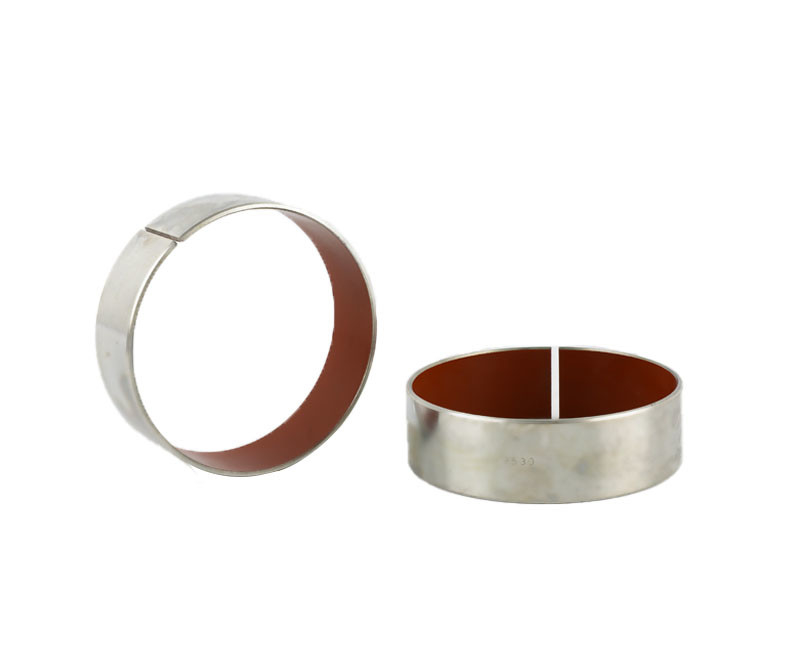

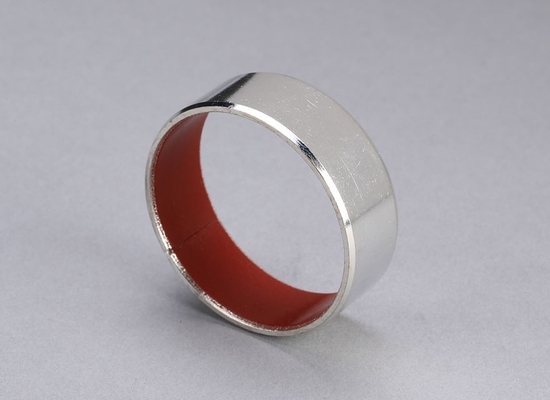

Composed of stainless steel back, sintered porous copper powder interlayer, and modified PTFE sliding layer (red). It gives full play to the characteristics of metal and polymer, with low friction coefficient, good wear resistance, and self-lubrication performance; The stainless steel back provides the bushing with higher mechanical strength and carrying capacity. In addition, the stainless steel back has good chemical corrosion resistance. Stainless steel red PTFE series products are widely used in printing and dyeing machinery, Marine industrial machinery corrosion resistance parts.



Characteristics




Metal-Polymer Low Friction Plain Bearings


Stainless Steel 316 + Bronze Powder + PTFE/RED



Self Lubricating Bearings Stainless Steel 316 + Porous Bronze + Red PTFE



Glacier Bushes Material Equivalent Stainless Steel Backed BushingsStructure




1. PTFE/Polymer fibers mixture thickness 0.01~0.03mm. The lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface also serves as a reservoir for the PTFE mixture.
3. Stainless Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm provides good corrosion resistance.



Technical Data


Structure & Composition

· Metal-Polymer Composite Bushing Material
· Stainless Steel backing + Porous Bronze Sinter +
· PTFE RED + Fillers



Microsection



Glacier Bushes Material Equivalent Stainless Steel Backed Bushings

Sliding layer
PTFE + Fillers
Porous Bronze Sinter
Stainless Steel backing





Bearing Properties



* Depending on operating conditions



Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs

Glacier Bushes Material Equivalent Stainless Steel Backed Bushings


Typical Applications

Products are widely used in printing and dyeing machinery, Marine industrial machinery corrosion resistance parts.
