MoS2 Self Lubricating Bearings Thrust Washer With Long Life Time

Product Details:
Place of Origin: made in china
Brand Name: VIIPLUS
Certification: ISO 3547 DIN 1494
Model Number: Thrust Washer
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: Negotiable
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 7-25 work days
Payment Terms: T/T
Supply Ability: 8000000 Piece/Pieces One week
Contact Now

Product Description

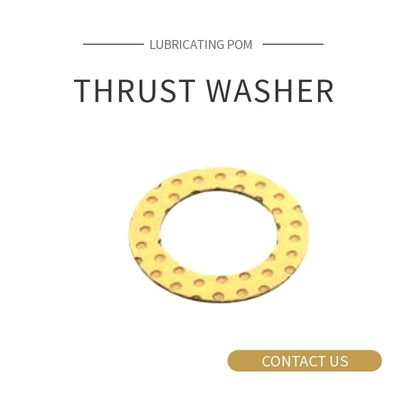

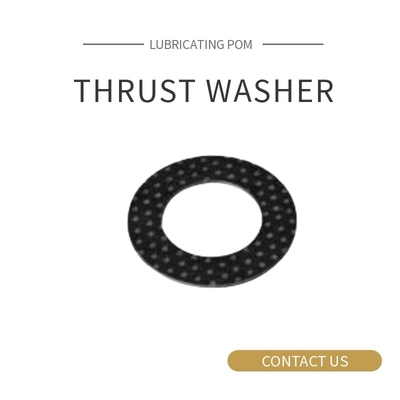

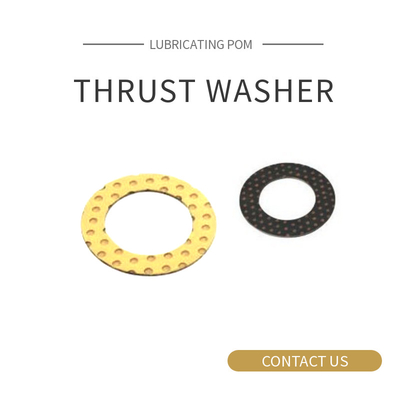

hrust washers

Thrust washers
  • Keeps rotating components in place
  • Always self-lubricating & grease-free
  • Resistant to dirt & dust
  • Cost-effective
  • Learn more here

Availability
Bearing forms made to order: Cylindrical bushes with bronze alloy according to ISO 4379, special parts according to ISO, DIN or customer design, special alloysThrust Washer: boundary lubrication thrust washer gasket

Thrust Washer category: oil-free self lubricated bearings

Thrust Washer model: sf-2wc

Material organization

1. The mixture of modified polyformaldehyde (POM) and lead has high wear resistance and low friction coefficient even in the case of instant oil shortage. The bearing surface is regularly arranged with a spiral Angle of the oil storage pit, assembly, must be coated with grease.
2. The copper powder layer of 0.2-0.3mm has good bearing capacity and wear resistance, and good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball and improve the bonding strength.
3. Low carbon steel 0.4~2.2, improve the bearing capacity and heat transfer function of the bearing.
4. Copper/tin electroplating, copper coating 0.008mm, tin coating 0.05mm, so that the bearing has a good corrosion resistance function.
Application characteristicsComposite bearing: boundary lubricated bearing
It is especially suitable for the rotating motion, swinging motion under heavy load and low speed as well as the parts that are often opened and closed under load but not easy to form fluid lubrication. Under the condition of boundary lubrication, it can be used for a long time without refueling and maintenance, and refueling in the process can prolong the service life of the bearing. The plastic layer on its surface can leave a certain amount of margin when the bushing is formed, and can be processed by itself after being pressed into the hole, so as to achieve a better assembly size.
At present, it is mainly used in metallurgical machinery, mining machinery, water conservancy machinery, automobile chassis, construction machinery, agricultural machinery, steel rolling machinery, etc.
Sf-2wc gasket series standard size



shaft size thrust washer size thrust washer size Installation dimensions
d +0.25 D -0.25 T -0.05 M±0.125
h +0.40
+0.10
t±0.20 D1+0.12
8 SF-2WC 10 10 20 1.5 15 1.5 1.0 20
10 SF-2WC 12 12 24 18 24
12 SF-2WC 14 14 26 20 2.0 26
14 SF-2WC 16 16 30 23 30
16 SF-2WC 18 18 32 2.0 25 32
18 SF-2WC 20 20 36 28 3.0 36
20 SF-2WC 22 22 38 30 38
22 SF-2WC 24 24 42 33 42
24 SF-2WC 26 26 44 35 44
26 SF-2WC 28 28 48 38 4.0 48
30 SF-2WC 32 32 54 43 54
36 SF-2WC 38 38 62 50 62
40 SF-2WC 42 42 66 54 66
46 SF-2WC 48 48 74 61 1.5 74
50 SF-2WC 52 52 78 65 78
60 SF-2WC 62 62 90 76 90





1. The mixture of modified polyformaldehyde (POM) and lead has high wear resistance and low friction coefficient even in the case of instant oil shortage. The bearing surface is regularly arranged with a spiral Angle of the oil storage pit, assembly, must be coated with grease.
2. The copper powder layer of 0.2-0.3mm has good bearing capacity and wear resistance, and good thermal conductivity can transfer the heat generated during the operation of the bearing in time. The composite material can penetrate into the gap of the copper powder ball and improve the bonding strength.
3. Low carbon steel 0.4~2.2, improve the bearing capacity and heat transfer function of the bearing.
4. Copper/tin electroplating, copper coating 0.008mm, tin coating 0.05mm, so that the bearing has a good corrosion resistance function.

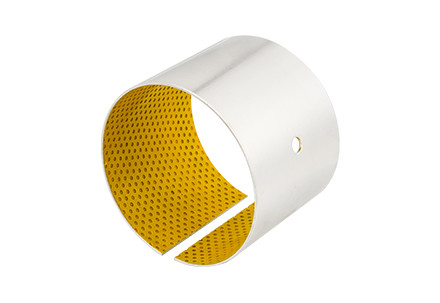

Composite bearing: boundary lubricated bearing is made of high quality low carbon steel plate, with sintered spherical bronze powder in the middle, surface rolling modified polyambrose (POM) and oil storage pit. Good bearing capacity, good wear resistance. It is suitable for normal temperature conditions and low speed heavy loading places, replace the traditional copper sleeve, both reduce the cost and extend the service life. In the boundary lubrication condition for a long time without oiling maintenance, but in the overlayer oiling makes the bearing service life longer. The surface plastic can keep a certain amount of margin when it is processed and molded, and can be processed by itself after it is assembled and pressed into the seat hole, so as to achieve a better assembly size.
It is widely used in automobile chassis, forging and pressing machine, metallurgy and mining machinery, engineering machinery, water and electricity, steel rolling industry and other fields. The product surface does not contain lead, the use domain may extend to has the environmental protection request domain.

Maximum bearing pressure (static): 250 N/mm2
Maximum bearing pressure (dynamic): 140N/mm 2
Friction coefficient (grease lubrication) : 0.05 ~ 0.25
Maximum sliding speed (grease lubrication) : 2.5m/s
Maximum PV value (grease lubrication) : 2.8n/mm2. M/s
Operating temperature: -40℃~+130℃



DX0606, DX0608, DX0610, DX0806, DX0808, DX0810, DX1010, DX1012, DX1015, DX1020, DX1210, DX1212, DX1220, DX1225, DX1310, DX1412, DX1415, DX1420, DX1425, DX1510, DX1512, DX1515, DX1520, DX1625, DX1610, DX1710, DX1712, DX1720, DX1810, DX1812, DX1815, DX1820, DX1825, DX2012, DX2015, DX2020, DX2025, DX2030, DX2210, DX2212, DX 2215, DX2220, DX2225, DX2230, DX2415, DX 2420, DX 2425, DX 2512, DX 2515, DX 2525, DX 2525, DX 2540, DX 2550, DX 2815, DX 2820, DX 2840, DX 3012, DX 3015, DX 3025, DX 3030, DX 3030, DX 3040, DX 3220, DX 3230, DX 3240, DX 3512, DX 3515, DX 3525, DX 3540, DX 3550, DX3815, DX 3830, DX 3840, DX 4025, DX 4040, DX 4050, DX 4520, DX 4525, DX 4540, DX 4550, DX 5020, DX 5030, DX 5040, DX 5050, DX 5060, DX 5530, DX 5540, DX 5560, DX 6040, DX 6060, DX 6060, DX 6060, DX 6530, DX 6540, DX 7040, DX 7060, DX 7060, DX 7060, DX 7080, DX 7530, DX 7540, DX 7550, DX 7560, DX 7570, DX 7580, DX 8040, DX 8060, DX 8080, DX 80100, DX 8540, DX 8560, DX 8580, DX 85100, DX9040, DX 9050, DX 9060, DX 9080, DX 90100


Application field
VIIPLUS Is one of the solid enterprises in China specialized in producing self-lubricating bearing, sliding bearing, composite bearing, oil-free bearing, dry bearing and maintenance-free bearing. The quality and performance of the products have reached the level of foreign counterparts.

Application field
Due to the combination of material characteristics and performance, COMPOSITE WASHER bushings has been more widely used and promoted than common self-lubricating bearings. Thin wall structure, small size, light weight, making COMPOSITE bushings bushing easy to use. Based on the material properties of the wear-resistant layer PTFE mixture,pom products are suitable for difficult-to-maintain and difficult-to-oil, oil-free and low-oil applications. During use, the PTFE mixture forms a transfer film to protect the grinding shaft from shaft biting. PTFE mixture has excellent wear resistance and low friction coefficient, as well as an appropriate amount of elastoplasticity, which can distribute stress on a wide contact surface, thus improving the bearing capacity of sliding bearing products (see). Therefore, sliding bearing products are suitable for rotating, swinging, axial sliding and other occasions.


Agricultural machinery and food machinery
Tractors, combine harvesters, baling machines (of hay, straw, etc); Baling press, meat processing equipment, potato harvester, spray machine, grain dryer, planting equipment, brewing equipment, etc.


The car industry
In the typical application of the industry include: throttle, brake and clutch pedal, mirror adjustment mechanism, wipers, Windows hoisting mechanism, skylight organization, joystick, seat belt tensioning mechanism, seat adjustment mechanism, shock absorber, engine, suspension, carburetor, door hinge, suitcase, hood hinge, with tie rod and the ball head, throttle valve, steering column and steering device, etc.


Home appliances, commercial appliances, hospital equipment
Air conditioning, vacuum cleaner, dishwasher, sewing machine, washing machine, refrigerator, copier, printer, scanner, mail processing system, letter sorting device, dental equipment, X-ray equipment, operating table, etc.


Hydraulic industry
Gear pump, water pump, piston pump, ball valve, butterfly valve, mixing valve, control valve, reciprocating air compressor, hydraulic brake, centrifugal compressor, hydraulic cylinder, etc.


Construction machinery, machinery industry
Excavators, hydraulic lifts, concrete mixers, fork-lift trucks, hydraulic cylinders, belt tensioning devices, cranes, mortar trucks, pallet fork-lift trucks, pneumatic lifts, bulldozers, escalators, pedestrian walkways, heavy trailers, liquid infusion equipment, side loaders, etc.


Other applications
Bicycles, motorcycles, tools, spinning machines, reciprocating saws, cutting machines, textile machines, weaving machines, button machines, packaging systems, nailing machinery equipment, glass manufacturing equipment, etc.

SELF-LUBRICATING BEARING BUSHING STRIPS MATERIAL
