Long Life Flanged Bronze Bushings 5050 ID50* OD55*65 Flange * L50mm

Product Details:
Place of Origin: Tin Bronze Bushing Manufacturer
Brand Name: REPLACEMENT PLAIN BEARINGS
Certification: DIN 1494 / ISO 3547
Model Number: Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 3 - 15 BUSINESS DAYS
Payment Terms: T/T
Supply Ability: STANDARD TOLERANCE BUSHINGS
Contact Now

Detail Information

Bushing Material: Tin Bronze Cusn8 Cusn6 Feature: High Temperature Resistance,Wear Resistance,corrosion Resistance
Type: Flange Bronze Bushings, Wrapped Bushings Bushings Thinkness: Bushing Max. Thickness Of 2.5mm.
Self-lubricating Bushings: Bronze Bushing 180-185-100mm, Perforated Application: Agricultural Machinery, Brakes And Certain Construction Machinery.
Bushing Size: Special Dimensions And Imperial Sizes Are Available On Request Model Number:: BK-080, BRM 80, COB-092, FB 092, WB 702,E90F E92F E90 E92 BUSHINGS
High Light:

graphite bronze bushing

,

bronze plain bearing

Product Description

We offer a wide range of high quality of gleitlagerbuchsen. Flange Bronze Bushings,viiplus offers  FB090 & FB092 flange bronze bushings, wrapped bushings ,Copper Wrapped Bushing products.



A wide variety of fb090 rolled bronze bushing in metric size and inch size.

Bronze Bushing gleitlager bronze Sourcing Solutions,Bronze Manufacturer,according to the needs of customers, we provide two efficient, safe, and money-saving solutions, so you can rest assured to choose.and download the beta release directly from our website.

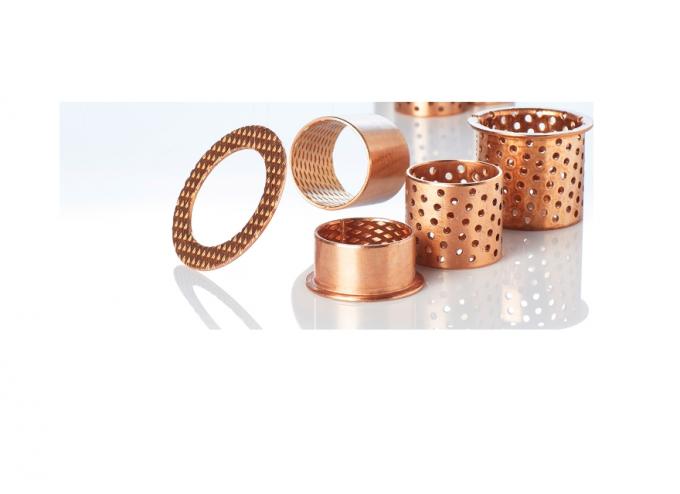

wrapped bronze bushing

Gleitlager - Shipping from China to Germany


our team have rich experiences in handling every shipment from China to Germany, we provide the bronze gleitlager by sea, by air, and we can provide very competitive bronze bushing bearings rates to our customers even you are personal. Besides bronze gleitlager rates, the most important is that we can provide the best logistics solution for our customers based on our professional experience.

VIIPLUS is the expert on self lubricant bronze bearing bushing from China to any country in Europe. Request our best bronze gleitlager now, we are 7/24 online to support your business.

Flanged Bronze Bushings 5050 ID50*OD55*65Flange*L50mm,Provide solutions for bronze bushings projects. Whether in the bronze bearings wholesale market or oilless industry, you can find the best solution for your project procurement and bushing bearings product sizd selection.

Buy & Import Bronze Bushings Markets

Bronze bushing markets, especially famous for global standard and quality bronze bushing that fascinates thousands of foreign buyers every year.We have manufactured bushings, plates and other bronze pieces according to drawings, offering our services to clients worldwide.

Long wrapped CuSn8 bronze bush with lubrication holes.Contact Us
Special Part Enquiry.Item No. d D L [mm]

Special Offer: Discounts of 15%, 30%, 50% and 55% are available when you order .Bronze Bearings 180100 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

E90F E92F E90 E92 BUSHINGS,BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS

Find the right Bronze Size Sourcing Solution for you.

Bronze Bushing 180-185-100mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

  1. Self lubricating,
  2. High speed and high load applications,
  3. Can operate at a wide range of temperature ranges,
  4. Corrosion resistance,
  5. Product range ,flange size available ,Easily customized

Bronze Bushing Mateiral

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

The bronze bearings,bronze gleitlager are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish. The material composition is as follows:

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

Bronze Bearing Dimension

Metric / Imperial: Metric (mm)
Internal Diameter: 180mm
Outside Diameter: 185mm
Length: 100mm

Bronze Bearing Tolerance

Length tolerance: Min: 99.75mm Max: 100.25mm
Recommended shaft tolerance: Min: 179.917mm Max: 179.957mm (f7)
Recommended housing tolerance: Min: 185mm Max: 185.046mm (H7)
ID when fitted: Min: 180mm Max: 180.155mm

  •

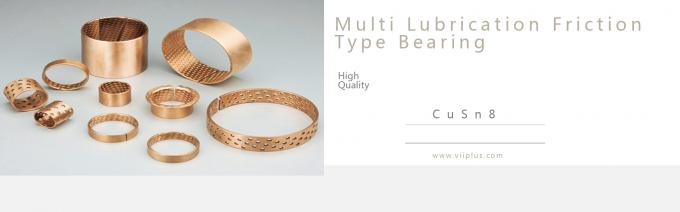

FB092 bronze bushing with holes
Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

Materials

  • Support materialCuSn8P (DIN 17662)

  • alternative CuSn6P available

Bronze Wrapped Washers
Bronze Wrapped Bearing Strip
Bronze Wrapped Plain Bearings
Bronze Wrapped Flanged Bearings

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving



Gleitlagerbuchsen





















































wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

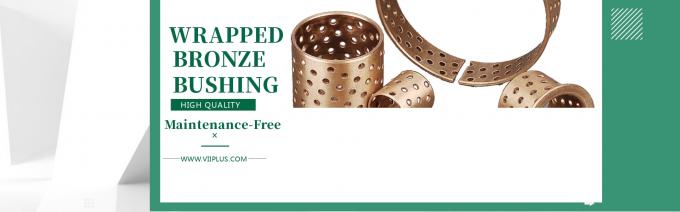

WRAPPED BRONZR BUSHING



Technical Details

  • Specific load capacity static< 120 [N/mm2]

  • Specific load capacity dynamic< 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s]

  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

  • The percentage of contact area on the ID is > 75%
