316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing

316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing
316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing

Large Image :  316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing

Product Details:
Place of Origin: Stainless Steel Backed Bushings
Brand Name: CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification: WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number: CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Payment & Shipping Terms:
Minimum Order Quantity: >=500 Pieces
Price: Negotiable
Packaging Details: CARTONS,wOODEN CASES
Delivery Time: 3-4 WEEKS
Payment Terms: TT IN ADVANCE
Supply Ability: Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing

Description
Meterial: Stainless Steel 316,PTFE Fibres Fabric Characteristic: Low-maintenance And Maintenance-free Plain Bearings
Size: Standard Size Available Port:: Shanhai,or Ningbo
Quality: OEM Type: Bushes, Collar Bushes, Washers, Strips Or Special Designs
Bearing: TEX
High Light:

steel backed bronze bushing

,

stainless steel bushing sleeve

Stainless Steel Bushings



Butterfly Valve Plain Bearings Accessories,Stainless Steel Bushings - Pipe Fittings Bearings Provides Our Global Valves And Pipelines And Other Chemical Industries With Unique Design Solutions To Complex Problems And An Unparalleled Level Of Service, Quality, And Support.Mechanical Joining

Self-Lubricating Bearings Technology Form The Basis For Our Mechanical Joining. All Sleeve Bushings Are Manufactured To Exacting Standards And For Optimal Performance To Satisfy Your Piping Requirements.



Butterfly Valves Bushes Ball Valves Globe Valves Gate Valves Stainless Steel 316 /Tex Valve Bushings Gleitlager



Stainless Steel 316 Bearings +Ptfe Fabric Viiplus Sliding Bearing Solutions For Your Valve Applications



Application





BALL VALVES(flange ball valves)



LINED BALL VALVES BUSHINGS



RISING STEM BALL VALVES BUSHINGS

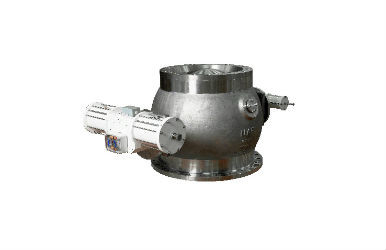

SEGMENTED BALL VALVES

316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 0Stainless Steel BushingsStainless Steel BushingsStainless Steel Bushings

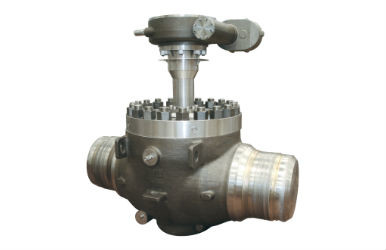

TOP ENTRY BALL VALVES BUSHINGS

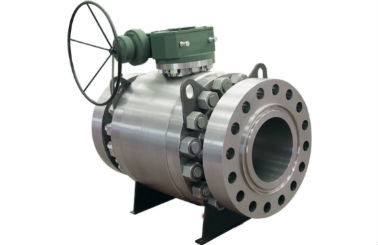

TRUNNION MOUNTED BALL VALVES BUSHINGS



TECHNISCHE DATEN

  • Wrapped composite sliding bearing

  • Carbon-steel / PTFE fibres fabric

  • Maintentance-free

  • Available on request

PROPERTIES

  • Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption

MATERIALS

  • Support materialCarbon steel

  • Sliding layerPTFE fibres fabric

  • Support material: Stainless steel and bronze on request

MATERIAL PROPERTIES

  • Specific load capacity static≤ 350 [N/mm2]

  • Specific load capacity dynamic≤ 180 [N/mm2]

  • Sliding speed< 0.5 [m/s] 1 [m/s] lubricated

  • Friction value ***0.03 [µ] to 0.20 [µ]

  • Temperature strain– 50 [°C] to + 250 [°C]

  • Max. PV-value1.8 [N/mm² x m/s]

MOUNTING ADVISE

  • The application of an adequate force fitting mandrel is advisable

TOLERANCE DETAILS

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8




Tech.Data

Max.Load

Static

350N/mm2



Temp.

-50°C~+250°C

Dynamic

180N/mm2

Friction coefficient

0.03~0.20

Max.speed

Dry

0.5m/s

Thermal conductivity

42W(m x K) 1

Grease

1m/s~3m/s

Max.PV(Dry)

Short-term

3.6N/mm2 m/s

Coefficient of thermal
expansion

11 x 10- 6 x K-1

Continuous

1.8N/mm2 m/s





316 Stainless Steel Valve Bushing Gleitlager For Butterfly Valve Bushing 4


MAINTENANCE

  • is a dry sliding bearing with glued PTFE fibres fabric overlay. Lubrication is therefore not necessary and not allowed.

RANGE OF APPLICATION

  • Machine and crane construction, apparatus engineering, agricultural machines, fittings, water pumps, chemical industry

CAPTION

This sliding bearing type and special dimensions are only available on request



Application


Now this product has been used like suspension and auxiliary of agriculture and construction machines,cranes and hydraulic and mechanical jibs,ball butterfly and sluice valves,water pumps,chemical industries etc.
