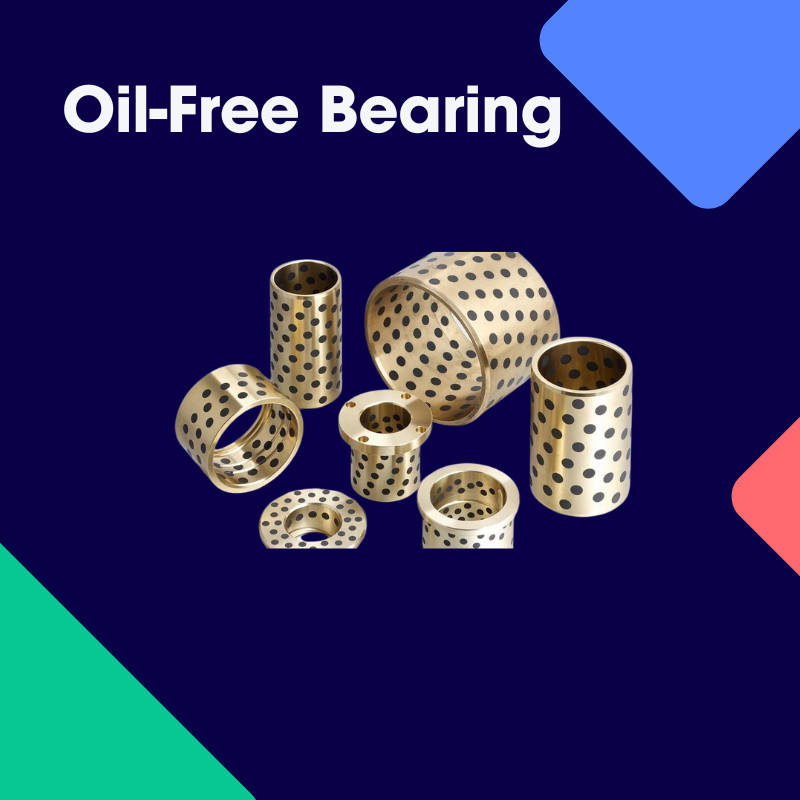

Choosing the Right Bronze Bearing Material: Meet Your Industry Standards with VIIPLUS (C93200, C95400, C86300)
Selecting the correct material for bronze bearings and bushings (Bronze Gleitlager) is critical for ensuring performance, longevity, and reliability in demanding industrial applications. Different bronze alloys offer unique combinations of strength, wear resistance, corrosion resistance, and machinability. VIIPLUS, a professional manufacturer based in China, understands this necessity and supplies a range of high-quality Bronze Bearing Materials designed to Meet Your Industry Standards!
Whether you need the widely used C93200 (RG7), the high-strength C95400, or the robust C86300 often used in graphite bearings, VIIPLUS has the capability and expertise to deliver.
[Get A Quick Quote - We are happy to serve you!]
Let's delve into some of the key cast bronze alloys we offer:
1. C93200 / RG7 / SAE660 / CC493K: The Versatile Workhorse
Often referred to by various designations including RG7 bronze bearings, SAE660, or C93200, this leaded tin bronze (CuSn7Zn4Pb7) is arguably the most common general-purpose bearing bronze alloy worldwide.
Key Properties: Offers an excellent balance of properties:
Very good machining properties.
Good strength and hardness levels.
Excellent wear resistance and anti-friction qualities (enhanced by tin and lead content).
Reasonable corrosion resistance in seawater and brine (not subject to dezincification).
Good dry running properties (especially when graphite plugged).
Pressure-tight characteristics.
Typical Uses: Its versatility makes it ideal for:
General utility bearings and bushings.
Wear plates and thrust washers.
Pump and valve components (housings, bushings).
Water and steam fittings.
Applications with medium loads and speeds requiring adequate lubrication or self-lubrication (graphite plugged).
VIIPLUS Supply: We supply C93200 / RG7 bronze graphite bearings, plain bearings, flanges, wear plates, thrust washers, and custom parts in this alloy.
Technical Snapshot (RG7 / CC493K / C93200):
Chemical Composition (Nominal %): Cu 81-85, Sn 6-8, Pb 5-8, Zn 2-5, Ni 2 Max
Mechanical Properties (Typical Minimums):
Yield Strength (Rp N/mm²): ≥ 120
Tensile Strength (Rm N/mm²): ≥ 260
Elongation (A5): ≥ 12%
Hardness: ≥ 70 HB
Mating Material: Recommended surface hardness min. 200HB, roughness < 1 Ra.
2. C95400 Aluminum Bronze (C954): High Strength and Exceptional Wear Resistance
When applications demand higher strength and superior resistance to wear and fatigue, C95400 Aluminum Bronze is an excellent choice. It's the most popular all-purpose aluminum bronze alloy.
Key Properties:
High yield and tensile strength.
Good ductility and weldability.
Exceptional resistance to wear, fatigue, and deformation, especially under shock or overload conditions.
Good corrosion resistance.
Typical Uses: Ideal for more demanding applications:
Heavy-duty bearings and bushings.
Gears and worm gears.
Valve components (seats, guides).
Wear plates and wear strips in high-load situations.
Machine parts requiring high strength.
Heavily loaded pump parts.
Sleeve bearings for excavators and construction machinery.
VIIPLUS Supply: VIIPLUS produces C95400 Alloy bearings and bushings as a standard stock product and can manufacture custom parts.
Technical Snapshot (C95400):
Chemical Composition (%): Cu 83.0 min, Al 10.00-11.50, Fe 3.00-5.00, Ni 1.5 max, Mn 0.50 max (Simplified - other elements typically

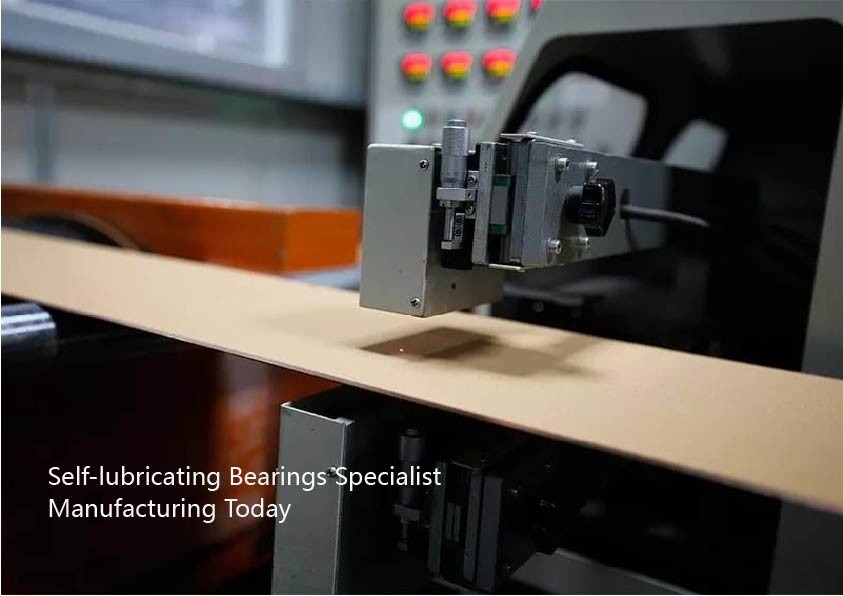

Inside the VIIPLUS Factory: Advanced Sinter Production Lines for Self-Lubricating Bronze Bearings
In the world of sliding bearings, performance and reliability are paramount. Self-lubricating bronze bearings, particularly those produced through sintering, offer exceptional durability and maintenance-free operation critical for many industries. As a leading Sliding Bearings Manufacturer based in China, VIIPLUS is dedicated to pushing the boundaries of this technology. We constantly study the latest advancements in sliding bearings materials and invest in research & development to create innovative new self-lubricating bearings products.
At VIIPLUS, we believe that Technological innovation promotes enterprise development. This philosophy drives our investment in state-of-the-art production processes, ensuring we deliver high-quality, consistent products to our global clientele.
[Online Inquiry - Learn More About Our Capabilities]
The Core: Controlled Sintering for Stable Performance
The foundation of many high-performance self-lubricating bearings lies in the sintering process. This involves fusing powdered metals under controlled heat and pressure to create a strong, porous structure that can be impregnated with lubricants or incorporate solid lubricants.
VIIPLUS utilizes dedicated sinter production lines, implementing a scientific and strictly controlled sintering process. Procedures are carefully monitored at every stage to ensure the resulting self-lubricating bearings strips and sheets exhibit stable performance characteristics vital for reliable operation and the successful development of new products.
Automation for Efficiency and Precision
To further enhance quality and efficiency, VIIPLUS incorporates advanced automation into its production flow:
Automatic Forming Machine: This technology plays a key role in shaping the sintered materials into precise bearing forms. Its implementation significantly reduces labor intensity, boosts overall self-lubricating bearings production efficiency, and critically, improves product quality and consistency from batch to batch.
Automatic Chamfering Machine: Precision finishing is crucial. The introduction of automatic chamfering machines refines the production rhythm, greatly improving production efficiency. Furthermore, it leads to a significant improvement in the length accuracy of the final product and ensures angles are finished more cleanly and beautifully.
Uncompromising Quality: Final Inspection and Monitoring
Quality control is not an afterthought; it's integrated throughout our process. VIIPLUS employs strict inspection procedures and inspection standards:
Performance Inspection & Monitoring: The properties of the self-lubricating bearings strips are rigorously tested and monitored.
In-Process Quality Control: Checks are performed during manufacturing stages.
Final Inspection: Every batch undergoes a thorough final inspection before shipment.
This multi-layered approach ensures that product performance and critical tolerances consistently meet or exceed customer requirements.
Driving Innovation Forward
Our commitment doesn't stop at current production. The development team at VIIPLUS continues to actively study new self-lubricating materials and design innovative bushing products to meet the evolving needs of various industries.
VIIPLUS: Your Partner for Advanced Self-Lubricating Bearing Solutions
Through investment in advanced sinter production lines, automation, rigorous quality control, and continuous R&D, VIIPLUS stands as a reliable manufacturer committed to excellence.
Welcome to contact us! Explore how our technologically advanced production capabilities can benefit your applications.
