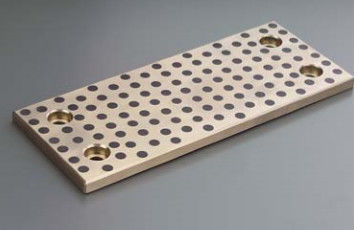

Bronze Material Oilless Bushes With Oil Impregnated Graphite Plugs

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number Bronze wear plate with Embedded Solid Lubricant Material
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, PTFE Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Oilless Bushing Type Bronze Wear Plate Wear Plate Material Bronze Plugged Graphite
Application Die Mould Equipment Code Lamina Wear Plate
Lubrication Graphite, Oil Free Size Customized Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

Bronze Material Oilless Bushings

,

Bronze Material Oilless Bushes

,

Oil Impregnated Graphite Plugs Bushings

Leave a Message
Product Description

bronze material with oil-impregnated graphite plugs.



Bronze Material Oilless Bushes with Oil Impregnated Graphite Plugs are precision-engineered components designed to provide exceptional wear resistance and smooth operation in a variety of industrial applications. The use of bronze material ensures high strength and durability, while the oil-impregnated graphite plugs provide self-lubricating properties that eliminate the need for regular lubrication.

The oil-impregnated graphite plugs are a key feature of these bushes. They are designed to release lubricating oil gradually, ensuring a constant supply of lubrication to the bush surface. This not only reduces friction and wear but also extends the service life of the bushes.

The bronze material used in the manufacture of these bushes offers excellent corrosion resistance and mechanical properties. This makes them suitable for use in harsh environments and demanding applications where high loads and speeds are involved.

The combination of bronze material and oil-impregnated graphite plugs makes these oilless bushes a reliable and efficient choice for industrial applications. They are suitable for use in pumps, motors, gearboxes, and other machinery where precision and durability are crucial.

In summary, Bronze Material Oilless Bushes with Oil Impregnated Graphite Plugs offer a high-performance, self-lubricating solution for industrial applications. Their unique design and material properties ensure smooth and reliable operation, reducing maintenance requirements and extending the lifespan of machinery and equipment.



Bronze material with or without oil impregnated graphite plugs. When ordered with graphite plugs, the plugs cover 25-30% of the wear surface and
are arranged to generate optimal coverage at any engagement direction of the wear strip.





The NAAMS Series of wear strip fully meets the North

American Automotive Standard. They are manufactured from


Thkns.(mm) Widthv(mm) Length(mm) Part Number NAAMSCode
10 25 150 NW10-25-150NG W511025
40 NW10-40-150NG W511040
50 NW10-50-15ONG W511050
63 NW10-63-15ONG W511063
75 NW10-75-150NG W511075
100 NW10-100-150NG W511010
125 NW10-125-150NG W511012
150 NW10-150-150NG W511015
12 25 NW12-25-150NG W511225
40 NW12-40-150NG W511240
50 NW12-50-150NG W511250
63 NW12-63-150NG W511263
75 NW12-75-150NG W511275
100 NW12-100-150NG W511210
125 NW12-125-150NG W511212
150 NW12-150-150NG W511215
15 25 NW15-25-15ONG W511525
40 NW15-40-150NG W511540
50 NW15-50-15ONG W511550
63 NW15-63-150NG W511563
75 NW15-75-15ONG W511575
100 NW15-100-150NG W511510
125 NW15-125-150NG W511512
150 NW15-150-150NG W511515
20 25 NW20-25-150NG W512025
40 NW20-40-150NG W512040
50 NW20-50-15ONG W512050
63 NW20-63-150NG W512063
75 NW20-75-150NG W512075
100 NW20-100-15ONG W512010
125 NW20-125-150NG W512012
150 NW20-150-150NG W512015



Graphite impregnated bronze slide oilless bushes plate is a self-lubricating bearing plate made up of a high quality bronze with graphite filled grooves.



The bronze oilless wear plate serves as a seat for high loads, while the graphite inserts are a solid, oil-free lubricant.



As the lubricant forms, a graphite film forms between the bearing and the mating surface, resulting in a low coefficient of friction at the start of relative movement.



• Finely polished
• High precision
• Dimensional accuracy



Find Bronze Wear Plates related suppliers, manufacturers, products and specifications on bronzegleitlager.com - a trusted source of Bronze Wear Plates information.



Professional in Industrial Equipment & Bronze Wear Plate Components Industry, metal wear strips

standard VDI/NAAMS wear plates.

We offer a range of bronze wear plate styles and sizes for your selection.
precision ground plate

Automotive Wear Plates

Wear Products





Bronze and self lubricated bronze wear plate based on clients’ drawings.
specialized in the supply of machined and finished bronze pieces for clients' use.

We adapt ourselves to our clients’ requirements, offering flexible production capacity for both single parts and for larger batches or series, always keeping to tight deadlines.

Our means of production and control allow us to meet the tolerances and specifications established by our clients, reaching a high level of precision.

Many of our fully machined bronze wear plates are self-lubricating. This is achieved by plugging the bronze plate with graphite plugs.



BRASS WEAR PLATE

Bronze with solid lubrication plate



Bronze alloy metallic bearings bronze wear plate with graphite plugs provide both the good wear resistance and great self-lubricating feature of the bearings.
This designation enables the bronze thrust bearings to be operated without oiling or greasing maintenance.
It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions such as automobile assembling line, Water Turbine, Gate dams, and Plastic Injection Machinery.
Depending on different working conditions, a variety of types of different alloys are available.



BRONZE WEAR PLATE PRECISION GROUND PLATE PLUGGED GRAPHITE



Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability.

Material: Strong cast bronze MoS2 with Graphite



Aluminum Bronze with Graphite Plugs



Wear Plate and Wear Products are available in inch or metric sizes



Oil-free bearings were developed for high load, low speed applications and are manufactured from high strength, rotational molded bronze using a specially formed graphite plug as a lubricant.

Our range of oil-free sliding plates are available in metric and imperial sizes.



Structures



① Solid lubricant film
② Solid lubricant plug
③ Bronze backing



Guide to oil-free slide platesself lubricated bronze wear plate



  • Oil-free components are produced by incorporating a special solid lubricant in the appropriate places.
  • Sintered alloy is a special alloy with an even distribution of solid lubricants and lubricating grease filled with pores.
  • The metallic base material supports the load while the built-in solid lubricant provides lubrication, resulting in superior oil-free durability, even under harsh conditions.



Self-Lubricating Wear Plates Characteristics



■ Low coefficient of friction

■ No pre-drilled holes – allows flexibility in mounting patterns

■ Standard plug pattern designed for maximum surface lubrication

■ Close tolerance to ease installation



Why Choose Graphite Self-Lubricating Wear Plate Products


1. Total Self-Lubricating
2. Excellent Wear Resistance
3. Low Coefficient of Friction
4. Wide Operating Temperature Ranges
5. Corrosion and Chemical Resistance
6. Designed to Exceed Your Requirements
7. Cost Competitive



Offering you a complete choice of products which include oilless plates, oilless wear plates, graphite impregnated bronze plate / wear plate and graphite filled bronze plate.





  •

  • Oilless slide plate,wear plate, graphite plugged features and advantages


  • 1. Insensitive to dirty environment
    2. Resistant to shock loads and vibrations at slow speeds
    3. Enable operation with a poor shaft surface finish
    4. Good resistance to corrosive conditions

  •

  • Guide slide plate, wear pad, oilless bearing plate Technical Data

  •

Material Base Bronze 500SP: CuZn25Al6Fe3Mn3
SL2 Solid Graphite lubricant
Density   8.2g/cm3
Tensile Strength   >=755N/mm2
Anti-compact Tenacity   >=400~500KJ/m3
Hardness   >=200HB
Max Load Pressure   100N/mm2 / 120N/mm2(500SP120)
Speed Limit   0.5m/s
PV value limit   1.65N/mm2.m/s
Friction coef Oil Lubrication 0.03
Dry Friction 0.16
Working temperature

-50~+300°C





  •

Bronze with Self-Lubricating Graphite Plugs



■ Bronze with self-lubricating graphite plugs for bilateral wear

■ Ready to use

■ Solid Bronze available upon request



  • The steel wear plates are made of high quality case-hardened steel. They are precision ground and hardened to Rc56-60 (1.2mm to 1.5mm deep). They are available with or without graphite caps.
  • Bronze wear plates are manufactured from bronze material with oil impregnated graphite plugs.
  • When ordered with graphite plugs, the plugs cover 25-30% of the wear surface and are arranged to generate optimum coverage in any direction of engagement of the wear plate.



Oilless Slide Plate Typical Applications



The product is widely used in continuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on...



bearing application





Machined bronze wear parts

Manufacture based on clients’ drawings integrated production international service experience bronze wear plate & thrust bearings units and series
