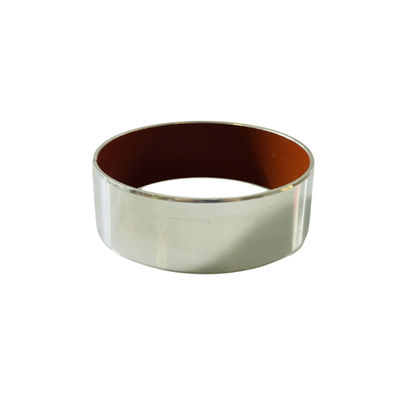

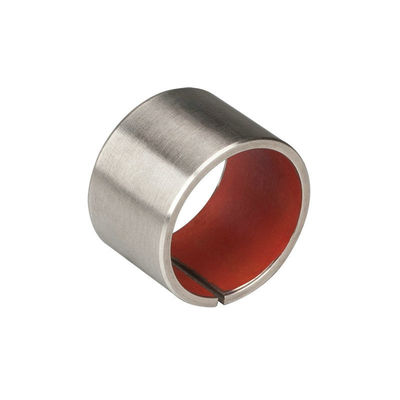

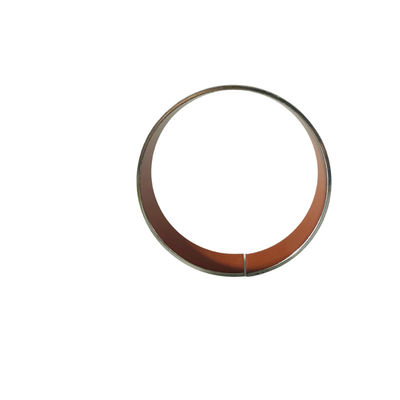

The  series of red bushings, designed with inch size splits, are specifically tailored for hydraulic applications. These bushings are manufactured from high-quality material, known for its excellent lubricity, chemical resistance, and wear resistance.

The red color of the bushings not only provides a clear visual indication but also helps to identify them easily during installation and maintenance. The inch size splits allow for precise fitment and adjustment, ensuring a secure and reliable fit within the hydraulic system.

The material ensures smooth operation and reduced friction, which is crucial in hydraulic systems. This reduces wear and tear on both the bushings and the mating surfaces, extending the overall lifespan of the hydraulic system.

The  series bushings are suitable for a wide range of hydraulic applications, including pumps, valves, and cylinders. They can handle high pressures and temperatures, making them ideal for demanding industrial environments.

In summary, the  series of red bushings with inch size splits are an excellent choice for hydraulic applications, providing superior performance, durability, and ease of installation.

Red/ Bushings Inch Size

Switch from Bearings - metal-polymer-bearings Composites

Red/

stainless steel bushings

bushings

hydraulic bushing

oilless bushes

Customized red bushing to suit specific customer requirements

Oilless composite Sliding Self Lubricating Bearing Bushing

China Competitive Price Lubricated Stainless Steel Bushings with Red , Find details about China Hydraulic Bushing.

Hydraulic cylinder bushing & Cylinder Bushes

Red  bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions.

Hydraulic bushings commonly used in automotive suspensions are expected to damp low-frequency high-displacement vibrations,

and also contribute to high-frequency acoustic isolation from relatively small displacements.

Hydraulic bushings typically have two hydraulic chambers connected by a channel.

The resonance of the fluid in the channel creates a mass-dampening effect.

A one-piece intermediate tube is used in some designs to improve the durability of the bushing and to separate the working part from

the elastomeric bushing where loads are removed from the outside of the elastomeric bushing where the channels are formed and the fluid seal

is provided for the fluid inside the bushing.

Hydraulic Bushing Feature

It is made of tin bronze as a matrix, sintered bronze spherical powder in the middle and laminated and high temperature resistant filler materials

on the surface and combined with the principle of oil cylinder and damper .

It has a high safety factor and is particularly suitable for places where continuous work cannot be interrupted for repairs and

where high temperatures cannot be refueled, especially suitable for frequent reciprocal occasions with a high inclination.

Hydraulic Bushing Material

Material: Steel Back + Porous Bronze Sinter +

Hydraulic Bushing Structure

1:＆Fiber mix
2:Cu90Sn10
3:Copper back
4:Anodized coating-Cu/Sn/Zinc

Hydraulic Bushing Technical Data

Red Bushing Application

Red bushing are widely used in automobile shock absorbers, motorcycle shock absorbers and hydraulic cylinders.

Bearing Types

sleeve, flanged, washer, strip, customzied.

Red Bushing Structure

Sliding layer

+ Fillers

Porous Bronze Sinter

Steel Backing

1:  with polymer : 0.01-0.03mm
2:Porous bronze : 0.2-0.3mm
3:Steel backing : 0.7-2.3mm
4:Tin-plating 0.005mm or copper plating 0.008mm

Red Bushing Characteristics

•  Red  bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
• Very good performance in lubricated applications
• Good performance in greased applications
• Suitable for linear, oscillating and rotating movements

Red Bushing Operating Performance

Red Bushing Properties

* Depending on operating conditions

Availability

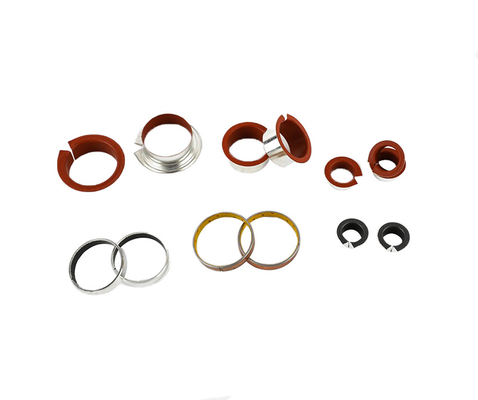

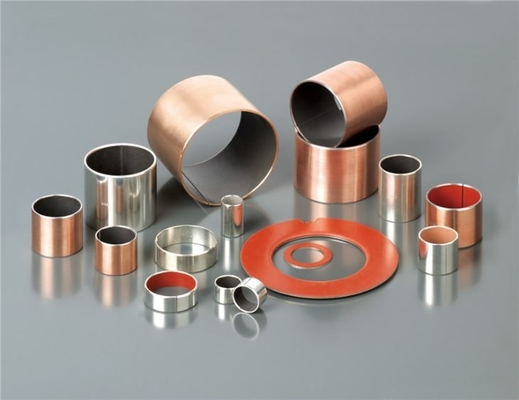

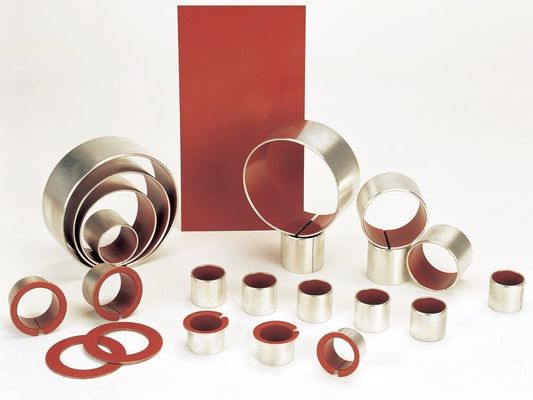

Bearing forms available in standard dimensions

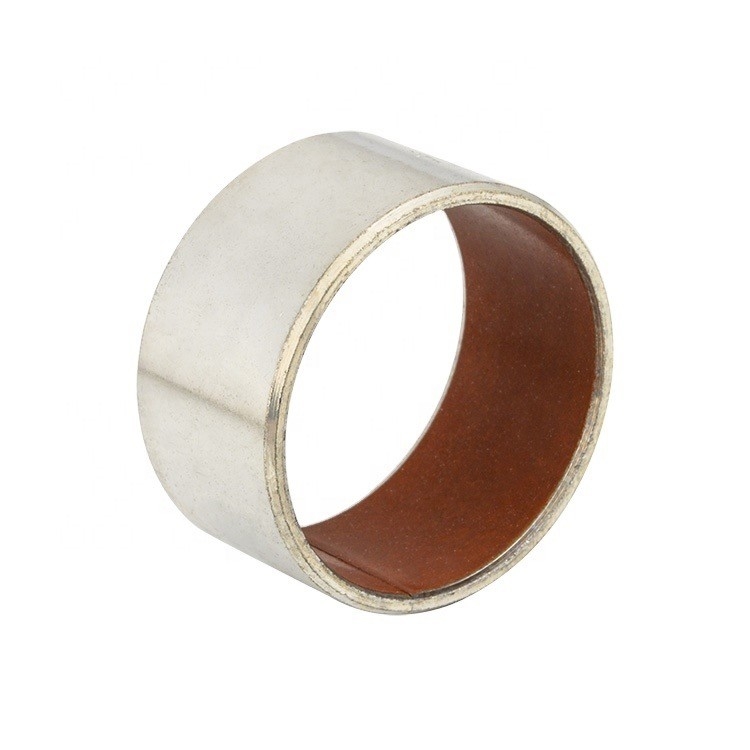

• Cylindrical bushes

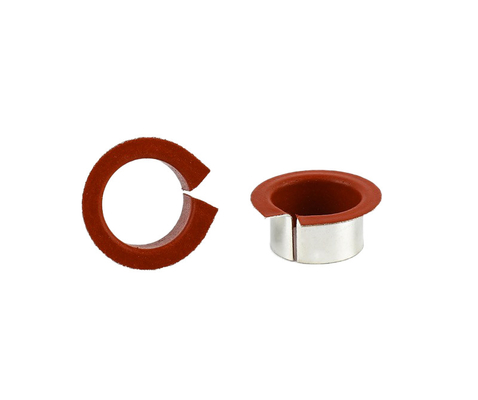

• Flanged bushes
• Sliding plates
• Thrust washers
• Customized bushing

Metric red bearings and imperial red   bushings made to order:

Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs.
