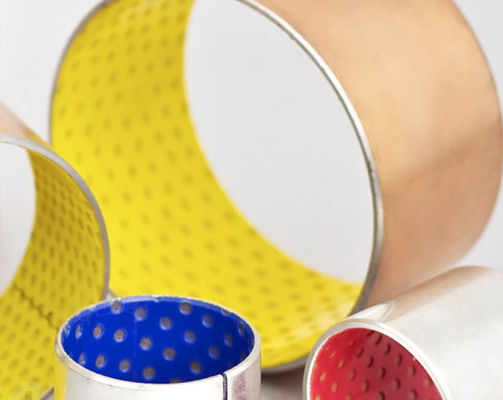

Bronze Powder Composite Split Bushing Self Lubricating
Place of Origin | CHINA |
---|---|
Brand Name | viiplus Self-lubricating composite bearing |
Certification | RHOS |
Model Number | High performance pom oil-free self-lubricating bearings |
Minimum Order Quantity | negotiate |
Price | negotiate |
Packaging Details | Export Carton Wood Pallet Wooden Case |
Delivery Time | 5-25 works day |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | L/C, T/T, Western Union |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMATERIAL | Steel + Bronze Powder + POM | FEATURE | No Oil, Self-lubricating |
---|---|---|---|
Style | DX The Same Style | Country Of Origin | China |
Type | Sleeve | Lubrication | POM Self-lubricating,oil,grease |
Finishing | Copper-plating/tin-plating | Size | Customized |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | Self Lubricating Split Bushing,Composite Split Bushing,Bronze Powder Split Bushing |
Bronze Powder Composite Split Bushing Self-Lubricating is a highly effective and innovative solution for industrial applications that require smooth and efficient operation. The bronze powder composite material, combined with the split bushing design, offers exceptional wear resistance and self-lubricating properties.
The bronze powder composite material is known for its durability and corrosion resistance, ensuring reliable performance even in harsh environments. The split bushing design allows for easy installation and removal, reducing downtime and simplifying maintenance tasks.
The self-lubricating feature of these bushings eliminates the need for regular lubrication, further enhancing the efficiency of the system. This not only reduces maintenance costs but also prevents potential lubrication-related issues such as leaks or contamination.
Whether used in pumps, motors, or other rotating machinery, Bronze Powder Composite Split Bushing Self-Lubricating offers a robust and reliable solution for ensuring smooth and efficient operation. Its unique combination of material and design ensures long-lasting performance and reduced wear, making it an excellent choice for industrial applications that demand high performance and durability.
SF-2 Bushing Size Chart Composite Split Bushing
Ds h8 |
H7 DH |
DO |
Di,a |
CD |
S3 |
dL |
|
|||||||||||||
10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | |||||||||||
10 -0.022 | 12 +0.018 | 12 | +0.065 | 10.108 10.040 |
0.130 0.040 |
0.980 0.955 |
4 | 1010 | 1015 | 1020 | ||||||||||
+0.030 | ||||||||||||||||||||
12 -0.027 | 14 +0.018 | 14 | +0.065 | 12.108 12.040 |
0.135 0.040 |
1210 | 1215 | 1220 | ||||||||||||
+0.030 | ||||||||||||||||||||
14 -0.027 | 16 +0.018 | 16 | +0.065 | 14.108 14.040 |
1415 | 1420 | ||||||||||||||
+0.030 | ||||||||||||||||||||
15 -0.027 | 17 +0.018 | 17 | +0.065 | 15.108 15.040 |
1515 | 1520 | 1525 | |||||||||||||
+0.030 | ||||||||||||||||||||
16 -0.027 | 18 +0.018 | 18 | +0.065 | 16.108 16.040 |
1615 | 1620 | 1625 | |||||||||||||
+0.030 | ||||||||||||||||||||
18 -0.027 | 20 +0.021 | 20 | +0.075 | 18.111 18.040 |
0.138 0.040 |
1815 | 1820 | 1825 | ||||||||||||
+0.035 | ||||||||||||||||||||
20 -0.033 | 23 +0.021 | 23 | +0.075 | 20.131 20.050 |
0.164 0.050 |
1.475 1.445 |
2015 | 2020 | 2025 | 2030 | ||||||||||
+0.035 | ||||||||||||||||||||
22 -0.033 | 25 +0.021 | 25 | +0.075 | 22.131 22.050 |
2215 | 2225 | ||||||||||||||
+0.035 | ||||||||||||||||||||
25 -0.033 | 28 +0.021 | 28 | +0.075 | 25.131 25.050 |
6 | 2515 | 2520 | 2525 | 2530 | |||||||||||
+0.035 | ||||||||||||||||||||
28 -0.033 | 32 +0.025 | 32 | +0.085 | 28.155 28.060 |
0.188 0.060 |
1.970 1.935 |
2820 | 2830 | ||||||||||||
+0.045 | ||||||||||||||||||||
30 -0.033 | 34 +0.025 | 34 | +0.085 | 30.155 30.060 |
3020 | 3025 | 3030 | 3040 | ||||||||||||
+0.045 | ||||||||||||||||||||
35 -0.039 | 39 +0.025 | 39 | +0.085 | 35.155 35.060 |
0.194 0.060 |
3520 | 3530 | 3535 | 3540 | |||||||||||
+0.045 | ||||||||||||||||||||
40 -0.039 | 44 +0.025 | 44 | +0.085 | 40.155 40.060 |
8 | 4020 | 4030 | 4040 | 4050 | |||||||||||
+0.045 | ||||||||||||||||||||
45 -0.039 | 50 +0.025 | 50 | +0.085 | 45.195 45.080 |
0.234 0.080 |
2.460 2.415 |
4520 | 4530 | 4540 | 4545 | 4550 | |||||||||
+0.045 | ||||||||||||||||||||
50 -0.039 | 55 +0.030 | 55 | +0.100 | 50.200 50.080 |
0.239 0.080 |
5030 | 5040 | 5050 | 5060 | |||||||||||
+0.055 | ||||||||||||||||||||
55 -0.046 | 60 +0.030 | 60 | +0.100 | 55.200 55.080 |
0.246 0.080 |
5530 | 5540 | 5550 | 5560 | |||||||||||
+0.055 | ||||||||||||||||||||
60 -0.046 | 65 +0.030 | 65 | +0.100 | 60.200 60.080 |
6030 | 6040 | 6050 | 6060 | ||||||||||||
+0.055 |
Ds h8 |
H7 DH |
DO |
Di,a |
CD |
S3 |
dL |
|
||||||||||||
40 | 50 | 60 | 80 | 90 | 95 | 100 | 110 | 120 | |||||||||||
65 -0.046 | 70 +0.030 | 70 | +0.100 | 65.200 65.080 |
0.246 0.080 |
2.460 2.415 |
8 | 6540 | 6560 | ||||||||||
+0.055 | |||||||||||||||||||
70 -0.046 | 75+0.030 | 75 | +0.100 | 70.200 70.080 |
7040 | 7050 | 7080 | ||||||||||||
+0.055 | |||||||||||||||||||
75 -0.046 | 80 +0.030 | 80 | +0.100 | 75.200 75.080 |
7540 | 7560 | 7580 | ||||||||||||
+0.055 | |||||||||||||||||||
80 -0.046 | 90 +0.035 | 90 | +0.120 | 80.265 80.100 |
0.313 0.100 |
2.450 2.385 |
9.5 | 8040 | 8060 | 8080 | |||||||||
+0.070 | |||||||||||||||||||
85 -0.054 | 95 +0.035 | 95 | +0.120 | 85.265 85.100 |
0.321 0.100 |
8540 | 8560 | 8580 | |||||||||||
+0.070 | |||||||||||||||||||
90 -0.054 | 100 +0.035 | 100 | +0.120 | 90.265 90.100 |
9040 | 9060 | 9080 | 9090 | |||||||||||
+0.070 | |||||||||||||||||||
100 -0.054 | 105 +0.035 | 105 | +0.120 | 100.265 100.100 |
10050 | 10080 | 10095 | ||||||||||||
+0.070 | |||||||||||||||||||
105 -0.054 | 110 +0.035 | 110 | +0.120 | 105.265 105.100 |
10560 | 10580 | 10595 | 105110 | |||||||||||
+0.070 | |||||||||||||||||||
110 -0.054 | 115 +0.035 | 115 | +0.120 | 110.265 110.110 |
11060 | 11080 | 11095 | 110110 | |||||||||||
+0.070 | |||||||||||||||||||
120 -0.054 | 125 +0.040 | 125 | +0.170 | 120.270 120.110 |
0.324 0.100 |
12060 | 12080 | 120110 | |||||||||||
+0.100 | |||||||||||||||||||
125 -0.063 | 130+0.040 | 130 | +0.170 | 125.270 125.110 |
12560 | 125110 | |||||||||||||
+0.100 | |||||||||||||||||||
130 -0.063 | 135 +0.040 | 135 | +0.170 | 130.270 130.110 |
13050 | 13060 | 13080 | 130100 | |||||||||||
+0.100 | |||||||||||||||||||
140 -0.063 | 145 +0.040 | 145 | +0.170 | 140.270 140.110 |
14050 | 14060 | 14080 | 140100 | |||||||||||
+0.100 | |||||||||||||||||||
150 -0.063 | 155 +0.040 | 155 | +0.170 | 150.270 150.110 |
15050 | 15060 | 15080 | 150100 | |||||||||||
+0.100 | |||||||||||||||||||
160 -0.063 | 165 +0.040 | 165 | +0.170 | 160.270 160.110 |
9.5 | 16050 | 16060 | 16080 | 160100 | ||||||||||
+0.100 | |||||||||||||||||||
170 -0.063 | 175 +0.040 | 175 | +0.170 | 170.270 170.110 |
17050 | 17080 | 170100 | ||||||||||||
+0.100 | |||||||||||||||||||
180 -0.063 | 185 +0.046 | 185 | +0.210 | 180.270 180.110 |
0.339 0.110 |
18050 | 18060 | 18080 | 180100 | ||||||||||
+0.130 | |||||||||||||||||||
190 -0.072 | 195 +0.046 | 195 | +0.210 | 190.276 190.110 |
19050 | 19060 | 19080 | 190100 | 190120 | ||||||||||
+0.130 | |||||||||||||||||||
200 -0.072 | 205 +0.046 | 205 | +0.210 | 200.276 200.110 |
20050 | 20060 | 20080 | 200100 | 200120 | ||||||||||
+0.130 | |||||||||||||||||||
220 -0.072 | 225 +0.046 | 225 | +0.210 | 220.276 220.110 |
9.5 | 22050 | 22060 | 22080 | 220100 | 220120 | |||||||||
+0.130 | |||||||||||||||||||
240 -0.072 | 245 +0.046 | 245 | +0.210 | 240.276 240.110 |
24050 | 24060 | 24080 | 240100 | 240120 | ||||||||||
+0.130 | |||||||||||||||||||
250 -0.072 | 255 +0.052 | 255 | +0.260 | 250.282 250.110 |
0.354 0.110 |
25050 | 25060 | 25080 | 250100 | 250120 | |||||||||
+0.170 | |||||||||||||||||||
260 -0.081 | 265 +0.052 | 265 | +0.260 | 260.282 260.110 |
26050 | 26060 | 26080 | 260100 | 260120 | ||||||||||
+0.170 | |||||||||||||||||||
280 -0.081 | 285 +0.052 | 285 | +0.260 | 280.282 280.110 |
28050 | 28060 | 28080 | 280100 | 280120 | ||||||||||
+0.170 | |||||||||||||||||||
300 -0.081 | 305 +0.052 | 305 | +0.260 | 300.282 300.110 |
30050 | 30060 | 30080 | 300100 | 300120 |
Copper Bearing Manufacturer | DX bush, Polymer bushings
Select high-quality Dx Bushing products in best price from viiplus. POM coated bush-based steel backing with POM inner layer, oilless bushing, DX bushing and POM lined plain dry bush.
METRIC BEARING POM BUSHES WITH OIL HOLES.pdf
View DX style composite bushing and self-lubricating bearings from bronzegleitlager.com
All sizes are in stock & ready for reliable shipment.
Cylindrical Dx Pom Composite Self-Lubricating Bearing
The POM-based sleeve bearing, also called DX bushing, boundary lubricated bearing, oil-free bearing, dry bearing, DX bearing and POM coated dry sleeve. It has a similar material structure to dowels. The difference lies in the POM coated layer.
Yellow POM composite bushing is a standard item of our company. This type of self-lubricating bearing has the same material structure with other dx bushings.
1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.
-
Environmental protection composite bushing multi-layer material without lead
-
Custom 14*12*15 Composite DX Oilless POM Steel Split Bearing Bush
-
Composite Steel Backed Bronze Self Lubricating DU Bushing Bearing with PTFE
DX SPLIT BUSH BEARING - DX TYPE
Specifications for DX Split Bush Bearing - DX Type | |
Reference | DX bush |
Brand | Viiplus |
Inside Diameter | 20mm |
Outside Diameter | 23mm |
Width | 15mm |
Type | Bearing |
Weight (KG) | 0.0001 |
DX marginally lubricated bushings Characteristics
· Good load-bearing capacity and wear resistance
· Suitable for linear, oscillating, and rotating movements
· Optimal performance at relatively high loads and low speeds
· Lead-free sockets can meet environmental protection requirements
Yellow pom composite self-lubricating bearing is widely used in machines where lead-free is unacceptable, such as textile machinery, self-acting parts, car chassis, forging machine, metallurgy and so on.
RELATED DX SELF-LUBRICATING BEARING BUSHES
Yellow Pom composite self-lubricating Bearing Technical Date
Load capacity | 70N/mm2 | |
Friction value | 0.05 to 0.25 µ | |
Temperature | -40 to +130 [ °C ] | |
Max. Pv (oil condition) | 22N/mm2 .m/s | |
Max. speed | 2.5m/s |
Metal-Polymer Plain Bearings Grease Lubricated Dx Bush
Dx bush - Oil or grease-lubricated bearings - Metric Size
- Marginally lubricated DX bushings for grease or oil lubricated applications
- Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
- Optimal performance under relatively high loads and low speeds
- Suitable for linear, oscillating, and rotating movements
- Wide range of parts available from stock
Structure & Composition
- Metal-Polymer Composite Bushing Material
- Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents
Microsection
- Sliding layer POM with or without lubricant indents for machining
- Porous Bronze Sinter
- Steel Back
OPERATING PERFORMANCE | |
Dry | Poor |
Oil lubricated | Good |
Grease lubricated | Very Good |
Water lubricated | Poor |
Process fluid lubricated | Poor |
Self-lubricating bearing dx bush Properties
GENERAL | Unit | Value | |
Maximum load, p |
Static |
N/mm2 |
140 140 |
Operating temperature |
Min |
°C |
- 40 130 |
Coefficient of linear thermal expansion | Parallel to the surface | 10-6/K | 11 |
Normal to the surface | 10-6/K | 29 |
GREASE LUBRICATED | ||
Maximum sliding speed, U | m/s | 2.5 |
Maximum pU factor | N/mm2 x m/s | 2.8 |
Coefficient of friction | 0.06 – 0.12 |
RECOMMENDATIONS | |||
Shaft surface roughness, Ra | µm | ≤ 0.4 | |
Shaft surface hardness |
Normal |
HB |
> 200 > 350 |
Availability
Bearing forms available in standard dimensions
- Standard cylindrical dx bushing
- Dx thrust washers
- Dx strips are availabe
- Customzied dx bushing
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
Dx bushing Typical applications
- Agricultural equipment
- Off-highway, truck, and automotive
- Handling and lifting equipment
- Machine tool building industry
- Hydraulics
- Engineering and general applications
