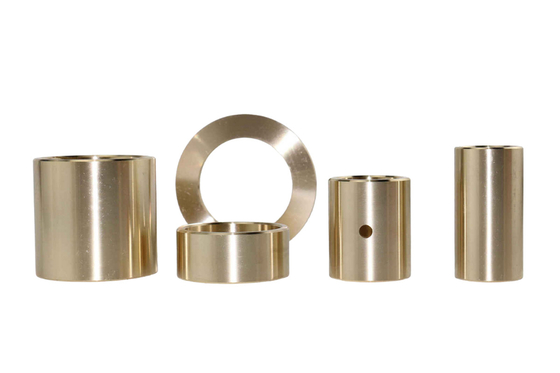

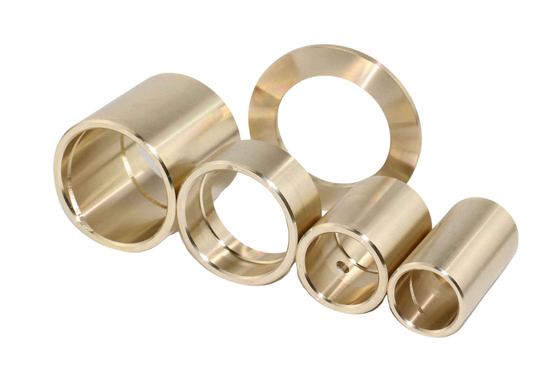

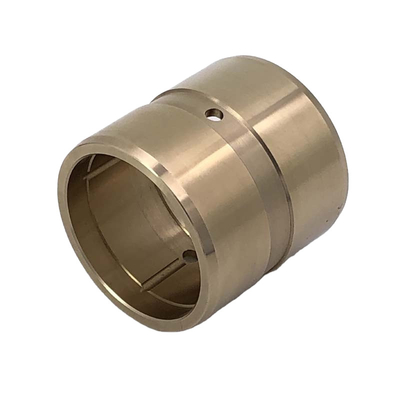

Large Cast Bronze Bushings SAE 841 with Self-Lubrication are designed for heavy-duty applications that require exceptional wear resistance and durability. These bushings are cast from high-quality bronze alloy, SAE 841, which offers excellent mechanical properties and corrosion resistance.
The self-lubrication feature of these bushings ensures smooth and efficient operation even in high-load and high-speed conditions. This eliminates the need for frequent lubrication and maintenance, reducing downtime and operational costs.
The large size of these bushings allows them to be used in a wide range of industrial applications, including machinery, equipment, and vehicles. They can withstand extreme loads and temperatures, making them ideal for use in demanding environments.
Overall, Large Cast Bronze Bushings SAE 841 with Self-Lubrication are a reliable and cost-effective solution for heavy-duty applications that require long-lasting and high-performance bushings.


Large Cast Bronze Bushings | SAE 841 Bronze Bearings

Bronze Sleeve Bushings, Reduced Costs & Downtime

Large Cast Bronze Bushings, Oilless Bushes, graphite impregnated bronze

1: tin bronze is the lowest casting shrinkage rate of non-ferrous metal alloy, can be used to produce complex shape, clear outline, air tightness requirements are not high castings. 2: tin bronze is very corrosion resistant in atmosphere, sea water, fresh water and steam, widely used in steam boilers and sea ship parts.
3: phosphor tin bronze has good mechanical properties, can be used as wear-resistant parts and elastic parts of high precision working machine.
4: lead-bearing phosphor bronze is commonly used as wear-resistant parts and sliding bearings.
5: zinc tin bronze can be used for high air tightness casting.
6: Aluminum bronze has good corrosion resistance, so it can be used to make corrosion-resistant parts, such as propellers, valves, etc.
7: aluminum bronze under impact will not produce sparks, can be used to manufacture spark free tool materials.
8: aluminum bronze has excellent thermal conductivity and stable stiffness, as a mold material in tensile, calendering stainless steel plate heat exchanger will not produce mucous membrane, scratch the workpiece and other advantages, has become a new type of mold material.
9: Aluminum bronze has high strength, good friction reduction and good corrosion resistance, can be hot-machined, weldable, can be used for high-strength, wear-resistant parts, such as bearings, bushings, gears, turbines and so on. Has become a new type of mold material.
10: Phosphor bronze is mainly used for wear-resistant parts and elastic components.
11: phosphor bronze plates and strips are used for springs, switches, lead frames, connectors, vibration plates, diaphragm boxes, fuse clips, bushings, etc., especially for springs requiring high performance and elasticity.


Executive standard: ASTM B438
Chemical composition SAE 841
The name of the material
Cu: 88.2
Sn: 10.2
Fe: 0.09
Zinc: 0.35
Pb: 0.36
Ni: 0.84
P: 0.18
Oilless Bush. Copper Alloy. Straight type. SOB. Material Base Copper alloy European Norm CuAl10Fe5Ni5 EN Casting Copper Alloy Bearings & Bushing with graphite made from china factory metric bushing,bronze bearing,custom bushings
Bronze Products made to order Bronze Bushings,Bronze Flange Bearings,Bronze Wear plates,Bronze Washers,CUSTOM & SPECIAL GROOVE PATTERNS ORDER & PRICE ONLINE http://WWW.BRONZEGLEITLAGER.COM,METRIC CYLINDRICAL BUSHES AND INCH SIZE available.

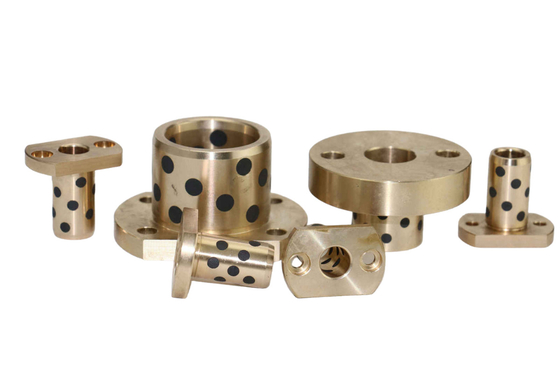

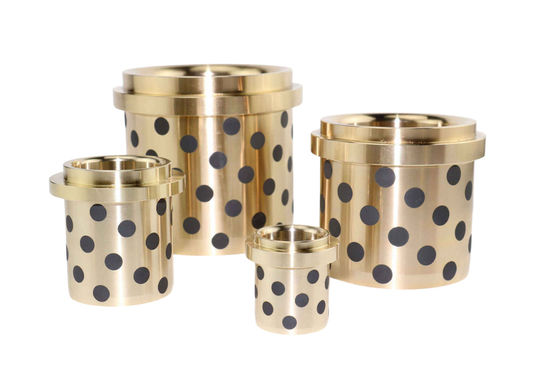

Taking high-strength copper alloy as the basic material, holes are processed in its working face in a certain proportion according to the working conditions and filled with solid lubricant. High-strength copper alloy provides a high bearing capacity while solid lubricant can form a lower friction pair.Under the condition of dry friction, we design a pre-lubrication film on the bearing surface to ensure that the solid lubricant can be transferred to the dual member in the shortest time and form an effective solid lubrication film.



Bearing Material
