Gcr15 Angular Contact Ball Bearings SAE52100 Steel Si3N4 Ceramic
| Place of Origin | CHINESE |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO9001 |
| Model Number | DEEP GROOVE BALL BEARING |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Wear Plate Parts Factory Price |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | T/T, Western Union |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Seals Type | OPEN,Z,ZZ,RS,2RS | Structure | Angular Contact |
|---|---|---|---|
| Type | Ball | Application | Manufacturing Plant, Machinery Repair ShopsManufacturing Plant, Machinery Repair Shops, Farms,etc |
| Service | OEM ,Customized Services, | Material | Bearing Steel\Gcr15 |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | Si3N4 Ceramic Angular Contact Ball Bearings,Gcr15 Angular Contact Ball Bearings,SAE52100 Steel Angular Contact Bearing |
||
Product Description

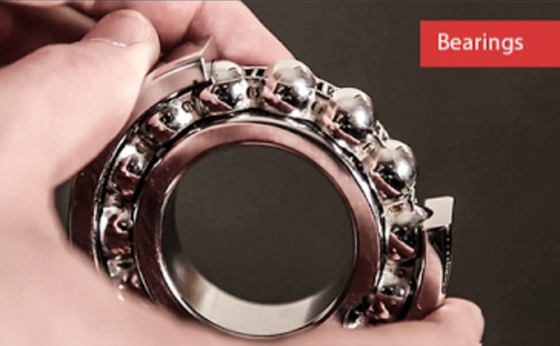

Angular Contact Ball Bearings
Gcr15 angular contact ball bearings are precision-manufactured components designed to handle high loads and provide smooth, efficient rotation. These bearings feature a unique angular contact design that allows them to distribute loads evenly and minimize friction, resulting in longer service life and reduced maintenance requirements.
The SAE52100 steel used in the manufacturing of these bearings is known for its high strength, toughness, and wear resistance. This material is specifically chosen for its ability to withstand extreme loads and harsh operating conditions, ensuring reliable performance even in the most challenging applications.
Furthermore, the bearings are equipped with Si3N4 ceramic balls, which offer superior hardness, stiffness, and corrosion resistance compared to traditional steel balls. Ceramic balls also have lower friction coefficients, resulting in reduced heat generation and energy consumption. This combination of SAE52100 steel and Si3N4 ceramic balls creates a bearing that is not only durable but also efficient in terms of energy usage.
The angular contact design of these bearings allows them to support both radial and axial loads, making them suitable for a wide range of applications. Whether it's in machine tools, motors, pumps, or other industrial equipment, Gcr15 angular contact ball bearings with SAE52100 steel and Si3N4 ceramic balls are a reliable and efficient choice for ensuring smooth and reliable operation.
Your specialist for Angular Contact Ball Bearings and bushing technology.
Centripetal thrust bearings are mainly used for the installation and fixing of transmission shafts with both radial and axial loads.
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis .
| CODE | ID(mm) | OD(mm) | W(mm) |
| 7000AC | 10 | 26 | 8 |
| 7001AC | 12 | 28 | 8 |
| 7002AC | 15 | 32 | 9 |
| 7003AC | 17 | 35 | 10 |
| 7004AC | 20 | 42 | 12 |
| 7005AC | 25 | 47 | 12 |
| 7006AC | 30 | 55 | 13 |
| 7007AC | 35 | 62 | 14 |
| 7008AC | 40 | 68 | 15 |
| 7009AC | 45 | 75 | 16 |
7004 AC Y U GL P4
7005 AC Y U GL P4
7006 AC Y U GL P4
7007 AC Y U GL P4
71903 AC Y U GM P4
71904 AC Y U GM P4
71905 AC Y U GM P4
71907 AC Y U GM P4
AC: angular contact 25°
Y: polyamide cage (but can be good also phenolic resin)
U: universal type
GL: light preload
GM: medium preload
Applications
Here are examples of applications in which angular contact ball bearings might be used:
Industrial pumps
Industrial gearboxes
Renewable energy
Compressors
Industrial electric motors & generators
Trucks, trailers and buses
Metals
Angular contact ball bearings
viiplus can supply both standard and precision angular contact ball bearing.
Series Available
Single Row Angular Contact Ball Bearing
Double Row Angular Contact Ball Bearing
Four Point Contact Ball Bearing
Cage Available:
Pressed steel, Pressed brass, Polyamide, Hard fabrics, Machined solid brass
Contact Angle available
C = 15˚ ; AC = 25˚ ; B= 40˚ contact angle
Balls Available
SAE52100 Steel and Si3N4 ceramic ( suffix HQ1 )
Precision available
ABEC-5, P5 = ISO Class 5 Tolerance
ABEC-7, P4 = ISO Class 4 Tolerance
ABEC-9, P2 = ISO Class 3 Tolerance
