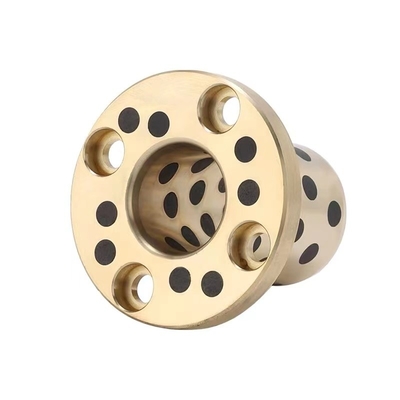

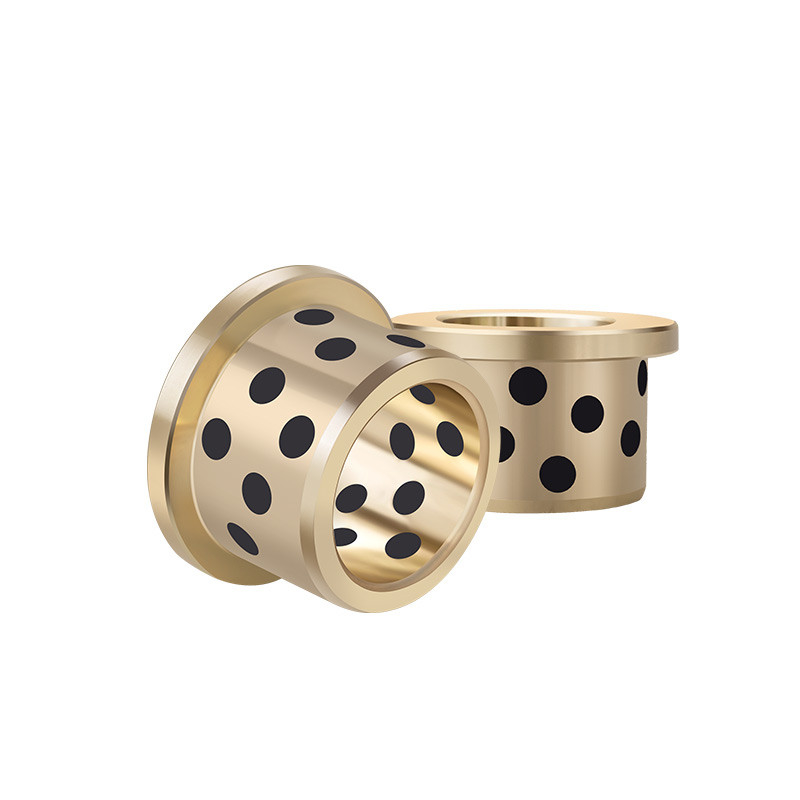

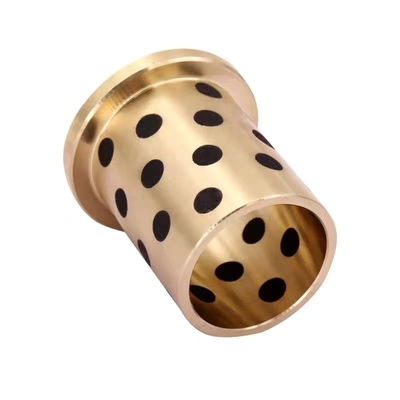

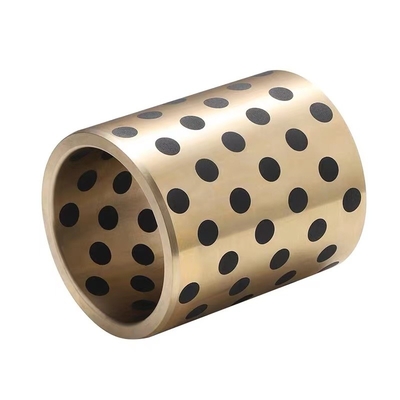

Oilless Bearings ZCuAl10fe3 Aluminum Bronze Bushing Casting

Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Aluminum Bronze Bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability Aluminum Bronze Bushing Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum Bronze Bushing ZCuAl10Fe3 Type Sleeve Bushing
Item Oilless Bearings Size Metric Or Custom Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

ZCuAl10fe3 Aluminum Bronze Bushing

,

Oilless Aluminum Bronze Bushing

,

Casting Aluminum Bronze Bushing

Leave a Message
Product Description

ZCuAl10fe3 Aluminum Bronze Bushing Casting

Aluminum Bronze Bushing, Offering Superior Performance In Hundreds Of Applications Replacing Carbon Bearings. Reduced costs & downtime. Services: Custom Design, Engineering Support, Short Lead Times.

Casting aluminum bronze 10-3 standard alloy grade is: ZCuAl10Fe3, which has high mechanical properties, wear resistance and corrosion resistance, it is worth mentioning that it can be welded, but not easy to braze, in order to ensure its weldability, lead content shall not exceed 0.2%.



Contact Us
Need Assistance? Call Or Email Us
Engineering Support Available
Request Literature
Catalogs and Brochures Available
Fill out our form to get more info



Self-lubricating guide solid lubrication wear-resisting plate precision mold standard parts

Oilless Bronze Bearings

The guide part is an indispensable and important component in the die. Its function is to determine and maintain the relative position between the upper and lower die or other parts of relative motion is accurate, and to maintain the motion steering accuracy. The self-lubricating guide refers to the guide parts with good self-lubrication and friction after special process treatment, which can also be called oil-bearing guide parts. It is mainly used in large and medium size, fine and long life molds with high guidance accuracy.



Features of self-lubricating guide:



The self-lubricating guide parts produced by Jiaxing Gurun are filled with special solid lubricants such as graphite, MoS2 and PTFE on the metal matrix working surface to make it have a certain bearing capacity and good self-lubricating and wear resistance. The main characteristics are as follows:



In the case of no oil, can maintain self-lubrication, so it can simplify the mold structure, reduce oil consumption, avoid oil pollution damage, purify the working environment.



Simple structure, convenient installation, can reduce the cost, reduce tooling manufacturing and maintenance costs.



Because it has good self-lubrication and wear resistance, even in bad working conditions, can also completely avoid the occurrence of "overburning" or "bite card" phenomenon



Tensile strength: 540MPa

Yield strength: 200MPa

Elongation rate: 15%

Brinell hardness: HB1080 (experimental force in newtons)

Main Features: High mechanical properties, good wear resistance and corrosion resistance, can be welded, not easy to braze.

Application examples: Heavy castings requiring high strength, wear resistance and corrosion resistance, such as bushings, nuts, turbines, and pipe fittings working below 250℃.





Manganese bronze Bushings is a kind of tin-free bronze with manganese as the main alloying element. In addition to manganese, zinc, nickel, aluminum and other alloy elements are often added. Commonly used grades are QMN1.5. Has good mechanical properties, can be cold or hot plastic processing, heat and corrosion resistance. Melting ingot system, pressure processing into timber. Suitable for manufacturing high temperature working parts, such as steam boiler fittings and joints, bearings, steam valves, spark plugs, electronic instrument parts, etc.

CAST BRONZE BEARINGS



1) Casting (castability)

Refers to the properties of metal materials that can be cast to obtain qualified castings. Foundability mainly includes fluidity, shrinkage and segregation. Fluidity is the ability of a liquid metal to fill a mold. Shrinkage refers to the degree of volume shrinkage when the casting solidifies; Segregation refers to the inhomogeneity of the internal chemical composition and structure of the metal due to the difference in the sequence of crystallization during the cooling and solidification of the metal.



(2) malleability

Refers to the performance of metal materials that can change shape without cracking during pressure working. It includes in the liquid or cold state can be cast and forged, rolling, stretching, extrusion and other processing, the quality of the malleability is mainly related to the chemical composition of metal materials.



(3) Machinability (Machinability, Machinability)

Refers to the degree of difficulty that a metal material becomes a qualified workpiece after being machined by a tool. Cutting machinability is often used to measure the surface roughness of the workpiece after processing, allowable cutting speed and the degree of tool wear, it is related to the chemical composition of metal materials, mechanical properties, thermal conductivity and work hardening degree and many other factors, usually with hardness and toughness for cutting machinability is roughly broken. Generally speaking, the higher the hardness of metal materials, the more difficult to cut; Although the hardness is not high, but toughness, cutting is very difficult.



(4) weldability (weldability)

Refers to the adaptability of metal materials to welding processing. It mainly refers to the difficulty of obtaining high-quality welded joints under certain welding process conditions. It includes two aspects: one is the bonding performance, that is, under certain welding process conditions, a certain metal forming welding defect sensitivity; The second is the use of performance, that is, under certain welding process conditions. Applicability of certain metal welded joints to service requirements.
