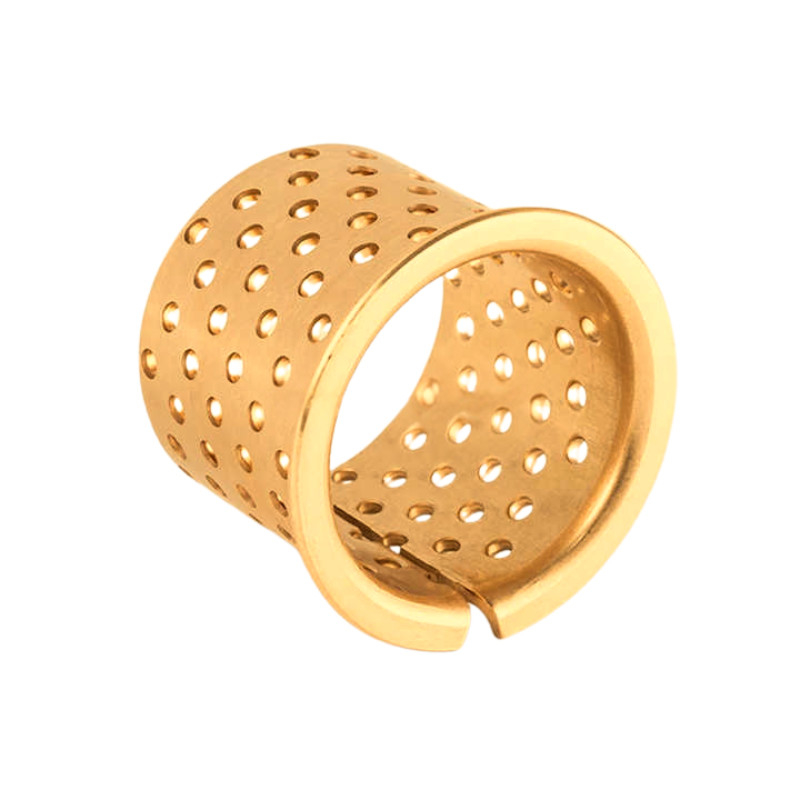

Self Lubricating CuSn8 Bronze Sleeve Bearings With Holes 60x88x65
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Bronze Sleeve Bushing With Lubricating Holes |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Bronze Flange Bushing With Holes |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CuSn8 Bronze | Type | Split Bushing |
|---|---|---|---|
| Split Type | Custom Bronze Bushings | Size | Metric Size, Or Customize Size |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
| High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
| Highlight | 60x88x65 Bronze Sleeve Bearings,60x88x65 Bronze Bushing,CuSn8 Bronze Sleeve Bearings |
||
Product Description
VIIPLUS CuSn8 Self-Lubricating Bronze Sleeve Bearings: 60x88x65mm Precision for Industrial Efficiency
In the demanding world of industrial machinery, where friction and wear can lead to costly downtime, VIIPLUS CuSn8 Self-Lubricating Bronze Sleeve Bearings (60x88x65mm) emerge as a game-changing solution. Engineered for seamless operation in high-speed and heavy-load environments, these bearings combine the durability of CuSn8 bronze alloy with innovative self-lubrication technology to maximize performance and minimize maintenance.
**Why Choose VIIPLUS CuSn8 Self-Lubricating Bearings?**
-
Premium CuSn8 Bronze Alloy
- Material Composition: 8% Tin (Sn), 0.01–0.4% Phosphorus (P), and copper balance for exceptional wear resistance, corrosion resistance, and mechanical strength.
- Built for Harsh Conditions: Ideal for dusty, humid, or chemically aggressive environments.
-
Self-Lubricating Design
- Precision Holes: Strategically placed lubrication pockets ensure controlled grease release, maintaining a consistent lubrication layer between moving surfaces.
- Maintenance-Free Operation: Eliminates the need for frequent manual greasing, reducing downtime and labor costs.
-
Precision Dimensions
- Metric Sizing: 60mm inner diameter (ID), 88mm outer diameter (OD), and 65mm length for seamless integration into global machinery standards.
Technical Specifications
- Material: CuSn8 (EN CW452K / UNS C52100)
- Load Capacity: Up to 60 N/mm²
- Temperature Range: -50°C to +200°C
- Hardness: HB 90–120
- Compliance: DIN, ISO, and ASTM standards
Applications Built for Performance
VIIPLUS’s 60x88x65mm bearings excel across industries requiring reliability under stress:
- Pumps & Compressors: Reduce friction in high-pressure fluid systems.
- Electric Motors: Ensure smooth rotation in high-speed applications.
- Heavy Machinery: Support heavy loads in construction and mining equipment.
- Automotive Systems: Enhance durability in transmissions and drivetrains.
Product Spotlight: FB092F Series Bronze Bushing
The FB092F 60x88x65mm model exemplifies VIIPLUS’s engineering excellence:
- Self-Lubricating Design: Integrated holes for optimal grease distribution.
- Versatility: Suitable for oscillating, rotating, or linear motion systems.
- Interchangeability: Compatible with global bearing standards for easy retrofitting.
Advantages Over Conventional Bearings
- Extended Service Life: CuSn8 alloy resists abrasive wear, reducing replacement frequency.
- Cost Savings: Thin-walled, wrapped design lowers material and maintenance costs.
- Easy Installation: Precision dimensions ensure plug-and-play compatibility.
- Global Availability: Factory-direct pricing with fast shipping worldwide.
**Why Partner With VIIPLUS?**
- Decades of Expertise: Leaders in bronze alloy metallurgy and bearing innovation.
- Custom Solutions: Tailored sizes, lubrication patterns, and material grades (e.g., CuSn6.5P).
- Quality Assurance: Rigorous testing for load capacity, temperature resilience, and corrosion resistance.
- Competitive Edge: As a trusted supplier from China, we offer OEM-friendly customization and bulk order discounts.
Upgrade to VIIPLUS CuSn8 Bearings for Unmatched Reliability
From high-speed motors to heavy-load industrial systems, VIIPLUS delivers bearings engineered to outperform. Reduce operational costs, boost efficiency, and eliminate downtime with components designed for longevity.
Contact VIIPLUS Today for quotes, technical specifications, or to request a sample. Let’s elevate your machinery’s performance together!
Meta Description: Discover VIIPLUS’s 60x88x65mm CuSn8 Self-Lubricating Bronze Bearings—engineered for high-load, low-maintenance industrial applications. Reduce wear and downtime today.
Keywords: Self-lubricating bronze bearings, CuSn8 sleeve bearings, 60x88x65mm bronze bushing, FB092F series, industrial bearing solutions, VIIPLUS China supplier.

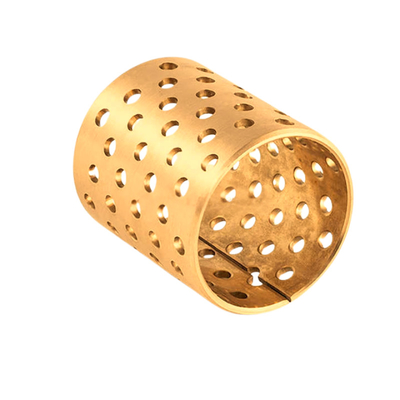

Factory Direct Bronze Copper Sliding Bushing With Holes
Fb series bronze rolling bearing is made of high-density bronze alloy plate as the matrix, according to different lubrication conditions, we provide two forms of oil hole and oil hole, oil hole for grease lubrication, oil hole for fluid lubrication. Afterward, we further developed G series products on this basis, which is a novel structure embedded with special solid lubricant on the surface of the original bearing, so that it can play better lubrication and wear resistance.
Product Application
Engineering machinery, construction machinery, agricultural and forestry machinery, automobile chassis and parts, conveyors, lifts, gearboxes, hoists, leveling machines
