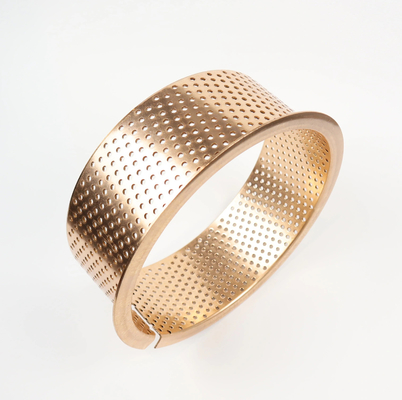

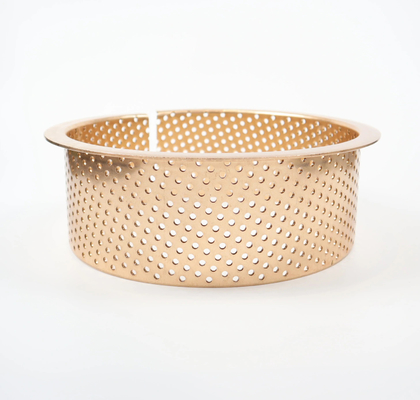

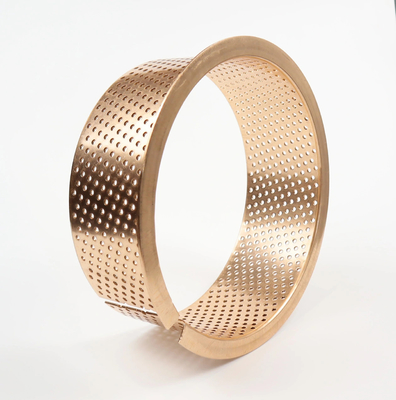

Split Type Metric CuSn8 Bronze Flange Bushing With Holes

Split Type CuSn8 Bronze Flange Bushings: VIIPLUS’s Precision Solution for Industrial Reliability​

In high-stakes industrial environments, where machinery uptime and component durability are paramount, ​VIIPLUS Split Type Metric CuSn8 Bronze Flange Bushings with Holes​ deliver unmatched performance. Engineered for heavy loads, harsh conditions, and seamless integration, these bushings combine the strength of ​CuSn8 bronze alloy​ with innovative design to keep your operations running smoothly.

​**Why Choose VIIPLUS Split Type CuSn8 Bronze Flange Bushings?**​

1. ​Robust CuSn8 Bronze Alloy​

   • ​Material Composition: 7.5–8.5% tin (Sn), phosphorus (P: 0.01–0.4%), and copper (Cu) balance, ensuring exceptional ​wear resistance, ​corrosion resistance, and ​load-bearing capacity​ (up to 120 N/mm²).
   • ​Self-Lubricating Design: Integrated holes enable grease or oil application, reducing friction and extending maintenance intervals.

2. ​Split-Type Metric Design​

   • ​Easy Installation: Split structure allows quick assembly around existing shafts without disassembling machinery.
   • ​Flange Stability: The flange secures axial positioning, preventing misalignment in high-vibration applications.
   • ​Metric Sizing: Compatible with global standards (e.g., DIN, ISO), ensuring seamless integration into industrial systems.

3. ​Cost-Effective Efficiency​

   • ​Thin-Walled Construction: Replaces bulky cast copper sleeves, saving space and material costs.
   • ​Factory Direct Pricing: Eliminate middlemen with VIIPLUS’s direct-to-client model, offering premium quality at competitive rates.

​Key Features & Benefits​

• ​Precision Engineering: Cold-formed CuSn8 bronze ensures dimensional accuracy and fatigue resistance.
• ​Customizable Options: Available in flanged, sleeved, or washer configurations, with holes for lubrication (e.g., ​HB125-HB150 oil hole designs).
• ​Wide Applications: Ideal for motors, pumps, conveyors, construction equipment, and hydraulic systems.
• ​Extended Service Life: Superior wear resistance and grease retention reduce downtime and replacement costs.

​Applications Across Industries​

VIIPLUS’s flange bushings excel in demanding settings:

• ​Heavy Machinery: Excavators, cranes, and mining equipment.
• ​Automotive Systems: Transmissions, steering columns, and suspension assemblies.
• ​Industrial Pumps & Compressors: High-load, low-speed rotational systems.
• ​Renewable Energy: Wind turbine pitch controls and hydraulic pitch systems.

​Product Spotlight: S-WB802 & FB092H Series​

VIIPLUS’s flagship models, such as the ​S-WB802​ and ​FB092H, showcase engineering excellence:

• ​Material: Homogeneous CuSn8 bronze (RoHS-compliant).
• ​Design:
  • ​Flange Dimensions: Example sizes include ​ID50×OD55×Flange65×L50mm​ and ​ID40×OD44×Flange55×L50mm.
  • ​Oil Hole Patterns: Optimized for grease distribution (e.g., ​HB125-HB150).
• ​Standards: Compliant with DIN 1494, ISO 3547, and global industrial specifications.

​Advantages Over Traditional Bushings​

1. ​Space-Saving Design: Thin-walled structure maximizes efficiency without sacrificing strength.
2. ​Low Maintenance: Self-lubricating holes minimize manual greasing.
3. ​Rapid Replacement: Split-type design simplifies repairs, reducing operational downtime.
4. ​Global Compliance: Meets RoHS, ISO, and hazardous substance regulations.

​**Why Partner With VIIPLUS?**​

• ​Decades of Expertise: Specialists in bronze alloy metallurgy and precision manufacturing.
• ​Custom Solutions: Tailored sizes, lubrication patterns, and surface treatments.
• ​Quality Assurance: Rigorous testing for load capacity, wear resistance, and durability.
• ​Fast Global Shipping: Stocked inventory and express delivery options.

Upgrade to VIIPLUS Split Type CuSn8 Flange Bushings​
From heavy machinery to precision hydraulic systems, VIIPLUS provides bushings engineered to endure. ​Boost efficiency, cut costs, and ensure reliability​ with components trusted by industries worldwide.

Contact VIIPLUS Today​ for quotes, custom specifications, or technical support. Let’s power your machinery’s success!

Meta Description: Discover VIIPLUS’s Split Type CuSn8 Bronze Flange Bushings—self-lubricating, metric-sized, and DIN/ISO compliant. Ideal for heavy machinery, pumps, and industrial systems.
Keywords: Split type bronze flange bushing, CuSn8 self-lubricating bushings, metric bronze bushings, VIIPLUS S-WB802, factory direct bushings, flange bearings with oil holes.

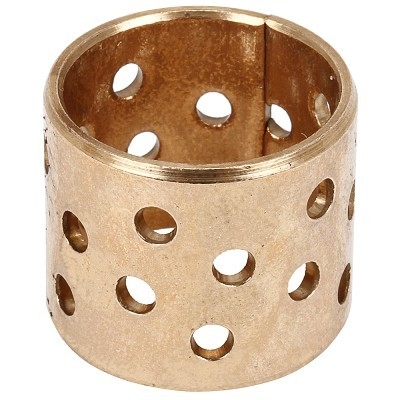

Oil pot FB092 copper bushing/Slide bushing FB092 bronze bearing/oil hole brass bush

Product Introduction WB802 CuSn8 bronze bush bearing, BK092 bronze bearing with hole, FB092 rolled bronze bushing bearing supplier

Fb series bronze rolling bearing is made of high-density bronze alloy plate as the matrix, according to different lubrication conditions, we provide two forms of oil hole and oil hole, oil hole for grease lubrication, oil hole for fluid lubrication. Afterward, we further developed G series products on this basis, which is a novel structure embedded with special solid lubricant on the surface of the original bearing, so that it can play better lubrication and wear resistance.
Product Application
Engineering machinery, construction machinery, agricultural and forestry machinery, automobile chassis and parts, conveyors, lifts, gearboxes, hoists, leveling machines
