| Brand Name: | VIIPLUS |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| MOQ: | NEGOTIABLE |
| Price: | Competitively Priced vs DU DX, Provides Lubricating Bush |
| Payment Terms: | TT IN ADVANCE WESTERN UNION |
| Supply Ability: | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |

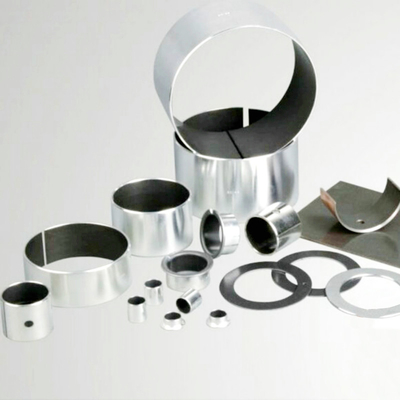

Steel-backed self-lubricating bronze bushings with material offer a unique combination of strength, durability, and lubrication properties that are ideal for a wide range of industrial applications.
The steel backing provides excellent structural integrity and rigidity, ensuring the bushings can handle heavy loads and demanding operating conditions. The bronze material, on the other hand, adds corrosion resistance and wear resistance, further enhancing the bushings' durability.
The key feature of these bushings is their (Polytetrafluoroethylene) lubrication layer. is a synthetic fluoropolymer known for its low-friction properties and exceptional chemical resistance. This lubrication layer significantly reduces friction and wear during operation, minimizing the need for external lubrication and maintenance.
The self-lubricating nature of these bushings means they can operate smoothly and efficiently for extended periods, even in harsh environments. This feature makes them particularly suitable for applications where regular lubrication is difficult or impractical.
Our company manufactures steel-backed self-lubricating bronze bushings with material using the latest manufacturing techniques and strict quality control procedures. We ensure that each bushing meets the highest standards of performance and reliability, ensuring a long service life and optimal performance in your industrial applications.
Wh you're upgrading existing equipment or designing new machinery, our steel-backed self-lubricating bronze bushings with material can provide a robust and cost-effective solution. Contact us today to learn more about our products and how we can help you achieve superior performance in your industrial operations.
Composite plain bearings are mainly used in bearing assemblies where heavy loads have to be carried and where rotational or oscillatory movements are relatively slow.
Thanks to their good sliding properties and compact design, these plain bearings are especially suitable for bearing assemblies where.

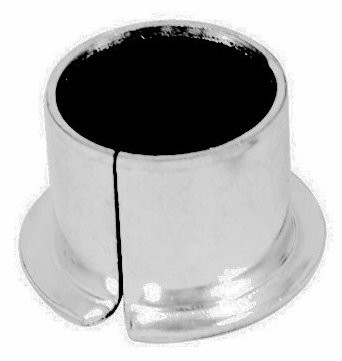

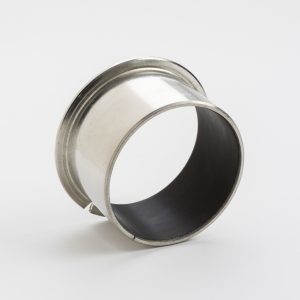

Metric flanged bushings, made of triple-layer composite material
Comparing with normal CSB-50, the thicker layer of this material is machinable after assembling to achieve a higher tolerance grade.
At the same time, the thicker layer provides flexible torque range and a large range of clearance requirements for variaty of applications.
The material is with good wear resistance, low friction coefficient,weather resistance and high temperature resistance.
It is suitable for the applications where the stable torque requirement must be satisfied by calibration after assembling of the bearings.
1. /Fibre mixture thickness 0.02~0.06mm, provides an excellent initial transferred film, which effectively coats the mating surfaces of the bearing assembly to establish the self-lubricating feature.
| Max. load | Static | 250N/mm² | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Operation Temperature range | -195℃～+280℃ | |||||
The material is suitable for the applications of door hinge, hood hinge, trunk hinge, damper, seat recliner and so on.
