| Brand Name: | VIIPLUS |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| MOQ: | NEGOTIABLE |
| Price: | Competitively Priced vs , Provides Lubricating Bush |
| Payment Terms: | TT IN ADVANCE WESTERN UNION |
| Supply Ability: | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |

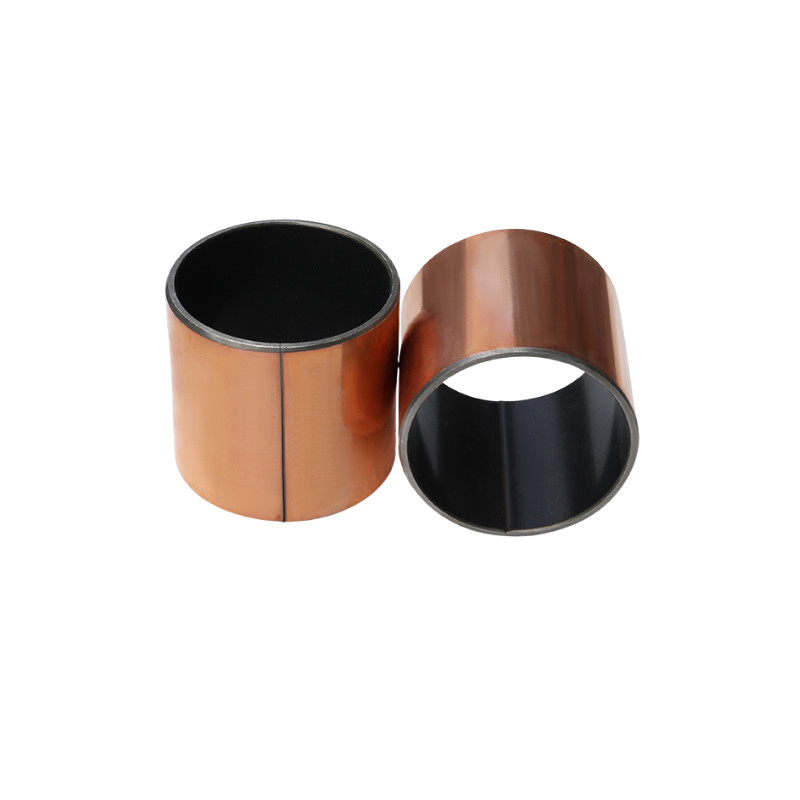

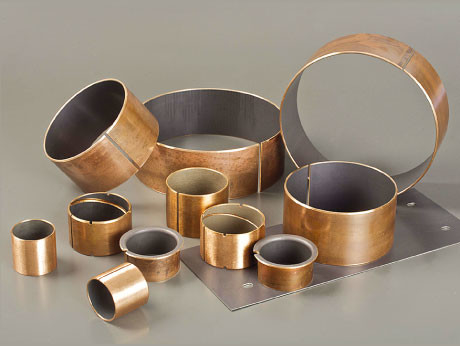

The cylindrical metal polymer sliding bearing with steel backing offers a robust and durable solution for a wide range of industrial applications. This type of bearing combines the strength and rigidity of steel with the excellent wear resistance and low friction properties of (Polytetrafluoroethylene) polymer.
The steel backing provides a solid foundation for the bearing, ensuring stability and load-bearing capacity. The polymer layer, on the other hand, creates a smooth and lubricious surface that reduces friction and wear during operation.
The cylindrical shape of the bearing allows for easy integration into rotary and linear motion applications. Its sliding design ensures smooth and efficient motion, making it suitable for high-speed and high-load applications.
The metal polymer sliding bearing with steel backing is also self-lubricating, reducing the need for regular lubrication and maintenance. This feature further enhances its reliability and longevity, making it a cost-effective choice for industrial applications.
Our company is a leading manufacturer of cylindrical metal polymer sliding bearings with steel backing. We use high-quality materials and advanced manufacturing techniques to ensure the bearings meet the highest standards of performance and reliability.
If you're looking for a robust and durable bearing solution for your industrial applications, our cylindrical metal polymer sliding bearing with steel backing is an excellent choice. Contact us today to learn more about our products and how we can help you achieve optimal performance in your machinery and equipment.
This material can be machined after fitting to improve the required higher tolerances of specific applications.
The layer remains intact after machining.
CSB-50MP is also a high temperature resistant bushing that can operate up to 280c ℃.
The material is designed specially with thicker layer for the purpose of being machinable after assembling to improve higher tolerance requirement as well as to absorb the operating noise.
It is suitable for the applications with high requirement of wear resistance, dry friction and maintenance free.
1. / Fluoropolymer thickness 0.05~0.10mm, provides self-lubricating performance and it is supplied with machinable solution to meet tight tolerance requirement.
| Max. load | Static | 250N/mm² | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Operation Temperature range | -195℃～+280℃ | |||||
The material is recommended to be used in the tensioners, idler wheels, magnetic valves and those applications such as the shafts of air conditioner compressors where high tolerance is required after machining of the assembly.
