Cast Bronze Straight Type Oilless Bushing 500SP1-SL1

  • Cast Bronze Straight Type Oilless Bushing 500SP1-SL1
  • Cast Bronze Straight Type Oilless Bushing 500SP1-SL1
  • Cast Bronze Straight Type Oilless Bushing 500SP1-SL1
  • Cast Bronze Straight Type Oilless Bushing 500SP1-SL1
Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number Oilless Bush
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details Export standard packing
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Physical Performance And Good Capability For Casting Material Bronze ASTM B505 C86300 Bushing
Types Straight Type Bushing Size 08*12*08mm
Lubrication Graphite Embedded Brass Bushing Processing Method Cast Bronze Bushing
Samples Avaliable Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Oilless Bearing Manufacturer Https://www.bronzelube.com/
Manufacturer Bucha De Bronze Grafitado High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery
Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

Cast Bronze Oilless Bushes

,

500SP1-SL1 Oilless Bushes

,

Straight Type Oilless Bushes
Leave a Message
Product Description

500SP1-SL1, Oilless Bushing (SPB) (SPB-081208) Straight Type

Wear Plate General Purpose Plate #500SP (SWP) (SWP-75100B)

Oiles L Shape Wear Plate -SOL/SLP/JSL

500SP1-SL1, Bushing (SPB) (SPB-081208) ,The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs.

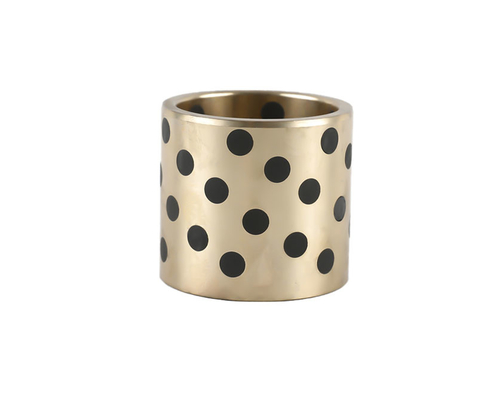

Cast Bronze Straight Type Oilless Bushing 500SP1-SL1 is a precision-manufactured component designed to provide exceptional wear resistance and self-lubricating properties in various industrial applications. Made from cast bronze, this bushing offers high durability and mechanical strength, ensuring reliable performance even under heavy loads and high-friction conditions.

The straight type design of the bushing allows for a straightforward and secure installation process, ensuring a stable and robust fit within the system. The oilless feature eliminates the need for regular lubrication, significantly reducing maintenance requirements and operational costs.

The 500SP1-SL1 model is specifically tailored to meet the demands of specific industrial applications. Its dimensions and tolerances are carefully controlled to ensure a perfect fit and optimal performance in a range of equipment and machinery. Whether used in pumps, motors, conveyors, or other rotating or reciprocating motion applications, this bushing provides a smooth and efficient operating surface.

Overall, the Cast Bronze Straight Type Oilless Bushing 500SP1-SL1 offers a reliable and cost-effective solution for industrial applications that require high wear resistance and self-lubricating properties. Its precision manufacturing and durable material ensure long-lasting performance and reduced downtime, making it an ideal choice for maintaining smooth and efficient operation.


Oilless Bushing  Straight Type High Tensile Brass Based
Oilless Bushing Standard/Heat Resistant/Foreign Object Resistance

Configured Specifications oilless bushing drawing #500SP1-SL1, Bushing (SPB) (SPB-081208) Model (OIL...



dimensions, tolerances, and material specs for the bushing and solid lubricant.

Graphite embedded brass bushing



Type Straight Type Metal Type High tensile brass based
Operating Environment Standard / Heat Resistant / Foreign object Resistance Inner Dia. d(Ø) 8
Outer Dia. D(Ø) 12 L(mm) 8
Maximum Allowable PV Value Range(N/mm2•m/s) 1.1~2.0 Maximum Allowable PV Value(N/mm2•m/s) 1.65
Maximum Allowable Surface Pressure P(N/mm2) 29 Maximum Allowable Velocity V(m/s) 0.5
Length Type Single Fitting axis e7

self-lubricating bush material

Standard No W L Bolt Location Bolt Sketch
a b c d Type Q'ty
SOL -20*100 20 100 60 - - - M8 2 A
SOL -20*150 150 55 55 - - 3
SOL -20*200 200 55 50 55 - 4
SOL -30*100 30 100 60 - - - M10 2 B
SOL -30*150 150 55 55 - - 3
SOL -30*200 200 55 50 55 - 4
SOL -30*250 250 70 70 70 - 4
SOL -45*200 45 200 55 50 55 - 4 C
SOL -45*250 250 70 70 70 - 4
SOL -45*300 300 65 65 65 65 5
SOL -45*350 350 80 75 75 80

5



Features

●Self lubricating bearings that can be used oil free.
●Demonstrate high performance at high load/low speed motion.

Specification

●Q'ty Per Bag(piece): 1
●Working Temperature Range: -40 to 300°C

Materials

●High-Strength Brass Castings (solid lubricant embedded)

Basic Information

Type Straight Type Metal Type High tensile brass based Operating Environment Standard / Heat Resistant / Foreign object Resistance
Maximum Allowable PV Value Range(N/mm2•m/s) 1.1~2.0 Maximum Allowable PV Value(N/mm2•m/s) 1.65 Maximum Allowable Surface Pressure P(N/mm2) 29
Maximum Allowable Velocity V(m/s) 0.5 Length Type Single Fitting axis e7
Housing Fitting H7 Lubrication Non-Lubricated

Please check the type/dimensions/specifications of the part SPB-081208 in the #500SP1-SL1, Bushing (SPB) series.



CuZn25Al5Mn4Fe3-C. is a high tensile brass bearings; It is an extremely hard material, especially suited for machine elements submitted to the die & mould.

  • high tensile brass bushing

  • It is an extremely hard material, especially suited for machine elements submitted to the highest demands.

  • The closest international standard is the ASTM B505 C86300

  • VIIPLUS has a large stock of rectangular bars and round solid and hollow bars with immediate availability.

  • An overview of the High Tensile Brass Bronze Cuzn25al5mn4fe3 ASTM B505 C86300 Bushings
    A variety of alloys consisting of more than two elements are called special brasses. Such as aluminum, lead, tin, manganese, nickel, iron, silicon composed of copper alloy, high force brass is one of them. High strength brass has strong wear resistance, high strength brass, hardness, strong chemical corrosion resistance. There are machining mechanical properties are also very superior. High strength brass is often used to manufacture sheet, bar, bar, pipe, casting parts, etc.

ASTM B505 C86300 bronze bushing

Chemical composition
  % min. % máx
Al 3,0 7,0
Cu 60,0 67,0
Fe 1,5 4,0
Mn 2,5 5,0
Ni   3,0
Zn Remainder
P   0,03
Pb   0,2
Sb   0,03
Si   0,1
Sn   0,2


Application domain editor


Colliers brass application is very extensive, the casting made of bearing and bushing, domestic mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use brass Gao Ligao strength as matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (general graphite, molybdenum disulfide, ptfe, such as oil lubricant), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has high bearing capacity, and break through the boundaries of generally depends on the oil film bearing grease lubrication, achieve no oil lubrication, The embedded solid lubrication is easy to form lubrication film, which plays a great role in improving the friction and wear performance, and is stable, reliable and cost-effective. Compared with the composite oil-free bearing, it has the advantages of good machinability, high precision, strong bearing capacity and good wear resistance. The self-lubricating guide bush guide can be used in many fields such as: engineering machinery joints, such as excavator, mining scraper, the rotating drill, concrete pump truck, rock drill machine, hoist, port cranes, etc., and metallurgical machinery casting machinery, water conservancy machinery, transportation machinery, rolling mill, bottle blowing machine blown film machine, injection molding machine cross clamping differential, tire vulcanizer, trailer balance beam, vacuum switch, etc.
