Metal-Polymer Low Friction Plain Bearings Bush Flange Size & Washer wc08Metal-Polymer Low Friction Plain Bearings Plain Bearing
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Metal-Polymer Low Friction Plain Bearings flange bushings replacment |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T |
| Supply Ability | 5000000 Piece/Pieces One week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | RED Coated Bushing | Type | Gap Sleeve Sleeve Bushings |
|---|---|---|---|
| Feature | Maintenance Free | Size | Metal-Polymer Low Friction Plain Bearings Bush Flange Size |
| Specification | Flange Size Or Washer | Application | Shock Absorber, Steering System And Gear Box. |
| Structure | Steel + Porous Bronze Sinter + | Item | Metal-Polymer Low Friction Plain Bearings Composite Bearings |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | self lubricating Metal-Polymer Low Friction Plain Bearings bush,flanged Metal-Polymer Low Friction Plain Bearings bush,Red Coated Plain Bearing |
||
Product Description
The Metal-Polymer Low Friction Plain Bearings Bush Flange Size and Washer wc08Metal-Polymer Low Friction Plain Bearings Plain Bearing are precision-engineered components that are designed to provide smooth and reliable operation in various applications. These bearings are commonly used in mechanical systems where a rotating or sliding element needs to be supported and positioned accurately.
The Metal-Polymer Low Friction Plain Bearings Bush Flange Size refers to the dimensions and specifications of the bush flange, which is the outer casing or housing that houses the bearing. The flange size ensures that the bearing fits securely and precisely within the mechanical system.

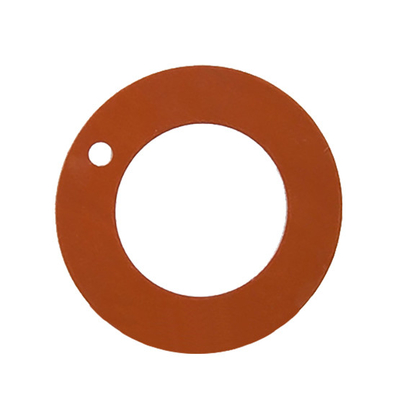

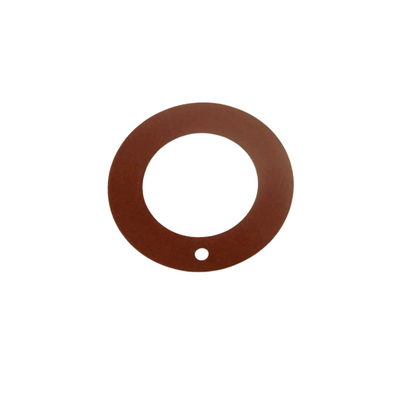

The Washer wc08Metal-Polymer Low Friction Plain Bearings Plain Bearing is a type of bearing that uses a plain or unlubricated surface for contact between the moving parts. This type of bearing is suitable for applications where lubrication may not be possible or desired. The wc08Metal-Polymer Low Friction Plain Bearings designation indicates the specific size and configuration of the washer bearing.
The combination of the Metal-Polymer Low Friction Plain Bearings Bush Flange Size and Washer wc08Metal-Polymer Low Friction Plain Bearings Plain Bearing provides a robust and dependable solution for applications that require precise positioning and smooth operation. These components are often used in automotive, aerospace, and other precision engineering fields where reliability and performance are critical.
It is important to note that when selecting a Metal-Polymer Low Friction Plain Bearings Bush Flange Size and Washer wc08Metal-Polymer Low Friction Plain Bearings Plain Bearing, it is crucial to ensure that the components are suitable for the specific application. This includes considering factors such as the load requirements, speed of rotation, environmental conditions, and any specific design or fitment requirements. By selecting the correct bearing components, you can ensure that your mechanical system operates smoothly, efficiently, and reliably.

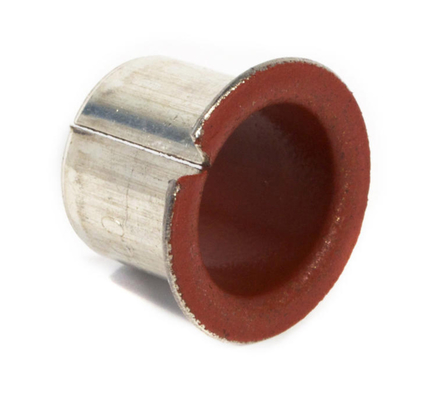

Metal-Polymer Low Friction Plain Bearings Red flange Bushing & Metal-Polymer Low Friction Plain Bearings washer wc08Metal-Polymer Low Friction Plain Bearings Metal-Polymer Low Friction Plain Bearings material properties, composite bearings, Metal-Polymer Composite Material, Copper Plating or Tin Plating, Metric, mm Inner Diameter, Outer Diameter, Thickness 1.00mm - 1.5 mm-2.0 mm-2.5 mm
Metal-Polymer Anti-Friction Bearings
Cylindrical bushes; Flanged bushes; Sliding plates; Thrust washers; Flanged washers. Metric bearings and imperial bushings made to order: Standard bushing
Bushing Type
Sleeve; Flanged
Type ( coated sliding bushing) Steel + porous bronze sinter +
Structure:
1. / Conductive additive mixture layer thickness 0.02~0.06mm, provides a low friction coefficient and good wear resistance feature. It is an electrical conductive material.
2. Sintered bronze powder thickness 0.20-0.35mm, provides strong mechanical bond and excellent thermal conductivity.
3. Steel backing Provides mechanical strength.
Tech. Data
| Max. load | Static | 250N/mm² | Temp. limit | -195°C~+280°C | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Max. PV Hydrodynamic Lubricate | 30N/mm²*m/s | Friction coefficient | Dry running | 0.08~0.20 | ||
| Hydrodynamic operation | 0.03~0.08 | |||||
Typical Applications
The Metal-Polymer Low Friction Plain Bearings red bushing material is suitable for the applications of vehicle suspension system, shock absorber, steering system and gear box. It is also widely used in hydraulic motors, gear pumps, piston pumps, vane pumps, hydraulic cylinders and material handling machines.
