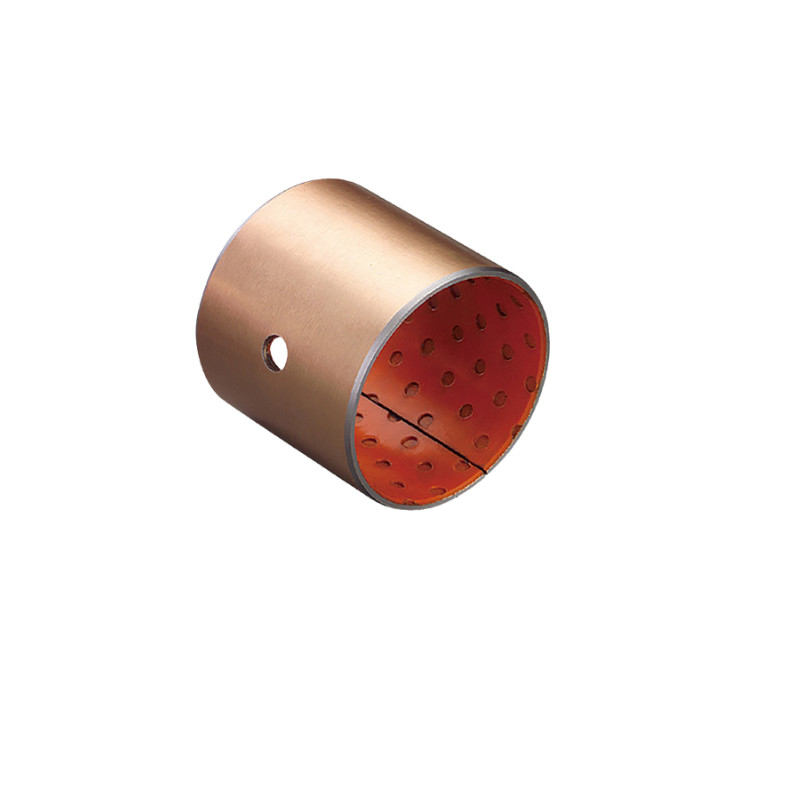

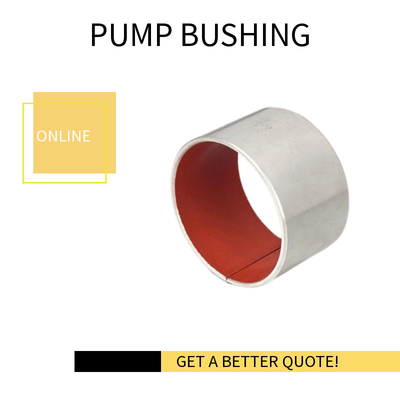

Red Bushing Part

Brand Name: VIIPLUS
Model Number: flange bushings replacment
MOQ: negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: 5000000 Piece/Pieces One week
Detail Information
Place of Origin:
made in china
Certification:
ISO 9001
Material:
RED Coated Bushing
Type:
Split Sleeve Sleeve Bushings
Feature:
Maintenance Free
Size:
Metric Size
Specification:
Part 0040-3024
Application:
Pump
Structure:
Steel + Porous Bronze Sinter +
Item:
Composite Bearings
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Characteristic:
Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing:
Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
5000000 Piece/Pieces One week
Highlight:

Red Bushing

,

Metal-Polymer Low Friction Plain Bearings Bushing

,

metric composite bearings

Product Description

The  red bushing, identified by part number 0040-3024, is a precision-engineered component designed for high-performance applications. , also known as polytetrafluoroethylene, is a synthetic fluoropolymer that exhibits excellent resistance to chemicals, heat, and wear.

The red coloration of this bushing not only provides a visual identifier but also indicates a specific material formulation or treatment that may enhance its performance characteristics. The  designation likely refers to a specific series or grade of bushings within a larger product line.

The bushing's design and material properties make it suitable for use in a wide range of industrial applications, including those that require resistance to extreme temperatures, chemicals, and abrasive conditions. Its smooth surface and low-friction characteristics contribute to reduced wear and energy consumption, making it an efficient choice for mechanical systems.

With a part number of 0040-3024, this bushing can be easily identified and ordered from suppliers or manufacturers. Its precise dimensions and tolerances ensure a secure and reliable fit within the intended mechanical assembly.

Overall, the  red bushing (part number 0040-3024) is a high-quality component that offers superior performance and durability in various industrial settings.



Cylindrical Bush having marked OEM discount with fast delivery



 Red Bushing,  composite bearings,Metal-Polymer Composite Material, Copper Plating or Tin Plating



Metal-Polymer Anti-Friction Bearings

Sliding bearing
Plain bearings are bearings that work under sliding friction.
Sliding bearing works stably, reliably and noiselessly.
Under the condition of liquid lubrication, the sliding surface can be separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced. The oil film also has certain vibration absorption ability.


Bushing Type
Sleeve; Flanged



Type ( coated sliding bushing) Steel + porous bronze sinter +



Lead-free flange bushings have sliding surfaces and tin-plated steel bodies, making them an effective substitute for places that cannot or must not be lubricated. Select this type for low speed, high load applications, or low speed and high load applications. This sleeve is suitable for applications where friction and heat should be avoided. The sleeve can also be used, for example, in oil or water, and has good corrosion resistance. In addition, the model can withstand very high and very low temperatures and has a low coefficient of friction. For example, in fitness equipment.



Red  Bushing Part 0





● Metal-polymer-composite material
● Steel Backing + porous bronze sintered + + CaF2 + Firbers
● Self-lubricating & Maintenance-free
● Available in sleeve, flanged, washer, strip, plate

Features



Physical & Mechanical Properties



Items Value Unit
Maximum Operating Temperature 280 °C
Minimum Operating Temperature -200 °C
Maximum Static Load 250 N/mm2
Maximum Dynamic Load 140 N/mm2
Maximum Sliding Speed -dry 2.5 m/s
Maximum Sliding Speed -oil lubricated 5 m/s
Maximum PV Factor-dry 1 N/mm2 * m/s
Maximum PV Factor-oil lubricated 10 N/mm2 * m/s
Coefficient of friction -dry 0.04-0.25
Coefficient of friction -oil lubricated 0.02-0.08



Usage Range



dry good
oil lubricated very good
grease lubricated good
water lubricated fair
process fluid lubricated good



Possible Application


Automotive:
Struts and shock absorbers, door hinges, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.

Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and tramways, textile machinery, valves, etc.








CDIN 1494 Flange sleeve bushing, Flange Size Bushing, ROHS Approved
Sliding surface made of in tinned steel frame
Especially suitable for places where lubrication is not possible or desirable.



 flanged bearing Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.



Material



/ Fibre + Bronze + Steel + Copper plating / tin-plating



Einsatzgebiete



This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.









Structures



1. /Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the -Fibre mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.





Characteristics



  • flange bushing has low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
  • Very good performance in lubricated applications
  • Good performance in greased applications
  • Suitable for linear, oscillating and rotating movements
  • Lead-free material compliant to ELV, WEEE, and RoHS specifications
  • Approved to standard DIN EN 1797: 2002-02 and ISO 21010: 2004-04 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars.
  • Approved to standard FAR 25.853 and FAR 25.855 - Federal Aviation Regulations – making it suitable for interior aircraft applications



Bearing Properties





GENERAL



Unit

Value

Maximum load, p

Static

Dynamic

N/mm2

N/mm2

250

140

Operating temperature

Min

Max

°C

°C

- 200

280

Coefficient of linear thermal expansion

Parallel to the surface

10-6/K

11

Normal to the surface

10-6/K

30


Dry  coated  bushing




Maximum sliding speed, U   m/s 2.5
Maximum pU factor   N/mm2 x m/s 1.0
Coefficient of friction     0.04 - 0.25 *



Oil Lubricated






Maximum sliding speed, U   m/s 5.0
Maximum pU factor   N/mm2 x m/s 10.0
Coefficient of friction     0.02 - 0.08


Recommendations










Shaft surface roughness, Ra

Dry

Lubricated

µm

µm

0.3 - 0.5

≤ 0.05 - 0.4 *

Shaft surface hardness Unhardened acceptable, improved bearing life > 200HB



Operating Performance





Dry Good
Oil-lubricated Very Good
Grease lubricated Good
Water lubricated Fair
Process fluid lubricated Good
