Flange Sleeve Bearings | Brass Bushings

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number Flange Sleeve Bearings
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze + Graphite Size Metric Size
Sleeve Bushings Flange Size Self-lubricating Solid Lubricating
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

bronze graphite Flange Sleeve Bearings

,

ISO9001 Metric Size Flange Sleeve Bearings

Leave a Message
Product Description

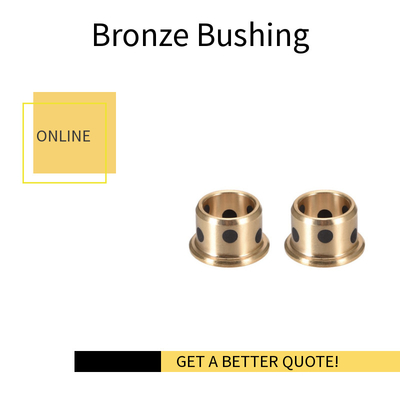

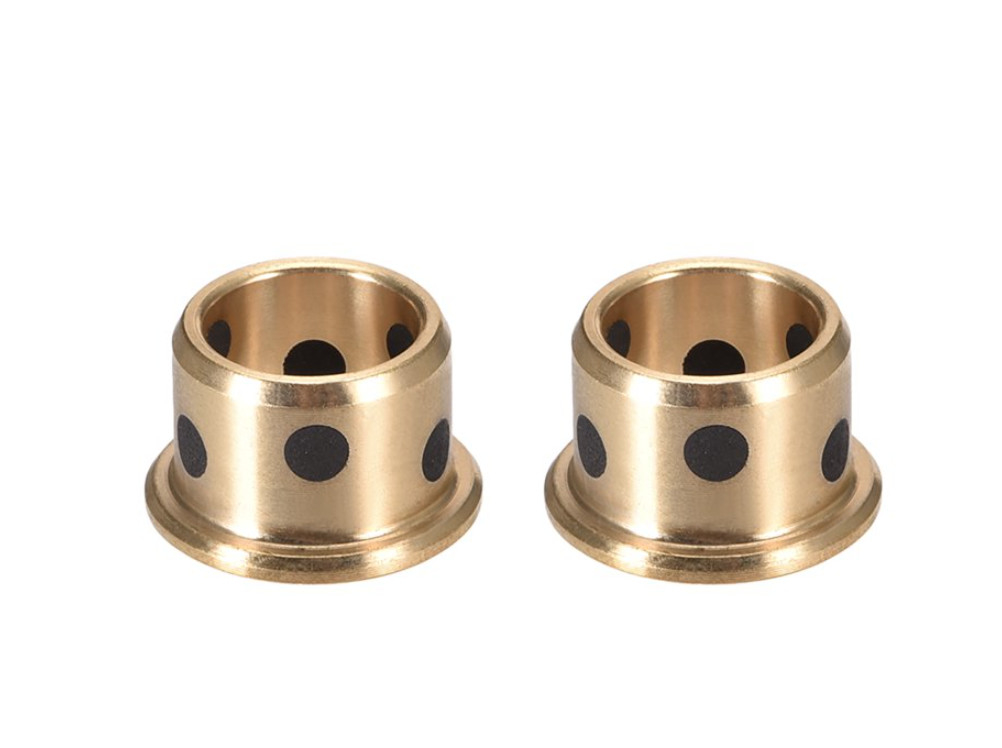

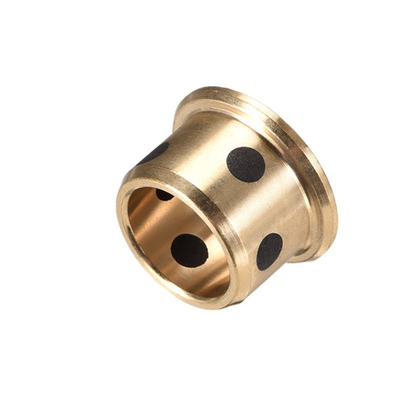

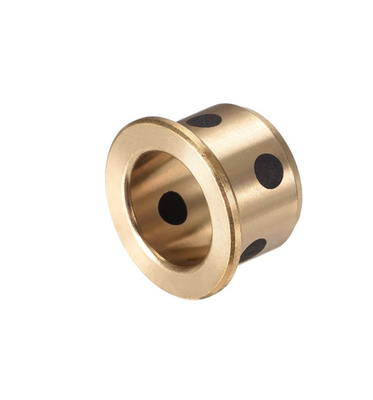

Flange Sleeve Bearings | Brass Bushings



Flange Sleeve Bearings Brass Bushings bearing by viiplus.com n - can be used with every application. Oilless Bearings Metric Flange Bushes.pdf

Lubrication-free✓ maintenance-free✓ ...

Components for Press Dies

Standard Bronze Bushing Parts

Sliding Parts Injection Mold Equipment



Specification:


Material: ZCuZn25Al6Fe3Mn3+Graphite



Select Flange Bushing Type, configure, order. VIIPLUS delivers punctually and offers fair prices.



Other self-lubricating bearings and related components



Include the Air Compressor Swash Plate, Sintered Bearings, Steel Sleeves, Spherical Bearings and Solid Bronze Alloy Bearings.



Brass and Bronze Bushings and Bearings


Bronze bushings from Reliable Bronze stand above those from other bushing suppliers. We stand behind our workmanship 100%. We want our customers to come back to us again and again, order after order. Custom bushings made by Reliable Bronze are machined to your exacting specifications. When it comes to bronze or brass bushings for any industry application, Reliable Bronze will exceed your expectations.

Bronze bushings are used in automotive applications, many types of motors, conveyors and a variety of industrial equipment. Reliable Bronze manufactures custom parts for any application. If you supply us your specifications along with a print or a sample so that we can draw up a print, we will be able to machine your parts with your choice of over 50 high quality materials.





Features



The flange sleeve bushing brass material provides mechanical strength and loading capacity of the bearing and the solid lubricants provide a continuous lubricating source to establish a reliable lubricating system. It is suitable for the application conditions of middle to high load and where the frequent restarting operation is needed. The typical applications include the plastic injection machine toggle, tie bar, port machinery, dam gate, and mining machinery.





Structure:



1. Lubricating graphite, provides initial lubricating to reduce the friction.

2. Solid Lubricants, aligned according to the bearing motion direction to form lubricating film

improving the friction coefficients and wear resistance feature.

3. Bronze Material, provides mechanical strength and improve the impact resistance and corrosion resistance.

Customized Oil / Grease Groove Bearing Casting Bronze Sleeve & Flange Brass Bushing for Loaders

Main Metal Type



Type 650 650S5 650W1 650W3 650S1 650S2 650S3
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 7.8 8.9 7.8 8.9
HB Hardness ≥210 ≥250 ≥210 ≥230 ≥70 ≥150 ≥75
Tensile Strength MPa ≥750 ≥800 ≥755 ≥755 ≥250 ≥500 ≥270
Yield Strength MPa ≥450 ≥450 ≥400 ≥400 ≥90 ≥260 ≥150
Elongation % ≥12 ≥8 ≥12 ≥12 ≥13 ≥10 ≥5
Thermal Expansion Coefficient 1.9x10*%/°C 1.8x10*9/°C 1.6x10^*/°C 1.8x10*/°C
Max. Operation Temp. -40~+250°C -40~+400°C
Max. load MPa 50 75 75 100 50
Max. speed m/s Dry 0.5 0.1 0.5 0.1 0.5
Lubricated 1 0.25 1 0.25 2.5
Max. PV (N/mm2*m/s) Dry 1.65 1
Lubricated 3.25 1.65





Solid Lubricants



Lubricant Feature Typical Applications
SL1
Graphite + Additives
Good Chemical resistance and low friction
coefficients. Operation temperature up to +400oC
Suitable for general industry applications exposed to
the atmosphere.
SL4
PTFE+MoS2+Additives
Low friction coefficients and good water lubricating
feature. Operation temperature up to +300oC
Suitable for water lubrication condition. The applications
include vessels, hydraulic turbines, and steam turbines.



shaft bronze bushings
