Bimetal Washer Embedded Graphite Plugs
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | bimetal Washer Embedded Graphite Plugs |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | 200000 Piece/Pieces One week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Backed Bimetal With Graphite Plugs | Type | Bimetal Washer Graphite |
|---|---|---|---|
| Alloy | CuPb10Sn10 Or CuSn6Zn6Pb3 | Size | Metric Size, Or Customize Size |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | Metric Size Bimetal Washer,CuSn8Pb10 Graphite Bimetal Washer |
||
Product Description
The bimetal washer embedded with graphite plugs is a unique mechanical component that combines the strength and durability of two different metals with the lubricity and wear resistance of graphite. This innovative design ensures optimal performance in applications requiring high precision, reliability, and extended service life.
The bimetal washer itself consists of two layers of metal, typically chosen for their specific material properties. One layer may be selected for its strength and durability, while the other layer may be chosen for its corrosion resistance or other desired properties. The combination of these two metals allows the bimetal washer to perform optimally in a wide range of environments and applications.
Embedded within the bimetal washer are graphite plugs. Graphite is a natural form of carbon that exhibits excellent lubricity, self-lubricating properties, and wear resistance. When graphite is embedded in the bimetal washer, it provides a continuous lubrication source that reduces friction and wear between moving parts. This results in smoother operation, less wear, and longer service life for the mechanical system.
The graphite plugs are strategically positioned within the bimetal washer to maximize their effectiveness. They are typically embedded in high-wear areas or in areas where friction is a concern. The size, shape, and number of graphite plugs can be customized based on the specific requirements of the application.
The bimetal washer embedded with graphite plugs is commonly used in automotive, aerospace, and industrial machinery applications. Its ability to provide continuous lubrication and wear resistance ensures smooth and reliable operation of moving parts, even under extreme conditions. This innovative design represents a significant improvement over traditional metal washers, offering superior performance and durability in demanding applications.

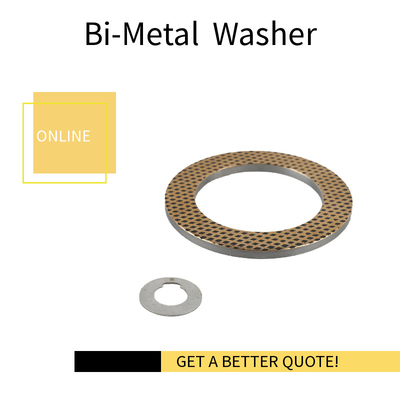

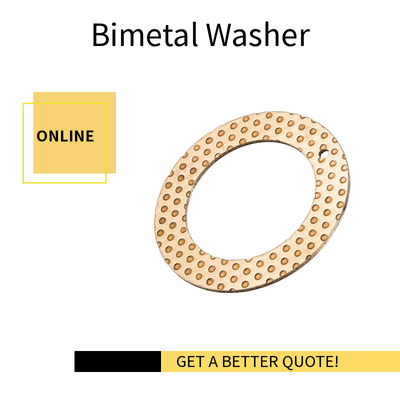

Bimetal Washer Embedded Graphite Plugs
SHOP BIMETAL WASHER PARTS FROM CHINA, CuSn8Pb10+graphite Bimetal Washer Embedded Graphite Plugs
Bimetal Washer Embedded Graphite Plugs,
ENGINE PARTS
TIME FOR MAINTENANCE?
WE MAKE IT EASY.
Bimetal Washer Embedded Graphite Plugs Feature
Bimetal Washer Embedded Graphite Plugs-08G is a kind of steelhead bronze alloys-based bearing that is embedded with a particular formulation of solid lubricants. Owing to the high strength, high load capacity, and the spirally distributed diamond embedded with solid lubricant. With a lubrication area of 25% on the bearing surface up to,, the bushing shows better performance in good lubrication and anti-wear. This type of bearing is particularly applied in gearbox for automobiles, generators, cranes, and machines for the metallurgical industry.
| Surface material | CuSn8Pb10+graphite | ||
| Load capacity | 65N/mm² | Friction Coef | 0.06~0.2 |
| Temperature limit | 260℃ | Speed limit | 4m/s |
BIMETAL GRAPHITE WASHER
Bimetallic Thrust Washers
Sintered SAE797 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE799 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE48 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE783 Layer + Steel Backing + Copper Plating / Tin-Plating
Bimetal Thrust Washers Structures
1. Sinter bronze powder: good wear resistance and excellent load carrying capacity.
2. Steel backing: provides exceptionally high load carrying capacity, excellent heat dissipation.
3. Copper plating thickness 0.002mm provides good corrosion resistance.
Bimetal Thrust Washer Metric Size
| Thrust Washer | d+0.250 | D0-0.25 | ST-00.05 | J±0.12 | H+0.4+0.1 |
| Bimetal Thrust Washer-W10 | 12 | 24 | 18 | 1.5 | |
| Bimetal Thrust Washer-W12 | 14 | 26 | 20 | ||
| Bimetal Thrust Washer-W14 | 16 | 30 | 22 | 2 | |
| Bimetal Thrust Washer-W16 | 18 | 32 | 25 | ||
| Bimetal Thrust Washer-W18 | 20 | 36 | 28 | ||
| Bimetal Thrust Washer-W20 | 22 | 38 | 1.5 | 30 | 3 |
| Bimetal Thrust Washer-W22 | 24 | 42 | 33 | ||
| Bimetal Thrust Washer-W24 | 26 | 44 | 35 | ||
| Bimetal Thrust Washer-W25 | 28 | 48 | 38 | ||
| Bimetal Thrust Washer-W30 | 32 | 54 | 43 | ||
| Bimetal Thrust Washer-W35 | 38 | 62 | 50 | 4 | |
| Bimetal Thrust Washer-W40 | 42 | 6.6 | 54 | ||
| Bimetal Thrust Washer-W45 | 48 | 74 | 2 | 61 | |
| Bimetal Thrust Washer-W50 | 52 | 78 | 65 |
The bimetallic bearing has steel shell and sintered bronze lining. Its base material is high-quality low-carbon steel. Surface of the composite bearing is sintered with low-friction copper alloy including CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu and CuSn8Ni.
Physical and Mechanical Properties
| Maximum Dynamic Load Pressure, P | 140N/mm² | Mating Shaft | Hardness | ≥53HRC | |
| Maximum Line Speed, V | Grease lubrication | 2.5m/s | Roughness | Ra=0.16 ~0.63 | |
| Maximum Line Speed, V | Fluid lubrication | 5m/s | Maximum Operating Temperature | Grease lubrication | 150℃ |
| Maximum PV Value | Grease lubrication | 2.8N/mm²·m/s | Oil lubrication | 250℃ | |
| Maximum PV Value | Fluid lubrication | 10mm²·m/s | Coefficient of Friction | 0.05-0.15 | |
| Alloy Hardness | HB60~90 | Thermal Conductivity | 47W/(m ·k) | ||
| Coefficient of Thermal Expansion | 18 ·10-6K1 | ||||
Bimetallic Bearing Applications
1. Engineering Machinery
The bimetallic bearing for engineering machinery is applicable to the tension wheel bush, towing wheel bush, and the track roller bush of chassis running gear.
2. Automotive Industry
As a kind of automobile bearing, this product can be used in the balance shaft bushing, steel pin bushing, knuckle pin bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, transmission bushing, thrust washer, and the main shaft bushing of internal combustion engine.
3. Other Applications
In addition, this product is ideal for use in the side panels of plunger pumps and the side panels of gear pumps, etc.
