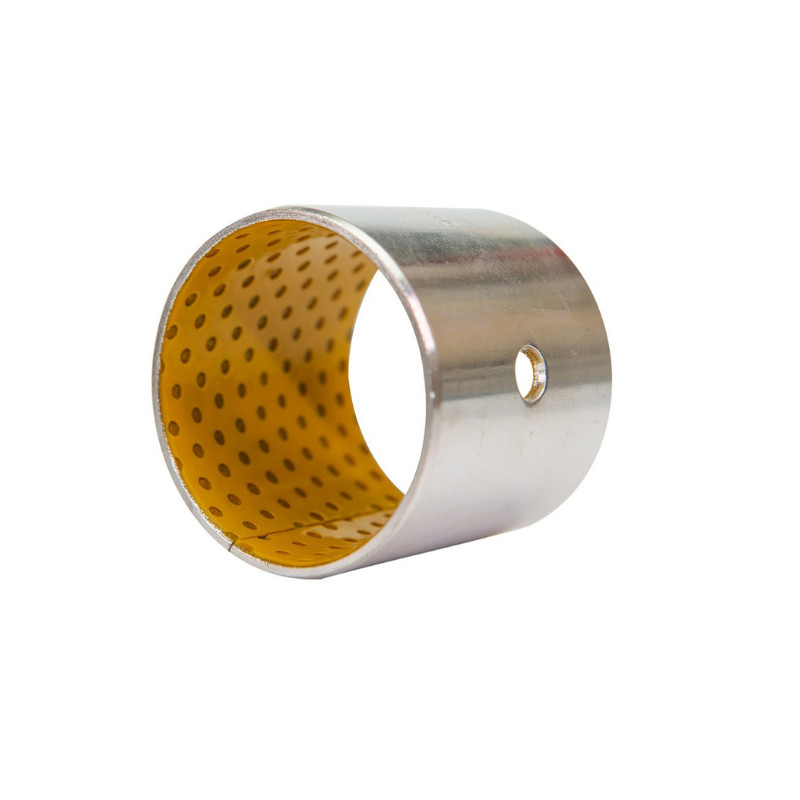

Cylindrical Steel Sintered Bronze Composite POM Sliding Bushing

  • Cylindrical Steel Sintered Bronze Composite POM Sliding Bushing
  • Cylindrical Steel Sintered Bronze Composite POM Sliding Bushing
  • Cylindrical Steel Sintered Bronze Composite POM Sliding Bushing
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Composite Plain Bearing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 9000000 Piece/Pieces One week
Product Details
Plain Bearing Steel-Sintered-Bronze-POM Self-lubricating Bearing Composite Material Low-maintenance
Bushing Type Cylindrical Pom Bushes, Thrust Washers, Sliding Plates Bearing Types Available Standard Dimensions
Item Cylindrical Sliding Bushings Size Metric Size, Or Customize Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

POM Sliding Bushing

,

Steel Sintered Bronze Sliding Bushing

,

ISO 9001 Cylindrical Bushing
Leave a Message
Product Description

Composite Plain Bearing | Steel Sintered Bronze POM



Metal-Polymer Plain Bearings Grease Lubricated,



Metal-Polymer Composite Bushing Material


Steel Back + Porous Bronze Sinter +POM with Lubrication Indents Bearings Supplier & Bushing



dx bushing



Material-Characteristics



Steel with porous sintered tin bronze layer, which is coated with POM as sliding layer. The POM sliding layer contains grease pockets, which serve as a lubricant reservoir. Suitable for grease and oil lubrication

  • DX marginally lubricated bushings for grease or oil lubricated applications
  • Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
  • Optimum performance under relatively high loads and low speeds
  • Suitable for linear, oscillating and rotating movements
  • Wide range of parts available from stock

dx bushing



Application Data



max. surface pressure

static: 140 MPa dynamic: 70 MPa

max. sliding velocity

grease lubricated: 2,5 m/s

max. PV value

grease lubricated: 2,8 Mpa x m/s

temperature range: -40 up to +130 °C

thermal expansion: 11 x 10 /K

frictional coefficient

grease lubricated: µ = 0,06 up to 0,14



Performance index Data Performance index Data
Load capacity P
(Dry friction)		 Static load 250 PV value limit Oil lubrication 2.8
Dynamic load 140 Friction coef u Oil lubrication 0.05~0.25
Max line speed V Oil lubrication 2.5m/s Thermal conductivity 4W/mk
Working temperature -40~+130 Coefficient of linear expansion 12*10/K





Mating Material



minimum hardness ≥ 200HB

surface roughness: Ra ~ 0,4 µm



Applications:


Automotive: Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial: Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.



dx bushing



Article Description: Dx bush



Article-No. d D h L
0
-0.4
  ∅ ∅ ∅ 10 15 20 25 30 35 40 45 50 60
POM-BUSH 10 12 14 • • •
POM-BUSH 12 14 4 • • •
POM-BUSH 14 16 4   • •
POM-BUSH 15 17 4   • • •
POM-BUSH 16 18 4   • • •
POM-BUSH 18 20 4   • • •
POM-BUSH 20 23 4   • • • •
POM-BUSH 22 25 4   • • • •
POM-BUSH 24 27 4   • • • •
POM-BUSH 25 28 6   • • • •
POM-BUSH 28 32 6     • • •
POM-BUSH 30 34 6     • • • • •
POM-BUSH 32 36 6     • • • • •
POM-BUSH 35 39 6     • • • • •
POM-BUSH 40 44 8     • • • • • • •
POM-BUSH 45 50 8     • • • • • • •
POM-BUSH 50 55 8         • • • • • •
POM-BUSH 55 60 8         • • • • • •
POM-BUSH 60 65 8         • • • • • •
POM-BUSH 65 70 8             •   • •
Article-No. d D h L
0
-0.4
  ∅ ∅ ∅ 40 50 60 80 90 95 100 110 120
POM-BUSH 70 75 8 • • • •
POM-BUSH 75 80 8 • • • •
POM-BUSH 80 85 9.5 • • • •
POM-BUSH 85 90 9.5 • • • •
POM-BUSH 90 95 9.5 • • • • •
POM-BUSH 95 100 9.5   • • • • •
POM-BUSH 100 105 9.5   • • • • •
POM-BUSH 105 110 9.5   • • • • • • •
POM-BUSH 110 115 9.5   • • • • • • •
POM-BUSH 120 125 9.5   • • • • • • •
POM-BUSH 125 130 9.5   • • • • • • •
POM-BUSH 130 135 9.5   • • • • • • •
POM-BUSH 140 145 9.5   • • • • • • •
POM-BUSH 150 155 9.5   • • • • • • •
POM-BUSH 160 165 9.5   • • • • • • •
POM-BUSH 170 175 9.5   • • • • • • •
POM-BUSH 180 185 9.5   • • • • • • •
POM-BUSH 190 195 9.5   • • • • • • • •
POM-BUSH 200 205 9.5   • • • • • • • •
POM-BUSH 220 225 9.5   • • • • • • • •
POM-BUSH 240 245 9.5   • • • • • • • •
POM-BUSH 250 255 9.5   • • • • • • • •
POM-BUSH 260 265 9.5   • • • • • • • •
POM-BUSH 280 285 9.5   • • • • • • • •
POM-BUSH 300 305 9.5   • • • • • • • •





Why choose dx composite bearing?



  • Maintenance-free operation

  • No lubrication required (PTFE composite)

  • Initial lubrication required (POM composite)

  • Minimum wall thickness, minimum space requirements

  • Accommodation of heavy loads

  • Wide range of temperatures

  • Good sliding properties

  • Virtually no stick-slip

  • High wear resistance

  • Less sensitive to edge loading (POM composite)

  • No machining required.
