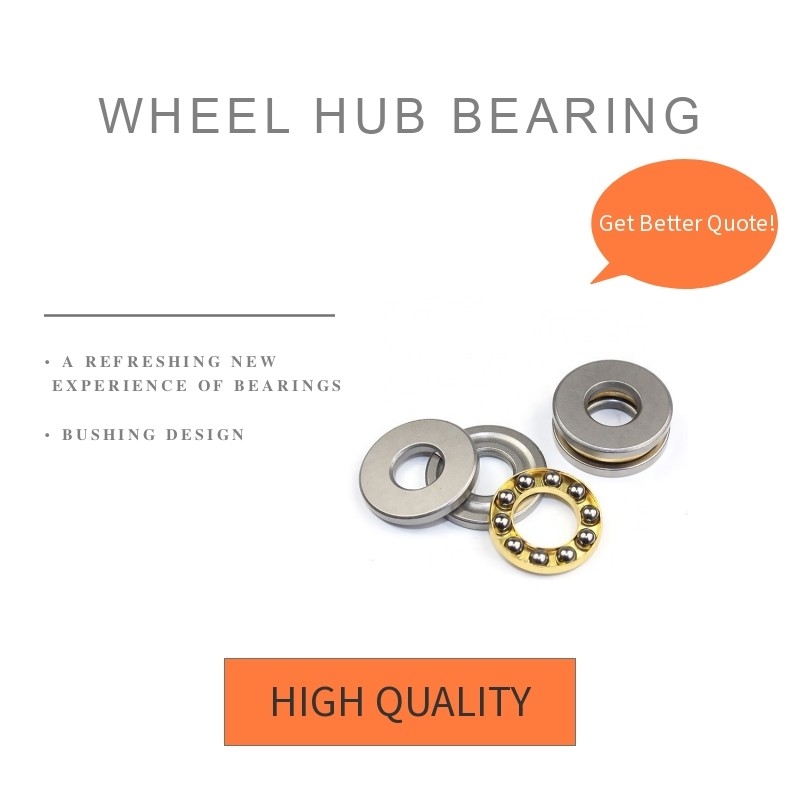

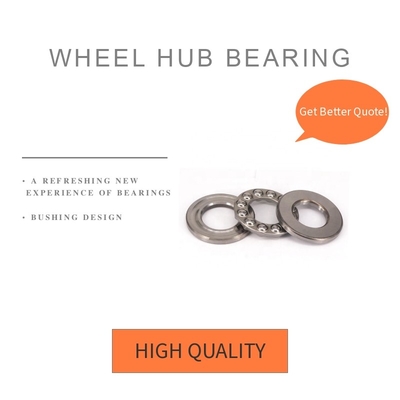

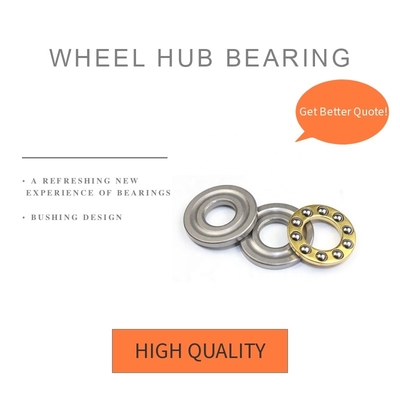

Chrome Steel Open OEM Thrust Ball Bearings, China Supply, High Quality
| Place of Origin | CHINESE |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO9001 |
| Model Number | DEEP GROOVE BALL BEARING |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Wear Plate Parts Factory Price |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | T/T, Western Union |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure | Thrust | Seals Type | Open |
|---|---|---|---|
| Number Of Row | Single Row, Double Row | Service | OEM Customized Services |
| Material | Chrome Steel | Type | Ball |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | oem miniature thrust bearings,Chrome Steel thrust ball bearing |
||
Product Description
Chrome Steel Open OEM Thrust Ball Bearings, supplied by China, are renowned for their high quality and reliability. These bearings are manufactured using chrome steel, a material known for its strength, hardness, and corrosion resistance, ensuring long-lasting performance and durability.
The open design of these thrust ball bearings allows for easy maintenance and inspection, making them a preferred choice for OEM (Original Equipment Manufacturer) applications. The OEM thrust ball bearings are designed to meet the specific requirements of the manufacturer, ensuring precise fit and function in the intended application.
China's supply of Chrome Steel Open OEM Thrust Ball Bearings ensures competitive pricing and fast delivery. Manufacturers can rely on the consistent quality and reliability of these bearings, which are tested rigorously to meet strict quality standards.
Whether used in automotive, industrial, or other demanding applications, Chrome Steel Open OEM Thrust Ball Bearings provide exceptional performance and durability. Their high-quality materials and precision manufacturing processes ensure smooth, efficient operation and a long service life.
Thrust Ball Bearings | Bearings, Units & Housings
Thrust Ball Bearings
Complete source for your Thrust Ball Bearings products. 80% of bearings products bulk ordered ship from stock and deliver within 15 days.
Thrust Ball Bearings | Ball Bearings | Products | Bearing Global Exporter
Viiplus thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Viiplus supplies thrust ball bearings for special application requirements. This assortment includes bearings with Solid Oil and NoWear coated
bearings.
|
Product Name |
High Quality Thrust Ball Bearing / Thrust Bearing |
|
Material |
Chrome steel, Stainless steel, Carbon steel |
|
Precision |
P0=ABEC-1,P2=ABEC-9,P4=ABEC-7,P5=ABEC-5,P6=ABEC-3 |
|
Standard |
DIN GB ISO JIS BA ANSI |
|
Grade |
SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9 |
|
Noise Level |
EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4 |
|
Package |
Individual package or according to buyers requirement |
Thrust ball bearings are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately.
Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Thrust Ball Bearing
1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two hooding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
|
Description
|
Thrust Ball Bearing
|
||
|
Material
|
bearing steel
|
||
|
Process
|
Forging, machining
|
||
|
Finish
|
oiled
|
||
|
Specification
|
to order
|
||
Related Industries
Steel Industry
Mining & Construction
Papermaking Machinery
Wind Turbines
Machine Tools
Gearboxes
Pumps & Compressors
Injection Molding
Motorcycles
Railways
| Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Designations | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | Reference speed | Limiting speed | Bearing | Seat washer | |||||
|
d[mm]
|
D[mm]
|
H[mm]
|
H1[mm]
|
C[kN]
|
C0[kN]
|
Pu[kN]
|
[r/min]
|
[r/min]
|
|
|
| 3 | 8 | 3.5 | 0.806 | 0.72 | 0.027 | 26000 | 36000 | BA 3 | ||
| 4 | 10 | 4 | 0.761 | 0.72 | 0.027 | 22000 | 30000 | BA 4 | ||
| 5 | 12 | 4 | 0.852 | 0.965 | 0.036 | 20000 | 28000 | BA 5 | ||
| 6 | 14 | 5 | 1.78 | 1.92 | 0.071 | 17000 | 24000 | BA 6 | ||
| 7 | 17 | 6 | 2.51 | 2.9 | 0.108 | 14000 | 19000 | BA 7 | ||
| 8 | 19 | 7 | 3.19 | 3.8 | 0.143 | 12000 | 17000 | BA 8 | ||
| 9 | 20 | 7 | 3.12 | 3.8 | 0.143 | 12000 | 16000 | BA 9 | ||
| 10 | 24 | 9 | 8.71 | 12.2 | 0.45 | 9500 | 13000 | 51100 | ||
| 10 | 26 | 11 | 12.7 | 18.6 | 0.695 | 8000 | 11000 | 51200 | ||
| 12 | 26 | 9 | 10.4 | 16.6 | 0.62 | 9000 | 13000 | 51101 | ||
| 12 | 28 | 11 | 13.3 | 20.8 | 0.765 | 8000 | 11000 | 51201 | ||
| 12 | 28 | 11.4 | 13 | 13.3 | 20.8 | 0.765 | 8000 | 11000 | 53201 | U 201 |
| 15 | 28 | 9 | 10.6 | 18.3 | 0.67 | 8500 | 12000 | 51102 | ||
| 15 | 32 | 12 | 15.9 | 25 | 0.915 | 7000 | 10000 | 51202 | ||
| 15 | 32 | 13.3 | 15 | 15.9 | 25 | 0.915 | 7000 | 10000 | 53202 | U 202 |
| 17 | 30 | 9 | 11.4 | 21.2 | 0.78 | 8500 | 12000 | 51103 | ||
| 17 | 35 | 12 | 16.3 | 27 | 1 | 6700 | 9500 | 51203 | ||
| 17 | 35 | 13.2 | 15 | 16.3 | 27 | 1 | 6700 | 9500 | 53203 | U 203 |
| 20 | 35 | 10 | 15.1 | 29 | 1.08 | 7500 | 10000 | 51104 | ||
| 20 | 40 | 14 | 21.2 | 37.5 | 1.4 | 6000 | 8000 | 51204 | ||
| 20 | 40 | 14.7 | 17 | 21.2 | 37.5 | 1.4 | 5600 | 8000 | 53204 | U 204 |
| 25 | 42 | 11 | 18.2 | 39 | 1.43 | 6300 | 9000 | 51105 | ||
| 25 | 47 | 15 | 26.5 | 50 | 1.86 | 5300 | 7500 | 51205 | ||
| 25 | 47 | 16.7 | 19 | 26.5 | 50 | 1.86 | 5000 | 7000 | 53205 | U 205 |
| 25 | 52 | 18 | 34.5 | 60 | 2.24 | 4500 | 6300 | 51305 | ||
| 25 | 60 | 24 | 42.3 | 67 | 2.45 | 3600 | 5000 | 51405 | ||
| 30 | 47 | 11 | 19 | 43 | 1.6 | 6000 | 8500 | 51106 | ||
| 30 | 52 | 16 | 25.1 | 51 | 1.86 | 4800 | 6700 | 51206 | ||
| 30 | 52 | 17.8 | 20 | 25.1 | 51 | 1.86 | 4500 | 6300 | 53206 | U 206 |
| 30 | 60 | 21 | 35.8 | 65.5 | 2.4 | 3800 | 5300 | 51306 | ||
