| Brand Name: | Viiplus Stainless steel composite bearing |
| Model Number: | Stainless steel self-lubricating bearings |
| MOQ: | 100PCS |
| Price: | According to the size of the product |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Standard parts, large supply, non - standard parts, after the mold can be large supply |
The ISO 9001 Self-Lubricating Plain Bearing Liner is a high-performance solution specifically designed for the basic industrial sector. Adhering to the stringent requirements of the ISO 9001 quality management system, this liner ensures reliability, durability, and optimal performance in a variety of applications.
Constructed from a unique self-lubricating material, this bearing liner eliminates the need for external lubrication, significantly reducing maintenance requirements and operating costs. It provides a smooth and continuous running surface that minimizes friction and wear, ensuring longer service life and improved efficiency.
The ISO 9001 certification guarantees that the bearing liner meets the highest standards of quality and consistency. It undergoes rigorous testing and inspection during production to ensure its durability and performance under extreme operating conditions.
Suitable for use in various industries, including mining, construction, and heavy machinery, the ISO 9001 Self-Lubricating Plain Bearing Liner offers a cost-effective solution for basic industrial applications. It can be easily integrated into existing machinery and equipment, requiring minimal modification or additional hardware.
In summary, the ISO 9001 Self-Lubricating Plain Bearing Liner is a reliable and efficient solution for basic industrial applications. Its self-lubricating design, high-quality construction, and ISO 9001 certification make it a superior choice for improving performance and reducing maintenance costs.

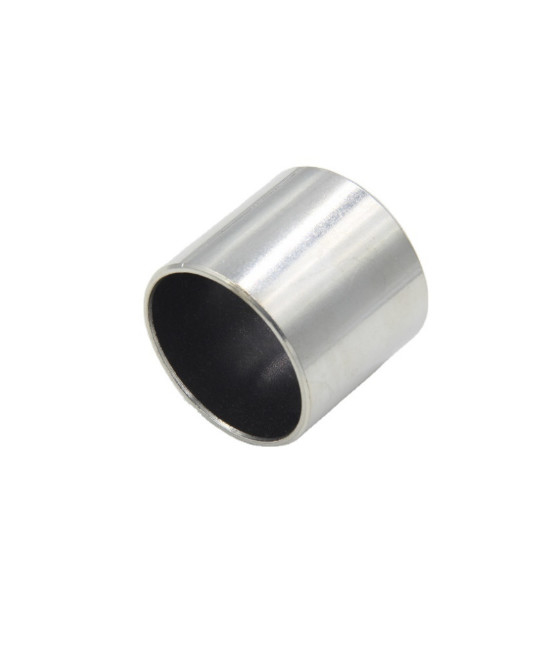

Stainless steel self-lubricating sleeve can be selected in metric system or Inch system. The product size can be customized. thickness can be increased or PV value can be reduced according to actual use requirements.
| Unit | Value | ||
|
|
|
36 000 20 000 |
|
|
|
|
- 328 536 |
|
| 10-6 |
6 | ||
| 10-6 |
17 |
| 500 | |||
| 50 000 | |||
|
0.02 - 0.25 * |
Stainless steel corrosion resistant bearings, stainless steel as a matrix, the middle of the sintering corrosion resistant alloy powder, the surface of the rolling based low friction materials, after the rolling molding of a very effective corrosion resistant materials.It has the characteristics of oil resistance, acid resistance, alkali resistance, seawater resistance and wear resistance. The material on the surface does not contain lead.
In food and beverage machinery, chemical medium ph flow of the pump valve, pharmaceutical machinery, printing and dyeing machinery, chemical machinery, Marine industry corrosion resistance sliding parts are most suitable for use.
| 9Cr18 | ||||
| C (%) | Cr(%) | Mn:(%) | S (%) | P (%) |
| 0.90～1.00 | 17.00～19.00 | ≦0.80 | ≦0.030 | ≤0.035 |
It is a polymer made of tetrafluoroethylene as monomer.White waxy, translucent, good heat and cold resistance, can be used in -180 ~ 260 C for a long time.This material has the characteristics of anti - acid, anti - alkali, anti - various organic solvents, almost insoluble in all solvents.At the same time, has the characteristics of high temperature resistance, its coefficient of friction is very low, so it can be used for lubrication, but also become easy to clean the ideal coating of the inner layer of the water pipe;Toxic, human carcinogen.
| Performance indicators | date | |
| Maximum load P | Static load | 250N/mm² |
| Dynamic load | 140N/mm² | |
| Maximum linear velocity V | Dry friction | 2.5m/s |
| Oil lubrication | 5.0m/s | |
| High PV value | Dry friction | 3.8N/mm²・m/s |
| Oil lubrication | 50N/mm²・m/s | |
| Coefficient of friction | 0.04~0.20 | |
| The use of temperature | -195℃～+280℃ |
|
| Coefficient of thermal conductivity | 50W/m・K |
|
