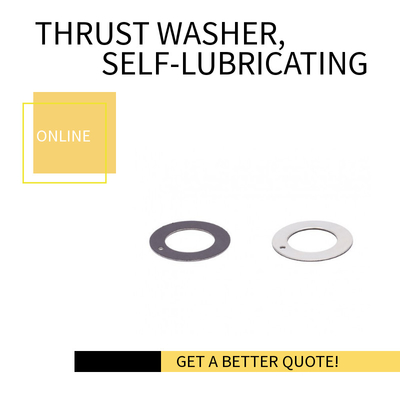

Our WC10 thrust washer is a self-lubricating plain bearing that incorporates a (polytetrafluoroethylene) lining for enhanced performance and durability. The bearing is precision-engineered to offer reliable thrust transmission in various industrial applications.

The lining provides excellent lubrication properties, reducing friction and wear, while also ensuring smooth operation even under high loads and speeds. This material's chemical stability ensures long-term performance, even in corrosive or abrasive environments.

With dimensions of 20mm in length, 10mm in width, and 1.5mm in thickness, the WC10 thrust washer is suitable for a wide range of applications. Its compact size and self-lubricating design make it an ideal choice for space-constrained areas or where regular lubrication is challenging.

The bearing's high-quality materials and precision manufacturing ensure consistent performance and long service life. It can withstand heavy loads and high temperatures, making it suitable for use in demanding industrial settings.

Overall, the WC10 thrust washer with its lining offers a robust and reliable bearing solution for thrust transmission applications. Its self-lubricating design and excellent performance characteristics make it a trusted component in various machinery and equipment.

Product information "LWM", Thrust washer, self-lubricating, please advise the Shaft diameter, get your Price and delivery time on request.

Thrust washer Steel backed Properties: "LWM" replacement

WASHER SIZE CHART

Thrust Washers Lined 20-10-1.5mm, with a Bronze support strip, stainless steel 316 or 304 is also available, contact us for details. Equivalent alternative brands include Low Friction Bushing DU, P10, P14,

Metric / Imperial: Metric (mm)
Internal Diameter: 10mm
Outside Diameter: 20mm
Thickness (Sheets and Washers): 1.5mm

The washer is a composite bearing material comprising 3 layers: Steel support strip (S.A.E 1010), Sintered bronze layer, layer.

Performance:

1. Modified polytetrafluoroethylene () lead (Pb) mixture 0.01~0.03mm, a wear-resistant material that can form a transfer film to protect the grinding shaft during operation.
2. Copper powder layer 0.2mm ~0.3mm improves the bonding strength of /Pb with steel plate, with good bearing capacity and wear resistance. At the same time copper is a good thermal material, can quickly transfer the heat generated in the process of bearing operation.
3. Low carbon steel 0.7-2.3mm, improve the bearing capacity and heat transfer.
4. Copper/tin plating, copper plating 0.008mm, tin plating 0.005mm, so that the bearing has good corrosion resistance.


Application features:

1. No oil lubrication or less oil lubrication, suitable for the occasion where oil cannot be filled or difficult to be filled, can be used without maintenance or less maintenance;
2. Good wear resistance, small friction coefficient, and long service life;3. Can be used in the range of -195℃ ~ +280℃;
4. Good running performance, low noise, no pollution;5. Thin-walled structure, lightweight, can reduce the mechanical volume;
6. The transfer film can be formed during operation to protect the grinding shaft, without biting the shaft;
7. The hardness requirement of the grinding shaft is low, and the shaft without the tempering treatment can be used, thus reducing the processing difficulty of relevant parts;
8. No water absorption and oil absorption, low coefficient of thermal expansion, good heat dissipation and stable size;
9. The back of the steel can be plated with a variety of metals, so it can be used in corrosive media without rust;
At present has been widely applied to various mechanical sliding parts, such as automatic mechanical equipment (telescopic, swing, slide, bending, cyclotron, turning parts) hydraulic cylinder guide sleeve, gear pump up, textile machinery, vending machines, plastic molding machine, die-casting machine, rubber machine, tobacco machine, fitness equipment, office machinery, hydraulic truck, automobile, motorcycle, forestry machinery, etc.

composite thrust washer is suitable for space-saving axial guide bushing bearings for high load/medium speed applications.VIIPLUS offers a variety of composite thrust washers. The advantages of these slots are:

1. Maintenance-free operation
2. Good friction properties
3. High load capacity
4. High operating temperature
5. High allowable sliding speed

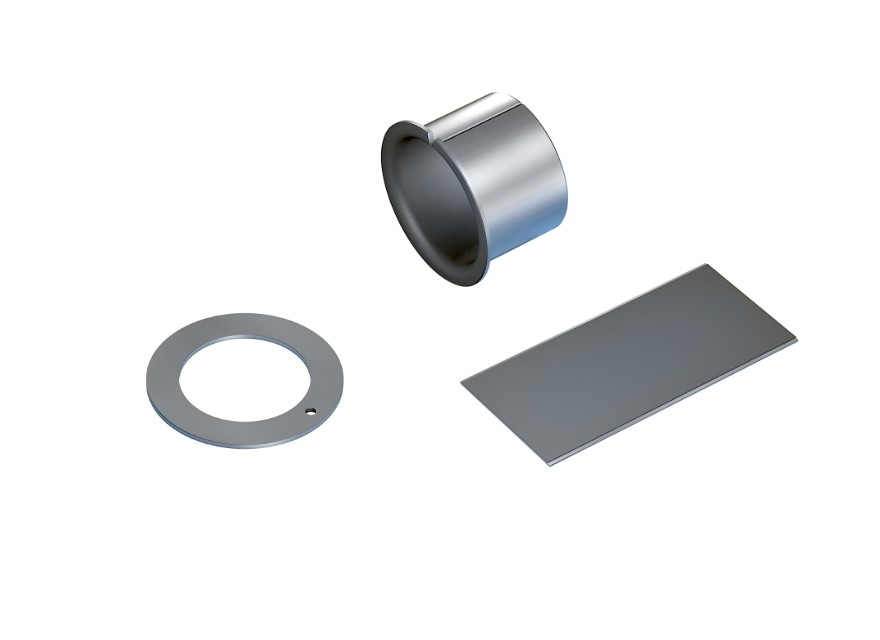

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
