| Brand Name: | Straight Sleeve Bore Bushings |
| Model Number: | sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders. |
| MOQ: | 100 Piece/Pieces (Min. Order) |
| Price: | Negotiable |
| Payment Terms: | TT IN ADVANCE |
| Supply Ability: | THRUST WASHERS & THRUST BEARINGS CUSTOMIZED SIZE SUPPLY |
The thrust washer valve bushing composite material is a unique material combination that offers exceptional performance in various industrial applications. It consists of a (Polytetrafluoroethylene) thrust washer, valve bushing, and a steel backing. The component provides excellent chemical resistance, low friction, and high temperature tolerance, making it suitable for demanding environments.
The steel backing adds strength and durability to the composite, ensuring it can withstand high pressure and loads. The WC08 and WC60 grades refer to the specific tungsten carbide (WC) content in the composite, which further enhances its hardness and wear resistance.
This composite material is often used in valves, pumps, and other fluid handling equipment where high performance and long-term reliability are crucial. Its ability to withstand corrosion, abrasion, and extreme operating conditions makes it a popular choice in various industries, including petrochemical, chemical processing, and power generation.
Spec |
Type |
Dimensions |
Spec |
Type |
Dimensions |

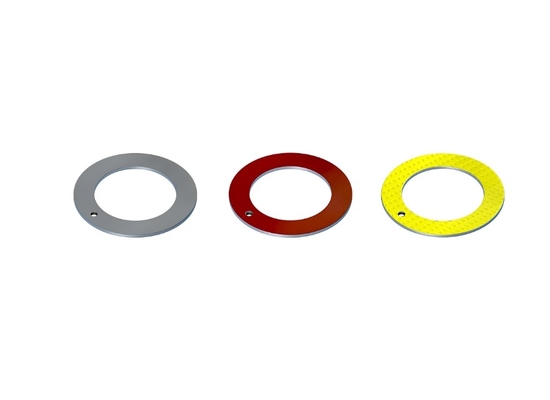

thrust washer |
WC10 |
20～10～1.5 |
thrust washer |
WC26 |
44～26～1.5 |
thrust washer |
WC12 |
24～12～1.5 |
thrust washer |
WC28 |
48～28～1.5 |
thrust washer |
WC14 |
26～14～1.5 |
thrust washer |
WC32 |
54～32～1.5 |
thrust washer |
WC16 |
30～16～1.5 |
thrust washer |
WC36 |
62～38～1.5 |
thrust washer |
WC18 |
32～18～1.5 |
thrust washer |
WC42 |
66～42～1.5 |
thrust washer |
WC20 |
36～20～1.5 |
thrust washer |
WC48 |
74～48～2 |
thrust washer |
WC22 |
38～22～1.5 |
thrust washer |
WC52 |
78～52～2 |
thrust washer |
WC24 |
42～24～1.5 |
thrust washer |
WC62 |
90～62～2 |
Ball valves Butterfly Valves for the Trunnion Guide Bearings Stem Bearings
VIIPLUS is one of valve bushings & wahser manufactures with the advanced valve plant in China who can cover a complete bushings production in order to satisfy the demand and requirements of our clients.high performance bearing solutions High quality Thrust slide washer , from VIIPLUS, premium brand.
All the valve's internal self-lubricating bearings are sliding bearings, the whole material the use of carbon steel liner.
Our bushings & washer product range is covering many valve types like: gate, globe, check, ball, butterfly, nuclear, subsea, control, safety valve & wellhead equipment. All the indicated valve bushings range is being operated within different industries. The bushings majority is being used in the oil & gas, offshore, chemical, power, nuclear, mining and air separation industry.
VIIPLUS is able to provide a complete solution of industrial valves bushings with a fully traceable and in-house quality control system. VIIPLUS proven stable quality, reliability and performance.
With our professional support, we can ensure the prolonged service life of your valve bushing products.
viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.
Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + /Fibre(Metal-Polymer Low Friction Plain Bearings)
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red
VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.
1. /Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.
|
|
Sliding layer |
|
Max. load |
Static |
250N/mm2 |
Max.speed |
Dry running |
0.08~0.20 |
|
|
Very low speed |
140N/mm2 |
Hydrodynamicoperation |
0.02~0.08 |
|||
|
Rotatingoscillating |
60N/mm2 |
Frictioncoefficient |
Dry |
2m/s |
|
|
|
Hydrodynamic |
>2m/s |
|
||||
|
Max. PVdryrunning) |
Short-termoperation |
3.6N/mm2*m/3 |
Thermal conductivity |
42W(m*K)-1 |
|
|
|
Continuousoperation |
1.8N/mm2*m/3 |
|
||||
|
PV max. hydrodynamic |
-195℃~+280℃ |
Coefficient of thermalexpansion |
11*10-6*K-1 |
|
||
|
OPERATING PERFORMANCE |
|
|
Dry |
Good |
|
Oil lubricated |
Very Good |
|
Grease lubricated |
Good |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Good |

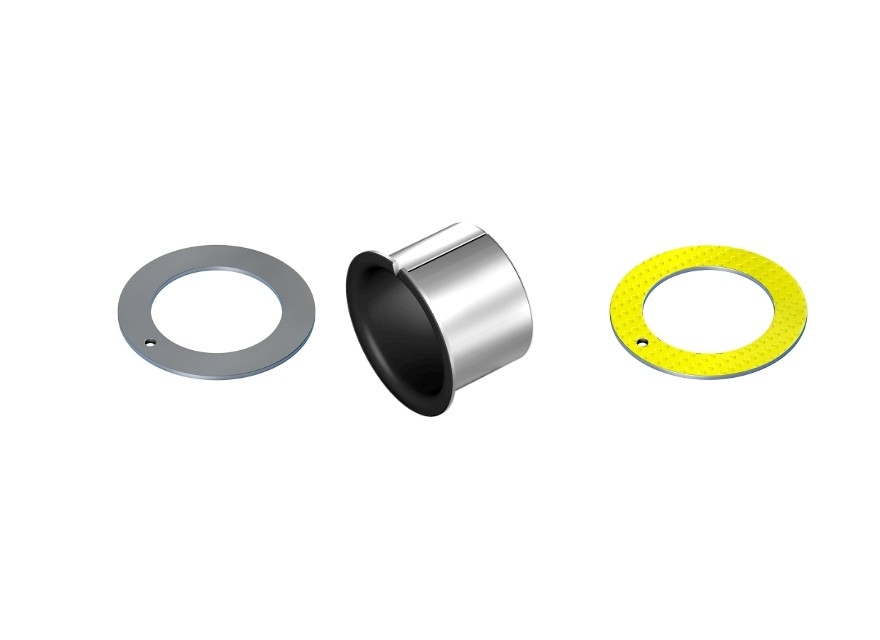

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
START YOUR PROJECTWITH AN APPLICATION ENGINEER
